Горячая Распродажа! Газовый генератор природный газ биогаза биомасса сжиженного углеводородного газа 10 квт-1000 кВт бензиновый с ATS
- Категория: Gas Turbine Generators >>>
- Поставщик: Weifang,Power,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.57 $* | 0.46 $* |
| Aug-19-2025 | 0.79 $* | 0.89 $* |
| Jul-19-2025 | 0.77 $* | 0.78 $* |
| Jun-19-2025 | 0.46 $* | 0.44 $* |
| May-19-2025 | 0.72 $* | 0.68 $* |
| Apr-19-2025 | 0.94 $* | 0.85 $* |
| Mar-19-2025 | 0.38 $* | 0.30 $* |
| Feb-19-2025 | 0.3 $* | 0.34 $* |
| Jan-19-2025 | 0.62 $* | 0.87 $* |
Характеристики
Product Description
High Reliability 10-1000KW Gas Generator
10-1000kw gas generator meet the requirements of environmental protection and new market environment. The fuel can be natural gas, biogas or LPG. They are widely used in areas of oil fields and regions abundant in natural gas or biogas. The genset is quick to start and easy to operate with complete protection system. Most of its economic parameters are capable of leading this industry. The gensets can be used as power stations for oil fields and local enterprises.
* Gas Generator Set working condition:
Normal working conditions:Atmospheric Pressure: 100kPa, Ambient Temp: 25°C, Relative Humidity: 30%, Altitude: ≤1000m
Gas requirement:
Applied gas type :
Nature Gas, Biogas, LPG, CNG, LNG, oil field gas, Syngas, Coal bed methane, straw gas,wood gas etc.
Gas inlet pressure: 0.8-2.0kPa, higher water pressure must use additional decompression machine.
Gas heat value≥5500kcal/Nm3 (23MJ/Nm3 ).
Genset output power will increase as the gas heat value increase, if use low heat value gas for fuel (Heat value <5500kcal/Nm3, it will lower the power efficiency.)
The gas must to desulfurize and dehydrate and dust removal.
H2S ≤ 200mg/Nm3
NH3 content≤20mg/Nm3
Impurity granularity ≤ 5 μm
Impurity content ≤ 30 mg/Nm3
No liquid ingredients (not including free water, light hydrocarbon)
CH4 content ≥ 55%
Normal working conditions:Atmospheric Pressure: 100kPa, Ambient Temp: 25°C, Relative Humidity: 30%, Altitude: ≤1000m
Gas requirement:
Applied gas type :
Nature Gas, Biogas, LPG, CNG, LNG, oil field gas, Syngas, Coal bed methane, straw gas,wood gas etc.
Gas inlet pressure: 0.8-2.0kPa, higher water pressure must use additional decompression machine.
Gas heat value≥5500kcal/Nm3 (23MJ/Nm3 ).
Genset output power will increase as the gas heat value increase, if use low heat value gas for fuel (Heat value <5500kcal/Nm3, it will lower the power efficiency.)
The gas must to desulfurize and dehydrate and dust removal.
H2S ≤ 200mg/Nm3
NH3 content≤20mg/Nm3
Impurity granularity ≤ 5 μm
Impurity content ≤ 30 mg/Nm3
No liquid ingredients (not including free water, light hydrocarbon)
CH4 content ≥ 55%
* Technical Advantages:
1. Adopting advanced Hall ignition sensor and Highly capable ignition system, the engine ignition will be more reliable, and easier to start.
2. Main control parts are imported from USA and Italy, to make more stable and reliable running.
3. Several gensets can be parallel connection , which can increase the total power range. In addition, the gensets can take maintenance in different times,which will make little influence to the normal performance of gensets.
4. Low gas pressure is acceptable, no need to set up specified gas storage tank , which will save the investment and enhance the efficient output power .
5. Self-contained parts of gensets needs few accessories.
6. Economical and low-cost running.
7.The fuel of gas reduces the accumulated carbon, which lessen the damage to between cylinder and valve, therefore, it will largely prolong lifetime.
8. The installation of high-quality control cabinet set enable multiple protection, which enhance the safety for the running of gensets.
1. Adopting advanced Hall ignition sensor and Highly capable ignition system, the engine ignition will be more reliable, and easier to start.
2. Main control parts are imported from USA and Italy, to make more stable and reliable running.
3. Several gensets can be parallel connection , which can increase the total power range. In addition, the gensets can take maintenance in different times,which will make little influence to the normal performance of gensets.
4. Low gas pressure is acceptable, no need to set up specified gas storage tank , which will save the investment and enhance the efficient output power .
5. Self-contained parts of gensets needs few accessories.
6. Economical and low-cost running.
7.The fuel of gas reduces the accumulated carbon, which lessen the damage to between cylinder and valve, therefore, it will largely prolong lifetime.
8. The installation of high-quality control cabinet set enable multiple protection, which enhance the safety for the running of gensets.

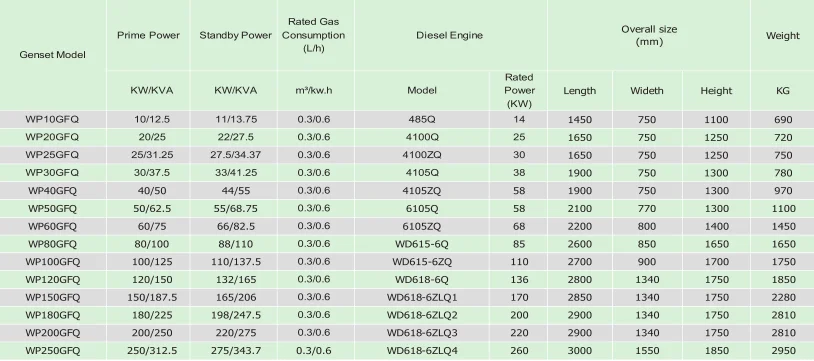

Specification
Generator set | Model | WP10GFQ-WP500GFQ |
Prime Power(KW/KVA) | 10-500KW/12.5-625KVA | |
Type | open type, silent type, trailer type | |
Current(A) | 18-900A | |
Voltage(V) | 110/220, 230/400 | |
Frequency(HZ) | 50/60HZ | |
Engine | Rated Power(KW) | 14-550KW |
Cylinder | 4/6/12 | |
Bore | 85-126mm | |
Stroke | 95-155mm | |
Rated speed | 1500 | |
Start Method | 24V DC starter | |
Speed Governing | Electrical governor | |
Cooling Method | closed water cooling | |
Alternator | Rated Power(kw/kva) | 12-500kw |
Rated Voltage(V) | 230/400V | |
Power Factor | 0.8 (Lag) | |
Connection Type | 3phase4wires | |
EXcitation Method | Brushless | |
Voltage Regulation | AVR | |
Protection | IP23 | |
Class | H |
Packing & Delivery
Protection plastic + Plywood case
Export standard packing
iron case/Wooden case
Export standard packing
iron case/Wooden case
Company Profile
Weifang Power Machinery Equipment Co.,Ltd is based in the world beautiful kite city---Weifang City, Shandong Province, mainly engaged in R&D, producing and marketing of all kinds of diesel generator, gas generator and diesel water pump sets.
Power Machinery annual production of various types of gen-sets is more than 5000 units, power coverage 10-2000kw. It is coupled by world famous brand engine such as Perkins, Cummins, Deutz, Weichai, Yuchai etc with world famous brand alternator such as Stamford, Marathon, Simense etc. It currently widely used in the national defense, telecommunications, petroleum, medical, plateau, railway, wilderness rescue, agriculture and other fields.
We have import and export rights. Our products are sold in 130 plus countries and regions in the world, such as India, Vietnam, Russia, Africa, South America and Middle East.
Weifang Power Machinery Equipment Co.,Ltd. With leading technology and innovation consciousness, strict management system and perfect service network, continuously provides the full range of safe, efficient and perfect power solutions.
Power Machinery annual production of various types of gen-sets is more than 5000 units, power coverage 10-2000kw. It is coupled by world famous brand engine such as Perkins, Cummins, Deutz, Weichai, Yuchai etc with world famous brand alternator such as Stamford, Marathon, Simense etc. It currently widely used in the national defense, telecommunications, petroleum, medical, plateau, railway, wilderness rescue, agriculture and other fields.
We have import and export rights. Our products are sold in 130 plus countries and regions in the world, such as India, Vietnam, Russia, Africa, South America and Middle East.
Weifang Power Machinery Equipment Co.,Ltd. With leading technology and innovation consciousness, strict management system and perfect service network, continuously provides the full range of safe, efficient and perfect power solutions.
