Распродажа Мини Портативная Золотая углубление для Аллювиального
- Категория: Dredger >>>
- Поставщик: Jiangxi,JXSC,Mining,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 1785.78 $* | 1874.12 $* |
| Aug-16-2025 | 1770.73 $* | 1859.93 $* |
| Jul-16-2025 | 1485.26 $* | 1559.40 $* |
| Jun-16-2025 | 1740.71 $* | 1827.82 $* |
| May-16-2025 | 1515.49 $* | 1591.63 $* |
| Apr-16-2025 | 1710.61 $* | 1796.72 $* |
| Mar-16-2025 | 1695.0 $* | 1780.75 $* |
| Feb-16-2025 | 1680.48 $* | 1764.96 $* |
| Jan-16-2025 | 1665.11 $* | 1748.77 $* |
Характеристики
Product Description
Product Introduction

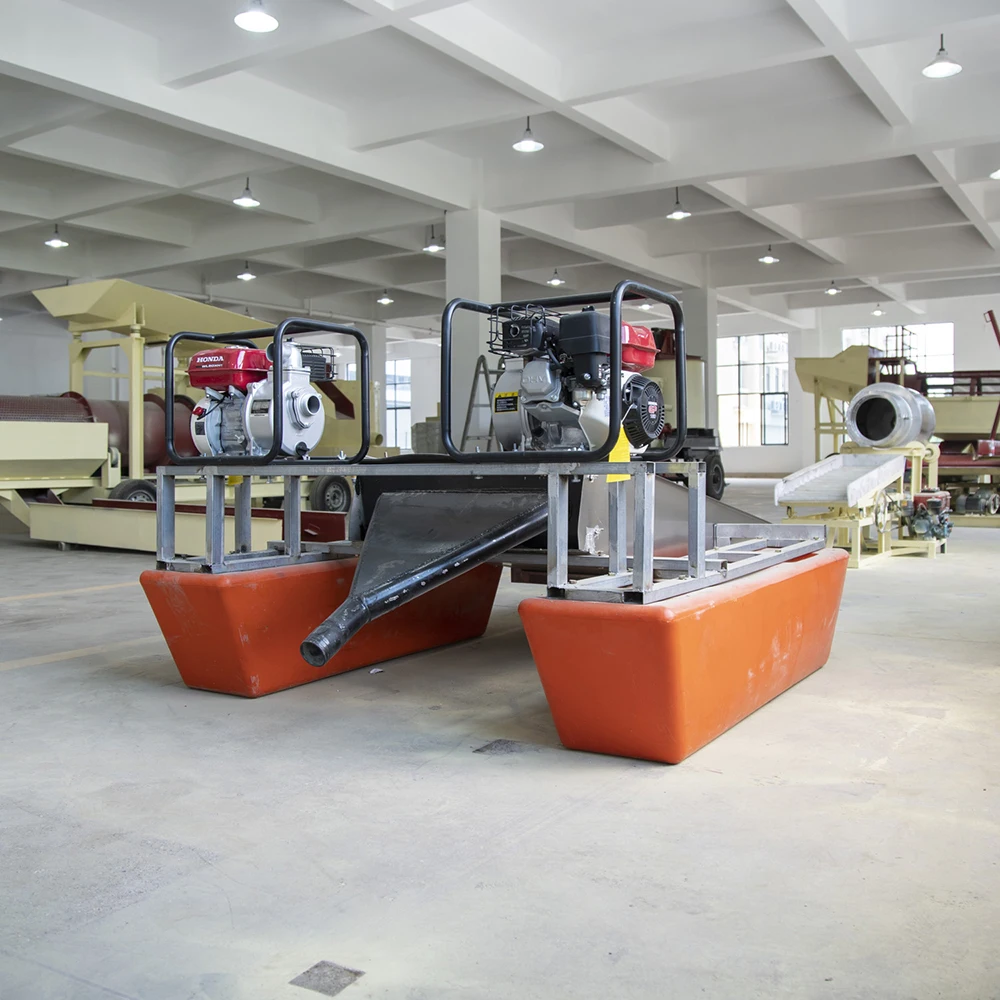

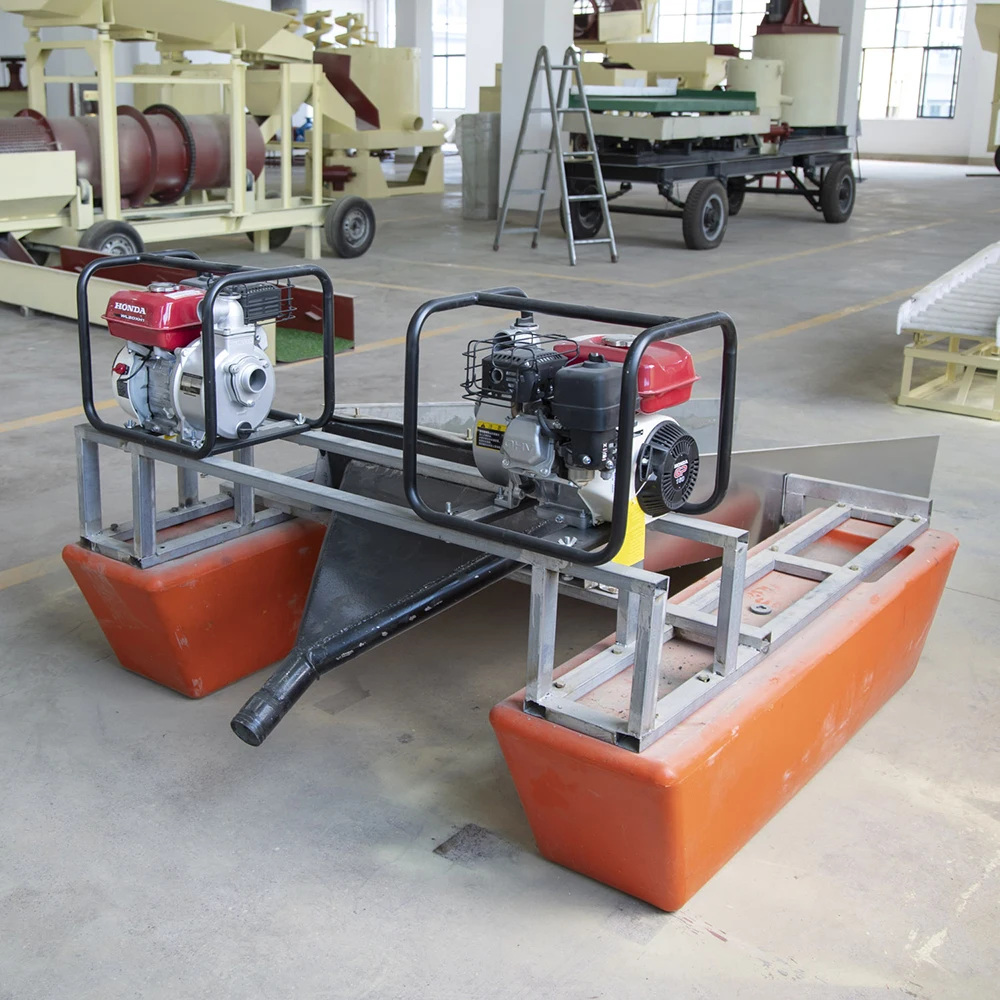

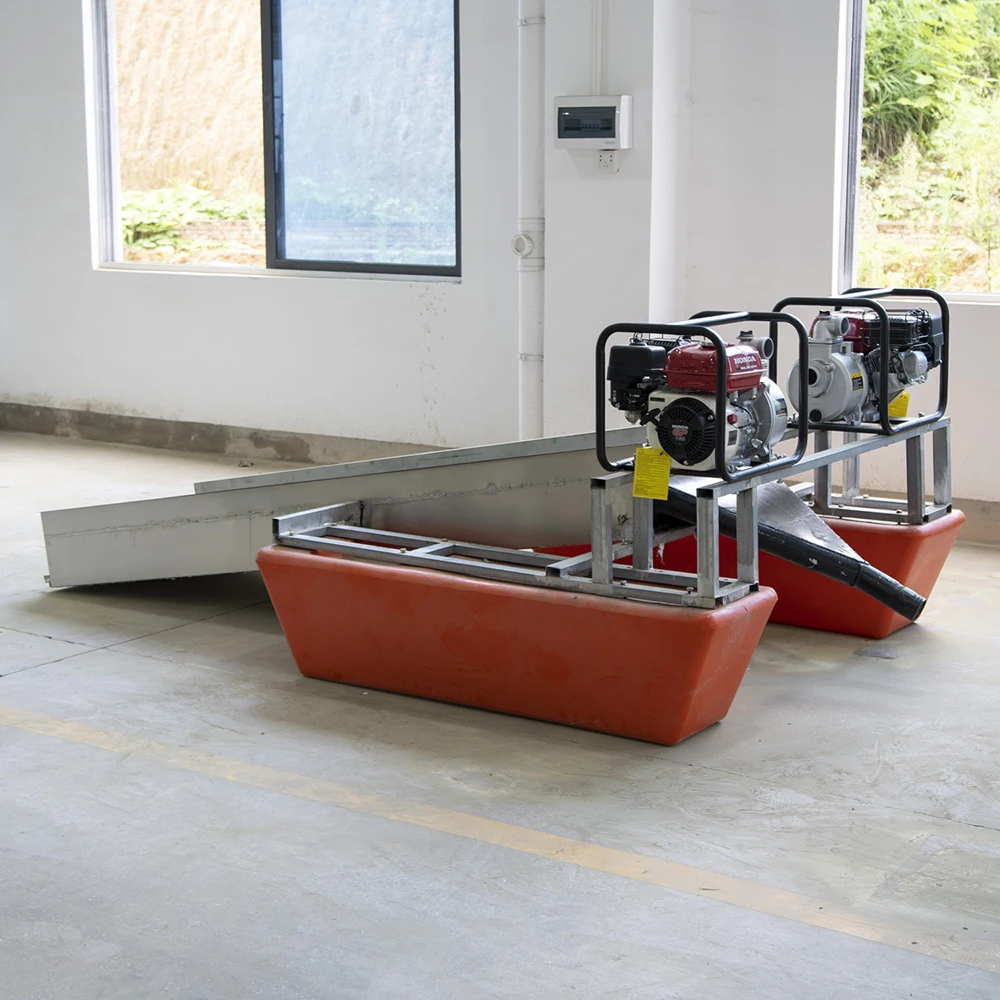

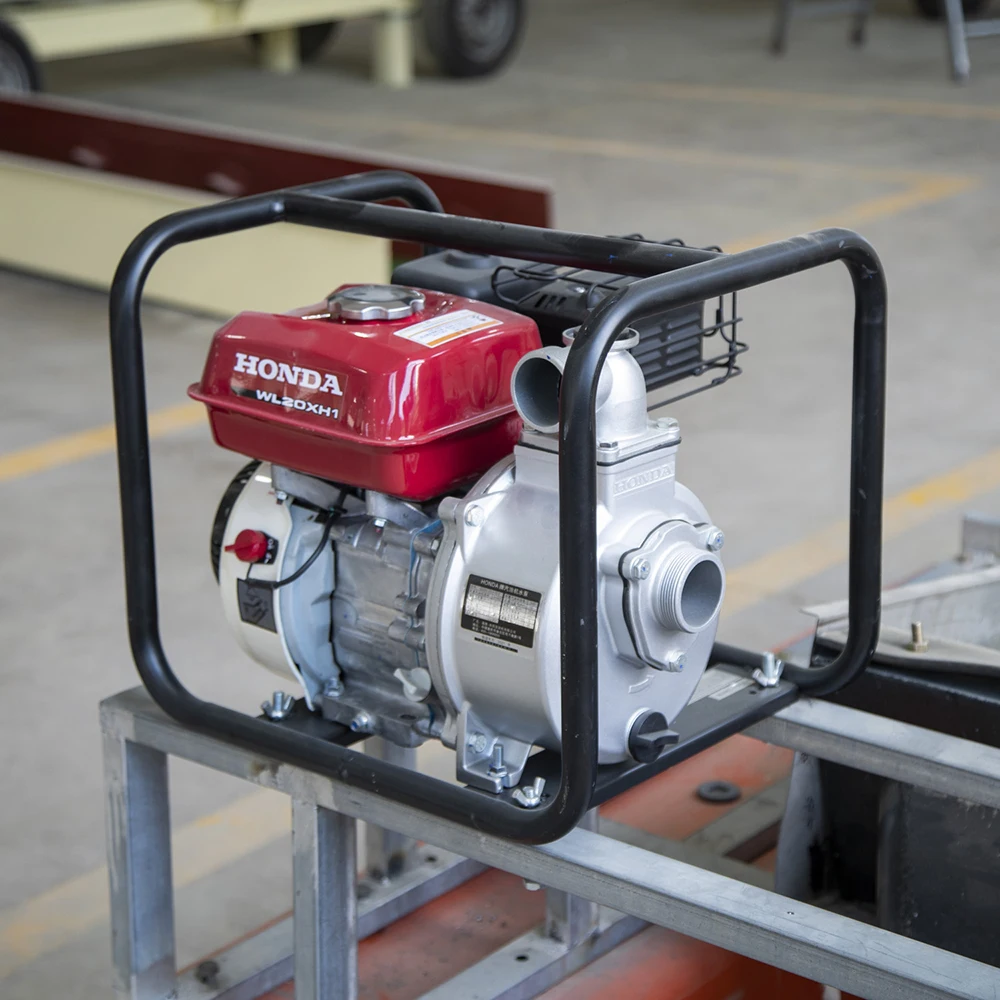

JXSC’s new series of “Mini Gold Dredger” with a gold chute can achieve a high recovery rate. powered by HONDA engine with pump, float is made up of high strength and light weight plastic. There are advantages that smaller in size, easy to transportation , so it is widely used for working of gold mining in mini river channel.
Small Gold Dredger is a professional portable gold mining machine which is specially designed according to the complex riverbed conditions and has passed the ISO9001:2008 standard. This gold mining equipment is flexible to most kinds of geologic structures and has a lot of obvious advantages.

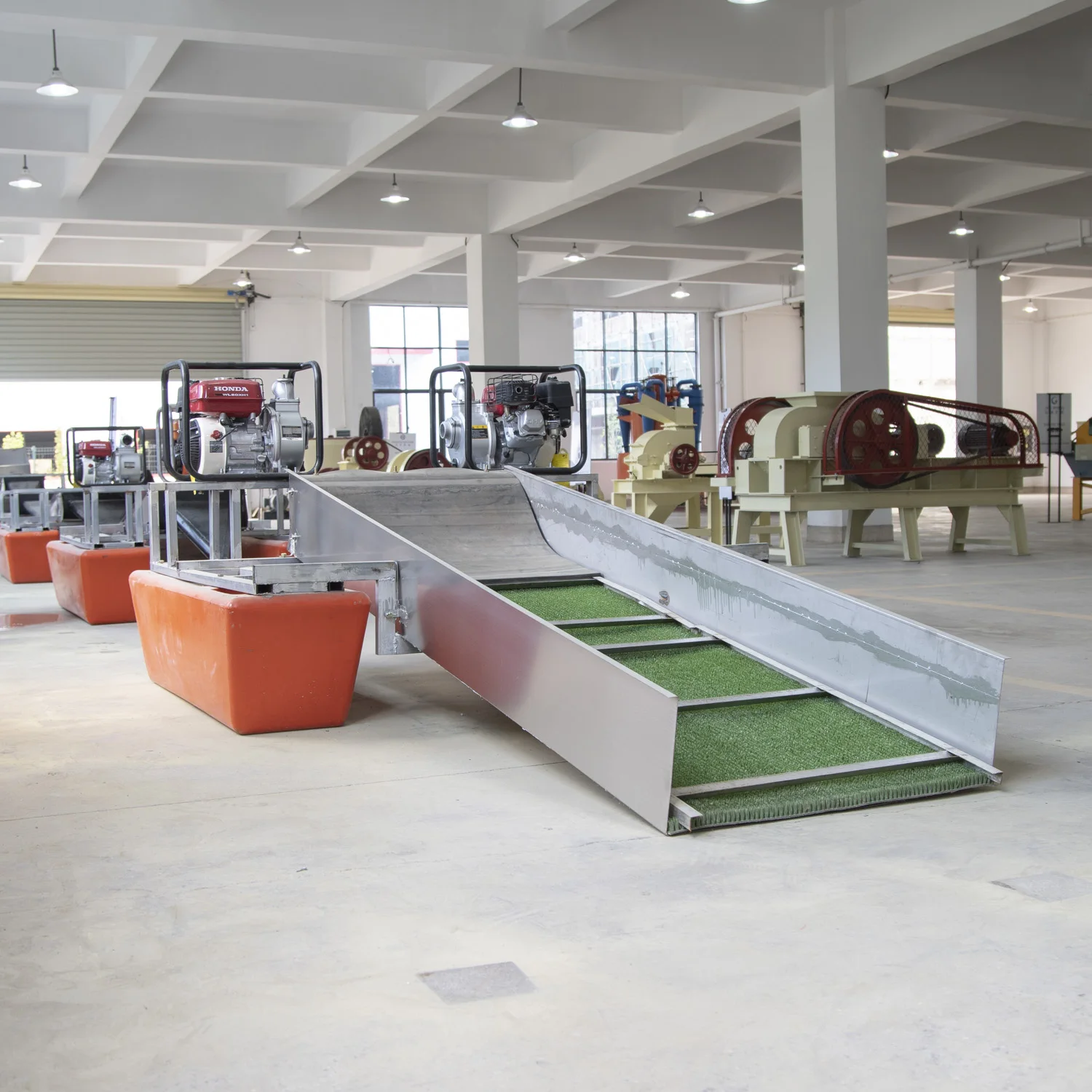

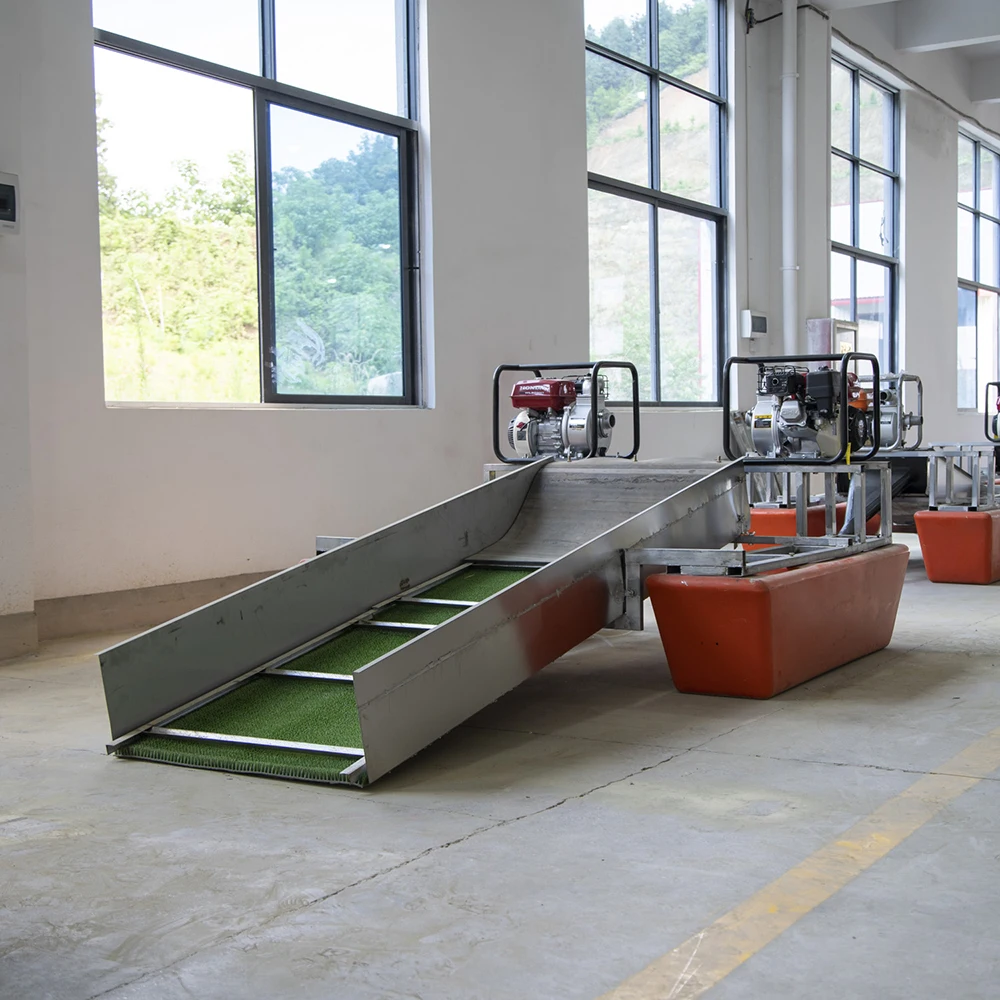

During the portable gold mining equipment working process, on the water, the sand and mud can be suck up from the river bottom through the mud pump, and then be delivered into the chute, after the separation of the sorting sieve, large stones was flowed back to the river, the sand mud with gold grains was stuck in the gold carpet.
Small Gold Dredger is a professional portable gold mining machine which is specially designed according to the complex riverbed conditions and has passed the ISO9001:2008 standard. This gold mining equipment is flexible to most kinds of geologic structures and has a lot of obvious advantages.
During the portable gold mining equipment working process, on the water, the sand and mud can be suck up from the river bottom through the mud pump, and then be delivered into the chute, after the separation of the sorting sieve, large stones was flowed back to the river, the sand mud with gold grains was stuck in the gold carpet.
Products Display
Product Introduction
As an OEM & ODM in gold recovery equipment with rich experience and many Independent Intellectual Property Rights, JXSC Mine Machinery provide different models of mini gold dredge with different dimension sizes and capacity.
Here is a list of our most hottest models, if you want more specific parameters, you can directly contact us.
Here is a list of our most hottest models, if you want more specific parameters, you can directly contact us.
Portable Gold Mining Boat | ||||||
Model | QFT3-2 | QFT4-3 | QFT5-3 | |||
Dimension | 2300*1500*1000mm | 2500*1500*1000mm | 2500*1500*1000mm | |||
Diesel | ||||||
Model | RZ170F | RZ178F | RZ186FA | |||
Power | 5hp | 7hp | 12hp | |||
Rotate speed | 3600rpm | 3600rpm | 3600rpm | |||
Fuel consumption | ≤284g/Kw·h | ≤283g/Kw·h | ≤280g/Kw·h | |||
Fuel capacity | 2.65L | 3.3L | 5.5L | |||
Pump | 1 set | 1 set | 2 sets | |||
Dimension(L*W*H) | 550*450*450mm | 550*470*450mm | 550*500*480mm | |||
Pump diameter | 50mm(2inch) | 80mm(3inch) | 100mm(4inch) | |||
Water flow | 33m³/h | 60m³/h | 80m³/h | |||
Head | 30m | 30m | 25m | |||
Dredging depth | 0.5-0.8 m | 0.5-0.8 m | 1.5 m | |||
Work capacity | 5m³/h | 8m³/h | 13m³/h | |||
Gold chute | ||||||
Dimension(L*W) | 400*1500mm | 500*1700mm | 500*1700mm | |||
With gold felt | With gold felt | With gold felt | ||||
Float | ||||||
Dimension(L*W*H) | 1600*395*370 | 1600*395*370 | 1600*395*370 | |||
Suction pipe | 3inch | 4inch | 5inch | |||
Product Advantages
● Portable, small in size: easy to operate, maintain, transport and assemble, it is most ideal equipment for personal gold mining in mini river channel.
● Hot sale all over the world: Had been exported to more than 15 countries, such as Ghana, Philippines, Vienam, Russia, North Korea, Indonesia, Gabon, America and so on.
● High efficiency: It is equipped with a gold chute with gold carpet for high recovery rate.
● Quick return, high profits: It is highly efficient with low cost, a good gold mining machine.
● Standard quality: Diesel engine power system, float framework is made up of stainless steel structure, the floating body is made of high strength and light weight plastic, which means the main body of the machine is stong, durable and low failure rate.
● Customization design: According to the different geological condition, capacity requirement planning and the customers budget, provid the most ideal product for investor.
● Hot sale all over the world: Had been exported to more than 15 countries, such as Ghana, Philippines, Vienam, Russia, North Korea, Indonesia, Gabon, America and so on.
● High efficiency: It is equipped with a gold chute with gold carpet for high recovery rate.
● Quick return, high profits: It is highly efficient with low cost, a good gold mining machine.
● Standard quality: Diesel engine power system, float framework is made up of stainless steel structure, the floating body is made of high strength and light weight plastic, which means the main body of the machine is stong, durable and low failure rate.
● Customization design: According to the different geological condition, capacity requirement planning and the customers budget, provid the most ideal product for investor.
Packaging & Delivery
Packaging: standard plywood packing
Container:40HQ/40GP/20GP
Container:40HQ/40GP/20GP
Packaging: standard plywood packing
Container:40HQ/40GP/20GP
Container:40HQ/40GP/20GP
Company Introduction
JXSC Mining Equipment Manufacturer is an experienced supplier of Gold Mining Equipment including gold wash plant, stone crusher machine, gravity concentration, magnetic separation, feeder equipment, mining laboratory equipment. Our Gold Wash Plant is widely used for gold mining plant among home and abroad, whole alluvial gold production line and gold mining equipment, diamond mining equipment, silica sand mining own a good name in the international market, owing to advanced design compare to top brands like MSI MINING.
Trusted mining equipment manufacturers leader in mineral processing technologies,ISO9001: 2008 and CE certified,providing high quality manufacturing,engineering support & professional mining design since establishing in China in 1985.
JXSC mine machinery factory, is specializing in manufacturing, and uniquely provides complete range of mining equipment, mining accessories for either placer or hard rock mineral types,also,processing and recovery of various metals and minerals: Precious Metals, Precious and Semi-Precious Stones, Base Metals, Ferrous and Non-Ferrous Metals, Noble Metals, Heavy Metals.
Trusted mining equipment manufacturers leader in mineral processing technologies,ISO9001: 2008 and CE certified,providing high quality manufacturing,engineering support & professional mining design since establishing in China in 1985.
JXSC mine machinery factory, is specializing in manufacturing, and uniquely provides complete range of mining equipment, mining accessories for either placer or hard rock mineral types,also,processing and recovery of various metals and minerals: Precious Metals, Precious and Semi-Precious Stones, Base Metals, Ferrous and Non-Ferrous Metals, Noble Metals, Heavy Metals.
7*24 hours online consulting service, we provide you with the prophase plan, process flow design and
manufacturer equipment according to your special demand.
manufacturer equipment according to your special demand.
Send technicians to the job site guiding the installation and adjustment, training operators and finishing the check and accept together with you.
FAQ
1.How is the quality of your products?(mining equipment/machine)
Answer: Our products are manufactured strictly according to national and international standard, and we will do a test on every machine before delivery.
2.Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description or promise we made before you place order, we promise 100% refund.
3.How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
4.Service and Payment Terms?
Answer: We can accept T/T and L/C; 30% deposit, 70% balance before factory delivery, which is international trade practice; Finished product pictures will be provided to customers before delivery.
If you are interested in our products, please don't hesitate to contact us. Could you tell me the following questions, so that I can give you a complete solution, including best Exw-works Price Quotation!
1. Which machine do you need? like gold washing machine, spiral chute, vibrating screen, Jig separator, Shaking table, etc.
2. What is your raw ore that you plan to process? like gold ore, diamond ore, tantalite or silica sand, etc.
3. What is the capacity you need? Like 10 tones per hour.
4. What is the feeding size to the machine? and what is the discharging-material size that you require? Sincerely welcome to send your inquiry,you can get best quotation and professional service.
