Настенный контроллер 2x2

Цена:169,00 $ - 199,00 $*

Количество:

Product Description

Specification

Name	Specification
HDMI Signal	HDMI1.4(HDCP1.3) DVI1.0，HDMI embedded audio；

Output Signal

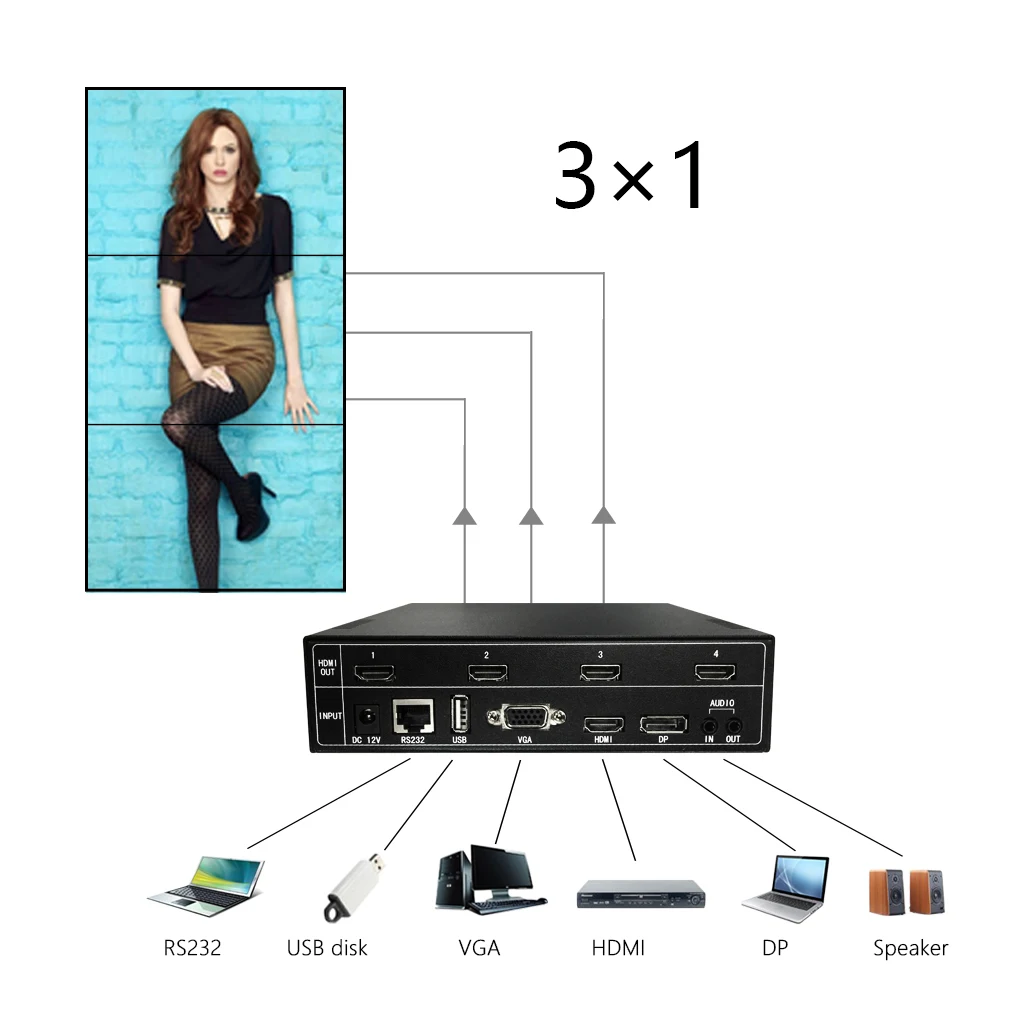

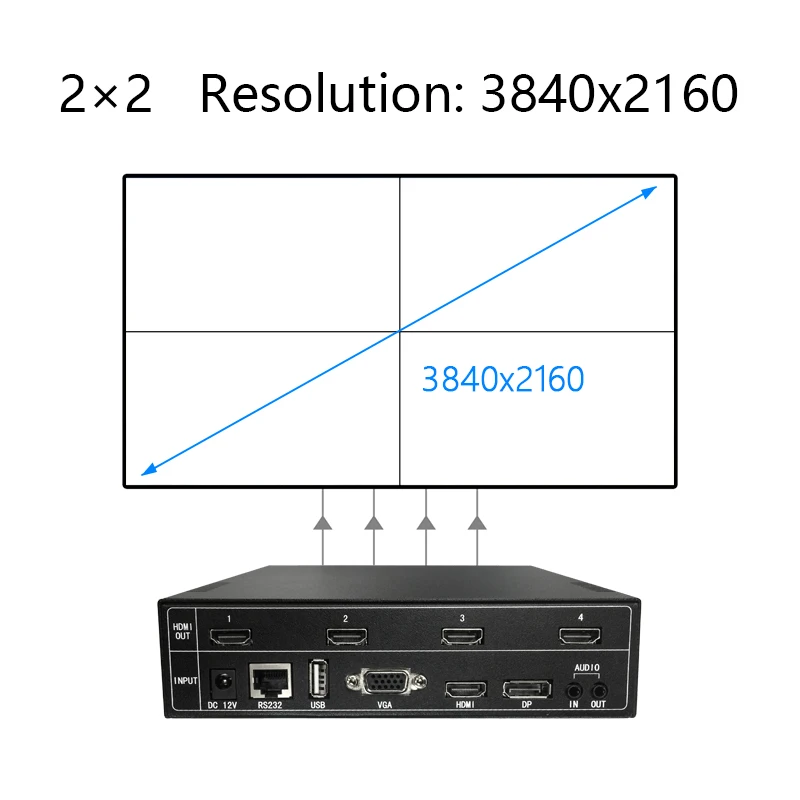

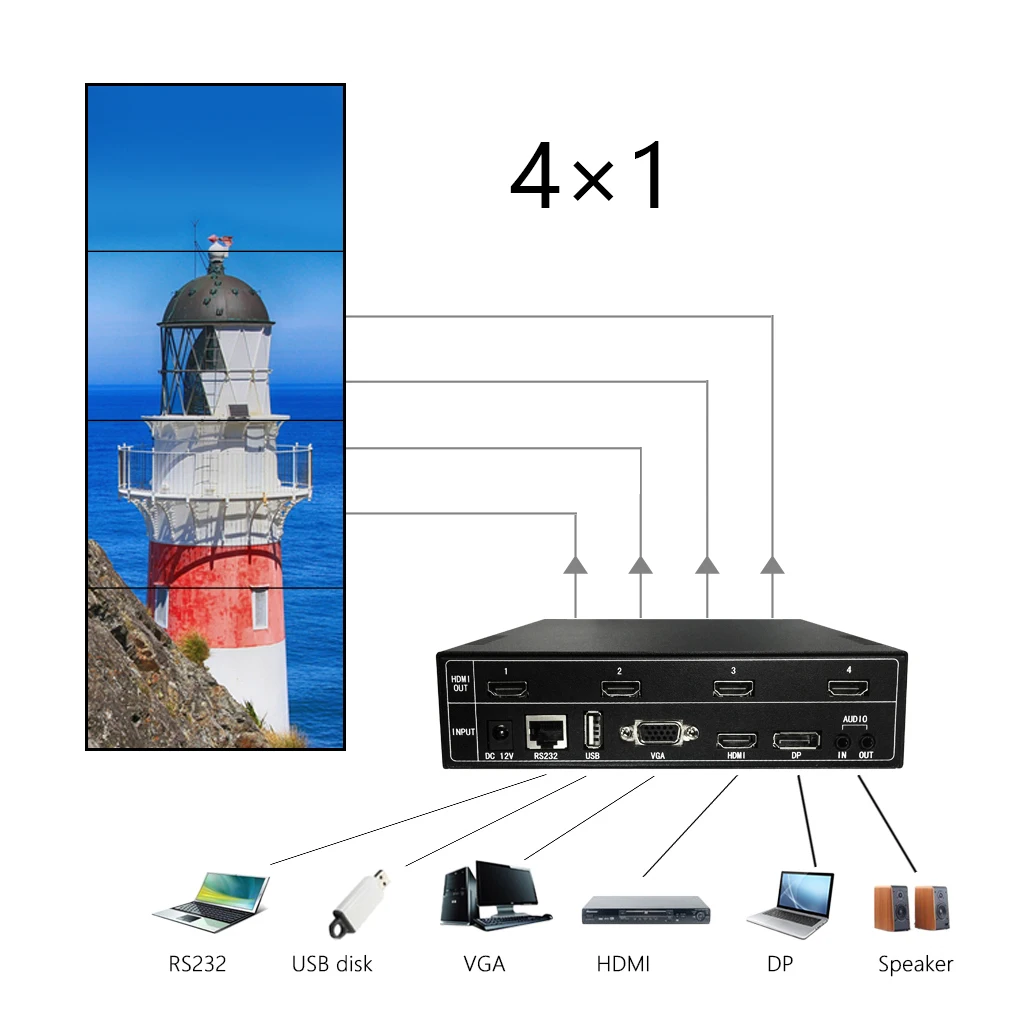

HDMI output interface	4 way HDMI output，support 22，2unit 12， 13 14，4*1 splcing mode；Single unit supports up to 4 HDMI signal outputs; the maximum resolution is 1920x1080/60Hz
Audio output	3.5 audio interface, support stereophonic sound channels, audio and video signal synchronization switch;

Other
control method	Infrared remote control, front panel keys, RS-232 serial port
Power supply	DC 12V - 3A
Splicing scale	Simple 4 screen spcling
Power	12w
Recommended maximum input distance	When Less than 30 meters, at 1920x1080@60hz,recommend to use certified hdmi special wire
Recommended maximum outnput distance	When Less than 20 meters, at 1920x1080@60hz,recommend to use certified hdmi special wire
Product Name	video wall controller
Type of control	Serial control, button, remote control
Baud rate and protocol	Baud rate：9600，Data bits：8，Stop bit：1，No parity
Temperature	:-20°c - 70°c
humidity	：10% - 90%
Case Size	210mm160mm45mm
Weight	1.2kg
Average time between failures	30000H
