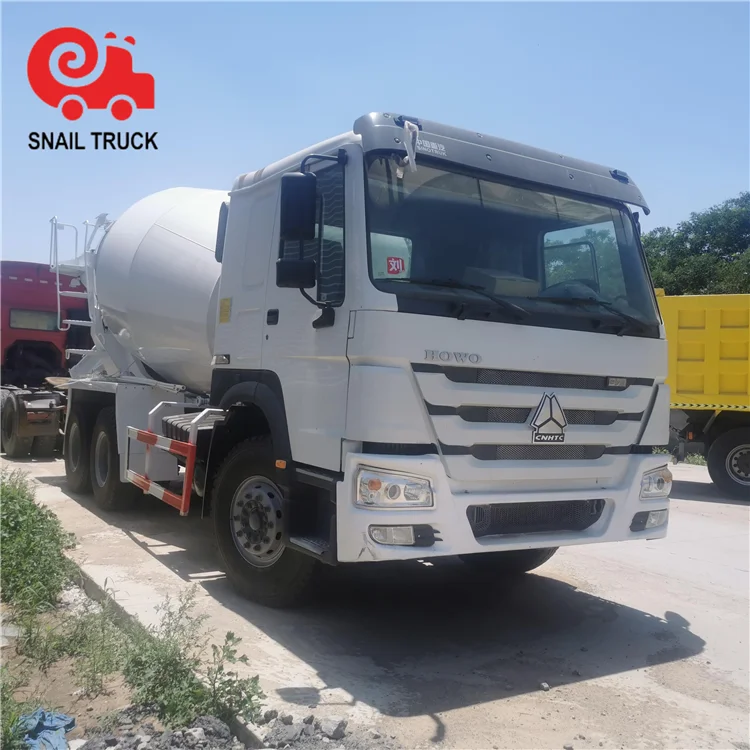

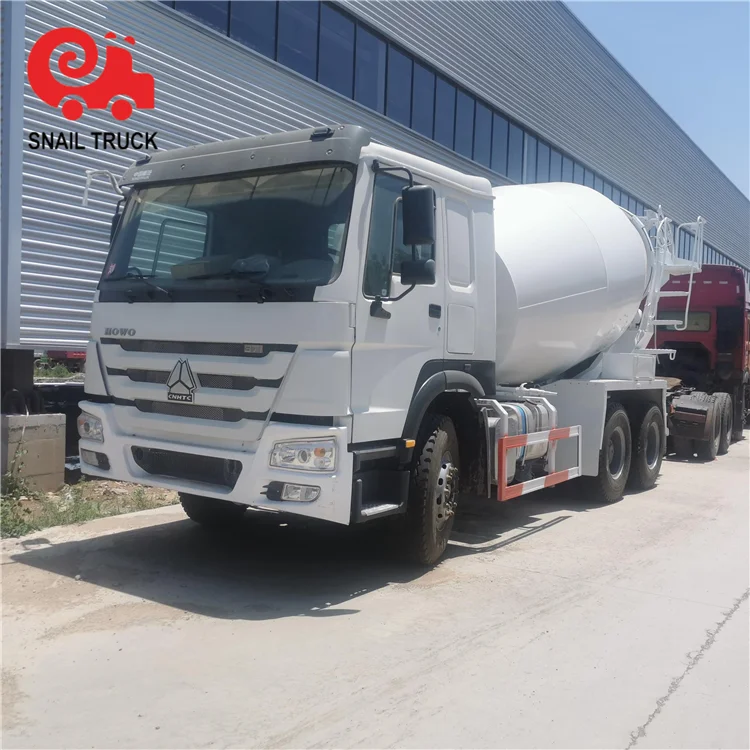

Качественный бетоносмеситель Sinotruk HOWO 6*4 с

Drive form:

6X4

Body size:

9.9×2.5×3.99m

Front suspension/rear suspension:

1.5/3.025 meters

Wheelbase:

4025+1350mm

Rated load:

11.8 tons

Vehicle weight:

13.07 tons

Maximum speed:

85km/h

Front track/rear track:

Front track: 2022, rear track: 1830/1830mm

engine model:

Sinotruk WD615.95E

Number of cylinders:

6

Maximum output power:

247kW

Maximum horsepower:

336 horsepower

Displacement:

9.726L

Emission Standards:

National Three

Engine form:

Inline

Vehicle announcement:

CSC5257GJBZ12

Vehicle type:

Concrete mixer truck

Slump:

40.23mm

Speed of mixing drum:

6-12r/min

Feeding speed:

3m³/min

Discharge speed:

2m³/min

Residual rate of discharge:

<0.7%

Fill rate:

58.7%

Water supply method:

Air pressure water supply

Hydraulic system:

Closed hydraulic circuit

Water tank volume:

500m³

other:

Can be used as 10/12 cubic mixing drum

Gearbox model:

Sinotruk HW15710

Number of gears:

10 gears

Chassis brand:

Sinotruk Howo (HOWO)

Chassis model:

ZZ1257N4048W

Front axle description:

HF9T

Rear axle description:

HC16T

Number of springs:

9/12

Number of tires:

10

Tire specifications:

12.00-20
