Веб-камера ELP 1080P HD 1920x1080 30 кадров в секунду IMX323 сенсор с ручной фокусировкой при слабом освещении 5-50 мм зум 10X Объектив


Поделиться:


Цена:64,24 $ - 68,25 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-18-2025 76.92 $* 80.52 $*
Aug-18-2025 76.72 $* 80.36 $*
Jul-18-2025 63.66 $* 66.88 $*
Jun-18-2025 74.85 $* 78.57 $*
May-18-2025 65.72 $* 68.34 $*
Apr-18-2025 73.40 $* 77.38 $*
Mar-18-2025 72.26 $* 76.78 $*
Feb-18-2025 72.6 $* 76.30 $*
Jan-18-2025 71.19 $* 75.52 $*

Характеристики



Products Description

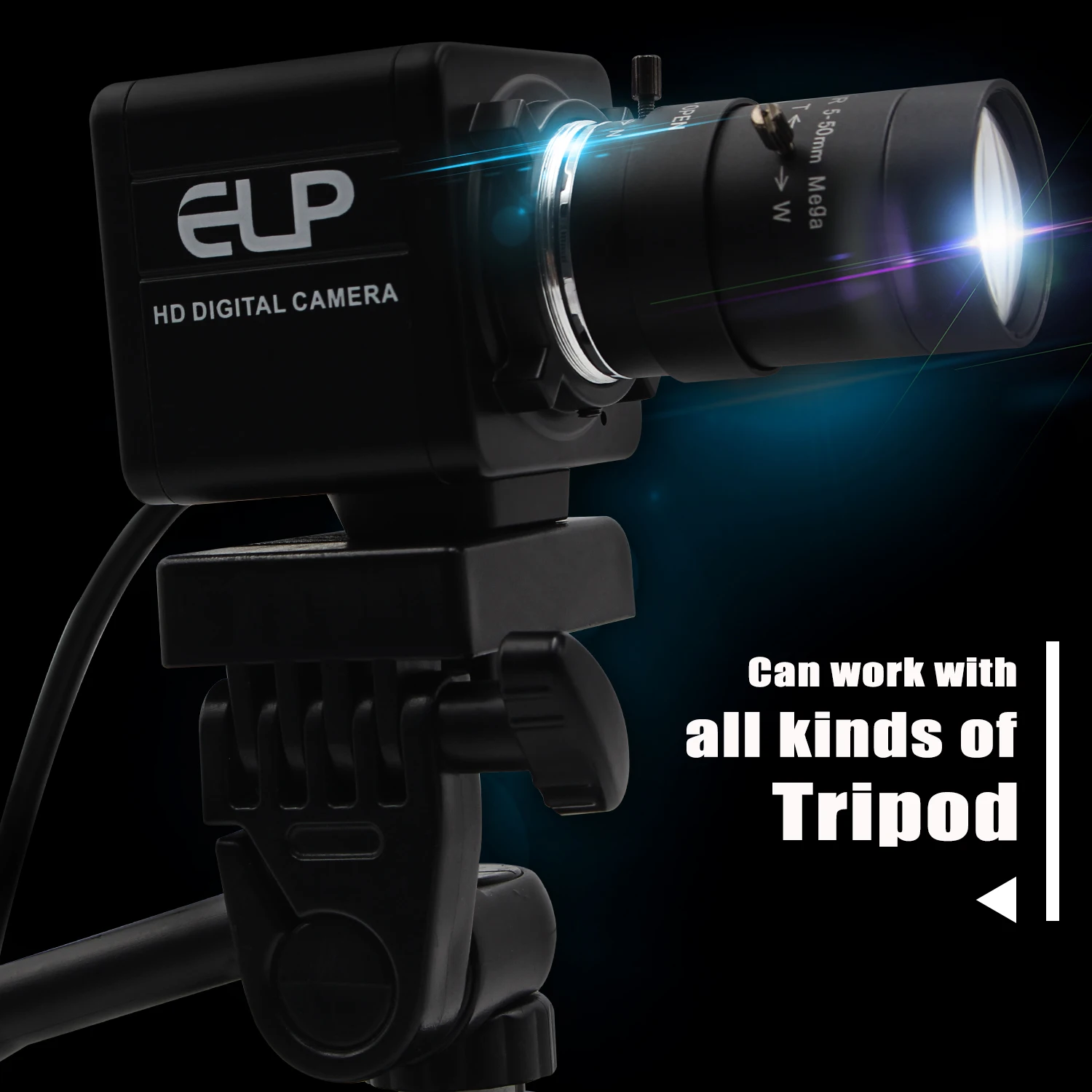

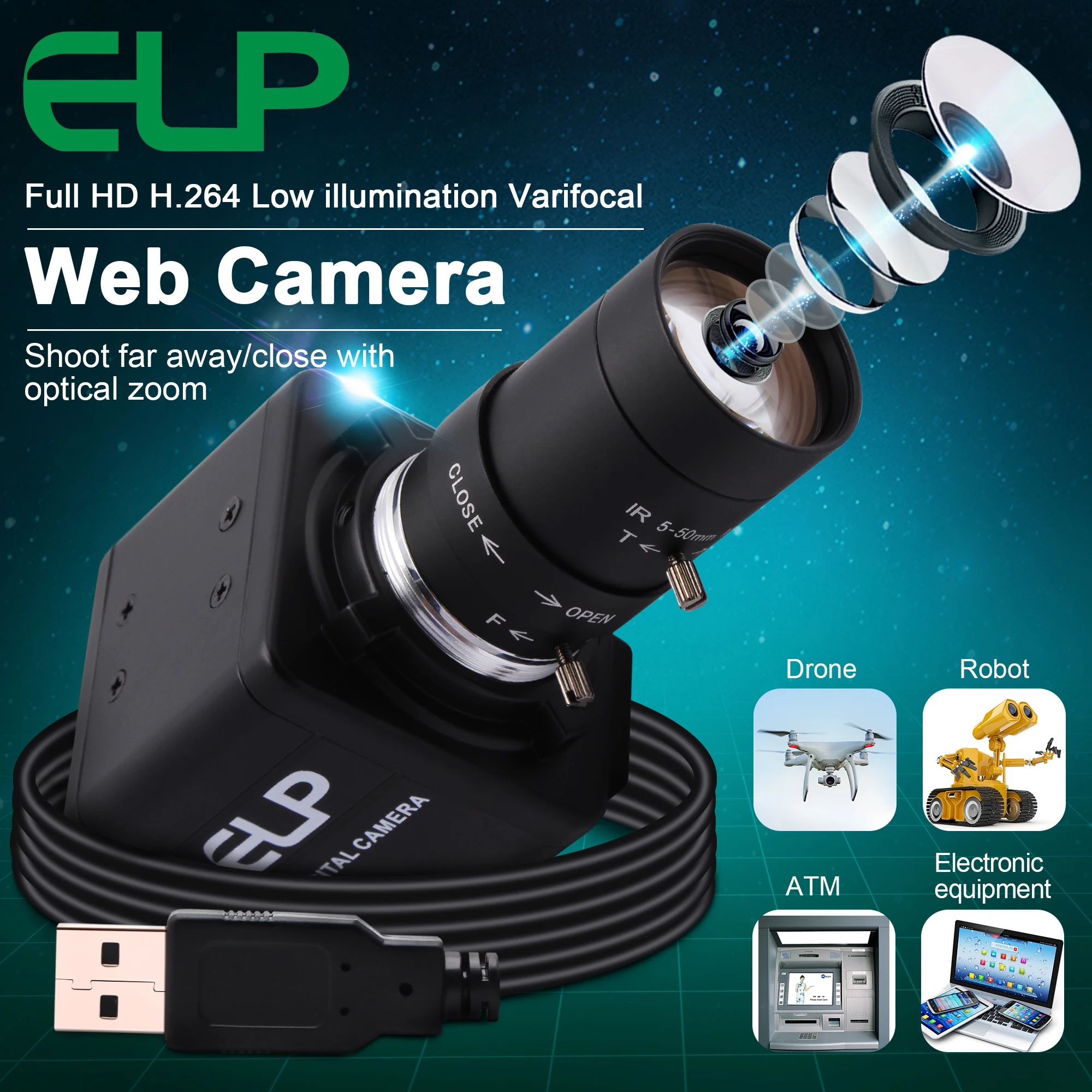

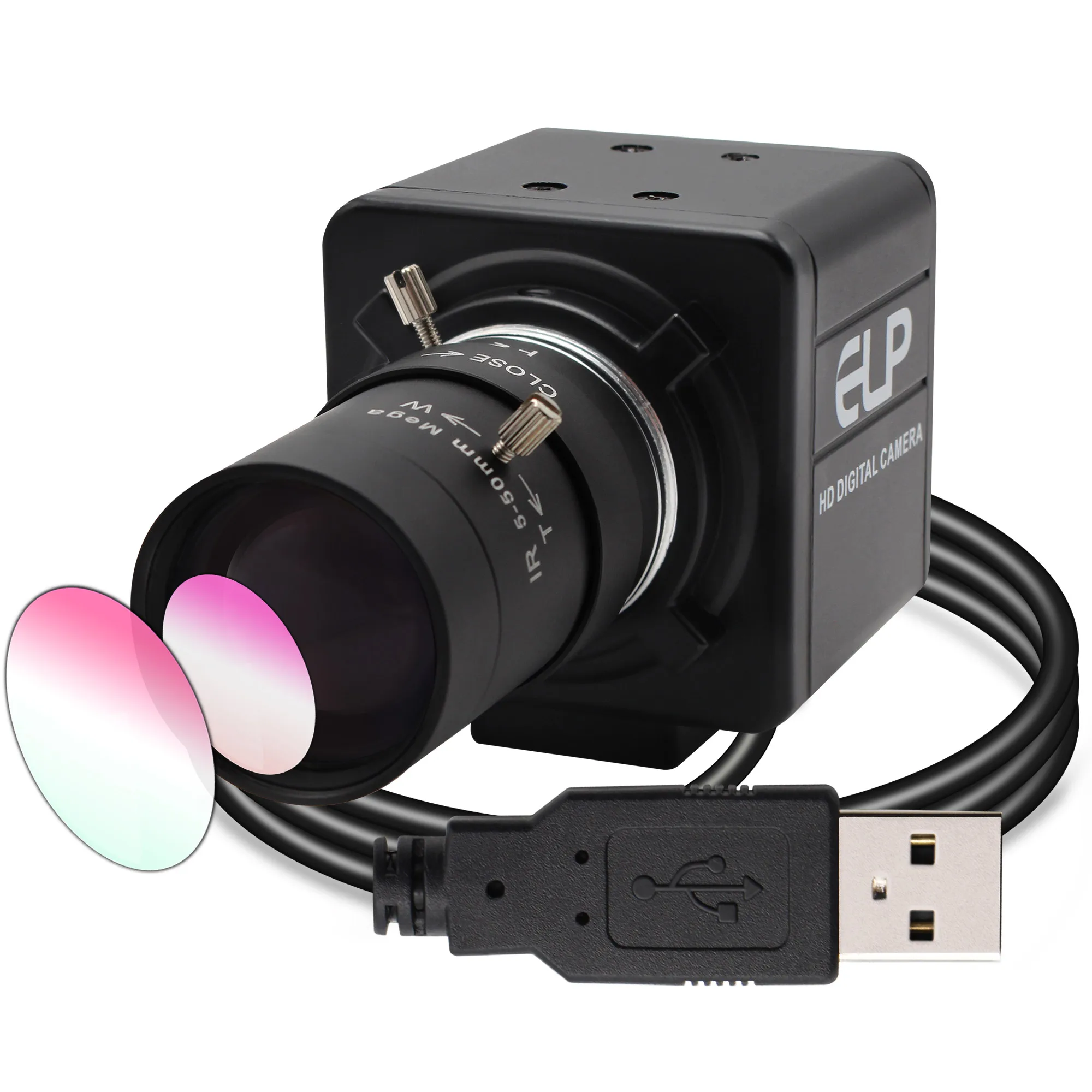

ELP Webcam 1080P HD 1920x1080 30fps IMX323 Low Illumination 0.01Lux Manual Focus 5-50mm Zoom 10X Lens Mini Video Camera


Key Features


1. Ultra Low light Camera, Minimum illumination0.01lux
2. Support otg protocal
4. Max resolution :1920*1080P ,2.0 Megapixel

5. Highly advanced Sony 323 Sensor

6. Compression format : H264 /MJPEG / YUV2(YUYV)

7. White balance Function: Excellent indoor and outdoor effects, vivid colors

8. Equiped with 2.8-12mm/5-50mm varifocal lens , 4/6/8/12mm CS lens optional

9.Support OS : Windows 7.8.10 , Android, Linux, Mac ( 13 version or above)



Specification


Model
ELP-USBFHD06H-MFV(5-50mm)
Sensor
Sony IMX323
Lens Size
1/2.9 inch
Pixel Size
12.8X11.6 mm
image area
2000(H)X1121(V) approx. 2.24 M pixels
Max. Resolution
1080P
Compression format
H264 /MJPEG / YUV2(YUYV)
Resolution & frame
H264:320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps /800X600@ 30fps/1280X720@ 30fps/1920X1080@ 30fps
MJPEG:320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps /800X600@ 30fps/1280X720@ 30fps/1920X1080@ 30fps
YUV:320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps /800X600@ 15 fps
S/N Ratio
42dB
Dynamic Range
86dB
Sensitivity
5.0V/lux-sec@550nm
Mini illumination
0. 01 lux
Shutter Type
Electronic rolling shutter / Frame exposure
Connecting Port type
USB2.0 High Speed
Free Drive Protocol
USB Video Class(UVC)
Support OTG Protocol
USB2.0 OTG
AEC
Support
AEB
Support
AGC
Support
Adjustable parameters
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
Gain, White balance, Backlight Contrast, Exposure
Lens Parameter

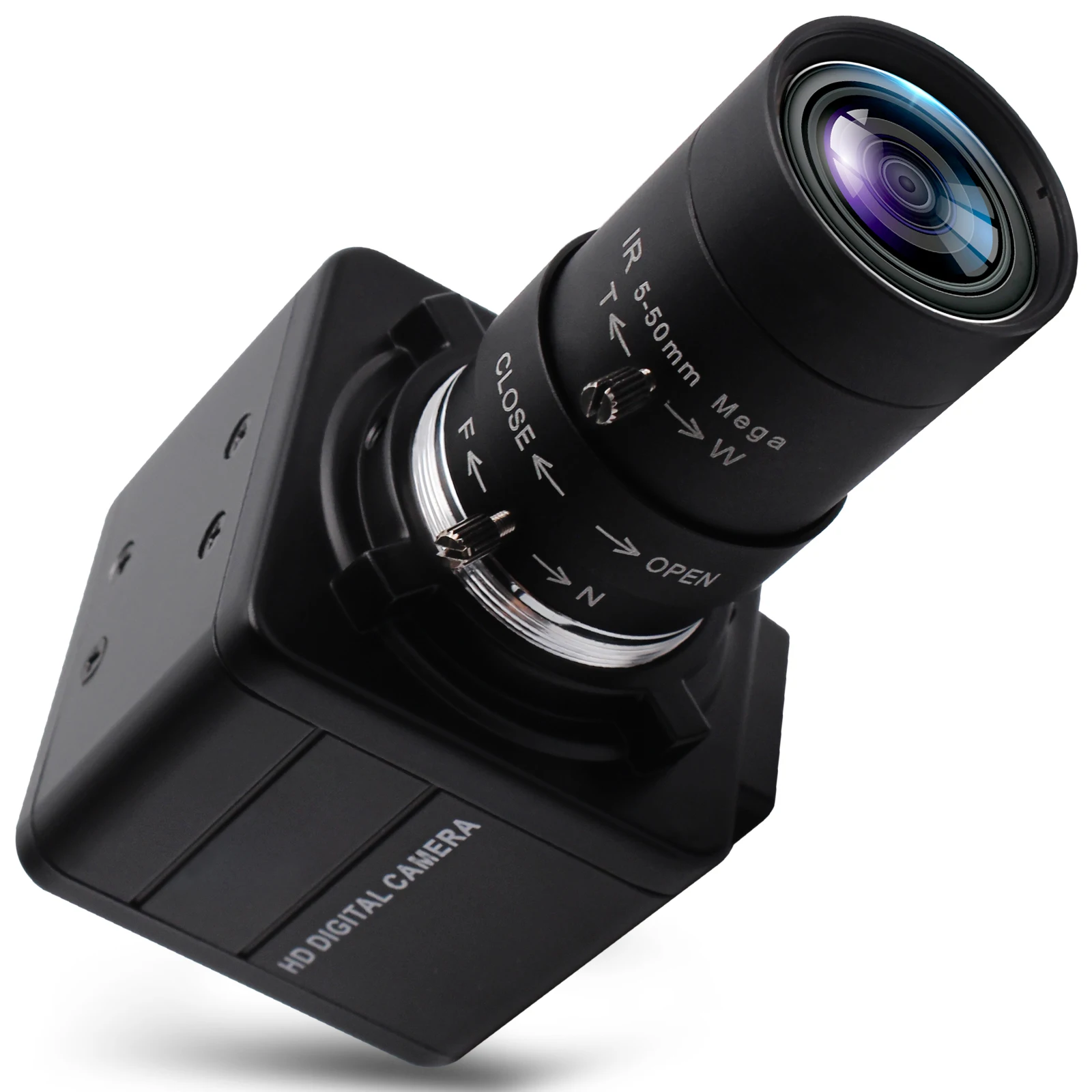

5-50mm varifocal lens CS mount
Digital audio
High quality digital MIC, support single, dual channel
LED board power connector
Support 2P-2.0mm socket
Power supply
USB BUS POWER 4P-2.0mm socket
Power supply
DC5V
Operating Voltage
140mA~190mA
Working current
-10~70℃
Working temperature
-20~85℃
Board size /Weight
38X38mm(Compatible 32X32mm)/ about 30g
Cable
Standard 1M / optional 2M,3M,5M
Operating system request
Win7 Win8
Linux 2.6 or above
Android 4.0 or above


Details Images




Company Profile










Packing & Delivery


Packing
1. Camera module without case,
2PCS/ Box, 48 Boxes(96PCS)/Carton, Dimension:39x36x32cm
2.Camera with case:
1PCS/ Box, 48 Boxes (48PCS)/Carton, Dimension: 39x36x32cm




Delivery
We send goods to all over the world via experess: DHL ,UPS, Fedex, TNT, EMS ,etc.
We mainly use DHL, which 3-7 working days to arrive.
Air way bill is also available for us.




FAQ


1. Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.

2. Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.

3. What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.

4. Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module

5. What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens

6. What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System, Mac

7. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL

8. Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.

9. Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.

10. Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
