Характеристики

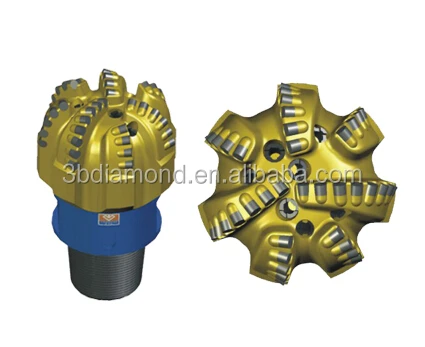

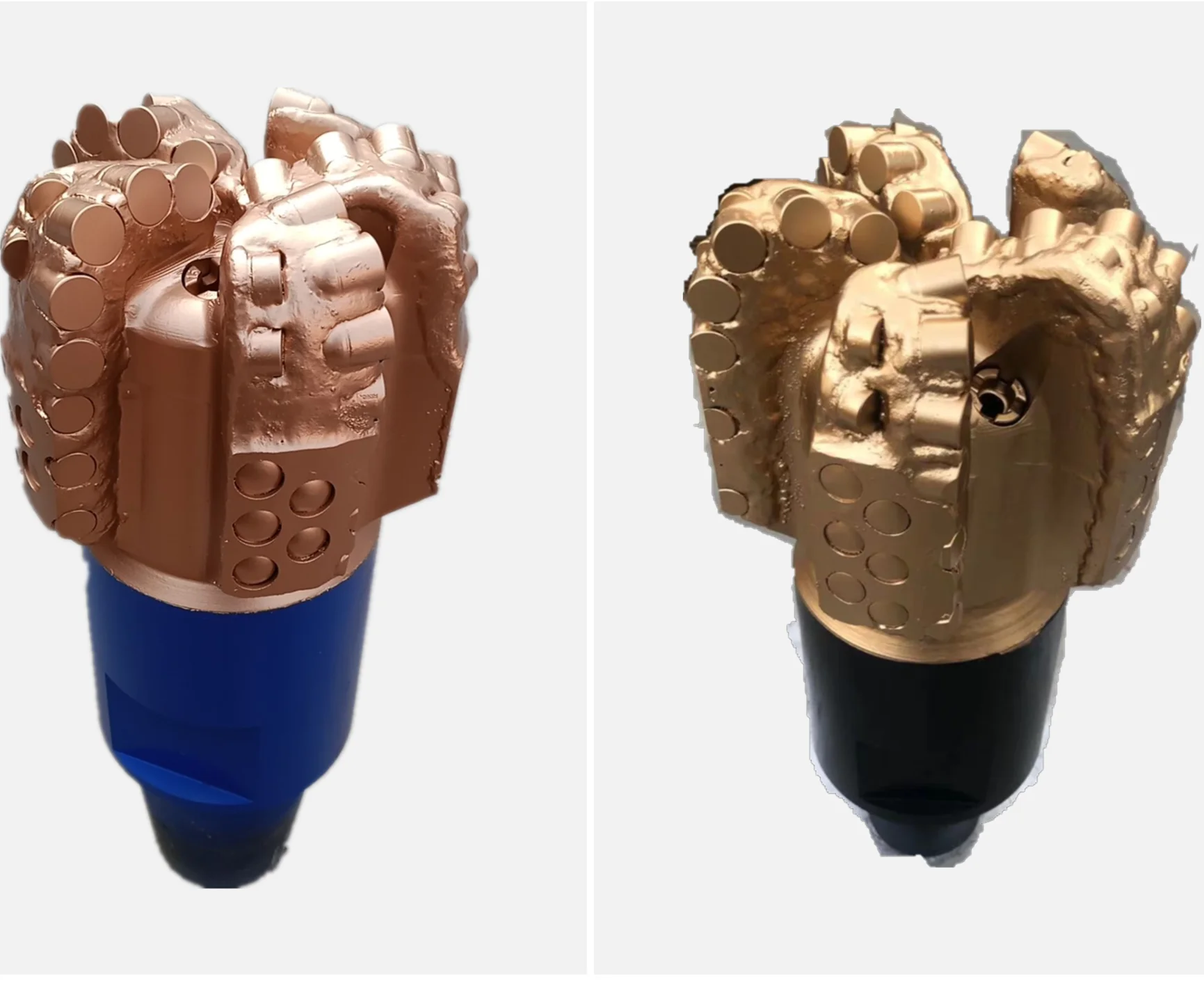

152mm Diamond PDC drill bit for well drilling
PCD drill bits diameter:152mm
PCD pins d:16mm
Body:Tungsten carbide coated on the exterior of the steel substate 3 1/2" Reg. or 2 3/8 Reg
Application:
1.Tunnel Construction Drilling
2.Coal Mining
3.Petroleum Drilling
Advantage:
1. High drilling speed
2. Long working life
3. Stable and Safe work
Size Table:
| Regular Models of Tricone Bits | |||
| Regular Sizes | Regular IADC | API Reg Pin | Make-up Torque(N.m) |
| 3 7/8"(98.4mm) | 126/216/637 | 2 3/8 | 4100~4700 |
| 4 5/8"(117.4mm) | 126/216/517/537/637 | 2 7/8 | 6100~7500 |
| 5 1/4"(133.3mm) | 126/216/517/537/637 | 3 1/2 | 9500~12200 |
| 5 5/8"(142.8mm) | 126/216/517/537/637 | 3 1/2 | 9500~12200 |
| 5 7/8"(149.2mm) | 126/216/517/537/637 | 3 1/2 | 9500~12200 |
| 6"(152.4mm) | 126/127/216/517/537/617/637 | 3 1/2 | 9500~12200 |
| 6 1/4"(158.7mm) | 126/127/216/517/537/617/637 | 3 1/2 | 9500~12200 |
| 6 1/2"(165mm) | 126/127/216/517/537/617/637 | 3 1/2 | 9500~12200 |
| 7 1/2"(190mm) | 126/216/517/537 | 4 1/2 | 16300~21700 |
| 7 5/8"(193mm) | 126/216/517/537 | 4 1/2 | 16300~21700 |
| 7 7/8"(200mm) | 126/216/517/537 | 4 1/2 | 16300~21700 |
| 8 1/2"(215.9mm) | 117/127/217/437/517/537/617/637 | 4 1/2 | 16300~21700 |
| 9 1/2"(241.3mm) | 117/127/217/437/517/537/617/637 | 6 5/8 | 38000~43400 |
| 9 7/8"(250.8mm) | 117/127/217/437/517/537/617/637 | 6 5/8 | 38000~43400 |
| 10 5/8(269.8mm) | 117/127/137/217/517/537/617/637 | 6 5/8 | 38000~43400 |
| 11 5/8(295.3mm) | 117/127/137/217/517/537/617/637 | 6 5/8 | 38000~43400 |
| 12 1/4"(311.1mm) | 114/127/217/437/517/537/617/637 | 6 5/8 | 38000~43400 |
| 13 5/8"(346.0mm) | 127/217/517/537/617/637 | 6 5/8 | 38000~43400 |
| 14 3/4"(374.6mm) | 127/217/517/537/617/637 | 7 5/8 | 46100~54200 |
| 17 1/2"(444.5mm) | 114/115/125/215/515/535/615/635 | 7 5/8 | 46100~54200 |
| 26"(660.4mm) | 114/115/125/215/515/535/615 | 7 5/8 | 46100~54200 |
