Сверла из легированной стали для формирования

Сверла из легированной стали для формирования

Категория: Mining Machine Parts >>>
Поставщик: Jining,Luheng,Machinery,Equipment,Co.,Ltd.

Цена:180,00 $ - 200,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	214.42 $*	225.78 $*
Aug-15-2025	212.88 $*	223.33 $*
Jul-15-2025	178.81 $*	187.70 $*
Jun-15-2025	209.38 $*	219.17 $*
May-15-2025	182.86 $*	191.24 $*
Apr-15-2025	205.2 $*	215.17 $*
Mar-15-2025	203.72 $*	213.12 $*
Feb-15-2025	202.74 $*	212.47 $*
Jan-15-2025	200.78 $*	210.89 $*

Характеристики

Product Overview

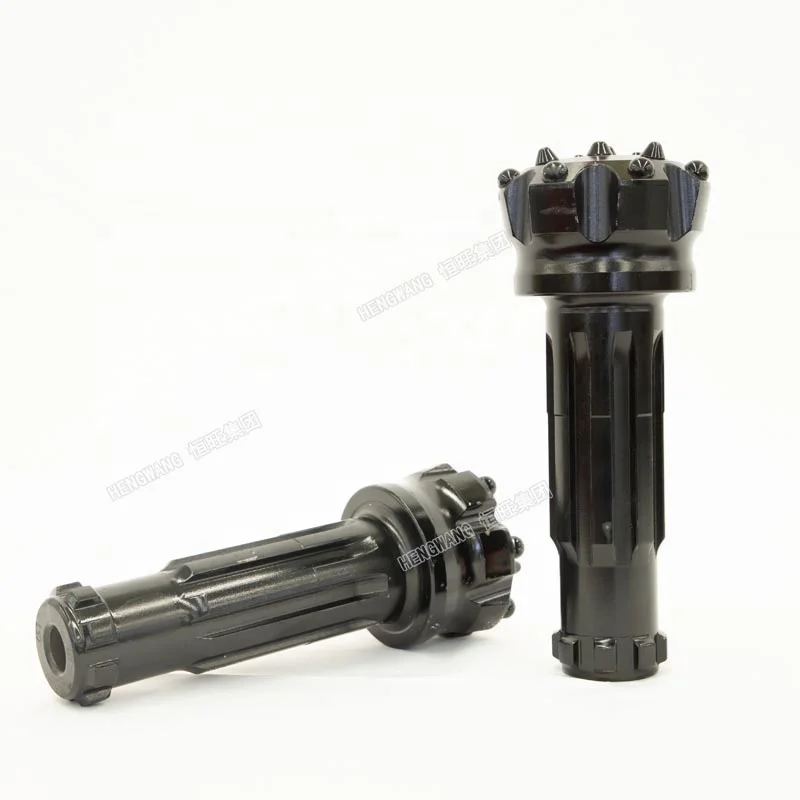

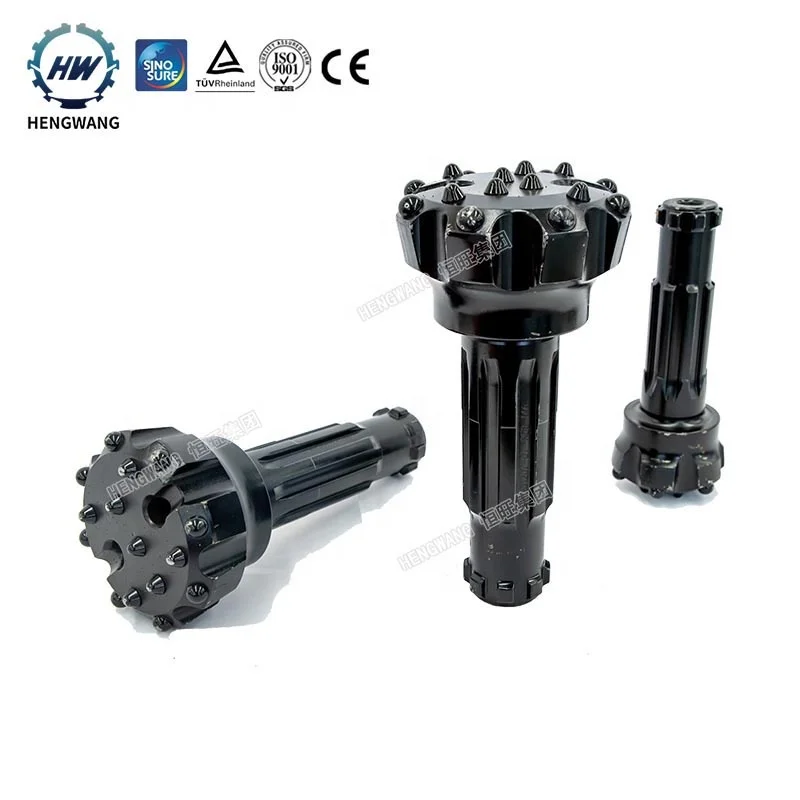

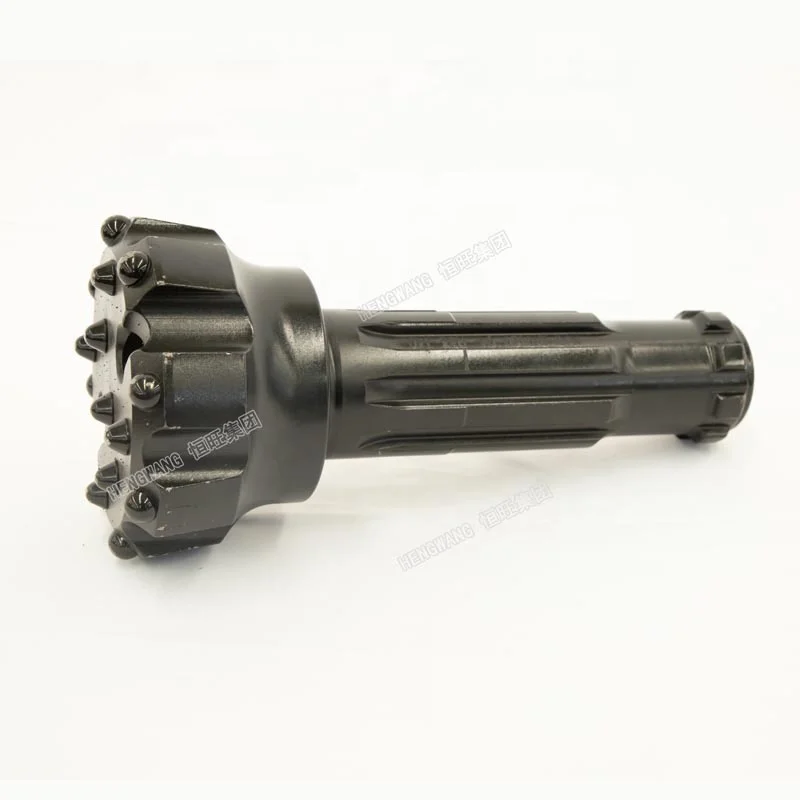

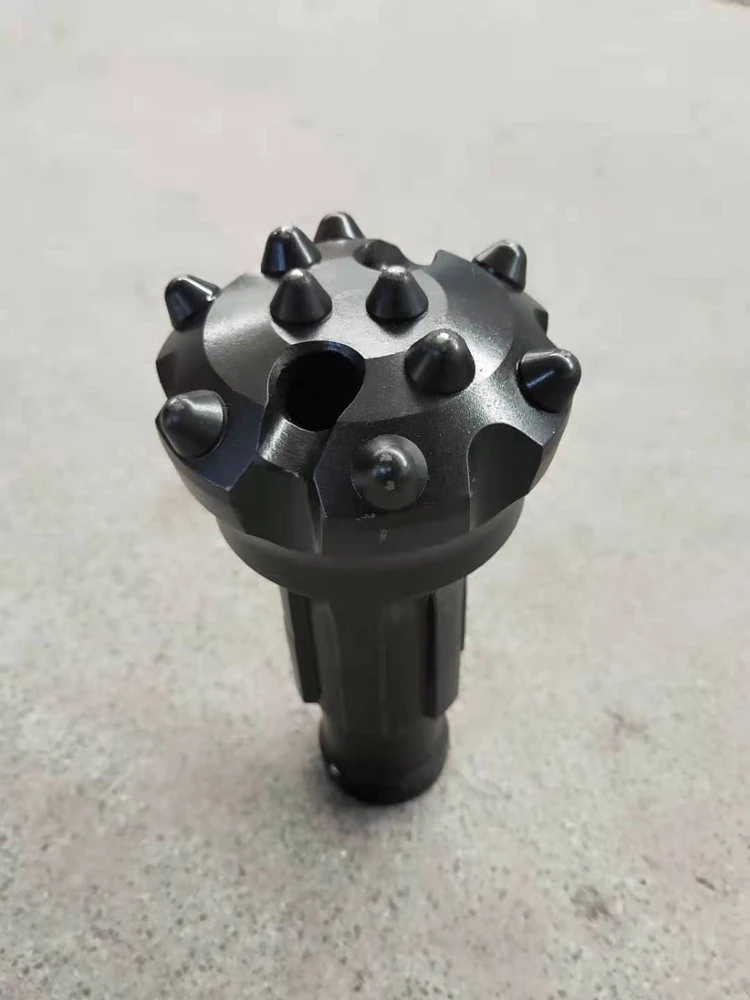

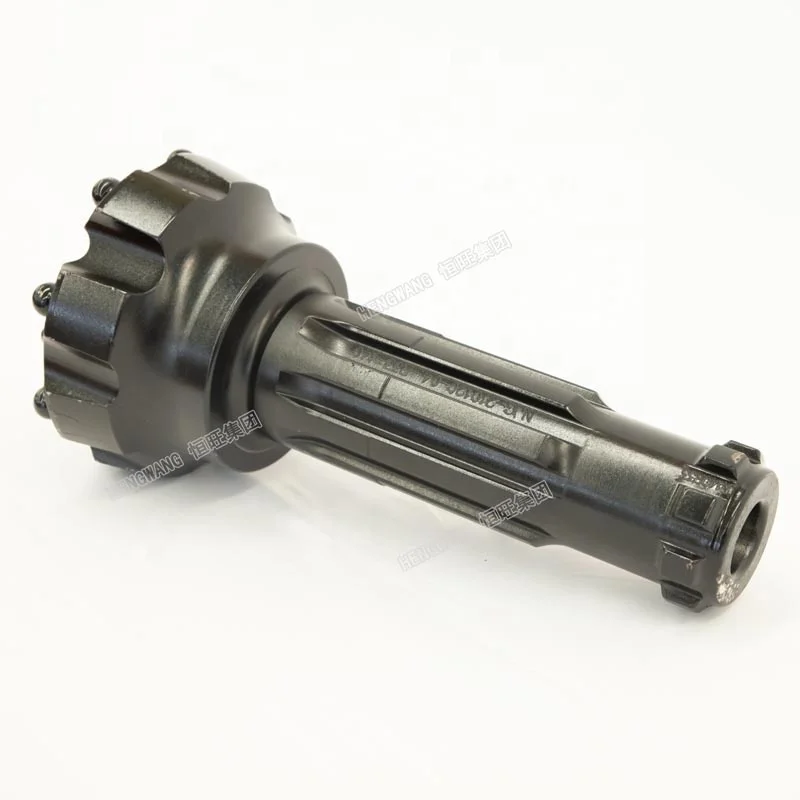

China supplier Coal Ore Mining high air pressure 90mm-203mm DTH drill bit

DTH drill bits can be used in the following applications:
* Mining- drill and blast holes in open pit mining, where the drill operator will drill several holes, then fill with explosives
and detonate to lift rock allowing access to ore body

* RC- mineral exploration and pit grade control (needs specialized reversed circulation hammers)
* RAB - rotary air blast - mineral exploration using a conventional DTH hammer

* GW - geothermal bore holes and water wells

* Oil and Gas - Deep well bore holes: air hammers can be used as long as cutting uplift and borehole stability are ensured. For deeper wells, new DTH technologies including water hammer and mud hammer can be used to improve drilling rates in hard rocks.

* Construction industry - Piling, footings, soil nailing

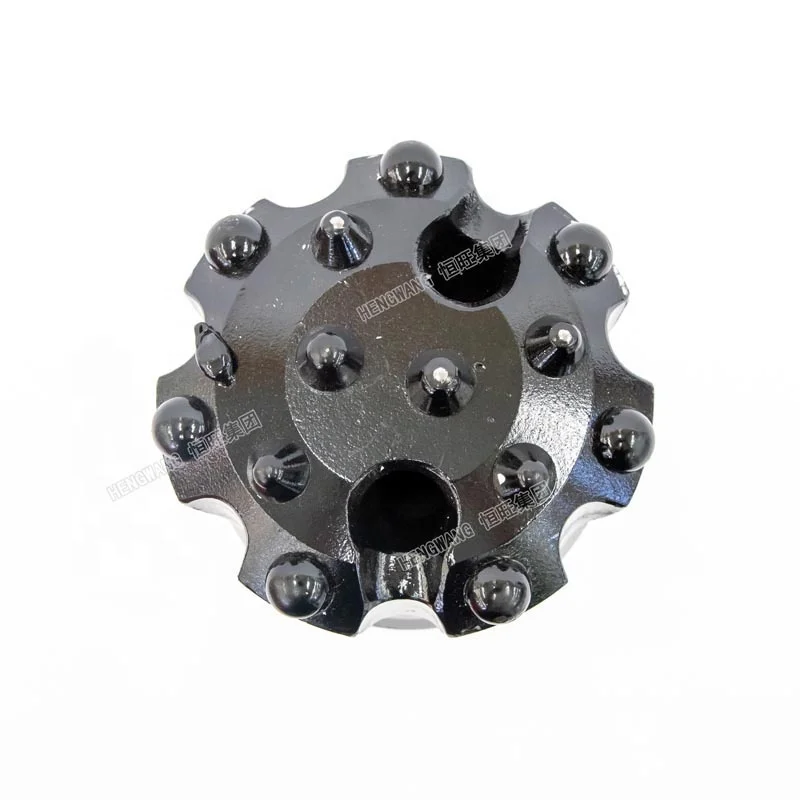

Bit face shape selection:
1. Drop Center Bit
For high penetration rates in soft to medium hard and corrosive rock formations. Low to medium air pressures. Maximum hole deviation control.
2. Concave Face
The all-round application bit face specifically for medium hard and homo generous rock formations. Good hole deviation control and good flushing capacity.
3. Convex Face
For high penetration rates in soft to medium-hard with low to medium air pressures. It is the most resistance to steel wash, and may reduce the load and wear on the gauge buttons, but poor hole deviation control.
4. Double Gauge Face
This kind of face shape is suitable for fast penetration rates in medium to hard rock formations. Designed for high air pressures and good resistance to steel wash step gauge bit.
5. Flat Face Bit
This kind of face shape is suitable for hard to very hard and abrasive rock formations in applications with high air pressures. Good penetration rates an resistance to steel wash.

PRODUCT SPECIFICATIONS

6 inch High wind pressure down-the-hole drill bit
	Drill head diameter(mm)	Number of spline keys	Number of exhaust holes	Side teeth	Middle tooth	Weight(KG)
ND65(DHD360、COP64)	152	-	2	8XØ18	7XØ16	22
		165	-	2	8XØ18	8XØ16	26
		175	-	2	8XØ18	10XØ16	27
		190	-	2	10XØ18	12XØ16	28.5
		203	-	2	10XØ18	13XØ16	29.5
NSD6	152	-	2	8XØ16	7XØ16	26
		165	-	2	8XØ18	8XØ16	27
		175	-	2	8XØ18	10XØ16	29
		190	-	2	10XØ18	12XØ16	32
		203	-	2	10XØ18	14XØ16	34
NQL60	152	-	2	8XØ18	7XØ16	24
		165	-	2	8XØ18	8XØ16	25
		175	-	2	8XØ18	8XØ16	27
		190	-	2	10XØ18	12XØ16	29
		203	-	3	10XØ18	13XØ16	33
NM6	152	-	2	8XØ18	8XØ16	22
		165	-	2	8XØ18	10XØ16	23
		171	-	2	8XØ18	10XØ16	24
		190	-	2	10XØ18	12XØ16	25
		203	-	2	10XØ18	14XØ16	28

Detailed Images

The water well drill rig work with air compressor

General application, any special requirements, please consult us.

150m pneumatic small water well drilling rig for sale in japan

Packing & Delivery

The drill bit will packaged in standard wooden case.

Company Profile

.Jining Luheng Machinery Equipment Co., Ltd. as one branches of Shandong Hengwang Group Co., Ltd. is a professional company engaged in research , development, production, sales, application and service of rock drill machines and pile driver machines.

Product Name: Pile Driver

Cerficate: CE
Certificate No.: M.2019.206.C0231

Product Name: Drilling Rig

Cerficate: CE
Certificate No.: M.2019.206.C3842

FAQ

1. Q: Are you factory or trader?

A: We are factory, has passed ISO, contact me showing you the factory;

2. Q: What kind of drilling rigs you have?
A: We mainly did hydraulic driling rig for soils, pneumatic drilling rig for rocks, DTH drilling rig, big diameter drilling rig,
engineering drilling rig, geological exploration drilling rig etc, so you can tell me your requirements, would recommend you the suitable one.

3. Q: What certificate you have?
A: CE, ISO, BV, TUV

4. Q: Do you offer training?
A: Each model we have supplementary instruction mannual, video for installation and operation, calling instruction, and working site instruction.

5. Q: How about the warranty?
A: We machine warranty is 1 year, used famous brand parts help you find locally; Also 3 spare parts center guarantee you get the spare parts in time.
