Горячая Распродажа кран машина QY50KD Фирменная Новинка 50 тонн

Горячая Распродажа кран машина QY50KD Фирменная Новинка 50 тонн

Категория: Truck Cranes >>>
Поставщик: Oriemac,Machinery,&,Equipment,(Shanghai),Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.49 $*	0.79 $*
Aug-16-2025	0.96 $*	0.90 $*
Jul-16-2025	0.52 $*	0.90 $*
Jun-16-2025	0.88 $*	0.88 $*
May-16-2025	0.41 $*	0.72 $*
Apr-16-2025	0.74 $*	0.69 $*
Mar-16-2025	0.63 $*	0.25 $*
Feb-16-2025	0.97 $*	0.81 $*
Jan-16-2025	0.54 $*	0.29 $*

Характеристики

Product Overview

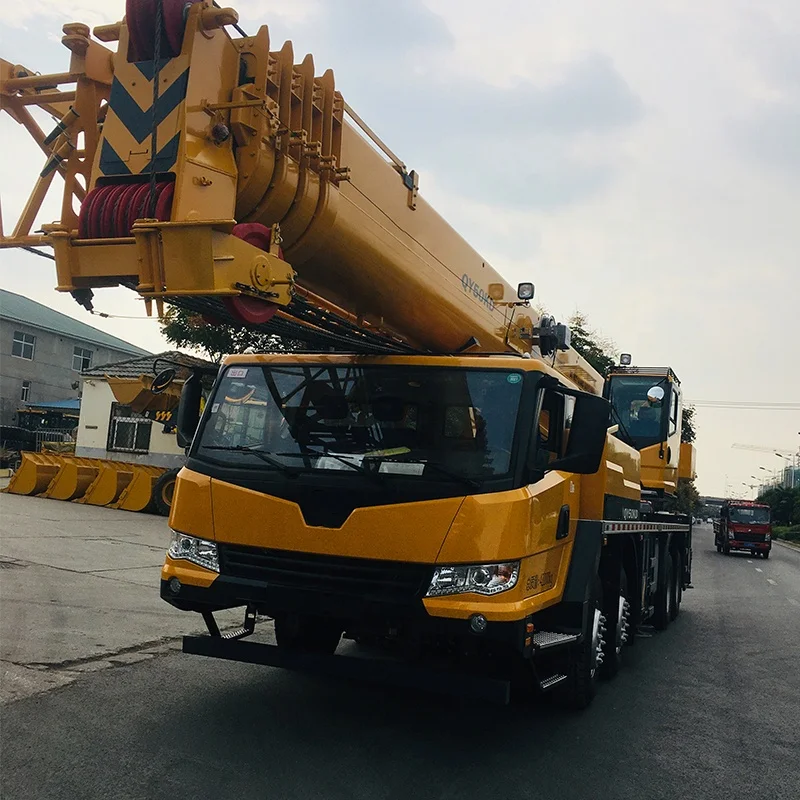

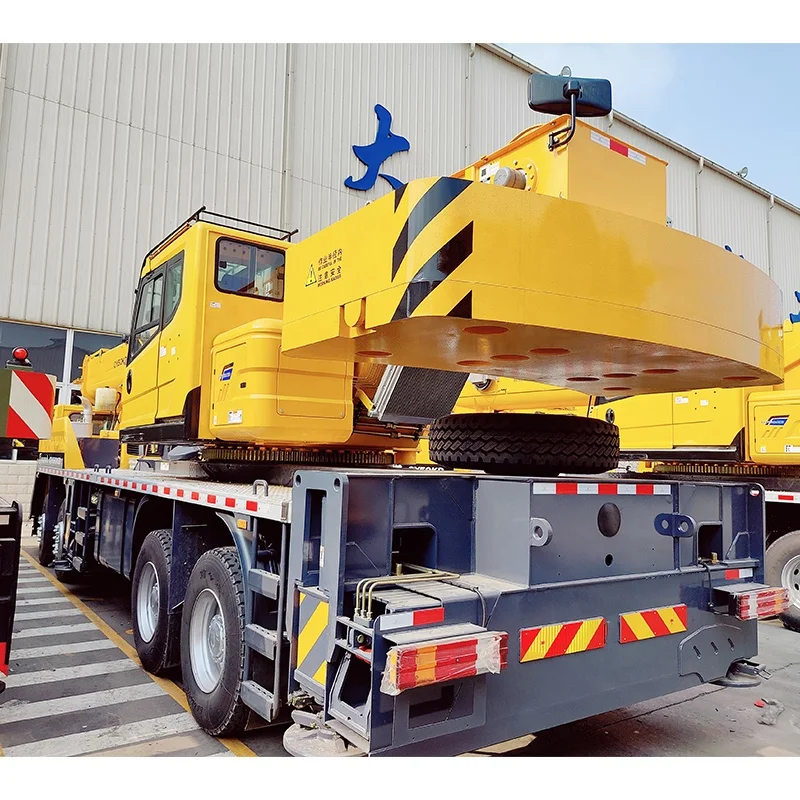

Hot sale crane machine QY50KD brand new 50 ton pickup truck crane

Main configuration:
* SINOTRUK engine, D10.38-50(276kw)
* Wire rope
* Hirschmann PAT
*Heater

QY50KD is technology crystallization which our company applies for many years manufacturing experience,bases on the mature
technology.Using full cover to take the platform; using high lift balance weight, greatly improving the ease of use of the
product;classic K series appearance; full hydraulic drive, easy to operate, flexible.

OUR SERVICE:
* Warranty: We supply one year warranty for all the machines we exported, during the warranty, if there is problem caused by
machine quality without improper operation, we will supply the replace genuine parts by DHL to clients freely to keep the machine
in high efficiency work.
* Spare Parts: We have 15years experience on machine and spare parts supplying, we are efforts to supply Genuine brand spare parts
with good prices, quick response and professional service.

FEATURES AT A GLANCE

Main parameters:
Max. rated total lifting capacity: 50T
Fully extended boom:45.5M
Fully extended boom+jib:62M

Right elevation

Left elevation

Front elevation

PRODUCT SPECIFICATIONS

Dimension	Unit	QY50KA/QY50KD
Overall length	mm	13750
Overall width	mm	2800
Overall height	mm	3520
Weight
Total weight in travel	kg	41000
Front axle load	kg	15000
Rear axle load	kg	26000
Power
Engine model		WD615.334(domestic III)
Engine rated power	kW/(r/min)	247/2200
Engine rated torque	N.m/(r/min)	1350/1400
Travel
Max. travel speed	km/h	80
Min. turning diameter	m	24
Min. ground clearance	mm	291
Approach angle	°	17
Departure angle	°	11
Max. grade ability	%	40
Fuel consumption for 100km	L	45
Main performance
Max. rated total lifting capacity	t	50
Min. rated working radius	m	3
Turning radius at turntable tail	m	3.482
Max. lifting torque	kN.m	1764
Base boom	m	11.3
Fully extended boom	m	42.7
Fully extended boom+ jib	m	57.7
Longitudinal outrigger span	m	5.91
Lateral outrigger span	m	6.9
Working speed
Boom luffing time	s	88
Boom full extension time	s	180
Max. swing speed	r/min	≥2.0
Max. speed of main winch (single rope) (no load)	m/min	≥110
Max. speed of aux. winch (single rope) (no load)	m/min	≥110
