Аналоговая линия | Многоканальное устройство записи голоса-Запись телефонных разговоров багажник идентификатора вызывающего абонента; 64-канальный регистратор голоса с жестким

Аналоговая линия | Многоканальное устройство записи голоса-Запись телефонных разговоров багажник идентификатора вызывающего абонента; 64-канальный регистратор голоса с жестким

Категория: Telephone Accessories >>>
Поставщик: Shenzhen,Yishi,Electronic,Technology,Development,Co.,Ltd.

Цена:748,00 $ - 898,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	890.82 $*	935.54 $*
Aug-18-2025	883.65 $*	927.1 $*
Jul-18-2025	741.21 $*	778.82 $*
Jun-18-2025	868.97 $*	911.23 $*
May-18-2025	755.7 $*	793.19 $*
Apr-18-2025	853.83 $*	896.79 $*
Mar-18-2025	845.28 $*	887.0 $*
Feb-18-2025	838.39 $*	880.97 $*
Jan-18-2025	830.70 $*	872.90 $*

Характеристики

Analog Line | Multi Channel Voice Recording Device - Record Telephone Conversations, Caller ID Trunk; 64CH Voice Logger with HDD

Product Description

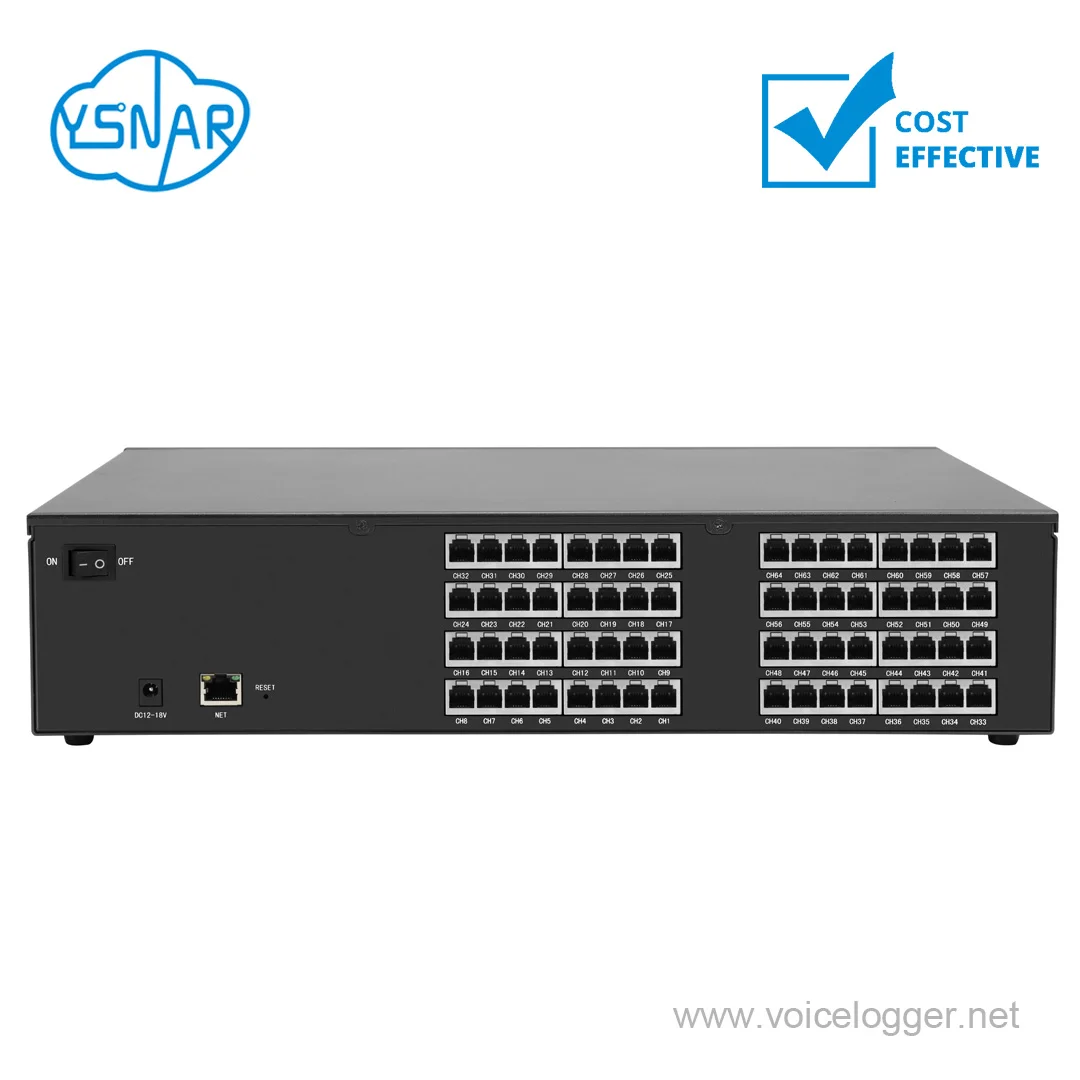

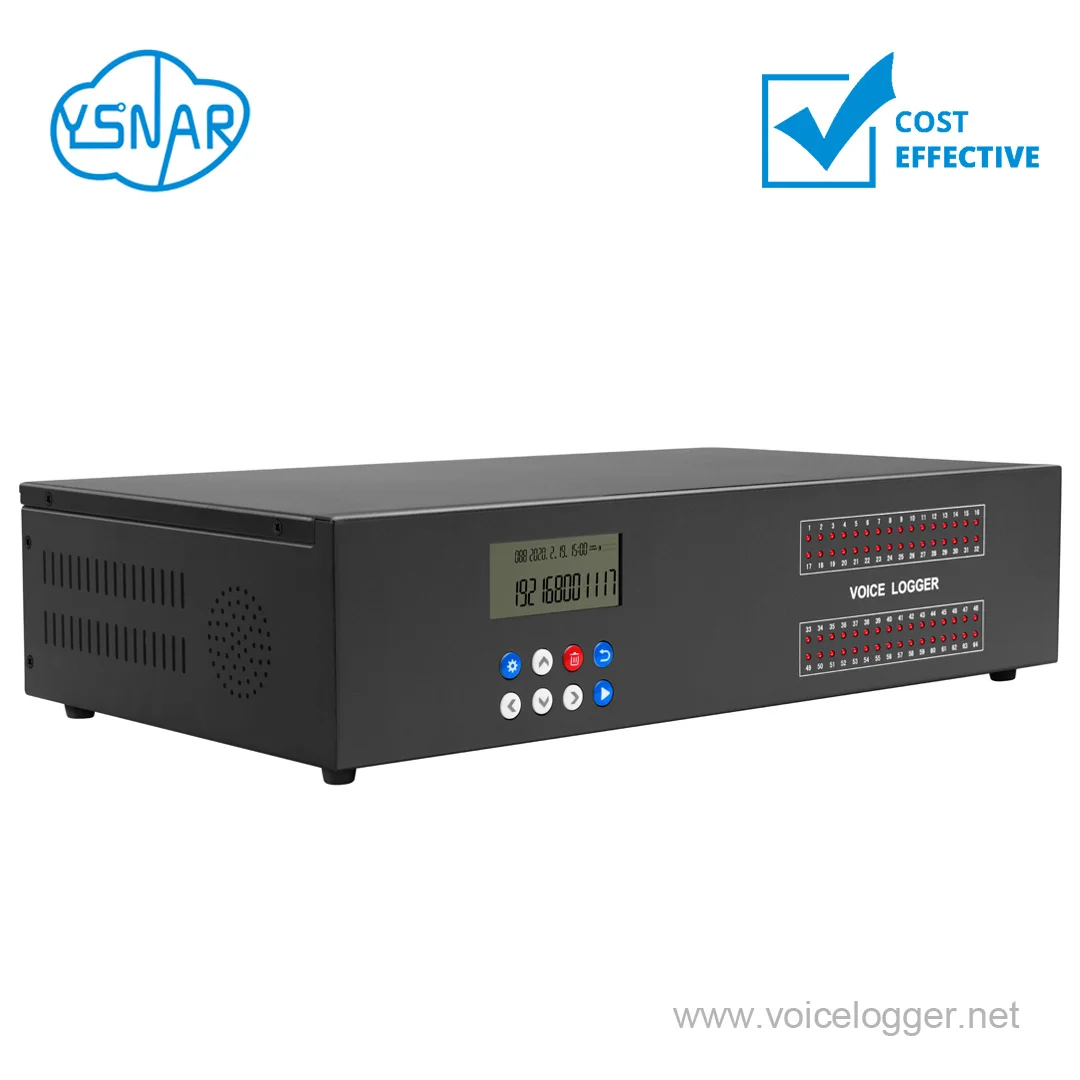

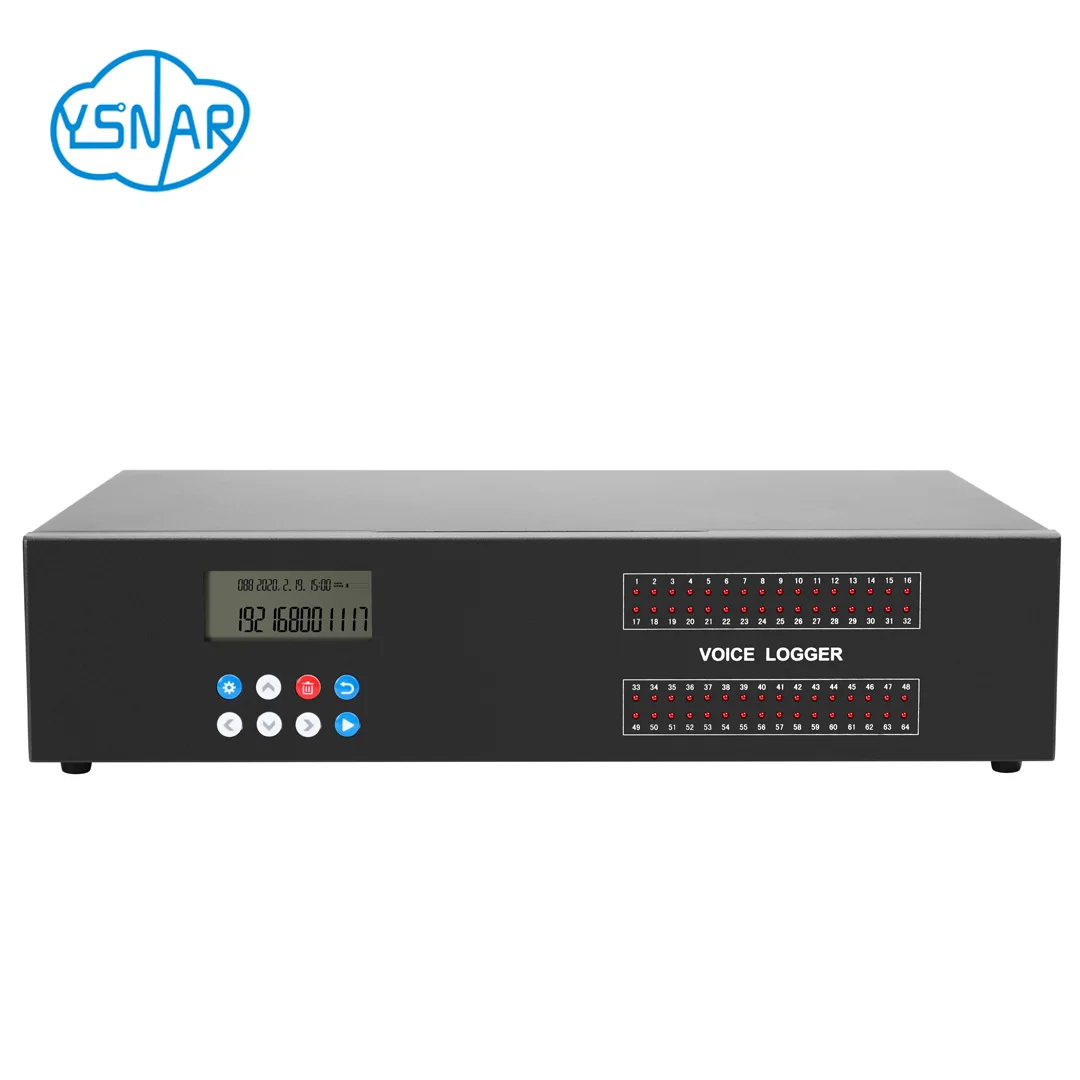

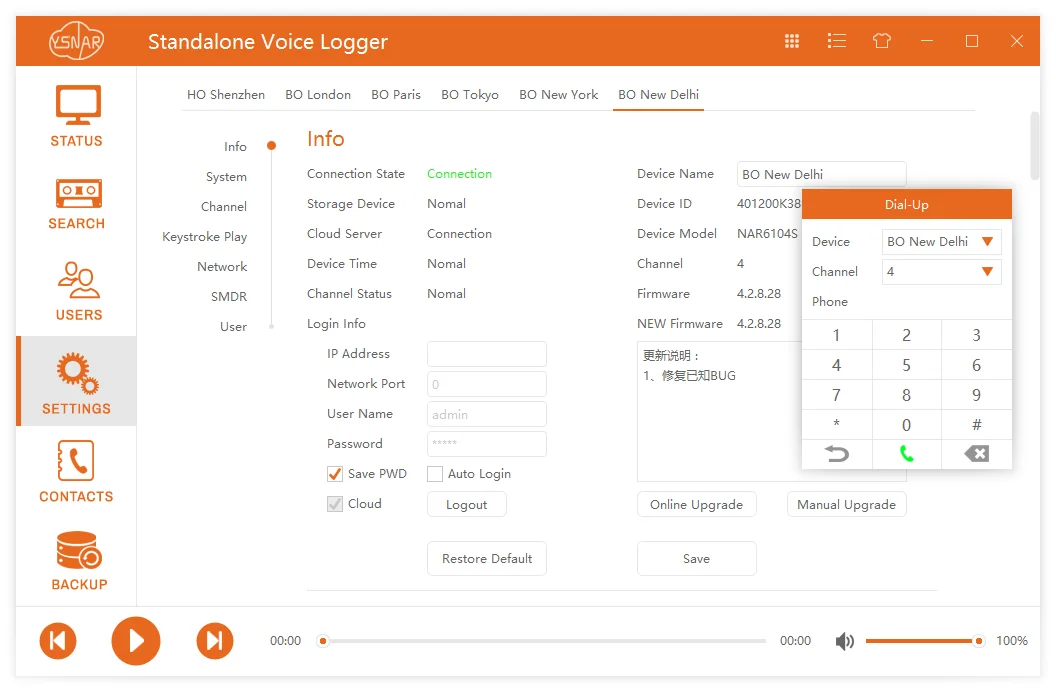

NAR-7100 series is consisted by 72-168MHZ CPU, latest ARM chip and innovative hardware frame and specific call recording software. It is a fully independent recording device that does not depend on a computer. The device supports 1, 2, 4,8,16,24,32,40,48,56,64 lines and 1 network interface. The user can complete all operations through the PC software like: the real-time monitoring on line, record query, audio playback, real-time monitoring and so on, which is convenient for construction, installation, debugging and make it a really worthwhile embedded telephone recorder.

CMS(Centralized Management System) for Multi Branches in Head Office: NAR-7100 MS.jpg

Features:

1. Booting speed: 5 seconds to enter the system.

2. SD card / Hard Disk versions can be selected, and 2.5" HDD can support max 8TB.

3. Support 1, 2, 4, 8, 16, 24, 32, 40, 48, 56, 64 lines analog recording at the same time, and various combinations can be done via network.

4. It owns network card itself, which is convenient for networking building and remote monitoring.

5. Total automatically recording without computer supporting, fully embedded-in (standalone) devices.

6. Low power consumption, small heat, and it can run 24/7.

Recording Interfaces:

l PSTN lines and analog phones;

l PBX and Ext;

l Radio Voice Lines:;

l Live Recording(meeting);

l Intercom Audio Lines;

l Fixed Wireless Telephone.

Selection Guide:

NAR-7100 Specification:

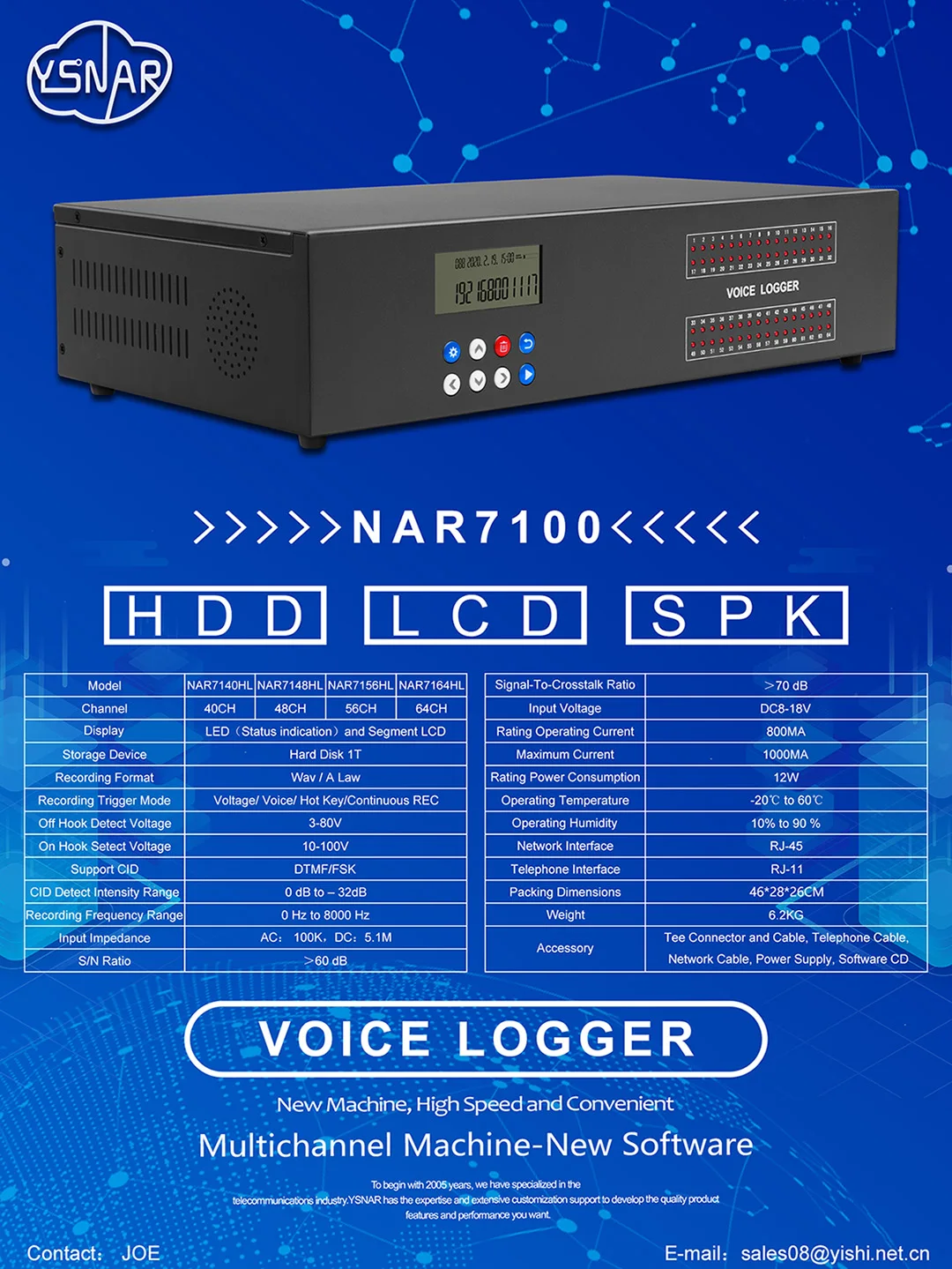

NAR-7100 40/48/56/64CH Standalone P2P Cloud Network Voice Logger Data Sheet

Channel	40CH(7140HL)	48CH(7148HL)	56CH(7156HL)	64CH(7164HL)
Display	LED(Status Indication) and Segment LCD
Storage Device	Hard Disk 1T
Recording Format	Wav / A Law
Recording Trigger Mode	Voltage/ Voice/ Hot key/Continuous REC
Off hook detect voltage	3-80V
On hook detect voltage	10-100V
Support CID	DTMF/FSK
CID detect intensity range	0 dB to –32dB
Recording Frequency range	0 Hz to 8000 Hz
Input impedance	AC: 100K,DC:5.1M
S/N ratio	>60 dB
Signal-to-crosstalk ratio	>70 dB
Input voltage	DC8-18V
Rating operating current	800MA
Maximum current	1000MA
Rating power consumption	12W
Operating Temperature	-20℃ to 60℃
Operating Humidity	10% to 90 %
Network interface	RJ-45

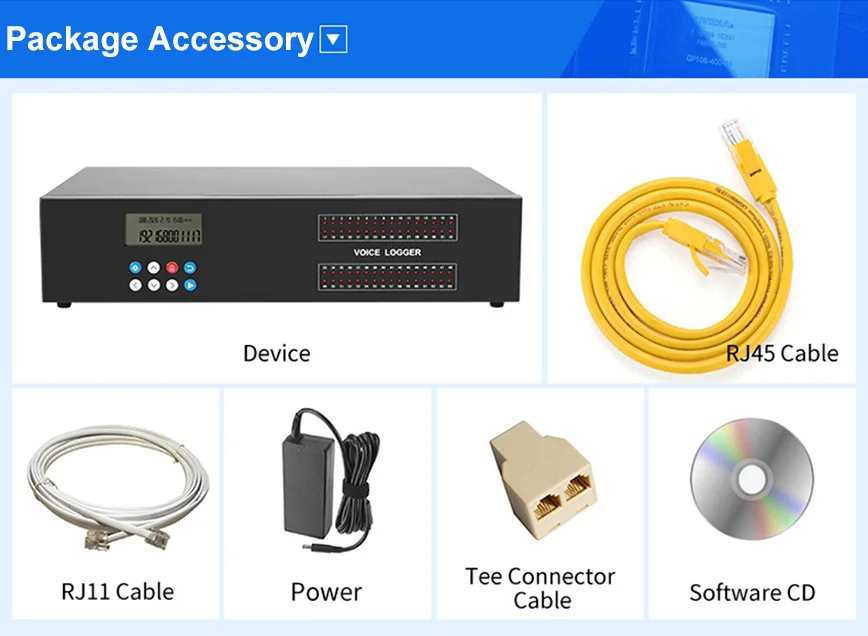

Accessory	Tee Connector & Cable, RJ11 & RJ45 Cable, Power, Software CD
Device Dimension	40.5cm22.5cm10cm
Package LWH	46cm28cm26cm
