Трубогиб для труб EMT 20 25 32 мм
US $150.00-$220.00
Толщина 6 мм тонкая круглая нержавеющая сталь MS Левая Правая двойная головка трубогибочная
- Категория: Pipe and Tube Bending Machines >>>
- Поставщик: Maanshan,Blma,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 5950.43 $* | 6248.9 $* |
| Aug-19-2025 | 5900.46 $* | 6195.60 $* |
| Jul-19-2025 | 4950.20 $* | 5198.18 $* |
| Jun-19-2025 | 5800.98 $* | 6090.57 $* |
| May-19-2025 | 5050.72 $* | 5303.22 $* |
| Apr-19-2025 | 5700.63 $* | 5985.75 $* |
| Mar-19-2025 | 5650.35 $* | 5933.56 $* |
| Feb-19-2025 | 5600.89 $* | 5880.81 $* |
| Jan-19-2025 | 5550.63 $* | 5828.94 $* |
Характеристики
Double head pipe bending machine
1. According to the base structure of the different types of standard and rotary type.
1) standard type: Head can not be turned, double headed from the 0-90° can be arbitrary adjustment.
2) Rotary type: head can be turned, double-head adjustable bend angle from the degree 0-185°, but must consider the problem of reclaiming.
2. Adopting PLC control, easy operation, easy to maintain.
3. It can be devided into the whole cycle, half cycle for the choice of operation.
4. According to the size of different materials, you can choose one or more than on operation.
5. Standard accessories: a group of mold a group of ruler.
2) Rotary type: head can be turned, double-head adjustable bend angle from the degree 0-185°, but must consider the problem of reclaiming.
2. Adopting PLC control, easy operation, easy to maintain.
3. It can be devided into the whole cycle, half cycle for the choice of operation.
4. According to the size of different materials, you can choose one or more than on operation.
5. Standard accessories: a group of mold a group of ruler.

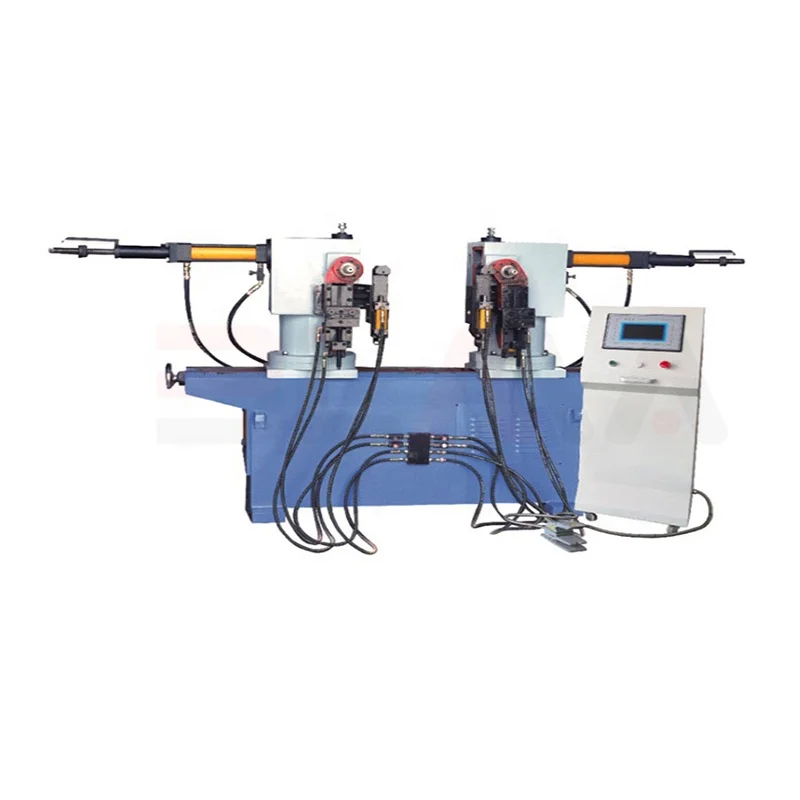

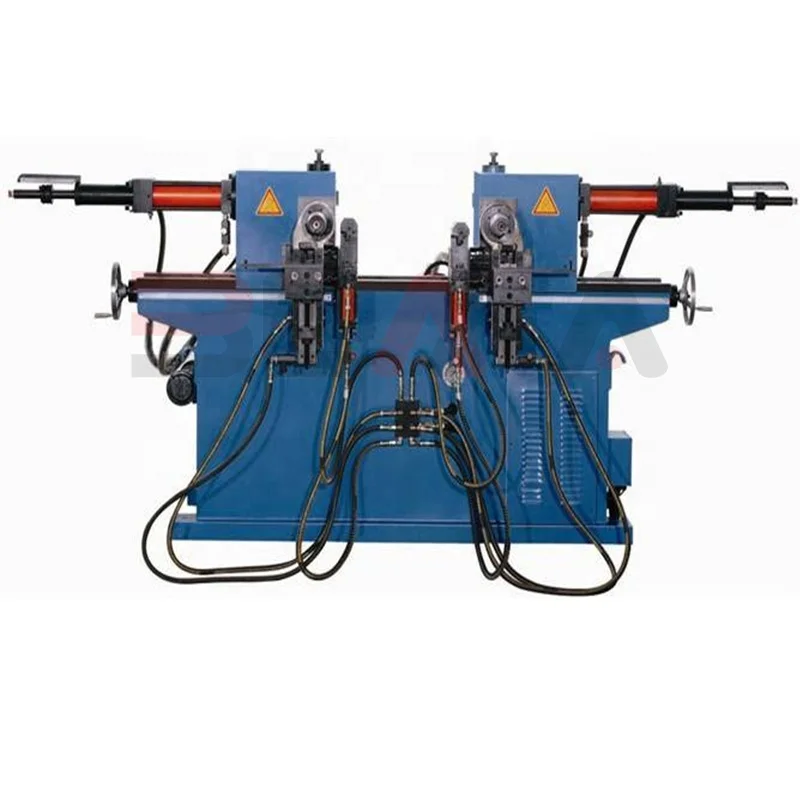

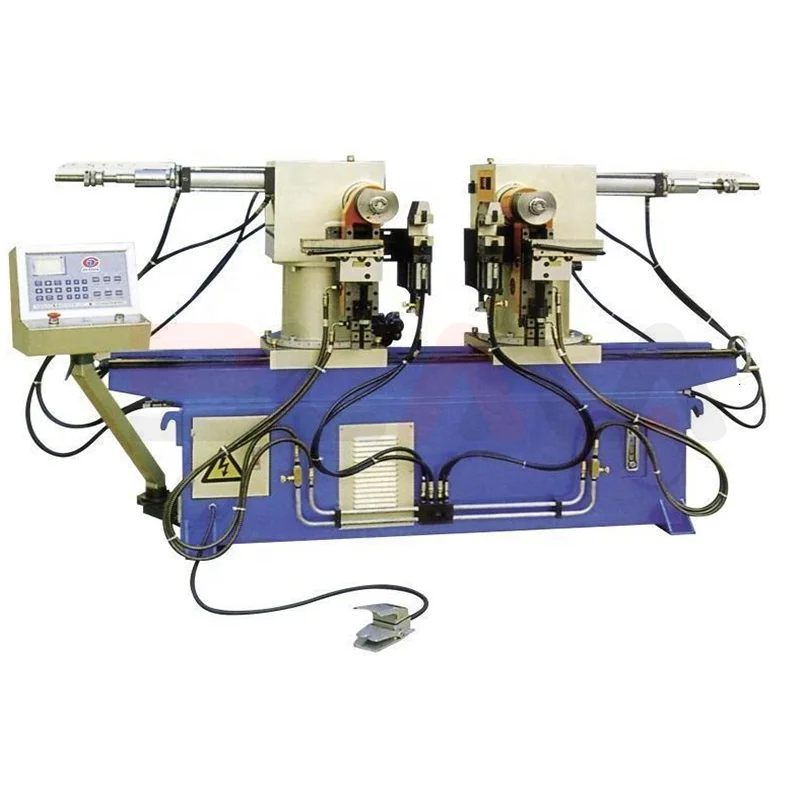

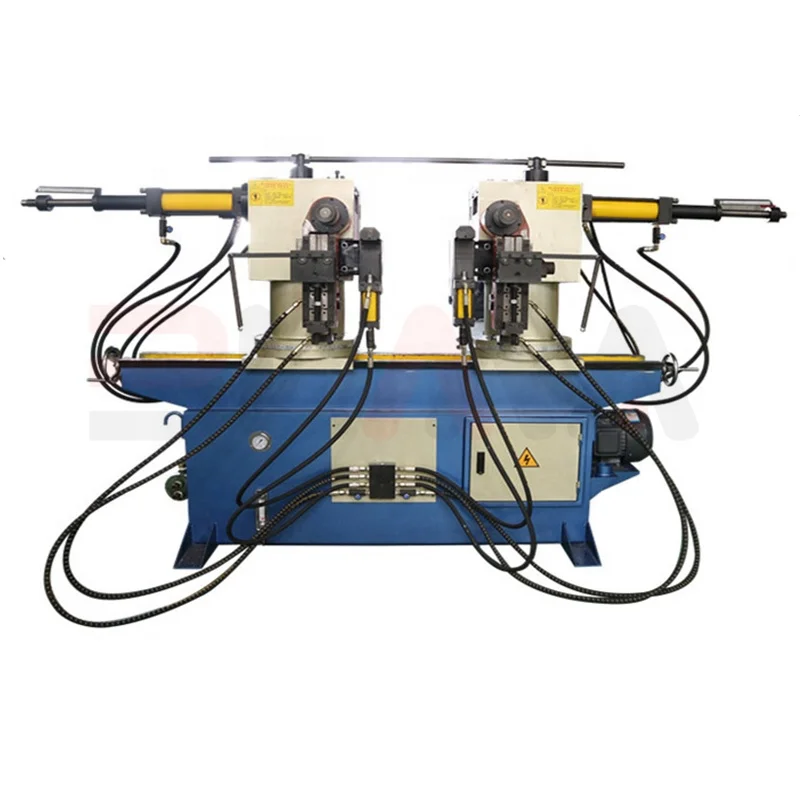

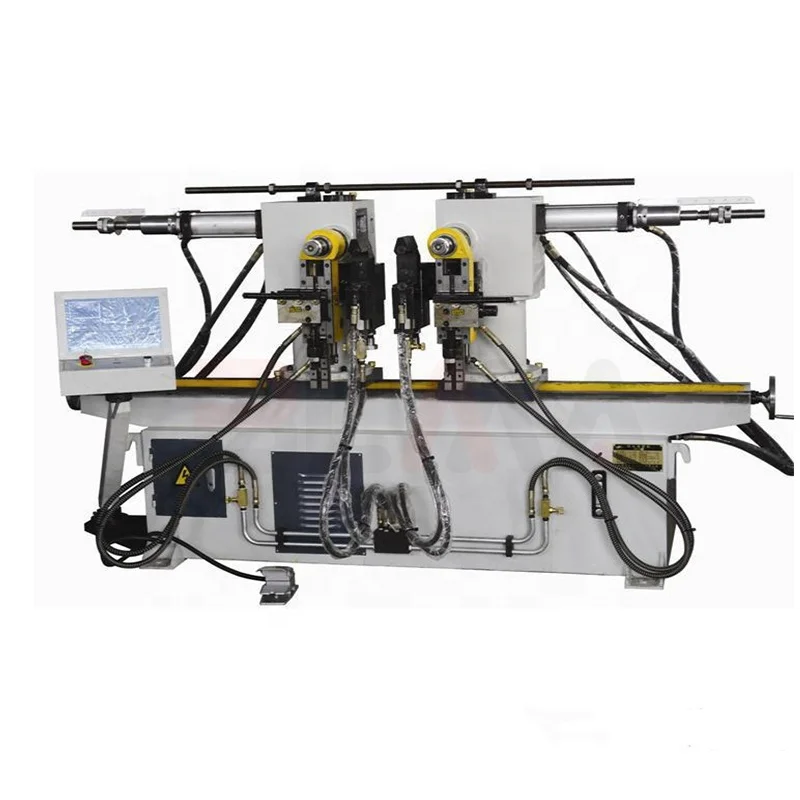

Details Images
NC control, hydraulic drive
CNC type double head pipe bending machine. The two heads can move automatically.
Bending Moulds

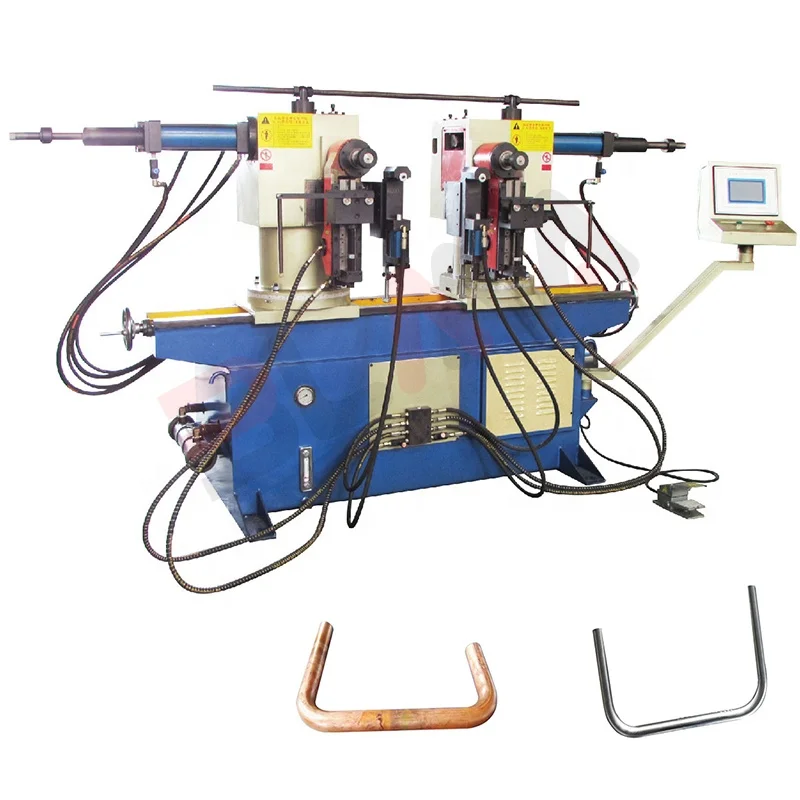

Bending Samples and Application
Product Paramenters
Main Specification | SW38 | SW50 |
Max. applicable pipe (carbon steel) | φ38x1.8mm | φ50x2mm |
Hydraulic motor power | 4KW | 5.5KW |
Double bending center range | 170-1450mm | 190-1650mm |
Max. Bending angle | 185° | 185° |
Max oil pressure | 140kg/cm² | 140kg/cm² |
