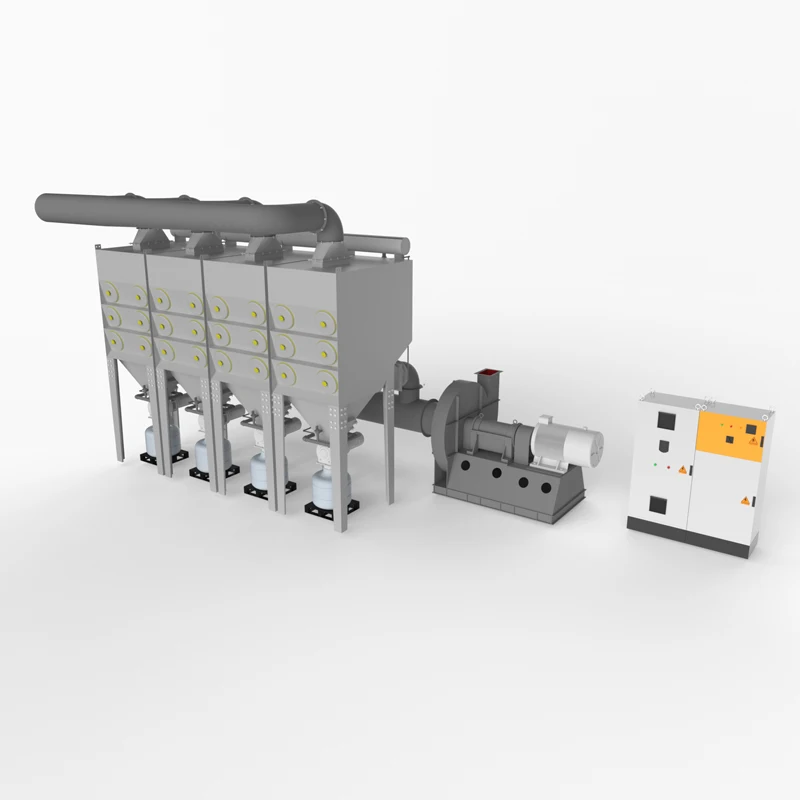

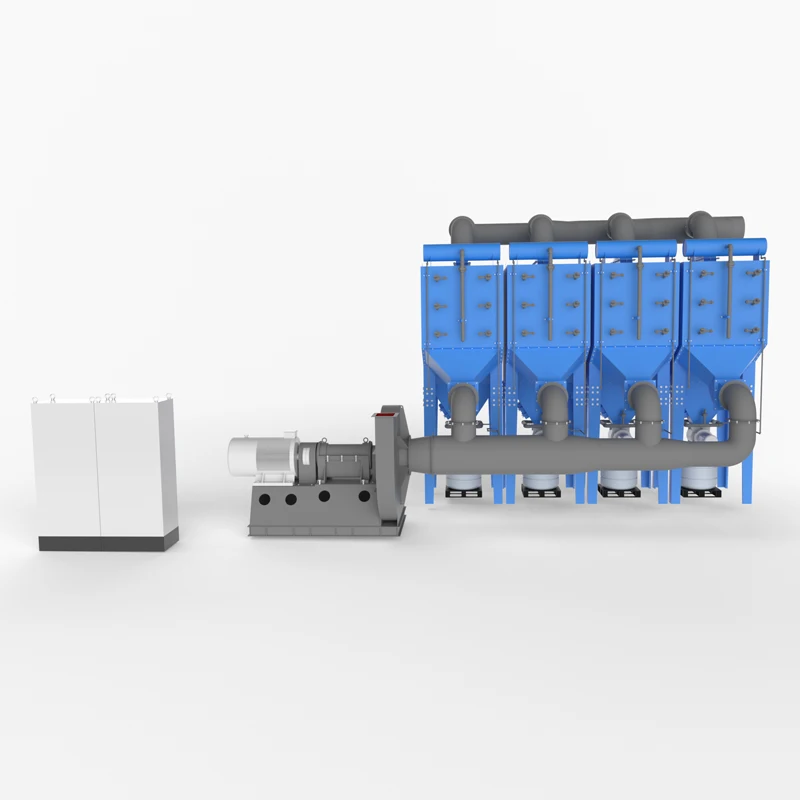

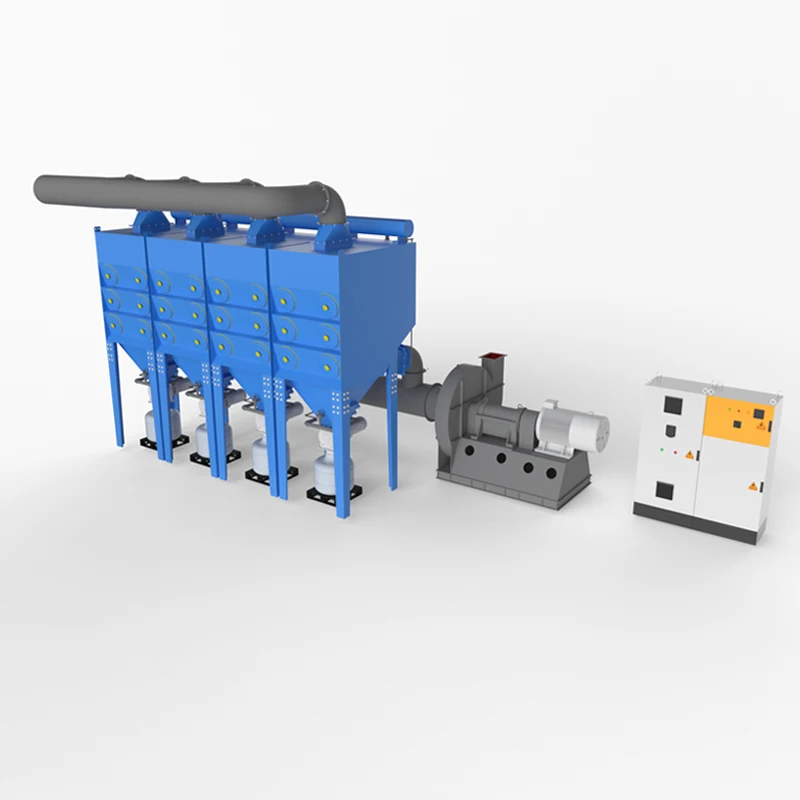

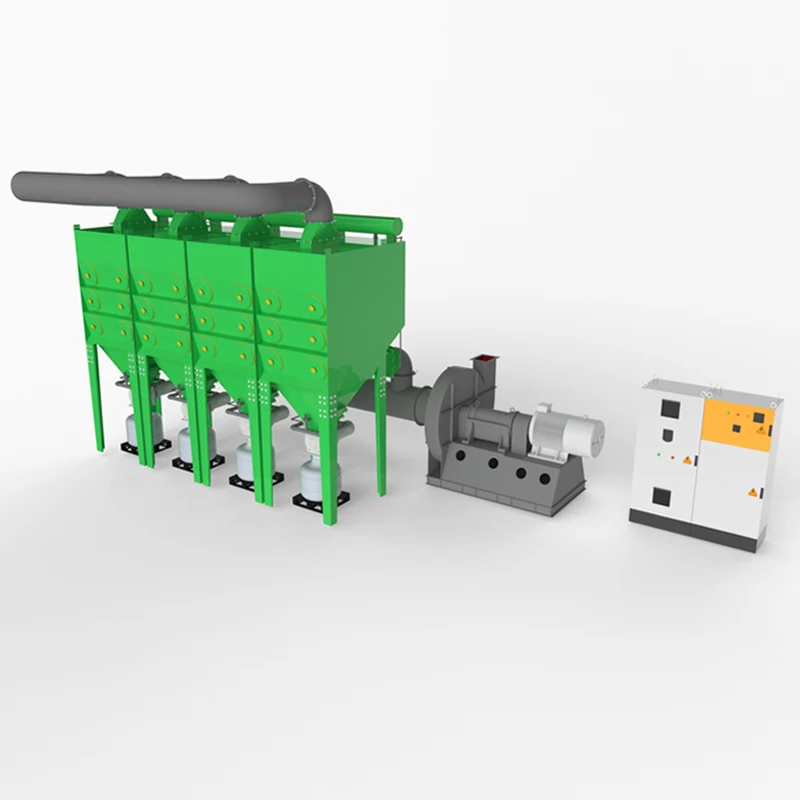

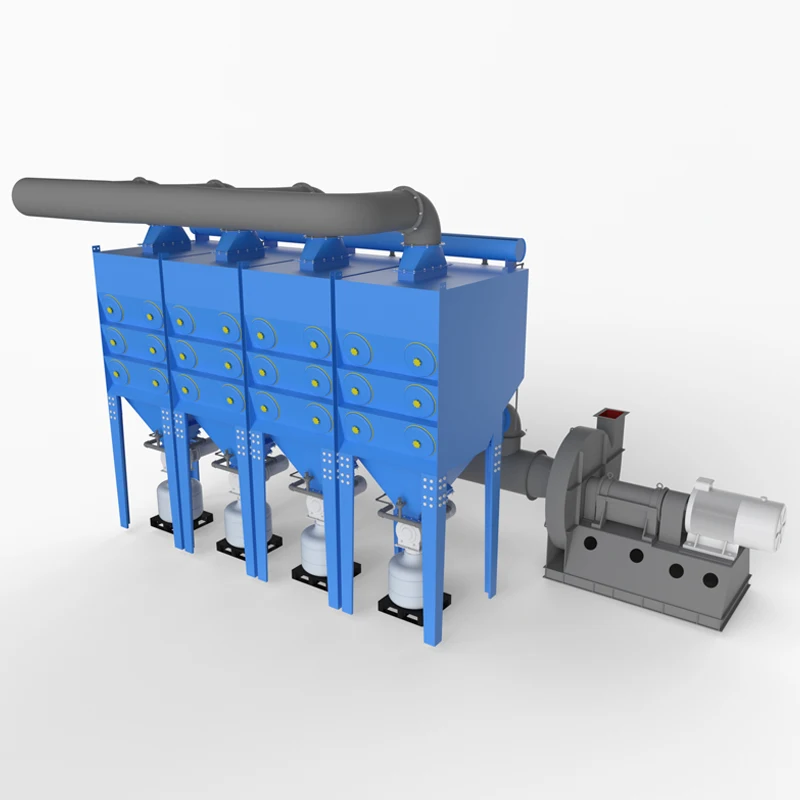

Промышленная Ювелирная машина для сбора пылеуловителя с наклонным картриджем и фильтром двойным сроком службы электронных

No.

Model No.

RJL-2-8-CX

RJL-3-12-CX

RJL-4-16-CX

1

No. of filter cartridges

8*X

12*X

16*X

2

Filtration area

77.6*X m2

116.4*X m2

155.2*X m2

3

Air volume

2328-4656*X m3/h

3492-6984*X m3/h

4656-9312*X m3/h

4

Filter cartridge cleaning method

Pulse jet blowing

5

Filter cartridge cleaning mode

On-line deashing

6

Filter cartridge installation

Inclined (10-20degree horizontal upward)

7

Filtration mode

Filter fiber unitary dust removal structure

8

Equipment resistance

600-800Pa

9

Air inlet mode

Upper inlet

10

Pre dust collection mode

Air-dust separation device

11

Collection efficiency

Dust particles:≥0.3μm, collection efficiency:≥99.98%

12

Dust composition

Dry dust

13

Temperature of exhaust gas

Normal temperature

14

Filtration velocity

0.5-1m/min

15

Filter cartridge type

Membrane-laminated+filter fiber

16

Filter cartridge precision

Dust particles: ≥0.3μm, collection efficiency:≥99.98%

17

Dimension of filter cartridge

366*660mm

18

Heat resistance of filter fiber

≤80℃

19

Single filter cartridge area

9.7 m2

20

Air leakage percentage

≤2%

21

Pulse jet time

0.065-0.085s

22

Pulse jet pressure

2.0-4.0kg/cm2

23

Compressed air consumption

0.048m2 each time

24

Cleaning control mode

Single chip microprocessor

25

Maintenance mode

Off-line maintenance

26

Power of dust discharge motor

0.5-1.1 KW

27

Dimension(mm)

1277x1930x3794

1322x1930x4275

1372x1930x4758

28

Gross weight (Kgs)

706

767

872
