Однофазный счетчик энергии Acrel разъем DIN-рейка RS485 интерфейс Modbus RTU 10-80A без трансформатора
- Категория: Circuit Breakers >>>
- Поставщик: Acrel,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.66 $* | 0.82 $* |
| Aug-18-2025 | 0.56 $* | 0.27 $* |
| Jul-18-2025 | 0.38 $* | 0.67 $* |
| Jun-18-2025 | 0.69 $* | 0.28 $* |
| May-18-2025 | 0.63 $* | 0.91 $* |
| Apr-18-2025 | 0.5 $* | 0.37 $* |
| Mar-18-2025 | 0.84 $* | 0.66 $* |
| Feb-18-2025 | 0.1 $* | 0.54 $* |
| Jan-18-2025 | 0.21 $* | 0.60 $* |
Характеристики
Product Discription

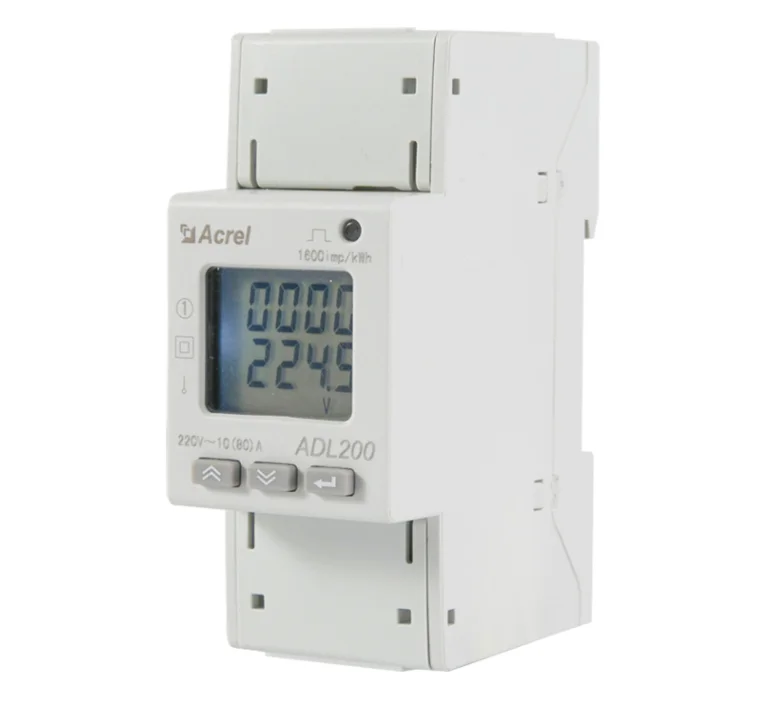

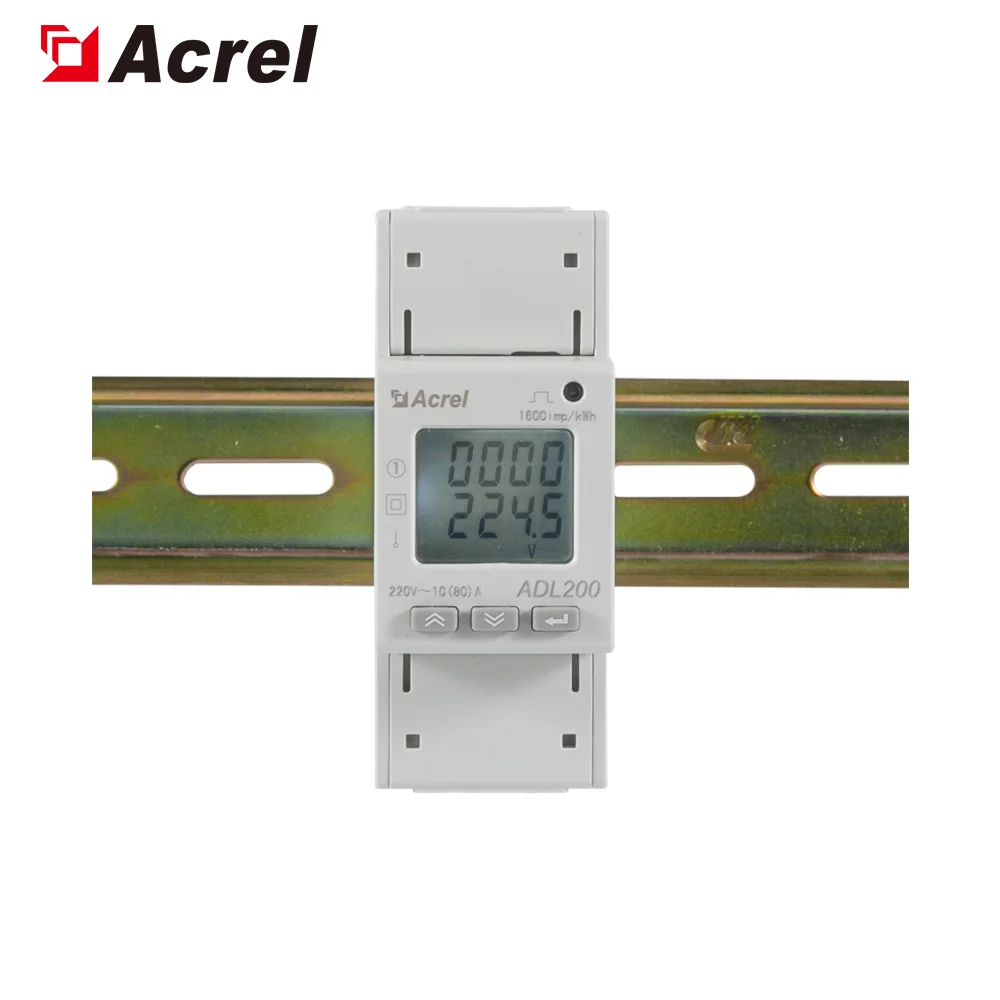

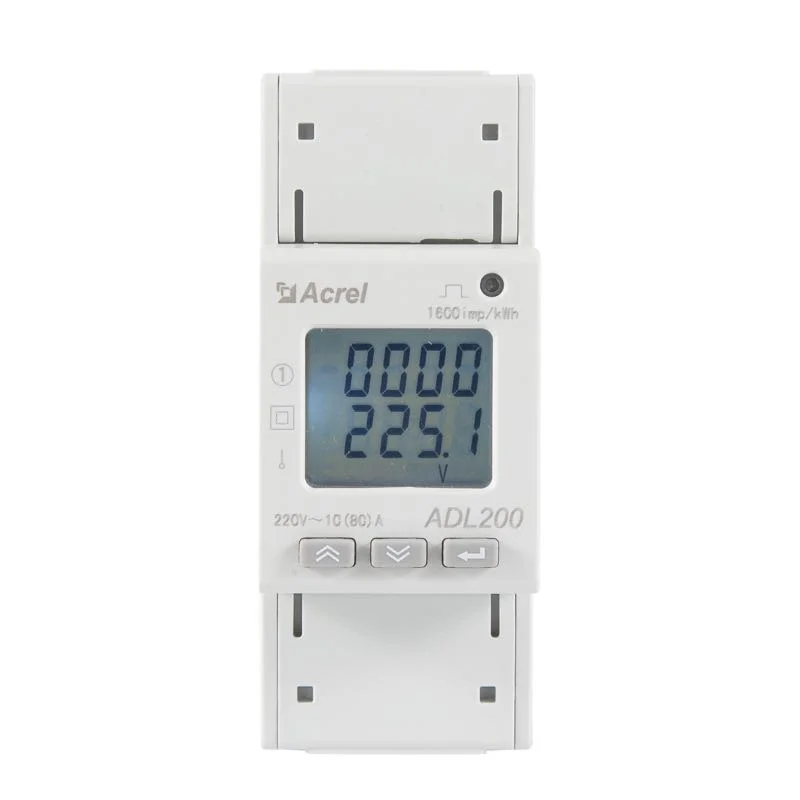

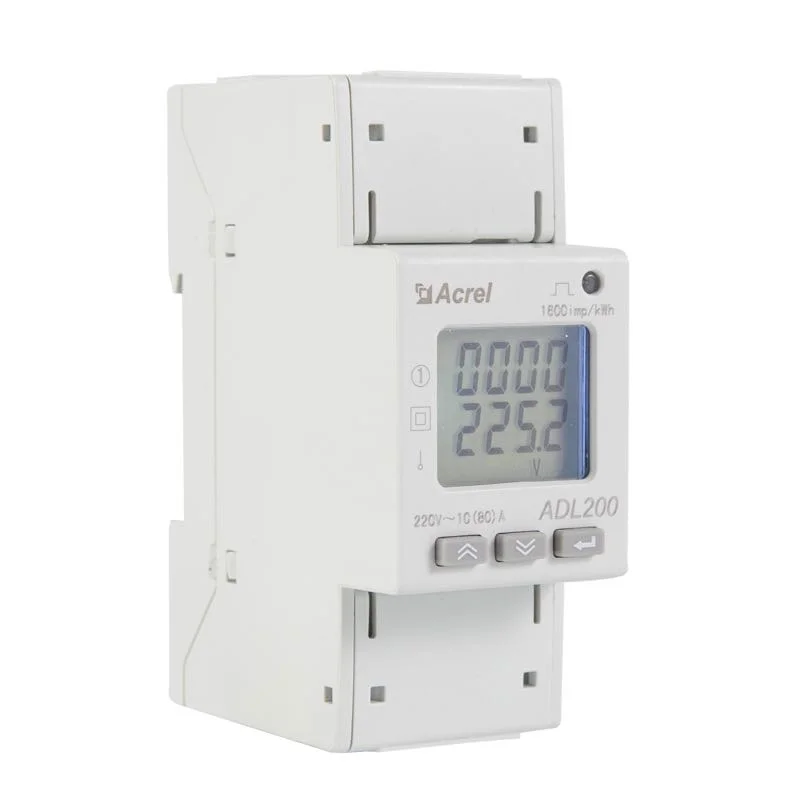

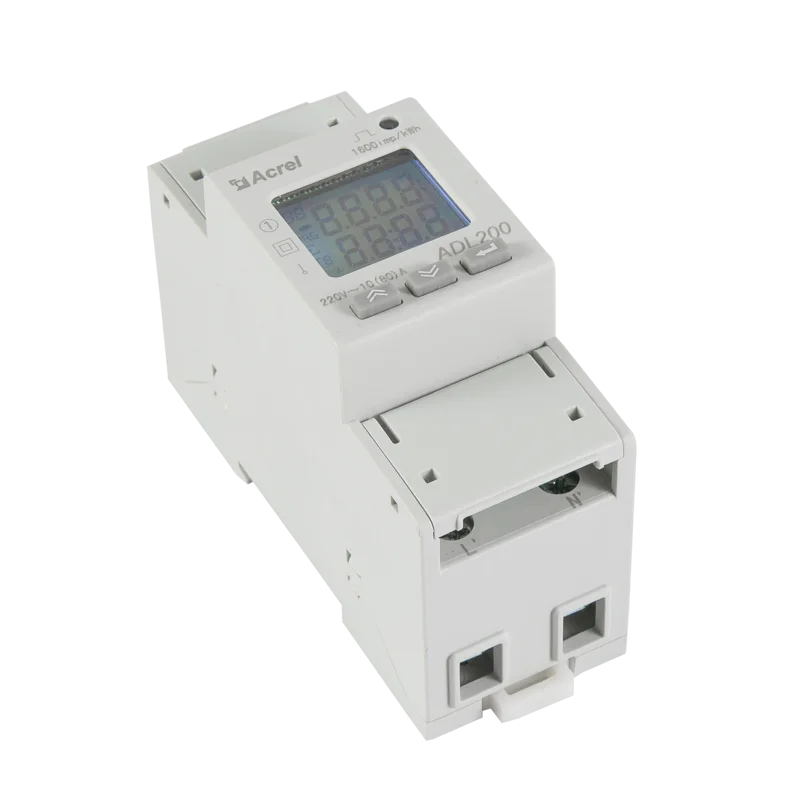

ADL200 series single phase energy meter
ADL200 series single phase energy meter is designed for single phase active energy measurement on low voltage system,
at the same time it can measure the electrical parameters such as voltage, current, power, power factor. RS485 interface can be chosen. This energy meter has advantages of small volume, high precision, good EMC, easy installing etc, All meters meet the related technical requirements of electricity meter in the IEC62053-21, IEC62053-22 standards.
at the same time it can measure the electrical parameters such as voltage, current, power, power factor. RS485 interface can be chosen. This energy meter has advantages of small volume, high precision, good EMC, easy installing etc, All meters meet the related technical requirements of electricity meter in the IEC62053-21, IEC62053-22 standards.
Functin
Function | Function description |
Measurement of kWh | Single-phase active kWh (positive and negative)，3 months historical energy data frozen storage |
Measurement of electrical parameters | Voltage, Current, Active power, Reactive power, Apparent power, Power factor and Frequency |
LCD Display | 8 bits section LCD display |
Key programming | 3 keys to set parameters like code, address, baud rate, multi-tariff and communication protocol |
Pulse output | Active energy pulse output |
Multi-tariff | Adapt 4 time zones, 2 time interval lists, 14 time interval by day and 4 tariff rates |
Communication | Communication interface: RS485, Communication protocol: MODBUS-RTU |
Technical parameters
Input voltage | Reference voltage | AC 220V | |
Reference frequency | 50Hz | ||
Power consumption | no more than 10VA | ||
Input current | Basic current | 10A | |
Maximum current | 80A | ||
Starting current | 4‰Ib | ||
Consumption | no more than 4VA | ||
Measurement performance | Accuracy of measuring | 1 class | |
Range of measuring | 000000.00~99999999kWh | ||
Clock accuracy | Error≤0.5s/d | ||
Active pulse | Pulse width | 80±20ms | |
Pulse constant | 1000imp/kWh | ||
Communication | Interface | RS485(A+、B-) | |
Connection mode | Shielded twisted pair conductors | ||
Protocol | MODBUS-RTU | ||
Temperature range | Work temperature | -25℃~55℃ | |
Storage Temperature | -40℃~70℃ | ||
Relative humidity | ≤95%(No condensation) | ||
Altitude | no more than 2000m | ||
Dimension
Wiring Instruction
Typical Connection
Company Profile
FAQ
Q:Where is your company located?
A:Our headquarter is in Shanghai, our factory locates in Jiangyin,Jiangsu Province,China.It takes about 1 hour by car from Shanghai Hongqiao International Airport to our factory. As it is low labor cost here in Jiangsu,we can offer a better price with high quality.
Q:What’s your lead time?
A:Sample time 1-3days,mass production 10~20days for order more than 500pcs
Q:Payment terms?
A:Usually,TT,credit card,western union,in cash and so on.You can also choose to pay 30% as deposit and the balance before shipment or against copy of B/L if the order is large.
Q:Can other logo be put on your products(OEM)?
A:Yes,but MOQ for OEM will be at least 100pcs.We also need you provide logo Ai Format or EPS.
