Мини-экскаватор ce/epa/euro 5 Китай оптовая продажа Компактные мини-экскаваторы на 1 тонну цены с ведром для большого пальца
- Категория: >>>
- Поставщик: Shandong,Wonway,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.99 $* | 0.53 $* |
| Aug-15-2025 | 0.61 $* | 0.94 $* |
| Jul-15-2025 | 0.20 $* | 0.92 $* |
| Jun-15-2025 | 0.9 $* | 0.66 $* |
| May-15-2025 | 0.8 $* | 0.71 $* |
| Apr-15-2025 | 0.82 $* | 0.28 $* |
| Mar-15-2025 | 0.97 $* | 0.40 $* |
| Feb-15-2025 | 0.1 $* | 0.69 $* |
| Jan-15-2025 | 0.68 $* | 0.24 $* |
Характеристики
Products Description

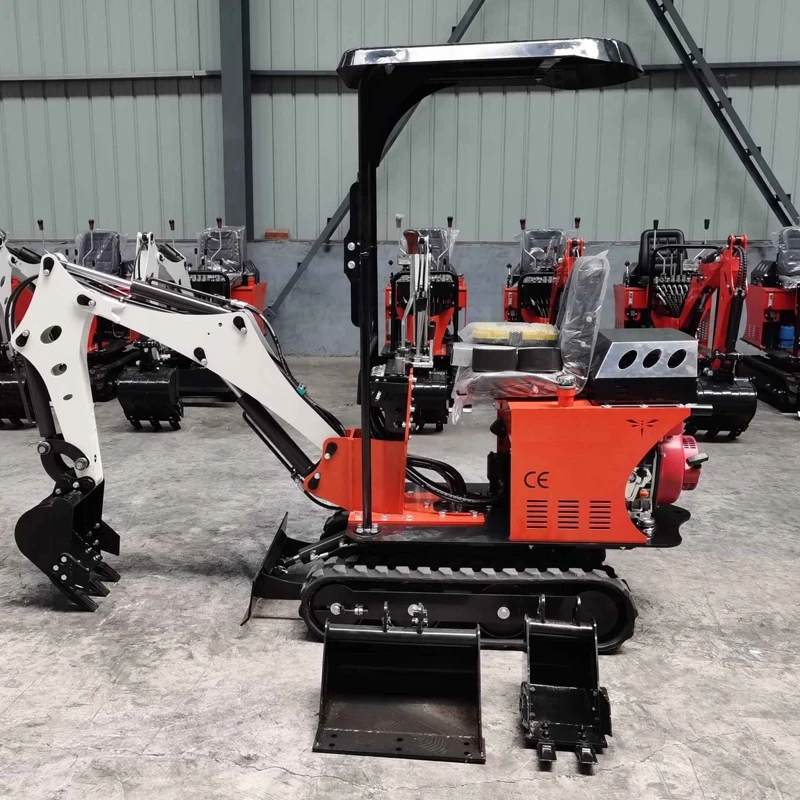

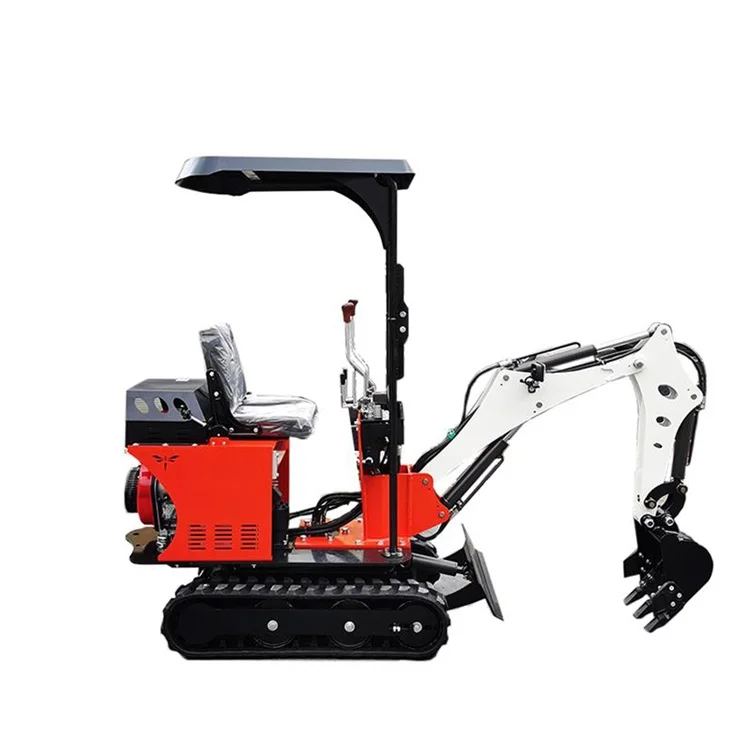

The PC-NT08 Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications.
1. Engine: KOOP-192 engine, single-cylinder air cooled, 12HP, 8.6KW
2. Hydraulic pump (gear pump) is easy to maintain, long life
3. Strong lift and dig performance helps you get the job done faster. The retractable undercarriage lets
you access and work in the tightest areas. Dig-to-blade and dozer float features allow for easy clean
up.
4. Multiple valves under the operating handle,The benefit of less effort and improved control
is in your hands!
5. Rubber track no damage to cement, tile floor
6. Diesel level gauge: Check engine oil when it is not easy to start
2. Hydraulic pump (gear pump) is easy to maintain, long life
3. Strong lift and dig performance helps you get the job done faster. The retractable undercarriage lets
you access and work in the tightest areas. Dig-to-blade and dozer float features allow for easy clean
up.
4. Multiple valves under the operating handle,The benefit of less effort and improved control
is in your hands!
5. Rubber track no damage to cement, tile floor
6. Diesel level gauge: Check engine oil when it is not easy to start
Model | PC-NT08 | Vehicle weight | 720KG |
Standard bucket capacity | 0.02m³ | Working device form | backhoe |
Type of engine | Horizontal air cooling | Rated power | 7.6/8.2kw |
Maximum excavating force | 7.5KN | Pump form | Single gear pump |
Set Work Pressure | 14MPa | Rotary speed | 12rpm |
Walking speed | 1.8Km/h | Climbing ability | 30° |
Ground pressure | 19Kpa | Dimendions | Specification |
Wheelbase | 420mm | Track grounding length | 1140mm |
Minimum ground clearance | 80mm | Chassis width | 720mm |
track width | 150mm | Transport length | 2480/2590mm |
Full vehicle height | 1250mm | Operating range | Specification |
Maximum ground mining radius | 2450mm | Maximum mining depth | 1200mm |
Maximum mining height | 2350mm | Maximum unload height | 1600mm |
Minimum radius of revolution | 1100mm | Maximum clearance of the earth push shovel | 120mm |
maximum supporting depth of the push shovel | 200mm | Engine model | KD192F/FE |
Power type | single cylinder, four stroke, air cooling, vertical | combustion system | Direct injection |
Cylinder diameter * stroke | 92 * 75mm | Displacement | 0.499L |
Compression ratio | 19.5:1 | Rated speed | 3000/3600rpm |
Oil tank volume | 5.5L | Oil capacity | 1.65L |
Oil consumption | 280g/kwh | Net weight | 55KG |
Details Images
You can send an email or live chat to explain your needs, and we will recommend a suitable machine for you according to the model and configuration requirements provided.
Optional machine model

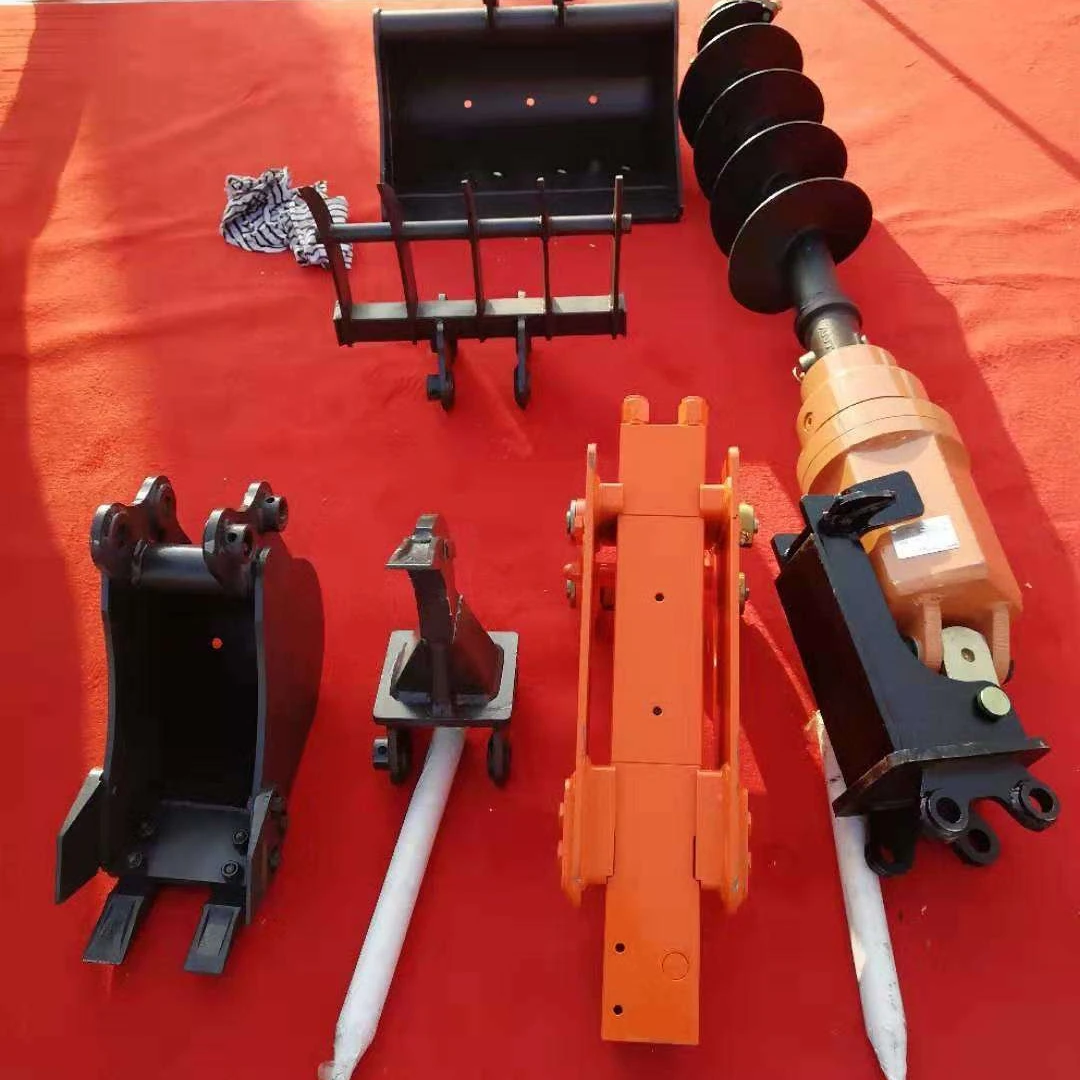

Optional accessories
Augers | Buckets | Couplers | Hammers | Rippers | Rake | Thumbs | Hydraulic Tilting bucket | Log Grab | |
Agriculture | * | * | * | * | * | * | * | * | * |
Concrete Prep and Flatwork | * | * | * | * | * | * | |||
Excavation and Earth movation | * | * | * | * | * | * | * | ||
Finishing and Site Clean-Up | * | * | * | * | * | * | * | ||
Landscaping | * | * | * | * | * | * | * | * | |
Material Handing | * | * | * | * | * | * | |||
Rental | * | * | * | * | * | * | * | * | * |
Residenital and Commecial Construction | * | * | * | * | * | * | * | * | |
Site Prep and Demolition | * | * | * | * | * | * | * | * | |
Trenching and Utilities | * | * | * | * | * | * | * | * |
Packing & Delivery
If you need 1-3 units would be Wooden box, More than 4 units will loading by container After 5-7 days we will shipping your goods when we received the advance payment
Our Factory
Shandong Wonway Machinery Co., Ltd. is a professional manufacturer and trading company which specializing in the R&D and sales of road equipment and engineering pavement machinery in China. The company local in Jining, Shandong Province. Since its establishment, the company has been specialized in producing and selling more than 50 different machines . The main products covers mini excavators, loader, fork lift, road rollers, concrete leveling machines, cutting machines, milling machines, power trowels, engineering lighting vehicles , backhoe loader ,forklift, snow cleaners and ect. All our machines have passed ISO9001:2015 China Quality Management System Certification.And most of them have passed the European CE certification. We value after-sales service, the customers could get the free online video technical guidance and a one-year warranty of all the machines we sold.We started international trade business in 2016, till now our products have been exported to more than 20 countries around the world, such as the United States, Italy, Germany, Sweden, Hungary, Norway, India, Ghana and soon. Many customers have repeatedly purchased our products and established long-term and stable cooperative relations with us. We also could accept the OEM and ODM orders, and glad to help our customers create their own brands in the local market. Quality and services are our culture . Sincerely welcome global partners to visit our company,check our production process, talk about the machines, then cooperate with us in the future.
Why Choose Us
