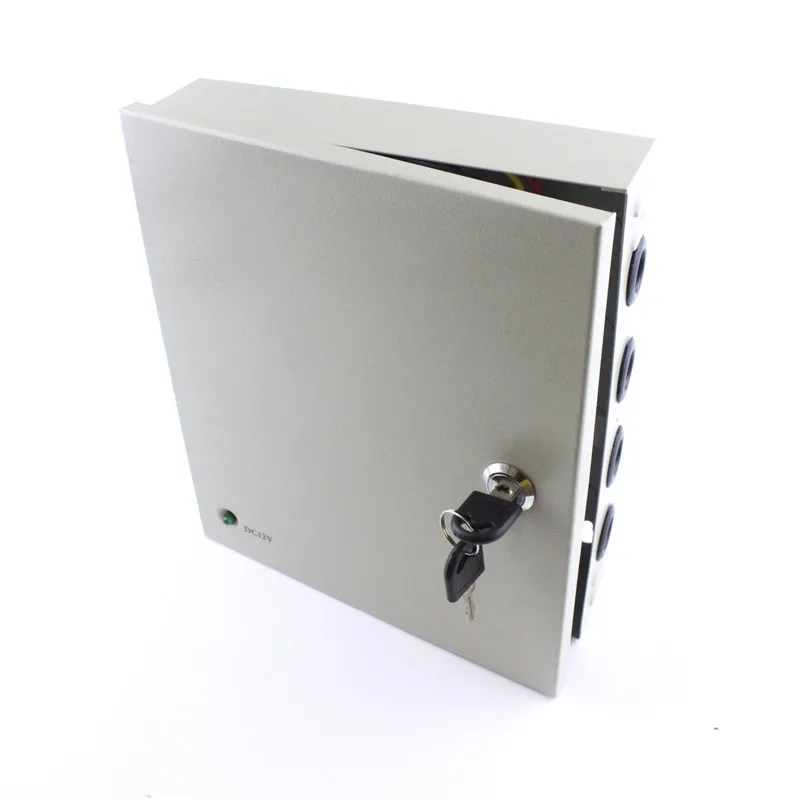

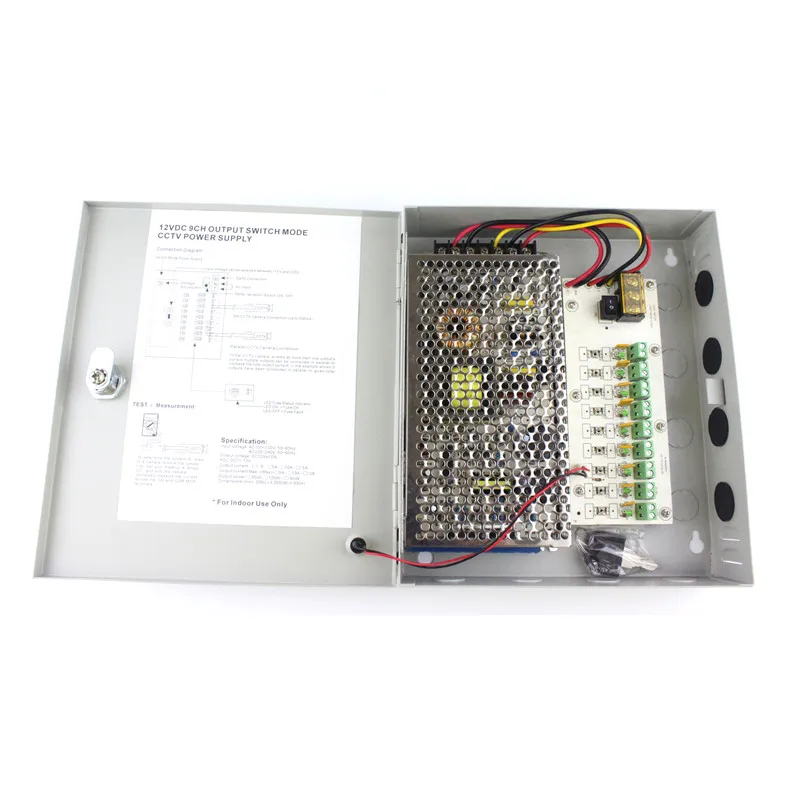

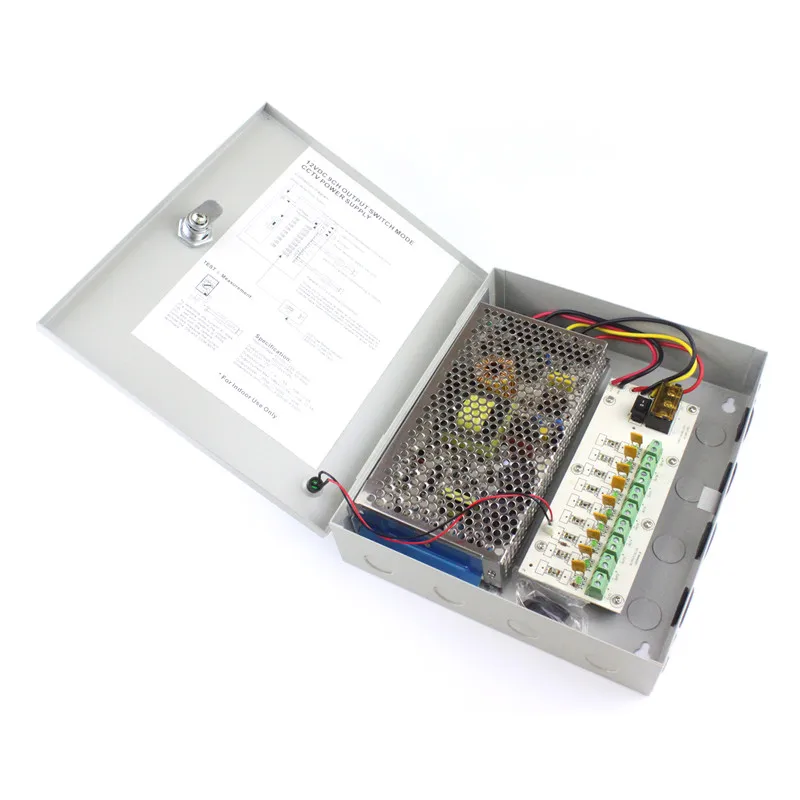

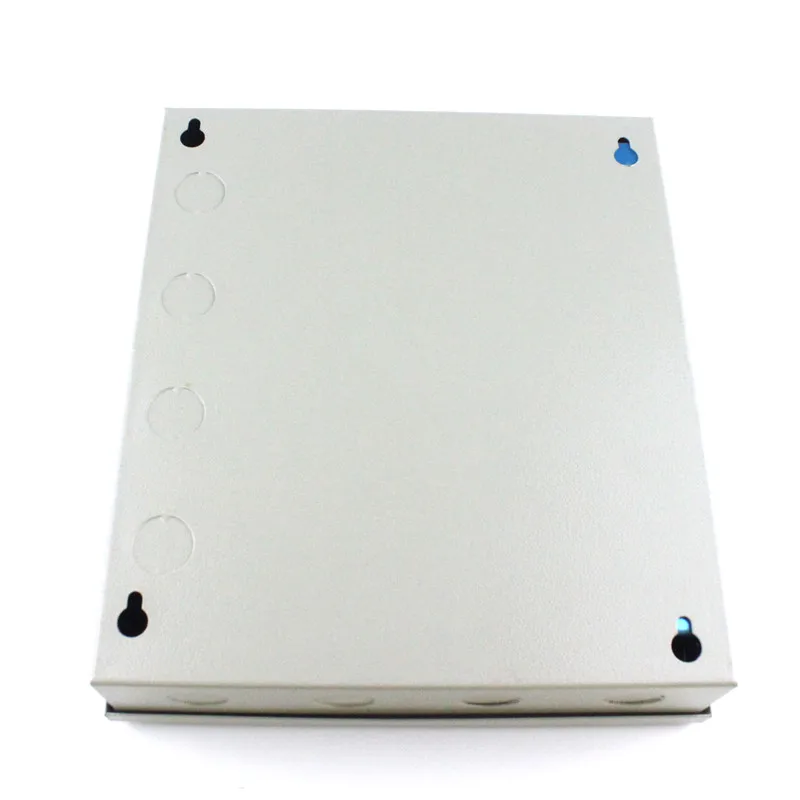

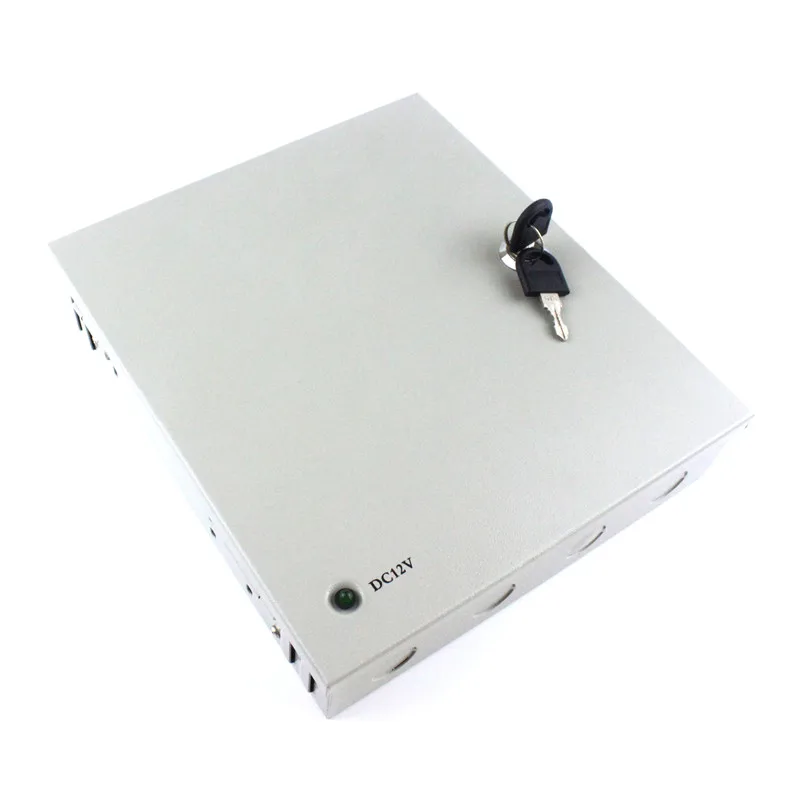

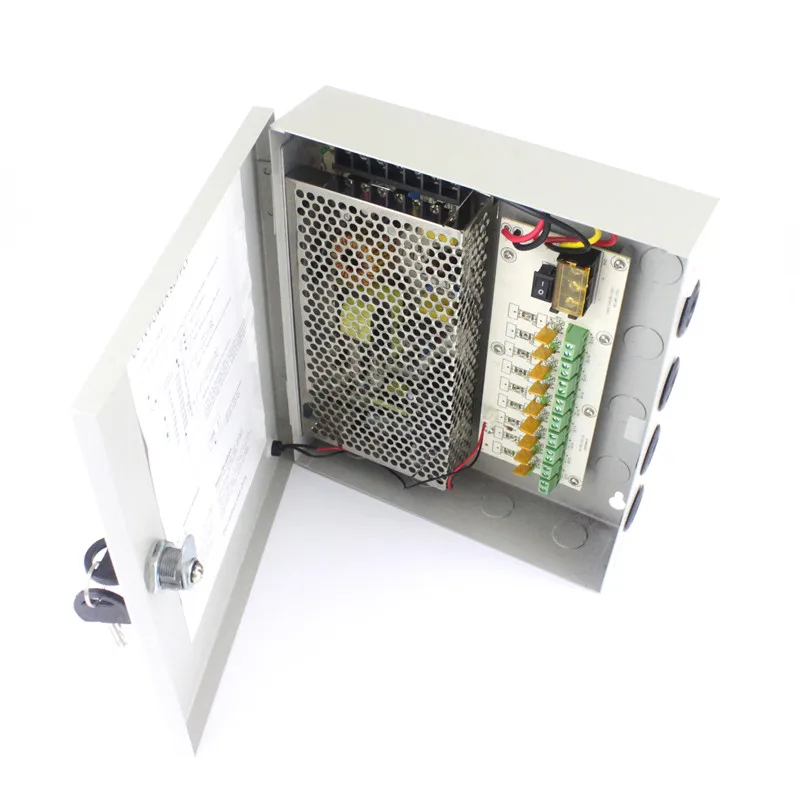

12v 5a 10a 15a 20a 30a Cctv Power Supply Box Switching Power Supply For Cctv

MODEL		GF120-9H-AM		GF120-9B-AM
OUTPUT	DC VOLTAGE	12V		24V
	OUTPUT POWER	120W		120W
	CURRENT RANGE	10amp		5amp
	RIPPLE & NOISE(max.)	120mVp-p		150mVp-p
	CHANNELS	9 Ways
	VOLTAGE ADJ. RANGE	±10%
	LINE REGULATION	±1.0%
	LOAD REGULATION	±2.0%
	VOLTAGE TOLERANCE	±2.0%
	SETUP,RISE TIME	800ms, 50ms at full load
	HOLD UP TIME	60ms
INPUT	VOLTAGE RANGE	110/220V AC by switcher
	AC CURRENT(Typ.)	3.5A/ 226VAC    1.8A/ 240VAC
	FREQUENCY RANGE	47-63Hz
	EFFICIENCY(Typ.)	0.8
	INRUSH CURRENT(Typ.)	COLD START 15A/115VAC   30A/230VAC
	LEAKAGE CURRENT	<3.0mA/240VAC
PROTECTION	OVER LOAD	115%~135% of rated power; Pulsing hicuup shut down
	OVER VOLTAGE	Rated output voltage of 105%~150% start overvoltage protecion
		Protection: burst mode,load of abnormal conditions removed the automatic recovery
	SHORT CIRCUIT	voltage off and reset input for recovers
ENVIRONMENT	WORKING TEMP.	-0℃ ~ +45℃ (Refer to output load derating curve)
	WORKING HUMIDITY	20 ~ 90% RH non-condensing
	STORAGE TEMP.,HUMIDITY	-20℃ ~ +85℃ 10~95% RH
	TEMP. COEFFICIENT	±0.05%/℃
	COOLING METHOD	BY FREE AIR CONVECTION
SAFTY	WITHSTAND VOLTAGE	I/P-O/P:1.5KVAC, I/P-FG:1.5KVAC, O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG,O/P-FG: 100M Ohms/ 500VDC
	SAFTY STANDARDS	Refer to CE EN60950-1
	EMC STANDARDS	Refer to EN55022,EN55024,EN61000
OTHERS	POWER SUPPLY DIMENSION	L160*W98*H42MM
	9CH BOX DIMENSION	L235*W205*H50MM
	WEIGHT	1.56Kg/PC, 10PCS/Carton size:45*32*30MM
	POWER SUPPLY MATERIAL	Aluminium
	9CH BOX MATERIAL	1.0mm tchickness iron (grey plating)



MOQ-

No limited



Many power models-

5 Watts - 1800 Watts



Many voltage output-

5V, 7.5V, 9V, 12V, 13.8V, 15V, 18V, 24V,29V, 36V, 48V,50V,60V (Depend on your requirement).



New Design-

We have professional engineer to make new design as your speical requirment.



Good quality-

We have the best professional and experienced engineer and the strict QC system.



Fast delivery-

The delivery time is 1-25 days which depend on quantity and details items.



Payment term-

T/T, L/C, Paypal, Western Union, Money Gram.



Solutions-

With more than 10 years experience,we can provide professional design solution for power supply according your requirement.



Cooperation-

You are welcome to be our distributor or agent in all over the world for switch power supply.Please contact us for more details.
