Характеристики

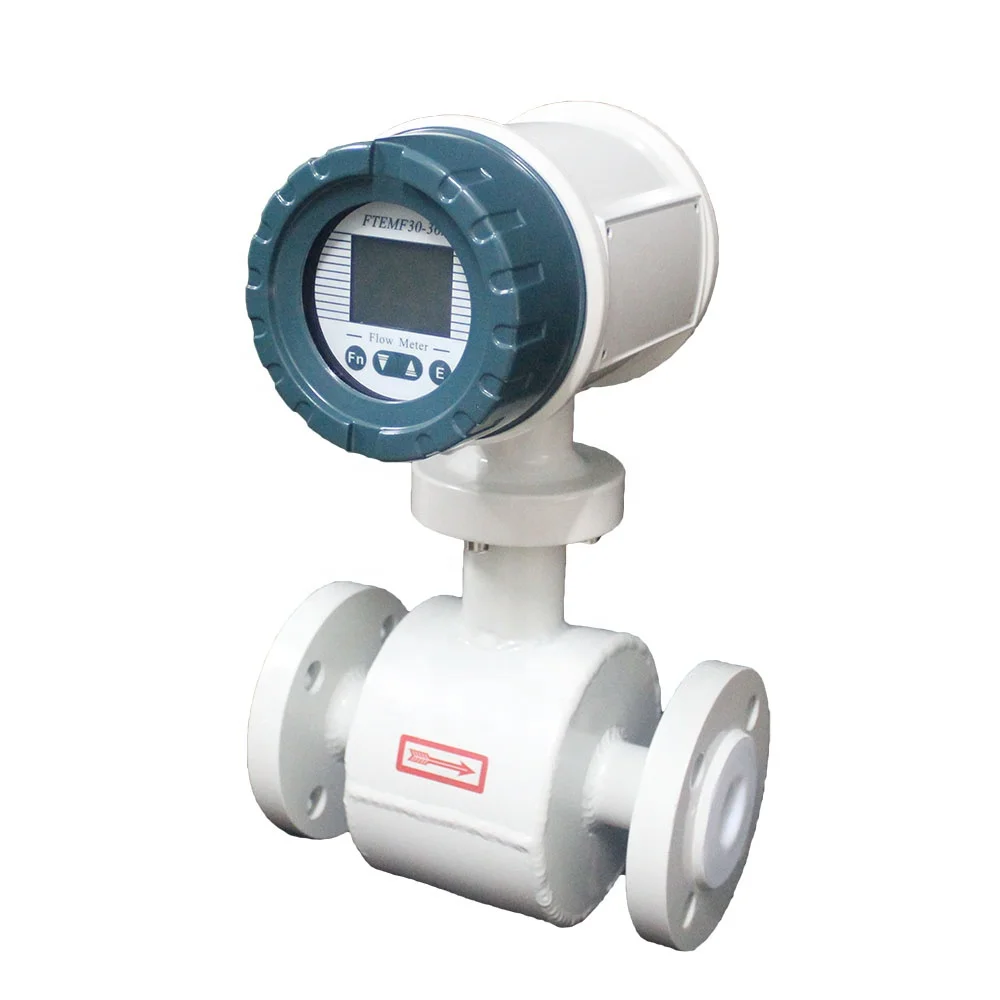

Factory price flange RS485 remote digital electromagnetic flow meter waste water beer slurry liquid control flow meter supplier![113_]()
Electromagnetic flow meters, or magmeters, are comprised of a transmitter and sensor that together to measure flow. The magnetic flow meter’s sensor is placed inline and measures an induced voltage generated by the fluid as it flows through a pipe. The transmitter takes the voltage generated by the sensor, converts the voltage into a flow measurement and transmits that flow measurement to a control system.
Product Information
Integrated type flow instrument intelligent electromagnetic flowmeter water flow meter
|  |
Model | DN6~DN3000mm | ||
Nominal Pressure | 0.6~1.6MPa(2.5Mpa/4.0Mpa/6.4Mpa...42Mpa) | ||
Accuracy | ±0.5%,±0.3%or±0.2% are available | ||
Liner material | Teflon,PFA,F46,Neoprene,Polyurethane | ||
Electrode Type | General type | ||
Electrode material | Stainless steel SUS316,Hastelloy B, Hastelloy C,Titanium,Tantalum Platinum-iridium, | ||
Mediem temperature | Integral type | -20°C~+60°C | |
Remote type | Neoprene & Polyurethane Liner | -10°C~+80°C | |
PTFE Liner /PFA Liner /F46 Liner | -10°C~+160°C | ||
Ambient Temperature | -25°C ~+ 60°C | ||
Ambient Humidity | 5~100%RH(relative humidity) | ||
Medium Electrical | ≥5μ s/cm | ||
Measuring Range | 1500:1,flow rate<15m/s | ||
Structure type | Integral type,remote type,submersible type,ex-proof type | ||
Protection Class | IP65,IP68(optional) | ||
Ex-proof Mark | ExmdⅡT6 | ||
Product Standard | JB/T 9248-1999 Electormagnetic Flowmeter | ||
1, pipe cutting 2, welding flange 3, coil assemble 4, polishing 5,sensor checking 6, paiting 7, transmitter checking 8, qualified products
Calibration is the most important parts of manufacturing the high accuracy flowmeter, As the principle is the same, the material and the structure design of the flowmeter is not much different.High accuracy flowmeters depends on the high accuracy calibration equipment.
Packaging & Shipping
We have carton packing and wooden case packing, before packing, we will make the goods clean. We'll use screws and wire to secure. According to the size of goods to arrange shipment. Will make sure all the goods to your place safely. Here is the weight and dimension table for some flow meters as below.
Integrated type rs485 liquid industrial wastewater electromagnetic flow meter | ||
Diameter | Weight/kg | Size/cm |
DN10 | 8 | 41*29*32 |
DN15 | 8 | |
DN20 | 9 | |
DN25 | 9 | |
DN32 | 10 | |
DN40 | 11 | |
DN50 | 13 | |
DN65 | 15 | 47*32*32 |
DN80 | 18 | |
DN100 | 22 | 51*34*32 |
Related Products
Company Information
Kaifeng Fantai Measurement & Control Technology Co., Ltd. was established in 2008, which is located in Kaifeng, Henan Province,. It is a professional manufacturer of electromagnetic flowmeter, vortex flowmeter, turbine flowmeter and orifice flowmeter.
Our factory covers more than 10000 square meters. It owns 4 patents for product appearance and 8 patents for practical patents. The company has one set standard metrological equipment for calibration with Sartorius scale. Two sets standard flowmeter calibration equipment.
We have CE, ISO, explosion-proof certificates. The company has a strong after-sales team with 15 engineers to ensure that customer site issues are resolved within 24 hours.
Our philosophy is: customer's success is our achievement! A good product is to let customers have no worries!
FAQ
1. How do you calibrate the flowmeter?
We use the reference standard flowmeter method to calibrate the 0.5%R flowmeters.We use the Gravimetric for the 0.2% R flowmeters.
2. How can you gurantee the high accuracy?
The Gravimetric mothod is much more accurate than the volumetric calibration and we use the high accuracy sidorious scale to gurantee the less tolerance. Our high accuracy Sartorius scale can reach the 0.01%.so it is no problem to gurantee the 0.2% accuracy.
3. Can I be your agent?
Of course, yes, we are a developing company, welcome all the friends to be our agents.
Contact Us
Sales Manager: MarkMobile/WhatsApp/WeChat: +8615188350209
Add: Wangxizhuang, South of Kaiqi Road, Nankou, Xiangfu Road, Kaifeng, Henan, CN
