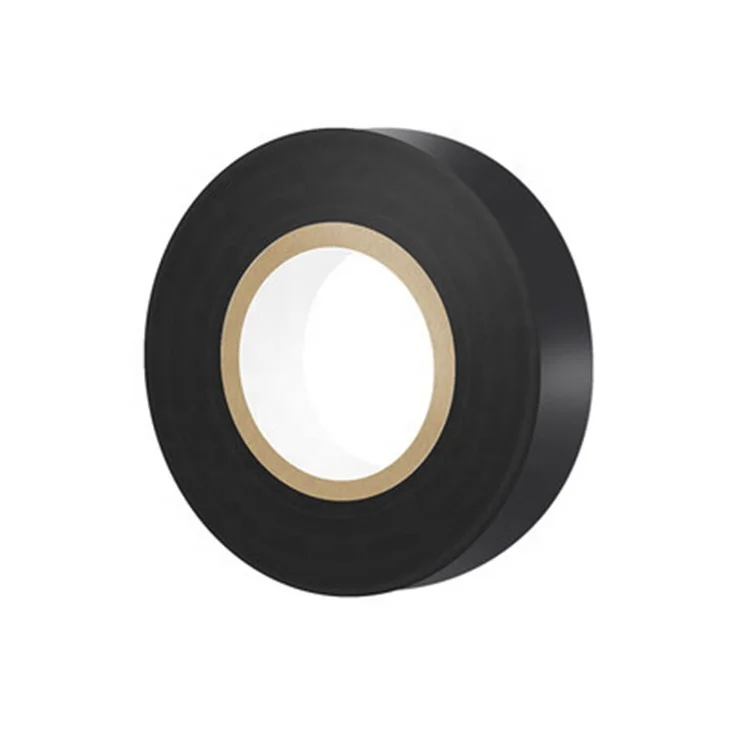

Изоляционная Лента из ПВХ для электрических проводов изоляционная черная лента
- Категория: Electrical Tapes >>>
- Поставщик: HENAN,YOUCHENG,TECHNOLOGY,CO.,LTD.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.86 $* | 0.13 $* |
| Aug-16-2025 | 0.35 $* | 0.80 $* |
| Jul-16-2025 | 0.43 $* | 0.84 $* |
| Jun-16-2025 | 0.12 $* | 0.1 $* |
| May-16-2025 | 0.5 $* | 0.7 $* |
| Apr-16-2025 | 0.58 $* | 0.96 $* |
| Mar-16-2025 | 0.26 $* | 0.30 $* |
| Feb-16-2025 | 0.60 $* | 0.42 $* |
| Jan-16-2025 | 0.8 $* | 0.30 $* |
Характеристики
Products Description
We are committed to providing safer and more economical electrical tape for the world.
We are committed to providing safer and more economical electrical tape for the world.
Specifications: YC130F | ||||||
Material: PVC film + pressure-sensitive rubber. | ||||||

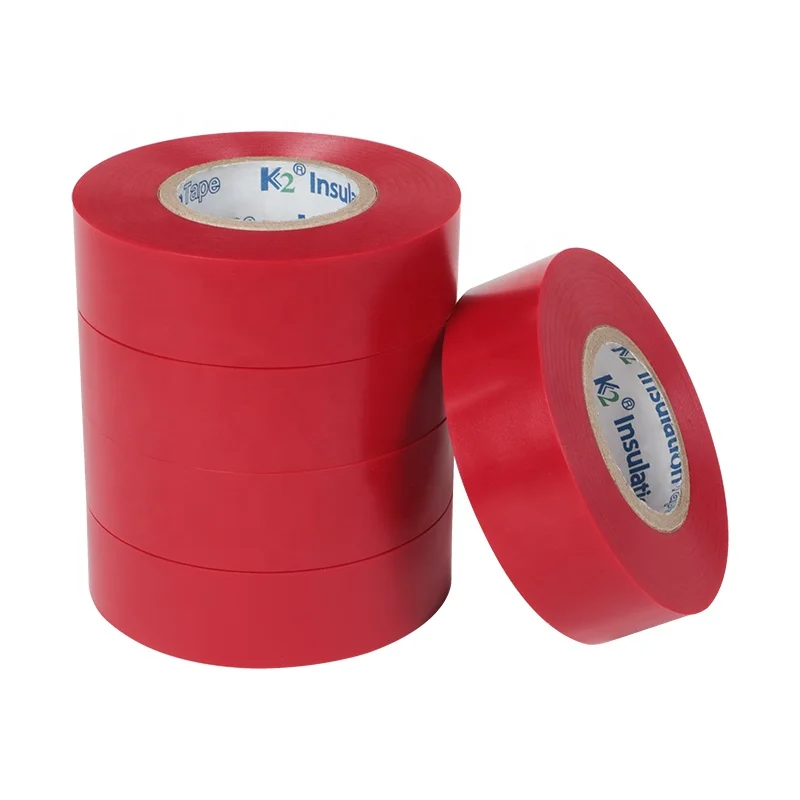

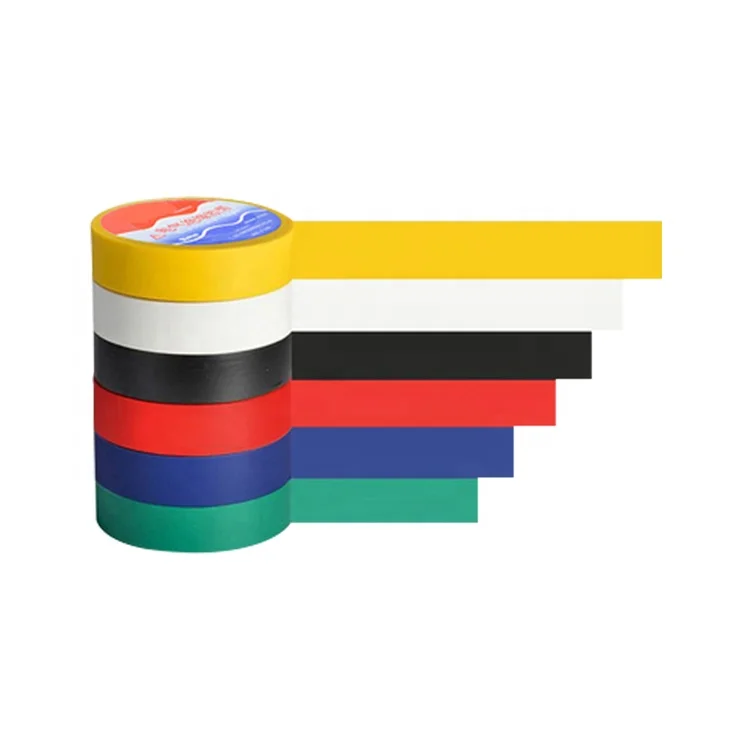

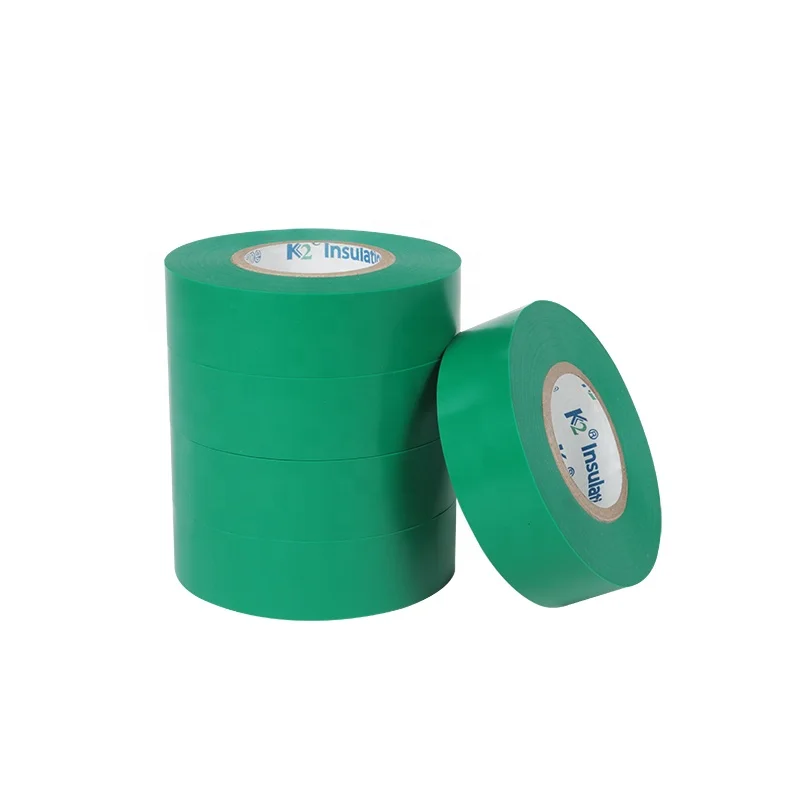

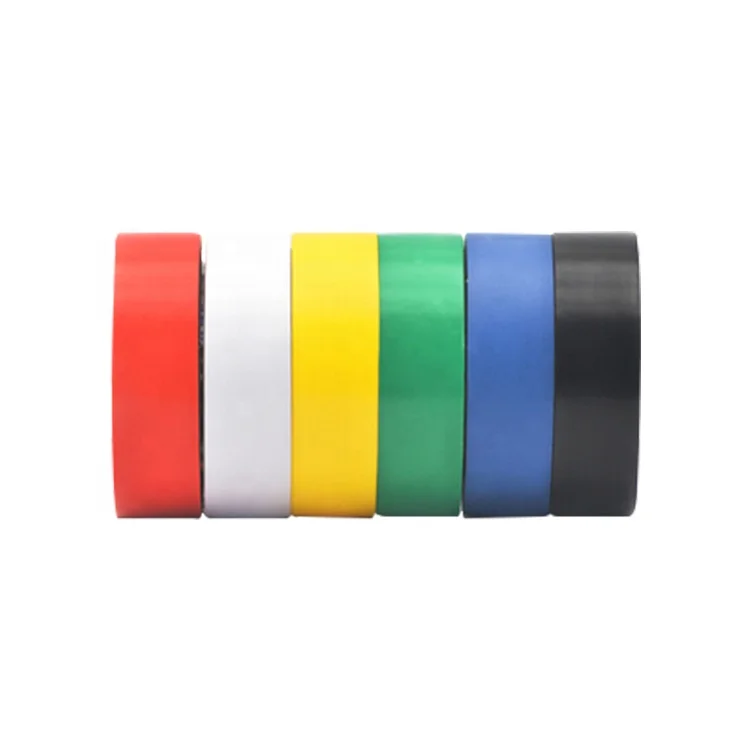

Color: Black Red Blue Yellow White Green Brown Grey Violet Orange Yellow/Green | ||||||
PROPERTY | VAULE | UNIT | TEST METHOD | |||
Total thickness | 0.13 | mm | ASTM-D-1000 | |||
Tensile strength | 18 | N/cm | ASTM-D-1000 | |||
Elongation at break | 180 | % | ASTM-D-1000 | |||
Voltage resistance | 600 | V | UL510 | |||
Temperature resistance | -10 -- 80 | °C | ASTM-D-1000 | |||
Flame resistance | ＜3 | S | ASTM-D-1000 | |||
Adhesion to steel | 1.5 | N/cm | ASTM-D-1000 | |||
Adhesion to backing | 1.3 | N/cm | ASTM-D-1000 | |||
Lead Content | ＜100 | ppm | US EPA3052 | |||
Note: Data in table represent average test results and are not to be used for specification purposes. The product user should make his/her own tests to determine the product's suitability for the intended use. | ||||||
Standard Size | ||||
Width | Length | Core | ||
19mm | 10m | 32mm | ||
19mm | 20m | 32mm | ||
19mm | 33m | 32mm | ||
19mm | 45m | 38mm | ||
Other sizes and cores are available. Contact us about details. | ||||
Code | Total thickness(mm) | Tensile strength(mm) | Elongation at break (%) | Adhesive to steel (N/cm) | Adhesive to backing (N/cm) | Voltage resistance(V) | Temperature resistance (°C) | Flame resistance(s) | ||||||||
YC100F | 0.10 | 13 | 160 | 1.5 | 1.3 | 600 | -10 --80 | ＜3 | ||||||||
YC120F | 0.12 | 16 | 180 | 1.5 | 1.3 | 600 | -10 --80 | ＜3 | ||||||||
YC150F | 0.15 | 22 | 180 | 1.5 | 1.3 | 600 | -10 --80 | ＜3 | ||||||||
YC160F | 0.16 | 23 | 180 | 1.5 | 1.3 | 600 | -10 --80 | ＜3 | ||||||||
YC180F | 0.18 | 26 | 180 | 1.5 | 1.3 | 600 | -10 --80 | ＜3 | ||||||||
YC200F | 0.20 | 28 | 180 | 1.5 | 1.3 | 600 | -10 --80 | ＜3 | ||||||||
Other thickness are available. Contact us about details. | ||||||||||||||||
Product Details
Strong viscosity and good insulation，Good flame retardancy
Withstand voltage and good ductility,operating temperature -20℃-- 85℃
Good conformability
About Us
It’s worth mentioning that we can make accurate sample customizations. If you have samples can send us, we can make 90% similar to your samples.
Treating your business as our own business and taking "growing together" as our principle, we deserve your trust. Just spend one minute telling us what you need, and then leave the rest to us. We strive for supplying you the most suitable products!
Until now we have 1 PVC Calendar film machine,4 coating lines , 1 paper core making machine,16 slitting machine and 15 automatic packaging in our manufacturing facility. Our yearly manufacturing capacity is 50 Millions Square meters.In our lab,we have the equipment to test the thickness,adhesion to steel,elongation,tensile strength,backing adhesion,hold power,flame of PVC tape,etc.Our testing equipment is calibrated periodically.We have 20 technicians in our manufacturing facilities.
Coating machine is mainly used for surface coating process production of film, paper, etc. This machine coats the rolled substrate with a layer of glue, paint or ink with a specific function, and then winds it after drying.
Select the best products, high-quality raw materials.
The warehouse strictly abide by the safety rules.
Transport a variety of packaging specifications, high-quality corrugated paper, standard container delivery. Containers, ships.
Certificate
Customer Visiting
Youcheng Tech. always adhere to the "technology in order to survive, to the quality strives for the development" concept, to "strive to do better" banner, with "the speed and accuracy of" as the goal, to "people-oriented, serving society". Welcome to visit our factory any time.
Packing & Shipping
FAQ
Q: Can I get free sample?
A: Yes. Free sample can be provided. But if your size is not on our stock list, it may take more or less 7 days for production.
And the freight is on your part, hope you can understand. Thank you.
Q: Do you accept customized order?
A: Yes. Any customized requirement including color, size, package and logo etc. are welcomed.
Q: What's your MOQ?
A: It depends. but small order is also acceptable for the purpose of long time cooperation.
Q: How do you ensure the quality of your products?
A: Yes. Free sample can be provided. But if your size is not on our stock list, it may take more or less 7 days for production.
And the freight is on your part, hope you can understand. Thank you.
Q: Do you accept customized order?
A: Yes. Any customized requirement including color, size, package and logo etc. are welcomed.
Q: What's your MOQ?
A: It depends. but small order is also acceptable for the purpose of long time cooperation.
Q: How do you ensure the quality of your products?
A: At Youcheng Tech. you receive products under guarantee of ISO9001, RoHS.
Q: What are your best lead-times?
A: Immediately shipments are available for stock adhesive tapes. Otherwise we need more or less 25 working days for production.
Q: How can you make sure that my money is safe with you?
Q: What are your best lead-times?
A: Immediately shipments are available for stock adhesive tapes. Otherwise we need more or less 25 working days for production.
Q: How can you make sure that my money is safe with you?
A: As an Alibaba Trade Assurance member, your funds are under protection of Alibaba group. Payment will not be released to vendor until buyer confirms receipt and good material of delivery.
