Характеристики
Product Description

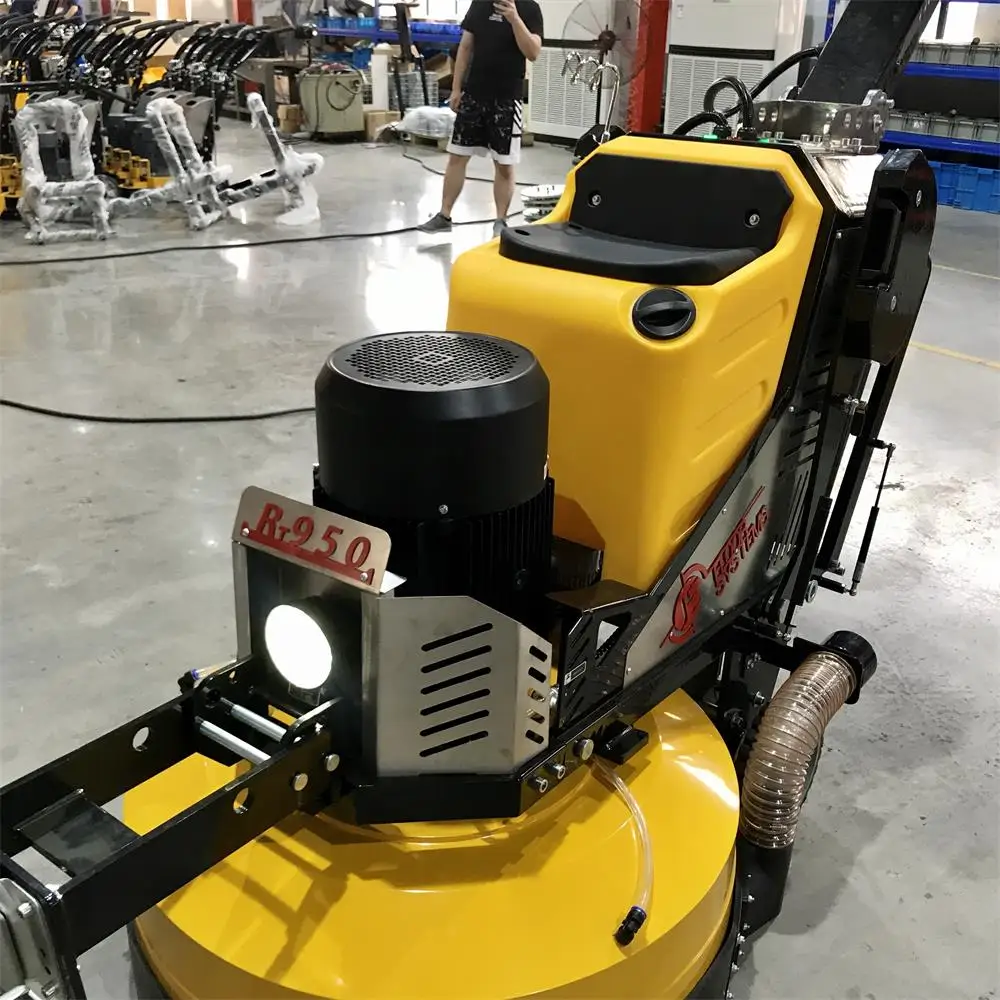

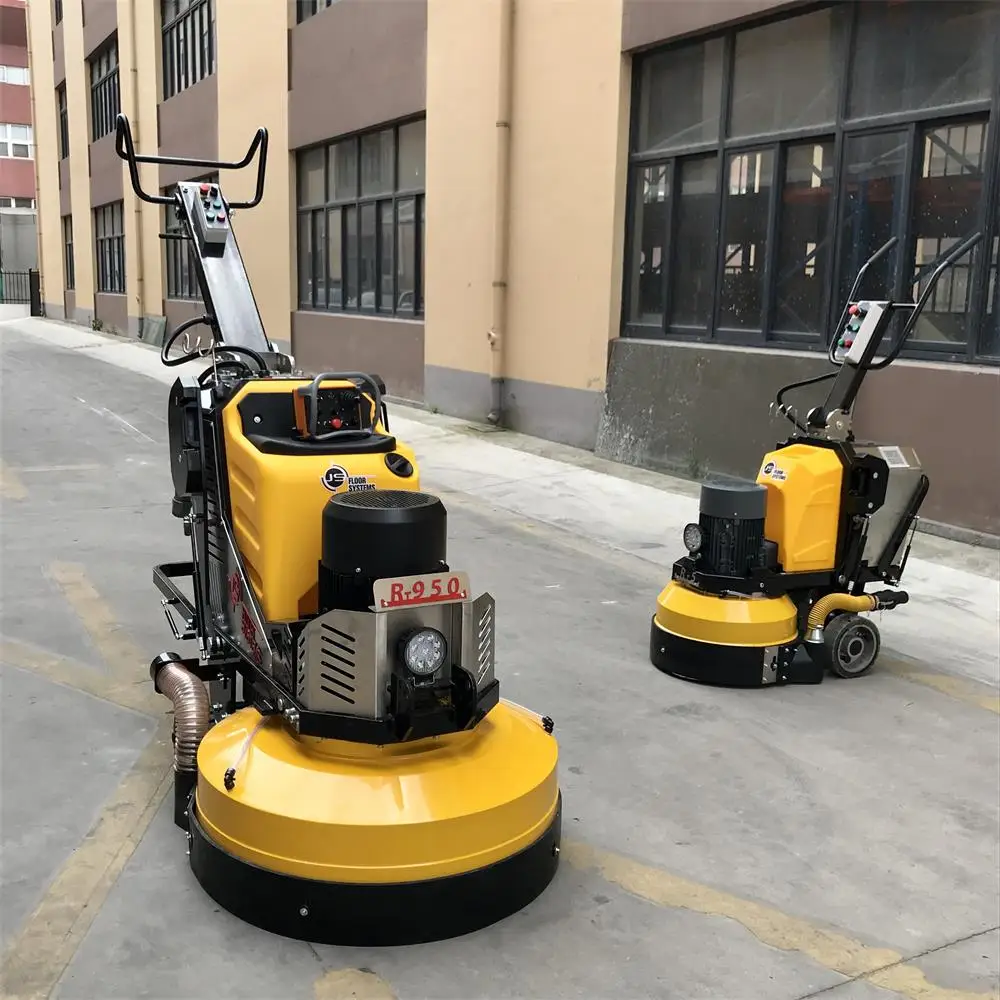

R950 Radio Control Planetary Concrete Floor Grinder
R950 is auto radio controlled planetary concrete grinder. Machine can auto polish and grind at a constant speed and minimizes the risk of operators' mistakes going too slow or too fast. It can significantly save both your time and labor cost.
Basic function:
1, both grinding and polishing
2, both wet and dry working
3, customized plate as per request
4, walk wheel for easy delivery
5, variable speed 0-1800 RPM
Highlights compare to counterparts:
1, High precision planetary gear box (no belt), don’t need to always replace the belt!
2, Strong mechanical construction fit to rough floor and grit 6#, PCD grinding.
3, Very short turning radius because each wheel is controlled by independent motor.
Basic function:
1, both grinding and polishing
2, both wet and dry working
3, customized plate as per request
4, walk wheel for easy delivery
5, variable speed 0-1800 RPM
Highlights compare to counterparts:
1, High precision planetary gear box (no belt), don’t need to always replace the belt!
2, Strong mechanical construction fit to rough floor and grit 6#, PCD grinding.
3, Very short turning radius because each wheel is controlled by independent motor.
4, 50-100 meters wireless radio controlled.
5, Automatic water system.
7*24 on line service
Please contact: Ms. Echo
Mobile and whatsapp:
Mobile and whatsapp:
+86 136 3149 9577
Email: echo.guan@jiansongsh.com
12 years experience
machine design and manufacturing
Own 2 factories
in Shanghai and Suzhou
More than 70 machines
one-stop service
Field of Applications
Renovation of old floors,
Fine grinding and polishing,
Leveling of uneven spots and surfaces,
Polishing and Grinding of concrete surfaces,
Removing of adhesive residues, painting, coatings, putty, epoxy and cement slurry.
Fine grinding and polishing,
Leveling of uneven spots and surfaces,
Polishing and Grinding of concrete surfaces,
Removing of adhesive residues, painting, coatings, putty, epoxy and cement slurry.
Epoxy Terrazzo
Epoxy Terrazzo
Enjoy With JS Machine
Technical Data
4 Head | R650 | R750 | R850 | R950 |
Width | 650mm | 750mm | 820mm | 945mm |
Disk size | 254mm | 280mm | 320mm | 360mm |
Weight | 580KG | 620KG | 713KG | 820KG |
Speed | 0-1800 rpm | 0-1800 rpm | 0-1800 rpm | 0-1800 rpm |
Motor | 15HP | 20HP | 25HP | 30HP |
AMPS | 22 | 30 | 37 | 44 |
Phase | Three | Three | Three | Three |
Features / Construction
Machine Construction

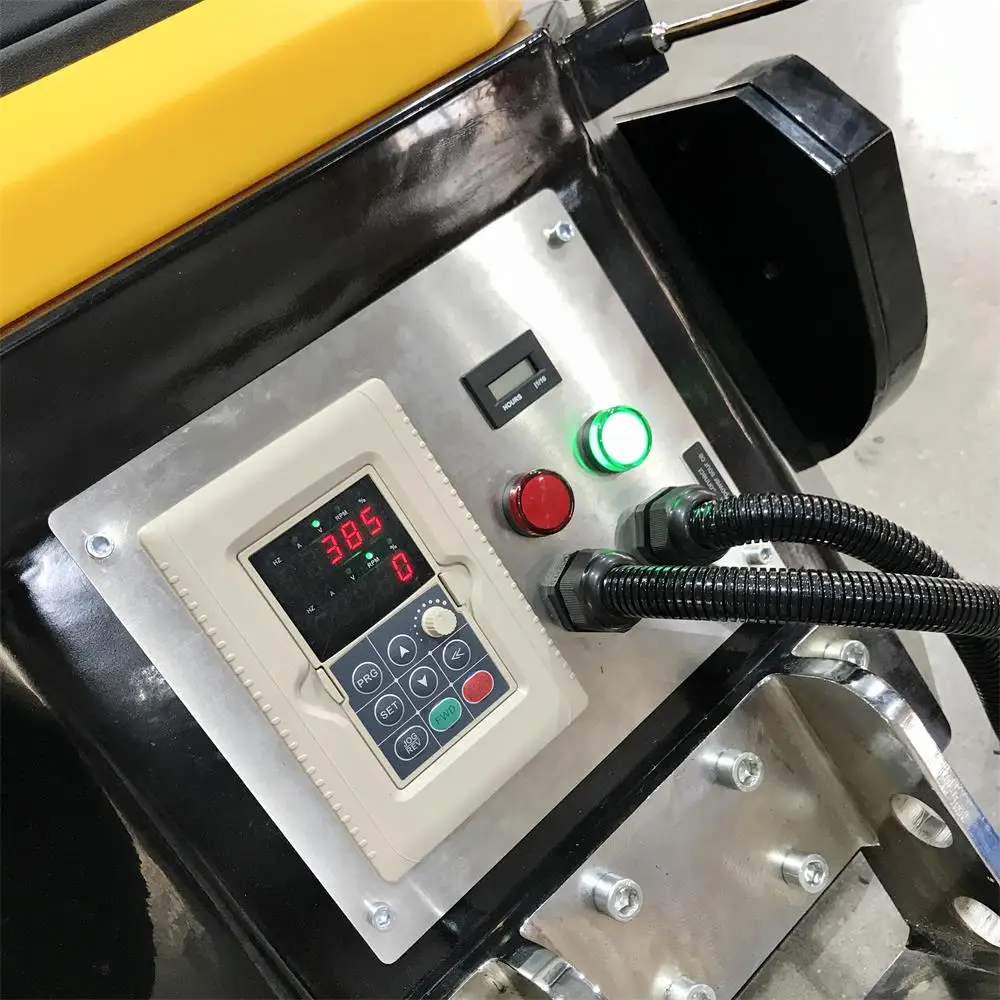

1, Remote control box
2, Suction pipe for industrial VAC
3, Auto walking motors
4, Inverter
5, Extra weight to increase grinding pressure
6, LED light
7, Water tank seat
8, Handle assembly
9, Wire holder
2, Suction pipe for industrial VAC
3, Auto walking motors
4, Inverter
5, Extra weight to increase grinding pressure
6, LED light
7, Water tank seat
8, Handle assembly
9, Wire holder
Features
1, Remote control and ride on operation
2, Double layer gear, no belt
3, Aluminum integral casting gear box
4, Quick-change magnetic tooling systems
5, Variable-speed soft start
6, Both grinding and polishing
7, Big water tank for wet polishing
8, 50mm dust port and thick rubber dust skirt for dry polishing dust control
9, Be good at high gloss and smooth surface polishing
2, Double layer gear, no belt
3, Aluminum integral casting gear box
4, Quick-change magnetic tooling systems
5, Variable-speed soft start
6, Both grinding and polishing
7, Big water tank for wet polishing
8, 50mm dust port and thick rubber dust skirt for dry polishing dust control
9, Be good at high gloss and smooth surface polishing
Gear Box Mechanical Construction
This machine can use metal gridning diamond pad, resin polishing pad and 10 inches burnishing pad, one machine with multi function.
Grinding plate can be customized base on your diamond types, then you can use just one type diamond tooling for all your machines.
Grinding plate can be customized base on your diamond types, then you can use just one type diamond tooling for all your machines.

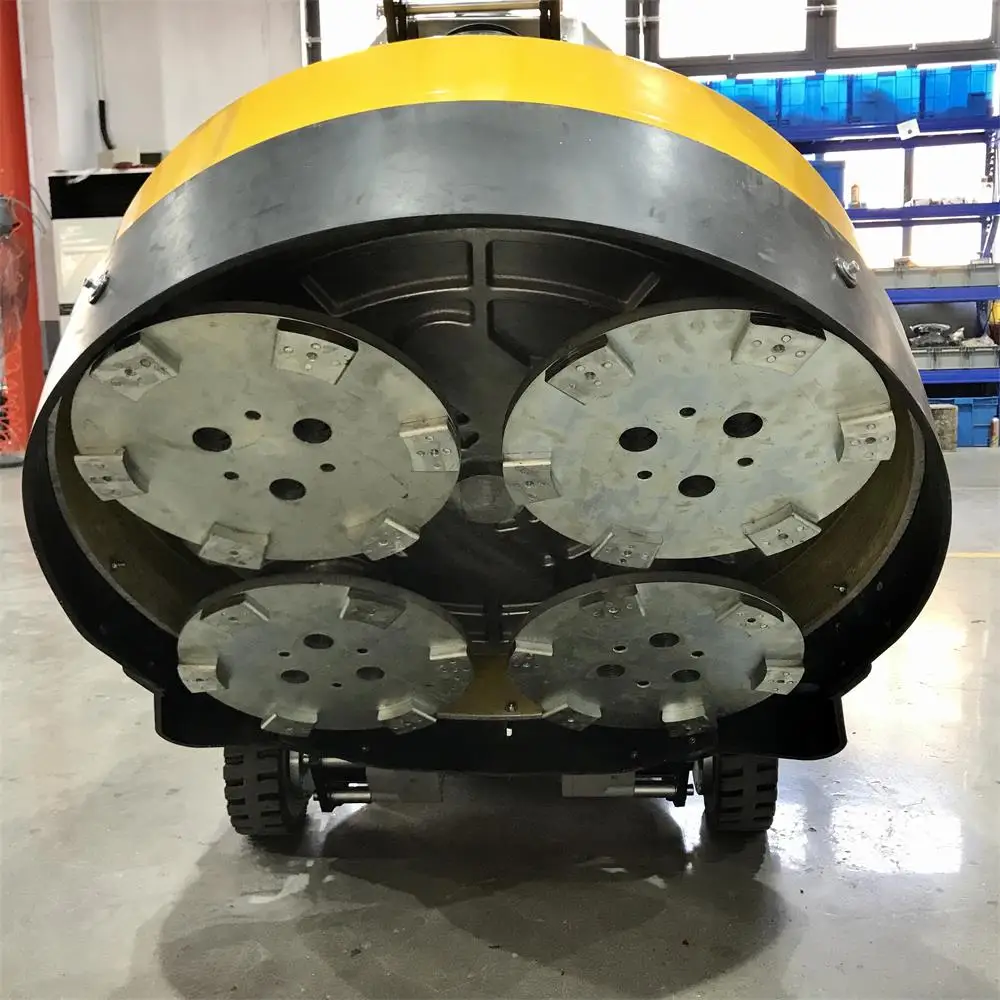

Gear Box
Japan Bearing
Customized Plate
Tools / Accessories
Related Products
About JS Floor Systems
Company Profile
JS Floor Systems has been established in 2009. Specializing in floor grinders, polishers, burnishers, scrubbers, vacuum cleaners and diamond tools. Our factory locates in Shanghai & Suzhou, China with professional R&D, technical support, production and sales team. Our service and products are appreciated by customers all over the world.
Our advantage
1, More than 11 years of experience of machine design and produce.
2, Own two factories and one software office, in Shanghai and Suzhou.
3, Product range include concrete grinder, vacuum cleaner, floor scrubber, diamond tooling and many related machines.
4, More than 70 machine models, one stop buying service.
5, Own CNC machines, welding robot, laser cutting machine, spinning lathe etc. The high precision and quality is controlled by these high tech equipment and professional R&D staff.
2, Own two factories and one software office, in Shanghai and Suzhou.
3, Product range include concrete grinder, vacuum cleaner, floor scrubber, diamond tooling and many related machines.
4, More than 70 machine models, one stop buying service.
5, Own CNC machines, welding robot, laser cutting machine, spinning lathe etc. The high precision and quality is controlled by these high tech equipment and professional R&D staff.
Certificates
Trade Shows
CNC High Precision Process
Laser Cutting Machine
Welding Robot
Suzhou Factory
Shanghai Factory
Welcome to visit us!
FAQ
Q1: Do you make the metal and resin pads yourself?
A1: Yes, we have our own diamond workshop and make the diamond tools ourselves.
Q2: How long is production time for one container?
A2: For hand push machine is 2-3 weeks, for remote control models usually take 3-4 weeks.
Q3: You are based in Shanghai?
A3: Yes.
Q4: Do you have any advantages over other suppliers in terms of design?
A4: Yes. For example, we use seamless plastic water tank, aluminum casting mold grinder head which is stronger and add grinding pressure.
Q5: What is the warranty on the products?
A5: 1 year warranty for machine.
Q6: Do you recommend buying spare parts already with the order?
A6: Yes, we will recommend some spare parts.
Q7: What parts are usually needed for replacements?
A7: Resin pad holder, rubber cushion, dust skirt, switch.
Q8: Does your gear quality better than those from other company?
A8: Yes, we make the gear our own. JS gear is skewed tooth and being heat treatment processed which guarantee stable performance and long life time. But many company don’t use such gear because this gear need high-precision process. We make the gears with CNC machine.
Q9: Do you offer diagrams for electrical and electronic layout for your machines?
A9: Yes, come with machines.
Q10: Is your company ISO registered and approved?
A10: Yes, we have got ISO, CE and SGS certificates.
A1: Yes, we have our own diamond workshop and make the diamond tools ourselves.
Q2: How long is production time for one container?
A2: For hand push machine is 2-3 weeks, for remote control models usually take 3-4 weeks.
Q3: You are based in Shanghai?
A3: Yes.
Q4: Do you have any advantages over other suppliers in terms of design?
A4: Yes. For example, we use seamless plastic water tank, aluminum casting mold grinder head which is stronger and add grinding pressure.
Q5: What is the warranty on the products?
A5: 1 year warranty for machine.
Q6: Do you recommend buying spare parts already with the order?
A6: Yes, we will recommend some spare parts.
Q7: What parts are usually needed for replacements?
A7: Resin pad holder, rubber cushion, dust skirt, switch.
Q8: Does your gear quality better than those from other company?
A8: Yes, we make the gear our own. JS gear is skewed tooth and being heat treatment processed which guarantee stable performance and long life time. But many company don’t use such gear because this gear need high-precision process. We make the gears with CNC machine.
Q9: Do you offer diagrams for electrical and electronic layout for your machines?
A9: Yes, come with machines.
Q10: Is your company ISO registered and approved?
A10: Yes, we have got ISO, CE and SGS certificates.
