1hp 2hp 3hp 10hp 11KW IP65 со слежением за максимальной точкой мощности монтажная плата 3 фазы работающего на постоянном токе 12 В погружной водяной насос Солнечный
- Категория: Solar Water Pump >>>
- Поставщик: Foshan,Hober,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.66 $* | 0.62 $* |
| Aug-19-2025 | 0.53 $* | 0.20 $* |
| Jul-19-2025 | 0.56 $* | 0.55 $* |
| Jun-19-2025 | 0.17 $* | 0.46 $* |
| May-19-2025 | 0.88 $* | 0.12 $* |
| Apr-19-2025 | 0.85 $* | 0.52 $* |
| Mar-19-2025 | 0.66 $* | 0.7 $* |
| Feb-19-2025 | 0.42 $* | 0.37 $* |
| Jan-19-2025 | 0.2 $* | 0.82 $* |
Характеристики
Product Paramenters
OEM & ODM for Solar Pump Controller
1. Box
2. Circuit Board
3. Color , Display type(LCD & LED)
4. Solutions

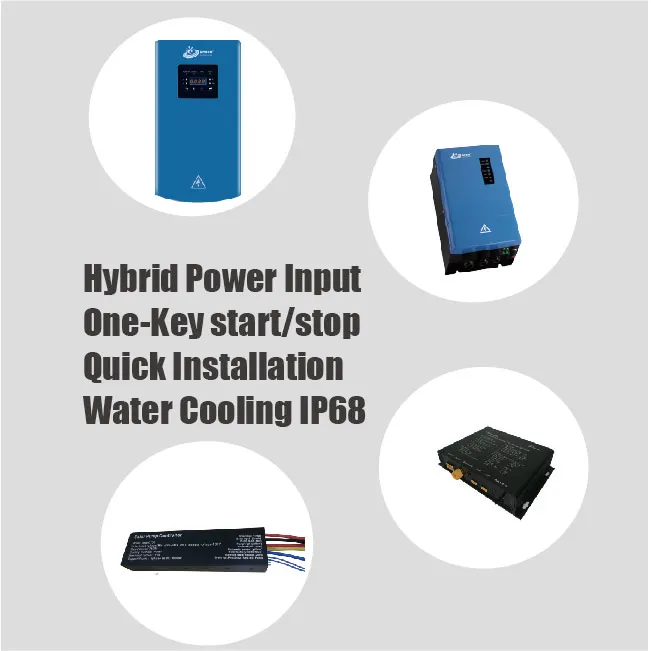

Solar Pump Controller
Hybrid Power input IP54,IP65,IP68 Waterproof One Key Start/Stop
Quick Installation
Stainless steel & Aluminium Box
OEM Development
Touch Screen
Led Display(Status or parameters)
support Water Sensor / software dry-run protection
10Years R&D experiences
Research & Development
Experiences
10Years Software & Hardware & structural Design experiences
till now 10,000 unit solar pump controller have been used, Repair Rated <= 0.1%
Pre-sale
1.Reply online within 24h
2.Make an appointment to visit our factory
3.Provide free solar pumping system solution
4.OEM/ODM service
5.Regular theme live stream
After-sale
1.Online guide installation and use
2.Local training service available
3.We can develop and innovate products
HOBER MPPT A
MPPT: Max power point tracker , let the solar panel always output max power , A is by hober 's Mppt Arithmetic
Solar Water Pump Controller Protections as below
Solar Water Pump and Controller Protections
Solar low power: for pretect the pump run useless and there is no water output to groundSolar In Over Voltage: Min 20V to max 450V
Solar Input Anti-reverse: Solar +,- input wrong,the controller will not broken
Pump wire disconnect: the wire from controller to the pump is cut ,drive the pump will stop automatic and no impact to pump's lifetime.
Over Load: controller run the bigger power pump, pump power > controller rated powerOutput Short circuit: Pump or pump extend wire short circuit
Over Current: pump blocked running will cause the over current protection
Solar In Low Voltage: solar output low in the morning at nightfull
Parameters Example :
Model | HSPH2200L | ||
DC Input | Rated Power | 2200W | |
Brand Name | Min DC Input Voltage | 200v | |
Model Number | Max DC Input Voltage | 450V | |
Output Current | Rated Power of DC Input Voltage Request | ≥300V (Only Solar), ≥340 V (Hybrid Power) | |
Hybrid AC/Generator Input | Voltage | single phase 220v | |
Max Input Current | 18 A | ||
Hybrid Mode | Y | ||
AC Output | Rated Power AC Voltage | Single Phase(1 phase) and 3 Phase (Compatible) Variable Frequency Drive 220V | |
Output Type | Rateed Power AC Current | 21 A | |
Certificate | Inverter efficiency | 99% | |
Warranty | Output frequency | 0~50/60HZ | |
Others | Water Level Sensor (Water of Well) | Yes | |
Output Voltage | Water Level Sensor(Water of tank) | Yes | |
Size | AC Switcher | Optional | |
Weight | GPRS Monitor &Controller | Optional | |
Service | Protection type | IP65 DC input Low/Over Voltage | |
Protection | DC Input Anti-Reverse | ||
Technology | Output overload,Output short circuit | ||
Operation | Over temperature | ||
Display | Sensor of Water Empty/Full | ||
Special | Lighting | ||
Operration Limit | Noise(1 m) | <50dB | |
Operation environment temperature | -10 to 60 Degree | ||
Humidity | 15%-+95%RH | ||
Using altitude(m) | <4000Altitude higher than 1000m pls consider to use less loads | ||
Others | Prohibiting the installation location:direct sunlight,thicking dust,corrosive gas or oil mist,flammable.etc | ||
Adapted Pump | Support Pump's HP | ≤3HP | |
Rated Power(W) | ≤2200W | ||
Rated Frequency(Hz) | 0~50/60 | ||
Rated Voltage | single phase 220v and 3phase 220v | ||
Certifications
Certificate | IEC62109 | ||||||
Certificate No. | IN-GZ-5505-200004 | ||||||
Organization | SGS | ||||||
Applicable Standards | IEC 62109-1 :2010;IEC 62019-2 :2011 | ||||||
Issuance Time | April 22,2020- | ||||||
