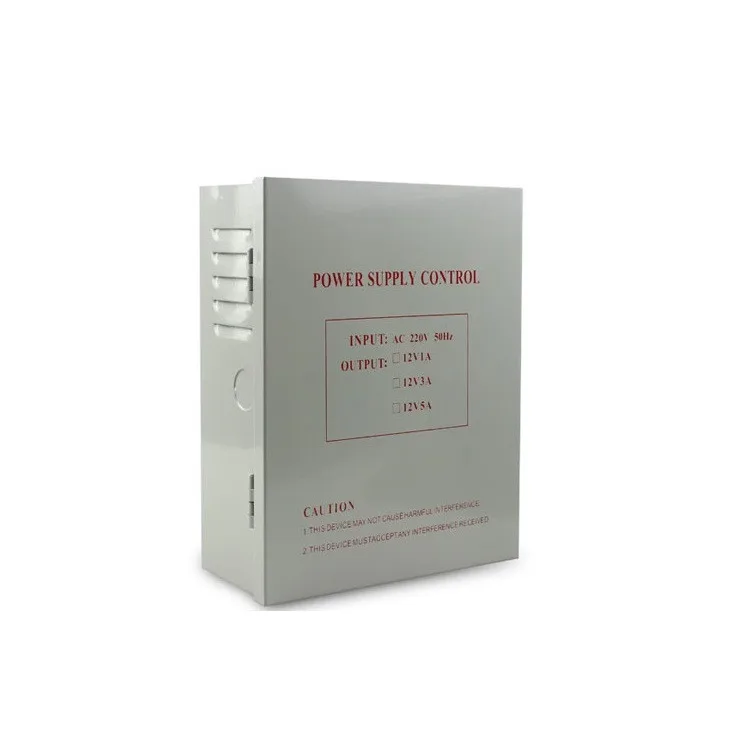

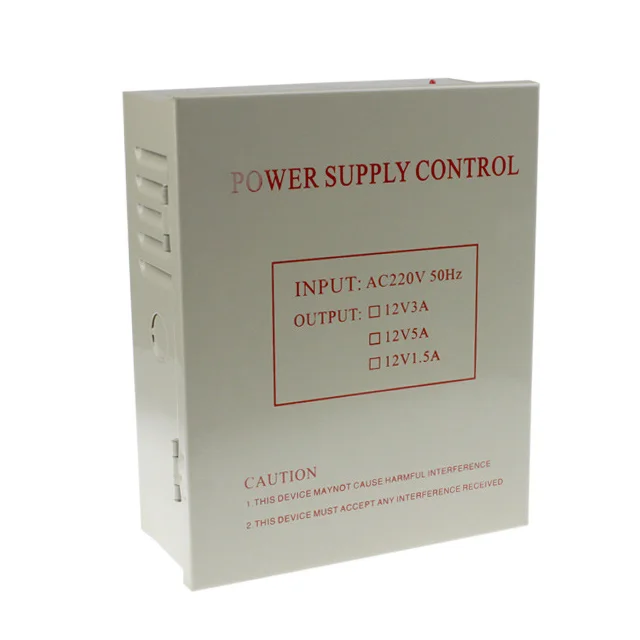

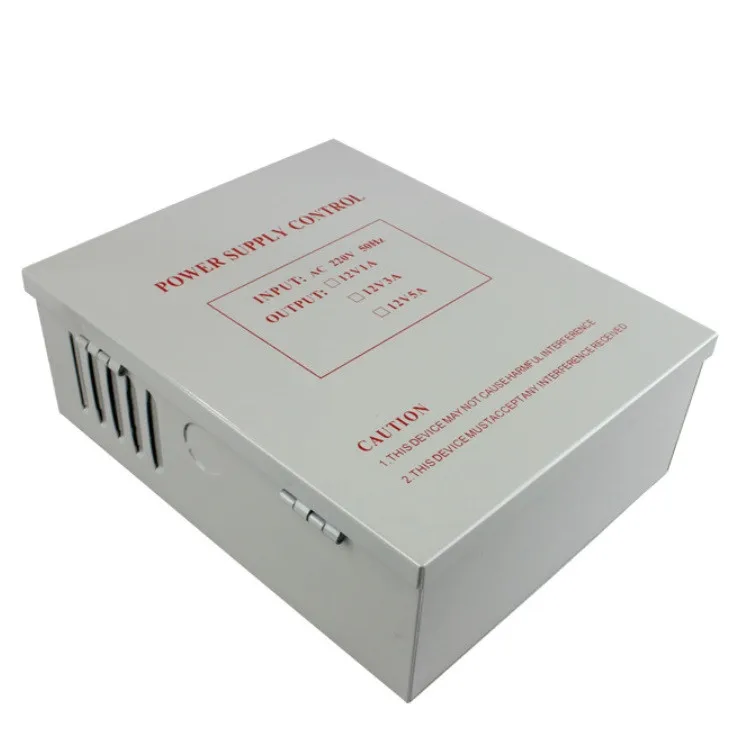

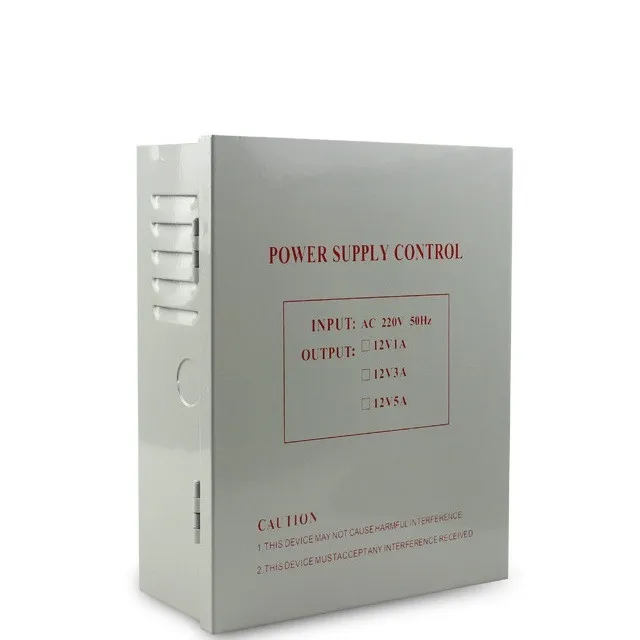

12V 5A universal ups switching power supply for door access control
1. Input AC 220V/50Hz, output DC 12V stabilized 3A/5A 2. Direct control of door locks to reduce loading on door inhibitors,
anti-disturbance, reduced wiring to save costs and reduce possible faults
3. N/O and N/C contracts for connection to various electric locks
4. Automatic protection. Power will be temporarily disconnected or fuse will blow when there is overloading or short-circuit
5. Delayed switching, settable between 0-15 seconds
6. Remote control with an optional remote control module. A remote controller is used to activate doors/gates. Control range is up
to 80m at open field with no disturbance
7. External Dimensions: 205*164*74mm
anti-disturbance, reduced wiring to save costs and reduce possible faults
3. N/O and N/C contracts for connection to various electric locks
4. Automatic protection. Power will be temporarily disconnected or fuse will blow when there is overloading or short-circuit
5. Delayed switching, settable between 0-15 seconds
6. Remote control with an optional remote control module. A remote controller is used to activate doors/gates. Control range is up
to 80m at open field with no disturbance
7. External Dimensions: 205*164*74mm
1: NO terminal and COM terminal , normally open no output , the key trigger output DC12V, connected electronically controlled
lock(0-15 seconds delay , a positive , three negative ) ;
2: NC terminal and COM terminal , normally closed output DC12V, after the power button is triggered,then the electric or magnetic
latch,Power locks ( 0-15 seconds delay , 2 positive, 3 negative ) ;
3: DC12V output voltage regulation, 4 is positive , 5 negative ;
4: open button input terminal ( for negative power supply ) , which can be accessed switch output(relay output, low )control
Electric lock access control system ;
5: open button input terminal ( on the positive power supply ) , which can be accessed switch output( relay output, high level )
control ,Electric lock access control system ;
6: 12V input voltage door, dedicated to the direct control of the output voltage electric lock access control
lock(0-15 seconds delay , a positive , three negative ) ;
2: NC terminal and COM terminal , normally closed output DC12V, after the power button is triggered,then the electric or magnetic
latch,Power locks ( 0-15 seconds delay , 2 positive, 3 negative ) ;
3: DC12V output voltage regulation, 4 is positive , 5 negative ;
4: open button input terminal ( for negative power supply ) , which can be accessed switch output(relay output, low )control
Electric lock access control system ;
5: open button input terminal ( on the positive power supply ) , which can be accessed switch output( relay output, high level )
control ,Electric lock access control system ;
6: 12V input voltage door, dedicated to the direct control of the output voltage electric lock access control
Model number | SJ-POWER 5A | ||
size | 205*164*74mm | ||
ripple voltage | Up ≤ 50mV | ||
Input voltage | AC 220V | ||
Input Frequency | 50Hz | ||
Output voltage | DC12V | ||
Output current (optional) | 5A, optional 3A | ||
Output voltage trim range | +_10%~+_15% | ||
Load stability | 1%typical | ||
Time Delay | 0~15sec. | ||
Output Contact | Access control, Electric Lock, Release Button | ||
Hold time | at full load typ 20ms | ||
Working temperature | -20~+65°C | ||
Standard Designe | Steel material, Painted | ||
Protect Safely | Short Circuit protection | ||
Suitable For | Access control, Electric lock | ||
Warranty | 12months |
Product Description

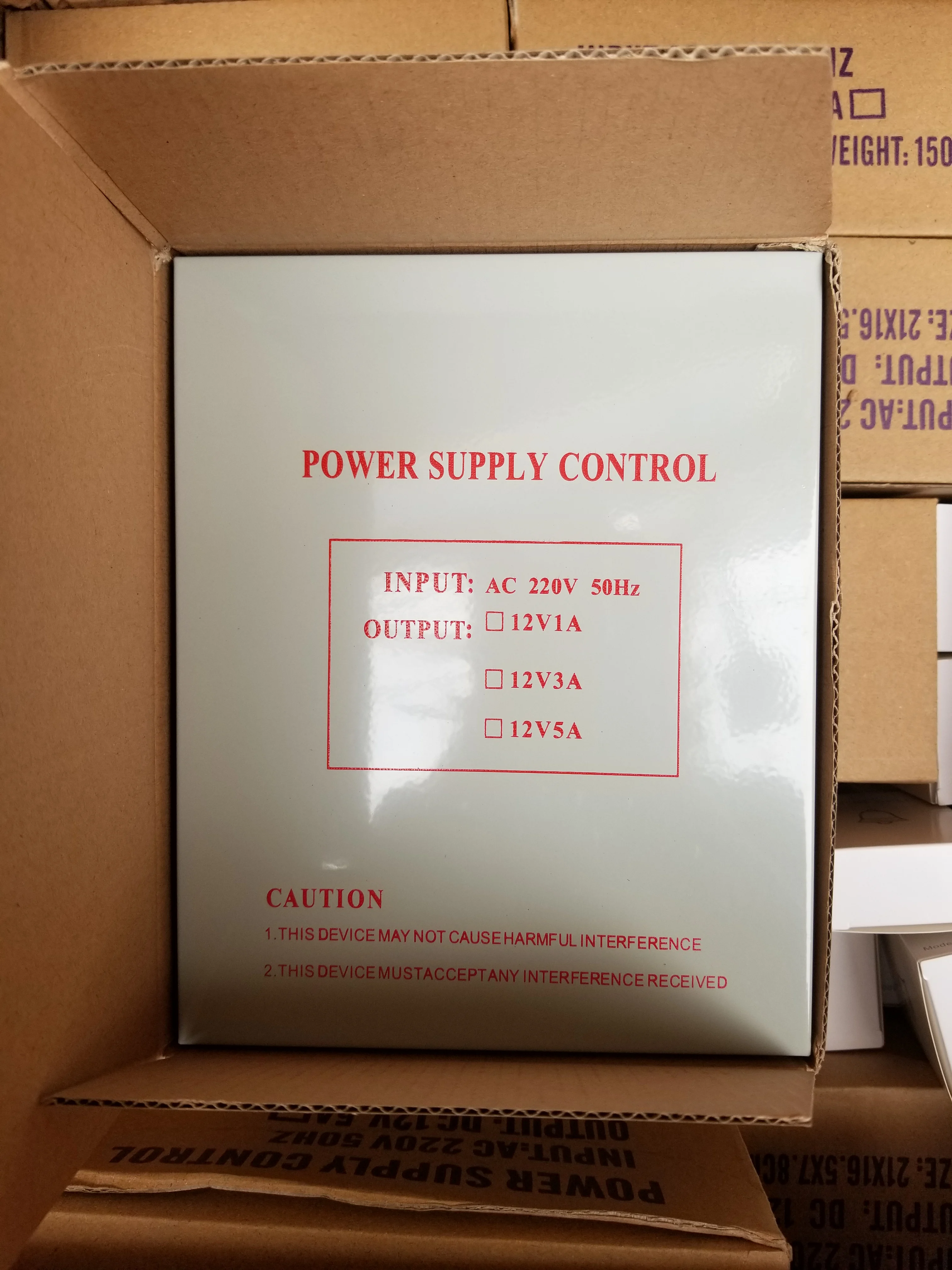

Packing & Delivery
