Веб-камера ELP 4K HD 3840x2160 30fps IMX415 ручная фокусировка 5-50 мм зум 10X Объектив мини
- Категория: Surveillance & IP Camera >>>
- Поставщик: Shenzhen,Ailipu,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 124.23 $* | 130.54 $* |
| Aug-18-2025 | 123.64 $* | 129.71 $* |
| Jul-18-2025 | 103.25 $* | 108.20 $* |
| Jun-18-2025 | 121.75 $* | 127.20 $* |
| May-18-2025 | 105.30 $* | 110.70 $* |
| Apr-18-2025 | 119.10 $* | 125.40 $* |
| Mar-18-2025 | 118.52 $* | 124.91 $* |
| Feb-18-2025 | 116.71 $* | 122.19 $* |
| Jan-18-2025 | 115.56 $* | 121.10 $* |
Характеристики
ELP Webcam 4K HD 3840x2160 30fps IMX415 Manual Focus 5-50mm Zoom 10X Lens Mini Video Camera
Product Description
Features:
* 4K 3840*2160 30fps High-resolution USB Camera module
* 1/2.5” Sony IMX415 sensor for high-quality image
* With vairofocal lens,CS Mount Manual focus,manual zoom. 5-50mm and 2.8-12mm optional
* High frame rate - MJPEG 3840*2160 30fps
* MJPEG/YUY2 dual output format optional
* Mini board size 38x38mm for embedded application
* High-speed USB 2.0 plug&play port - suitable for any PC with USB 2.0 interface
* Low power consumption - ideal for portable equipment.
* UVC compliant - support Windows, Linux, Android system with UVC
* 4K 3840*2160 30fps High-resolution USB Camera module
* 1/2.5” Sony IMX415 sensor for high-quality image
* With vairofocal lens,CS Mount Manual focus,manual zoom. 5-50mm and 2.8-12mm optional
* High frame rate - MJPEG 3840*2160 30fps
* MJPEG/YUY2 dual output format optional
* Mini board size 38x38mm for embedded application
* High-speed USB 2.0 plug&play port - suitable for any PC with USB 2.0 interface
* Low power consumption - ideal for portable equipment.
* UVC compliant - support Windows, Linux, Android system with UVC
Specification
Model NO.: | ELP-USB4K03-MFV(5-50) |
Image Sensor | SONY IMX415 (1/2.8” ) |
Max. Resolution | 3840(H) *2160 (V) |
Sensitivity | 1000mV/Lux-sec |
Pixel Size | 1.45µmx1.45µm |
Compression format | MJPEG / YUY2(YUYV) |
Resolution & frame | 3840x2160@ 30fps MJPEG / 2592x1944@ 30fps MJPEG 2048x1536@ 30fps MJPEG /1600x1200@ 30fps MJPEG 1920x1080@ 30fps MJPEG/ 1280x960@30fps MJPE 1280x720@ 30fps MJPEG / 800 x 600@ 30fps MJPEG 640x480@ 30fps MJPEG / 320x240@ 30fps MJPEG 3840x2160@ 1fps YUY2 / 2592x1944@ 1fps YUY2 2048x1536@ 3fps YUY2 /1600x1200@ 5fps YUY2 1920x1080@ 5fps YUY2/1280x960@5fps YUY2 1280x720@ 5fps YUY2 / 800 x 600@ 20fps YUY2 640x480@ 30fps YUY2 / 320x240@ 30fps YUY2 |
Center definition | 1000LW/PH (Center) |
S/N Ratio | 30dB |
Sensitivity | 0.65V/lux-sec@550nm |
Minimum illumination | 0.2lux |
Shutter Type | Electronic rolling shutter / Frame exposure |
Connecting Port type | USB2.0 High Speed |
AEC | Support |
AEB | Support |
AGC | Support |
Auto Focus | Support |
Adjustable parameters | Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance, Exposure |
Lens Parameter | Varifocal Lens 5-50mm , optional 2.8-12mm IR filter: 650±10nm |
Power supply& connector | USB BUS POWER 4P-2.0mm socket |
Power Voltage | DC5V |
Power Current | 200mA |
Camera Board Size | 38mm × 38mm |
Storage Temperature | -20°C to 70°C |
Work Temperature | 0°C to 60°C |
USB Cable | 3M(2M/5M optional) |
Operating System support | Windows / Linux with UVC(above Linux-2.6.26) MAC-OS X 10.4.8 or later/ Android 4.0 or above with UVC |
Details Images
ELP 4K Webcam HD Sony IMX415 Mini Video Camera
Image sensor: SONY IMX415 (1/2.8” )
4K Max resolution 3840(H) *2160 (V)
YUY2:
4K Max resolution 3840(H) *2160 (V)
Resolution & Frame rate :
MJPEG:
MJPEG:
3840x2160@ 30fps / 2592x1944@ 30fps / 2048x1536@ 30fps
1600x1200@ 30fps /1920x1080@ 30fps / 1280x960@30fps /1280x720@ 30fps
1600x1200@ 30fps /1920x1080@ 30fps / 1280x960@30fps /1280x720@ 30fps
800 x 600@ 30fps/ 640x480@ 30fps / 320x240@ 30fps
YUY2:
3840x2160@ 1fps / 2592x1944@ 1fps /22048x1536@ 3fps /1600x1200@ 5fps
1920x1080@ 5fps/1280x960@5fps /1280x720@ 5fps / 800 x 600@ 20fps
640x480@ 30fps / 320x240@ 30fps

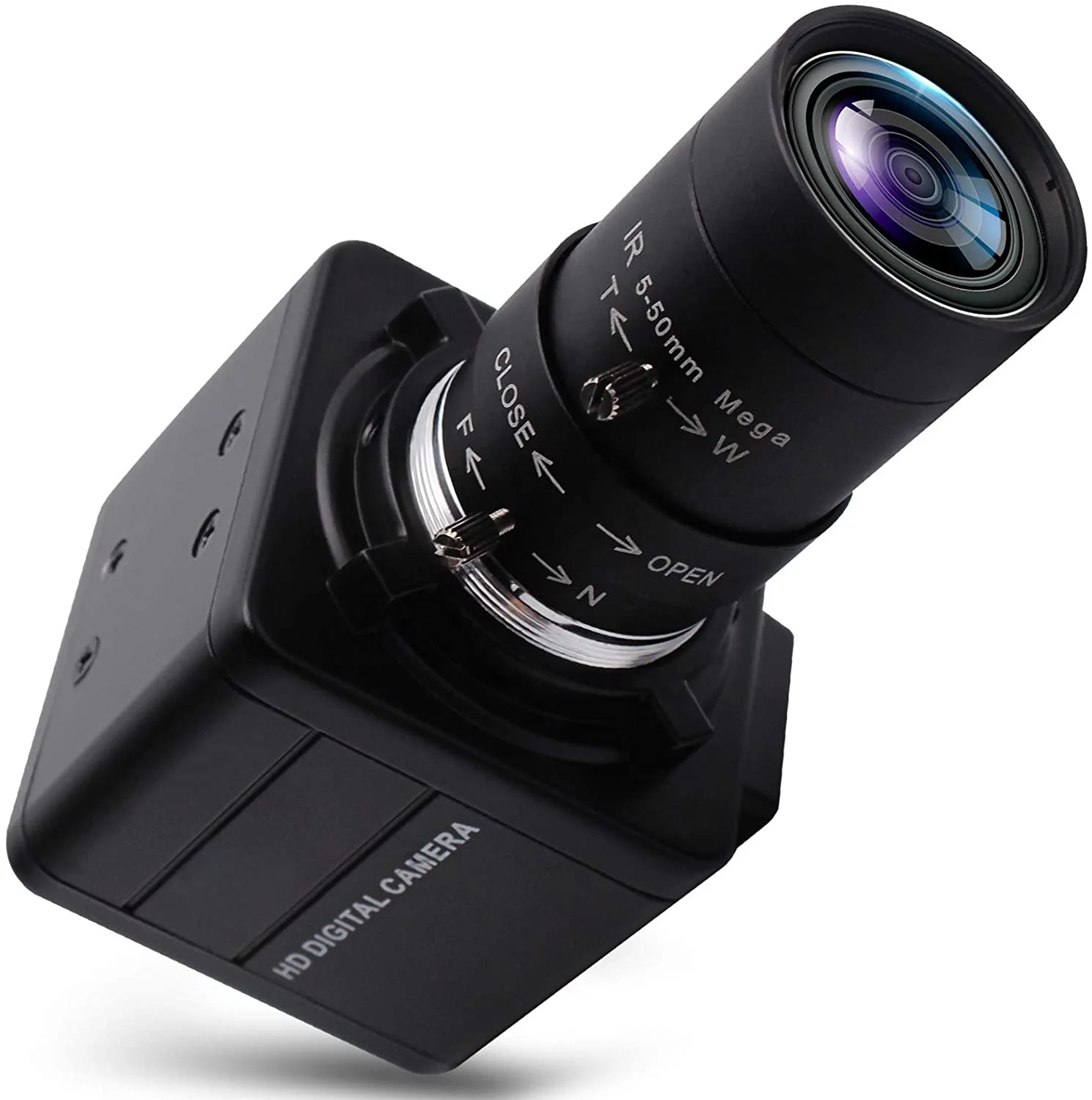

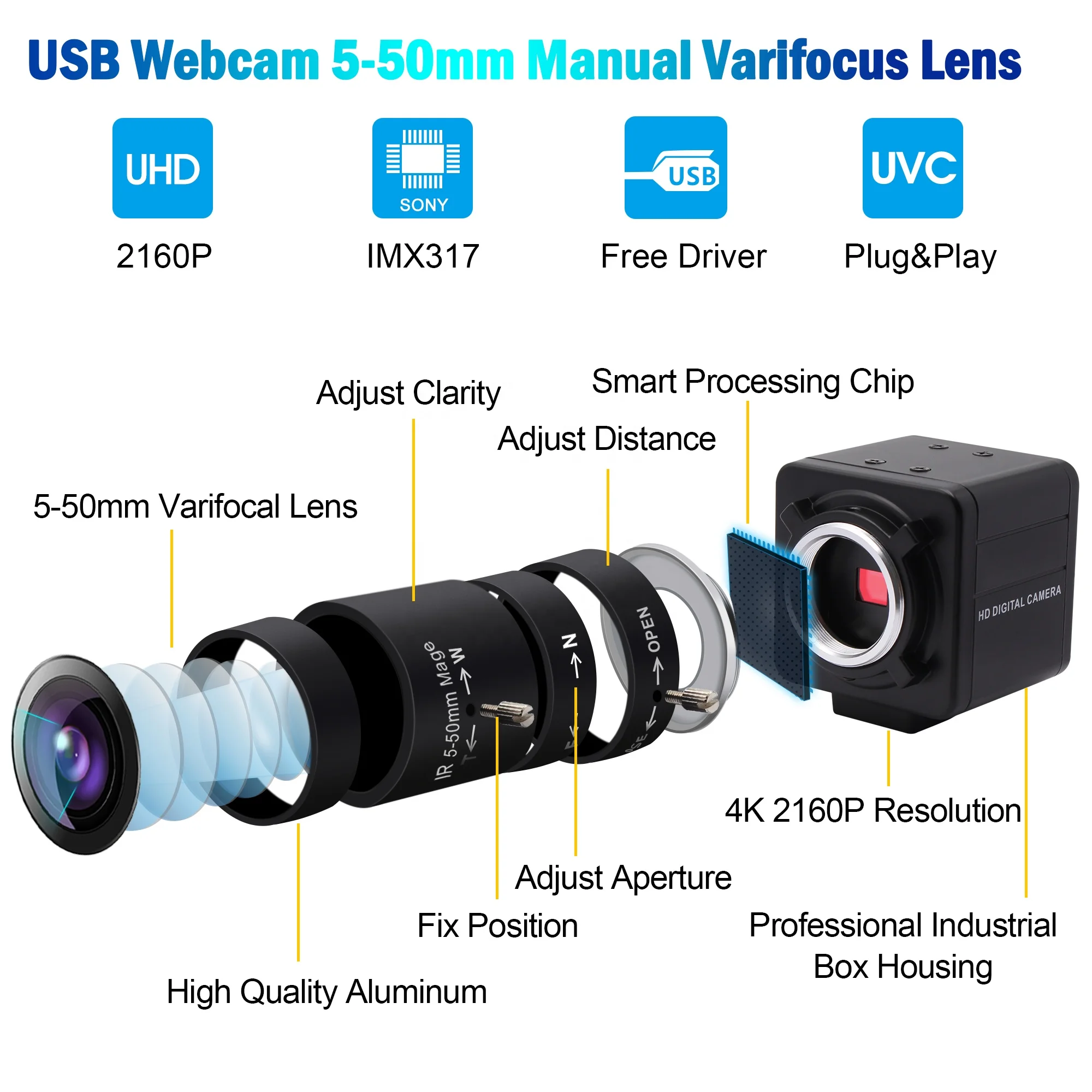

ELP 4K USB Webcam with 5-50mm Varifocal Lens - CS Mount
4K webcam with zoom lens 5-50mm CS mount, 10X optical zoom. Manually adjust focus, iris and focal length for wide use with different angles and viewings.
Ultra HD USB camera suitable for many areas such as machine vision, electric microscope, medical machine, regular home and office using.
You can easily focus in close or make long distance shots and capture high definition and different viewing
You can easily focus in close or make long distance shots and capture high definition and different viewing
3840x2160 4K USB camera board is exactly double the horizontal and vertical resolution of 1080p for a total of 4 times as many pixels.
4K mini usb camera recording professional-quality video in stunning 4K UHD.
4K High pixel technology for sharp image and accurate color reproduction
ELP Plug and Play USB Webcam
USB with camera is easy to use, there is no need to download or install complicated driving software, just only plug and play camera into computer USB port and running the software can make video display and recording work.
ELP 4K USB Camera Support OTG
* Can be connected to Android phone or Tablets.
* Default 3 meters usb cable.
* Default 3 meters usb cable.
ELP 3840x2160 Webcam
* Perfect for long distance view range
* Can be connected to the bracket.
* Can be connected to the bracket.
ELP Webcam 4K High Frame with Widely Application in Industrial
Wide applications for different areas:
Support major live broadcast platforms, you can easily use it for online teaching/video call/network call/portrait collection and many other fields.
USB camera module for video door phone, safety box, electronic microscope,medical machine, security system and other operating systems.
Support major live broadcast platforms, you can easily use it for online teaching/video call/network call/portrait collection and many other fields.
USB camera module for video door phone, safety box, electronic microscope,medical machine, security system and other operating systems.
Features 1/2.8" SONY IMX415 image sensor inside,4K usb minicam with fluid 30fps, which delivers crisper image and clearer videos for professional conference, business interview, online teaching, recording and gaming.
Compatibility- 4K webcam usb camera is versatile for Skype, OBS, Zoom, GoToMeeting, Facebook LIVE, and YouTube Livestreaming services,
widely works withWinXP/Vista/Windows 7/8, Windows 10 Linux with UVC(above linux-2.6.26)MAC-OS X 10.4.8or later Wince with UVC Android 4.0 or above with UVC.
Packing & Delivery
Box for camera module without case
Camera module without case, 2PCS/ Box, 48 Boxes(96PCS)/Carton, Dimension:39x36x32cm
Box for camera with case
Camera with case, 1PCS/ Box, 48 Boxes (48PCS)/Carton, Dimension: 39x36x32cm
Each product will be wrapped by bubble bag and put into a small inner carton, and then loaded into a master carton.
Payment and Delivery terms:
T/T: 100% payment before shipping; Western Union, Paypal, all available.
In general, we use international express, DHL, UPS, FEDEX, EMS, TNT, etc.
Large order: by air or sea, you could choose it.
If you have your own forwarder, please tell us the detailed information.
In general, we use international express, DHL, UPS, FEDEX, EMS, TNT, etc.
Large order: by air or sea, you could choose it.
If you have your own forwarder, please tell us the detailed information.
Our Company
Shenzhen Ailipu Technology Co.,Ltd start in 2005,already 16 years history, is a professional manufacturer of USB Camera. Ailipu has its own brand ELP, which already well know in video camera system.
With its own unique R&D team as the basic, oriented by dedicated sales team,Shenzhen Ailipu Technology Co., Ltd already developed into a prefessional video products company integrate with developing, production, sales and also service all together.
At present,Shenzhen Ailipu Technology Co., Ltd produce all kinds of USB Cameras for industrial vision. Recently, Ailipu company present new USB cameras module range from Super Sharp 4K camera,13Megapixel camera,8Magapixel camera,and also 30W Pixel, 1megapixel, 2megapixe, 3megapixel, 5 megapixel to 5megapixel autofocus etc., which already widely used in all kinds of industrial system.
Shenzhen Ailipu manufacturer can also OEM or customize products specially by customers' requirements.
We always believe"Together everybody achives more", and we are looking forward your choice and join, we fought together,open up a new future of video surveillance industry.
With its own unique R&D team as the basic, oriented by dedicated sales team,Shenzhen Ailipu Technology Co., Ltd already developed into a prefessional video products company integrate with developing, production, sales and also service all together.
At present,Shenzhen Ailipu Technology Co., Ltd produce all kinds of USB Cameras for industrial vision. Recently, Ailipu company present new USB cameras module range from Super Sharp 4K camera,13Megapixel camera,8Magapixel camera,and also 30W Pixel, 1megapixel, 2megapixe, 3megapixel, 5 megapixel to 5megapixel autofocus etc., which already widely used in all kinds of industrial system.
Shenzhen Ailipu manufacturer can also OEM or customize products specially by customers' requirements.
We always believe"Together everybody achives more", and we are looking forward your choice and join, we fought together,open up a new future of video surveillance industry.
Exhibition
Partner
Sample Room & Production Process
FAQ
1. Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
2. Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
3. What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
4. Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module
5. What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
6. What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System, Mac
7. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
8. Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
9. Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
10. Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi,
VLC Player
Yes, we can offer OEM camera modules according to customer's different requirement.
2. Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
3. What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
4. Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module
5. What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
6. What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System, Mac
7. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
8. Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
9. Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
10. Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi,
VLC Player
