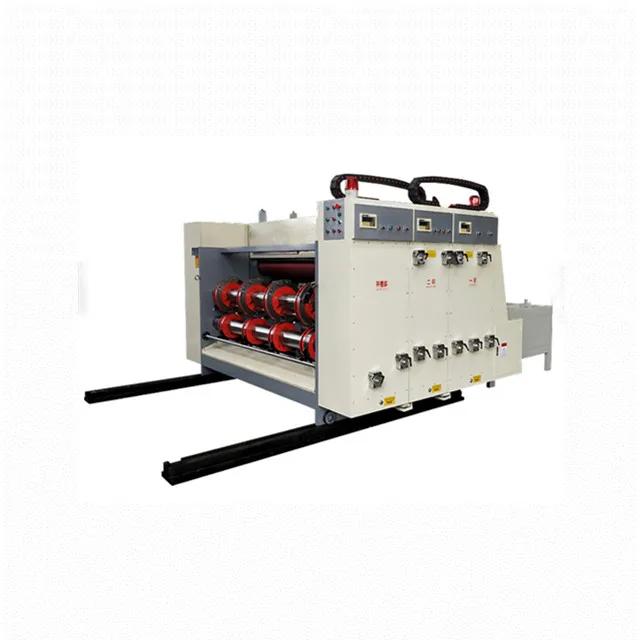

High speed chain feeder die-cutter electric slotter corrugated box printer machinery manufacturer

Machine performance

1. This machine is composed of feeding platform, printing, grooving (die-cutting, four coupling die-cutting) and other parts, can complete three layers, five layers of corrugated board printing, grooving (die-cutting) and other processes.


2. Transmission system adopts ball mill casting, closed spray lubrication, low noise;
   High strength, smooth transmission.


3. Bearings adopt Harbin famous brand bearings.

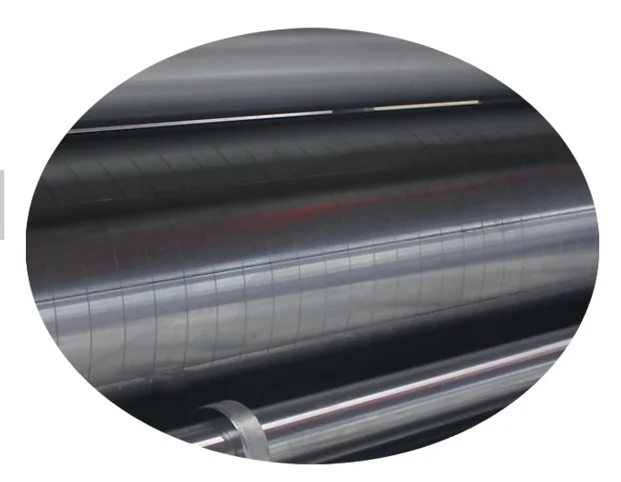

4. The shaft and roller parts of the whole machine are made of 45# steel, which is treated by tempering and tempering.


5. Each unit is electrically operated and equipped with an alarm bell, which will ring continuously during clutch to ensure the safety of operators.Clutch motor with constant torque clutch, can buffer the wrong operation of each unit collision.


6. After each unit is closed, pneumatic locking between each group can make each unit and the bottom rail locking integrated.When the cylinder is not locked, the main motor cannot start and run;The locking cylinder cannot be opened when the main motor is running.After the separation of each unit, the transmission system will brake automatically to keep the original position of the gear fixed.


7. The whole machine has beautiful shape and soft color.The modular design allows you to add or subtract units at will.


8. Motor adopts frequency conversion motor.


9. Pneumatic components: cylinder using Zhejiang famous brand cylinder, diaphragm pump using Wuhan "Yangtze River" or "Jindatai" famous brand products.

Technical parameters

Model	YK60-900	YK60-1200		YK60-1450		YK60-1600
Printing area	900*1800	1200*2300/2500		1450*2500/2700		1600*2500/2700
Machine inside width	2100	2600	2800	2800	3000	2800	3000
Max.feed size	1900	1200*2400	1200*2600	1450*2600	1450*2800	1600*2500	1600*2800
Min.processing size	250*320	350*450		400*550		480*620
Printing plate thickness	7.2	7.2		7.2		7.2
Wall board thickness	40	40		40		40
Max.speed	60	60		60		60
Tinted precision	±0.5	±0.5		±0.5		±0.5
Slot precision	±1.5	±1.5		±1.5		±1.5
Max. slot depth	225	250		275		350
Min. slot clearance	260×60×260×60	260×60×260×60		260×60×260×60		260×60×260×60
