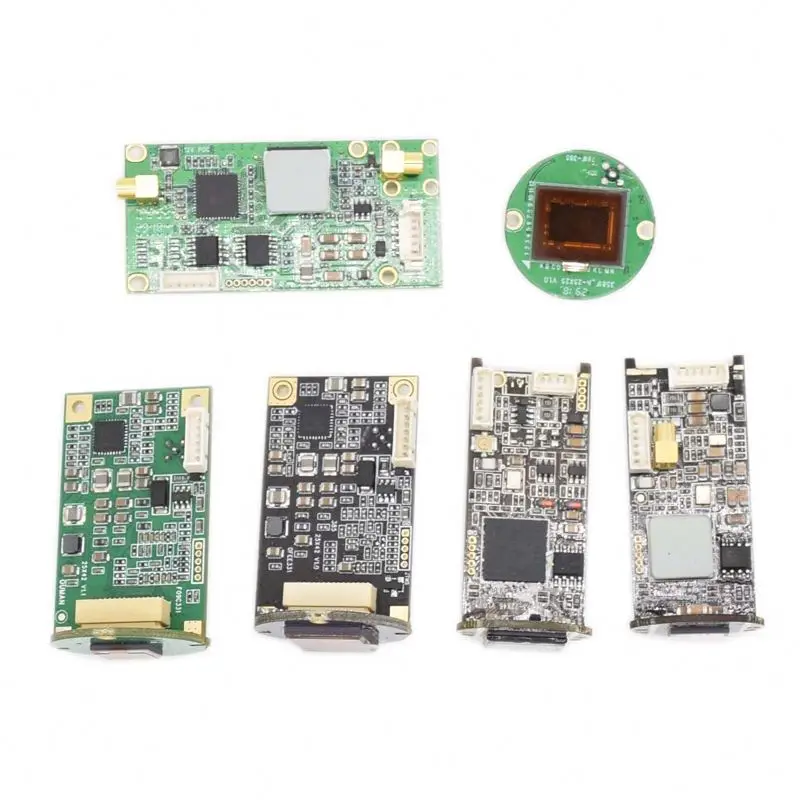

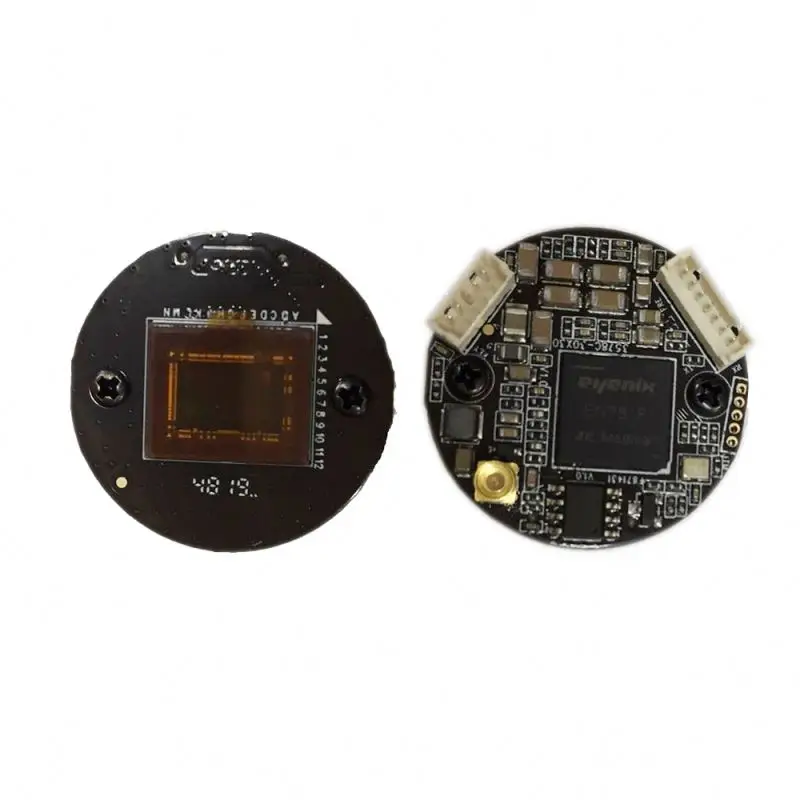

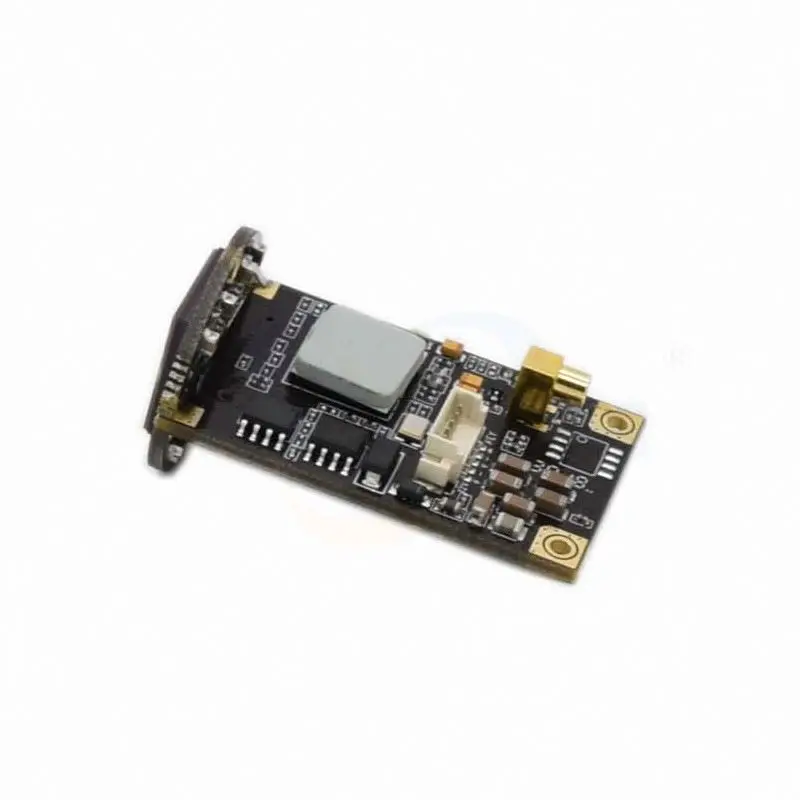

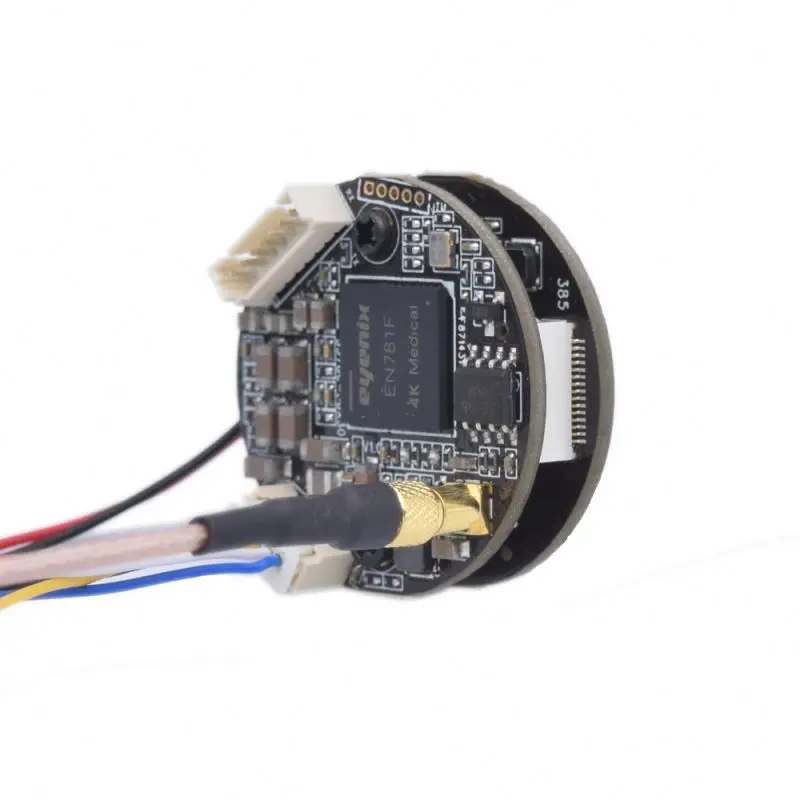

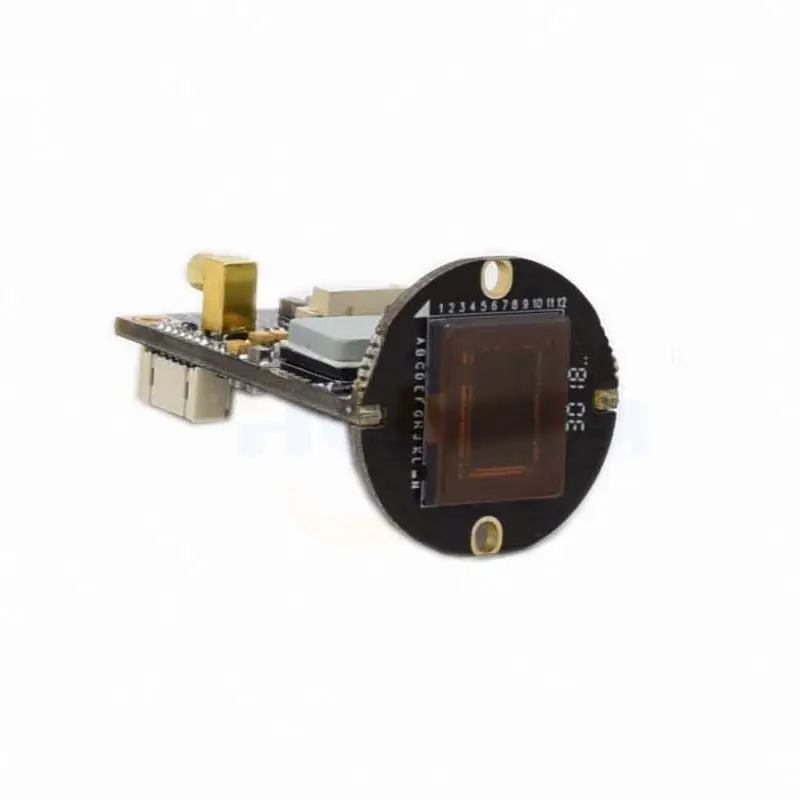

Камера-Эндоскоп 4k Sdi 30fps Ex медицинская для хирургического аппарата с поддержкой экрана электронный усилитель баланса

Image Sensor

1/2.8” SO NY CMOS(IMX415)

Effective Pixels

 3864(H) × 2192(V)Approx. 8.46M pixels

Scanning System

Progressive

Resolution

SDI:4K@30fps,1080P@60fps

Min-illumination

Color:DSS:0.00017LUX,   BW DSS: 0.00008 LUX

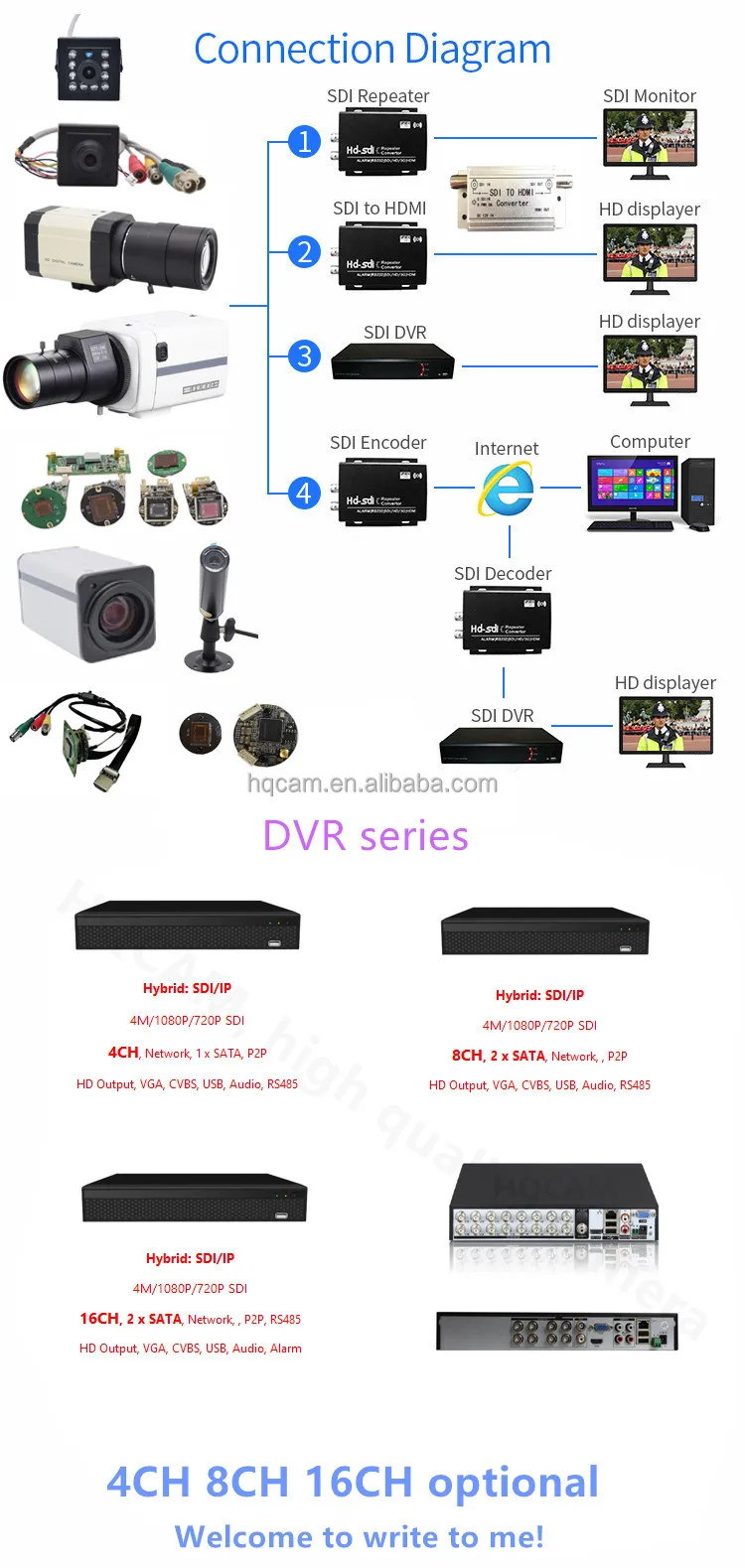

SDI

HD-SDI/EX-SDI switchable

S/N Ratio

More than 42Db(AGC off)

Brightness

1-20 steps

Auto AGC

1-20 steps

BACKLIGHT

OFF/BLC/HLC/WDR

Color(AWB)

Preset/Purshing

3D-DNR

OFF/LOW/MIDDLE/HIGH

FREEZE

The picture freezes

D-ZOOM

Image zoom in /out

COLOR(AWB)

One key white balance

Sharpness

1-20 steps

Backlight

Full AVG/Central peak 1/2

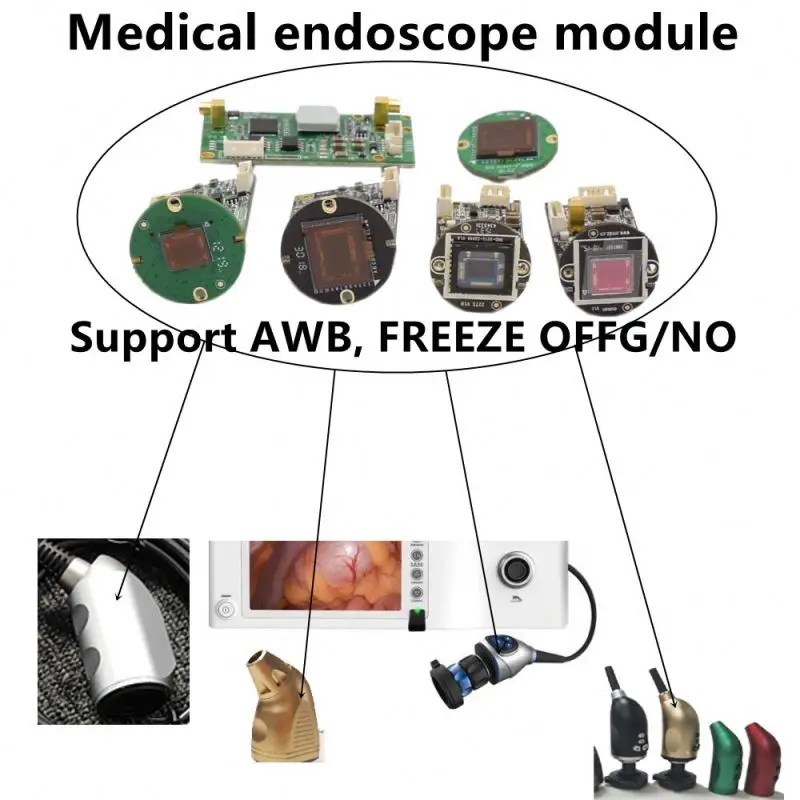

Endoscope mode

Transforaminal/Fiber/Arthroscope/Cystoscope/Hystero/Raparoscope/E.N.T

Color ADJ

User Define:

Yellow gain 1-250

Bule gain 1-250

Green gain 1-250

Red gain 1-250

Yellow Hue 1-250

Bule Hue 1-250

Green Hue 1-250

Red Hue 1-250

Language

Chinese/English/Japanese/Korean polyglot

Power(Max.) supply

DC12V ±10%<>

Working Current

140mA±10mA

working temperature

-30°C to 70°C

Size
