Универсальный адаптер для нетбука 90 Вт с наконечниками 8/12/16/20/22
- Категория: Power Adapters >>>
- Поставщик: Shenzhen,Yidashun,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 10.77 $* | 11.46 $* |
| Aug-17-2025 | 9.2 $* | 9.41 $* |
| Jul-17-2025 | 8.87 $* | 8.45 $* |
| Jun-17-2025 | 9.82 $* | 9.99 $* |
| May-17-2025 | 8.38 $* | 8.59 $* |
| Apr-17-2025 | 9.75 $* | 9.3 $* |
| Mar-17-2025 | 9.58 $* | 9.65 $* |
| Feb-17-2025 | 9.29 $* | 9.79 $* |
| Jan-17-2025 | 9.90 $* | 9.8 $* |
Характеристики

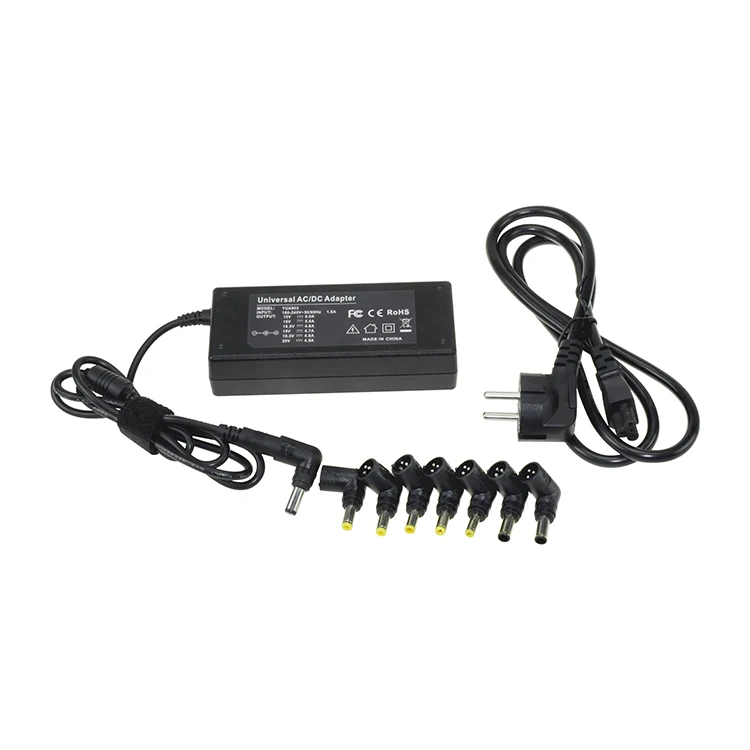

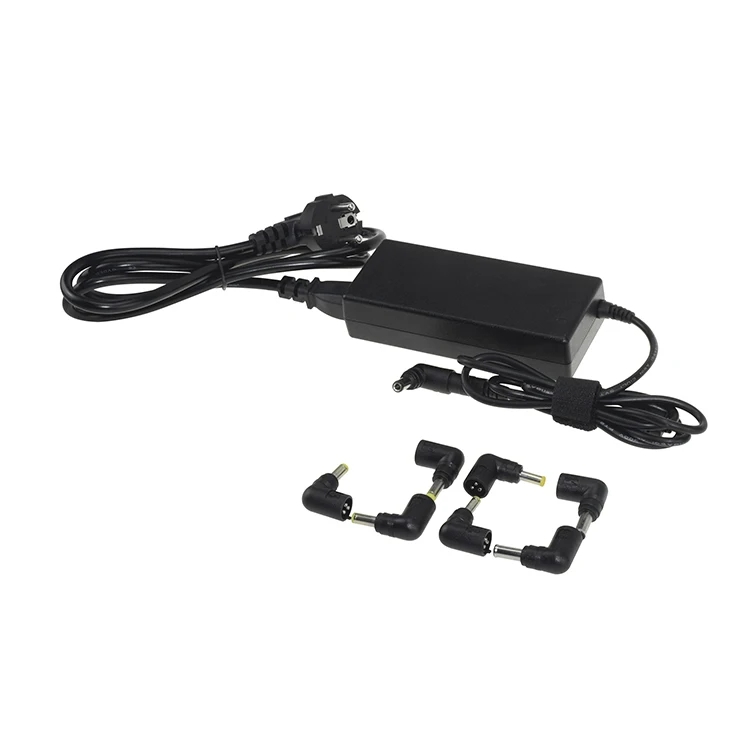

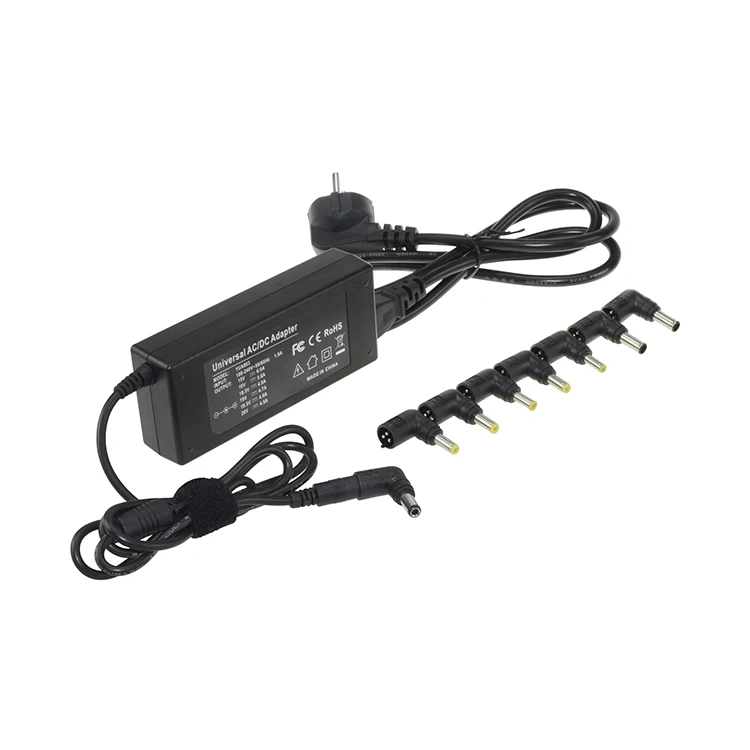

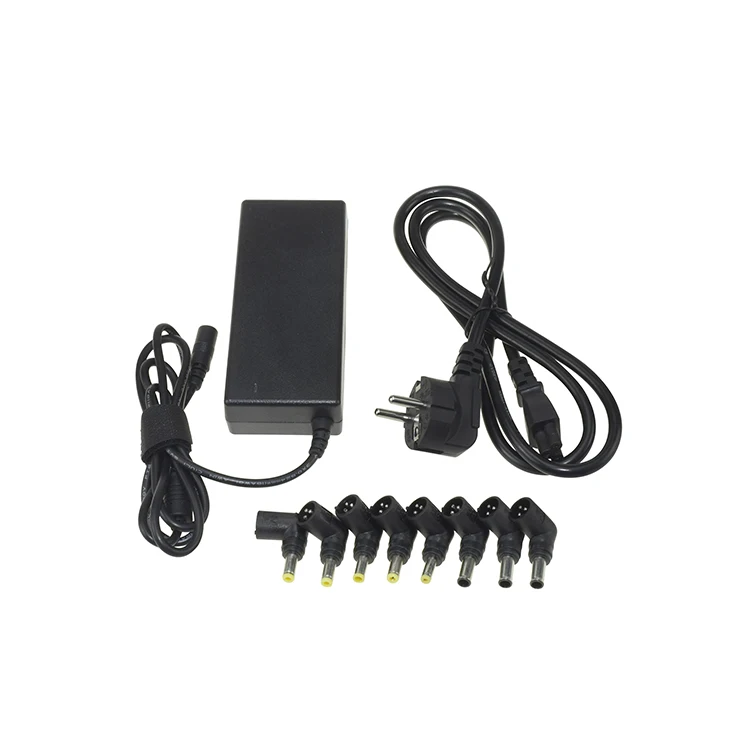

Automatic Universal Netbook Adapter 90W power supplies laptop adapter with 8/12/16/20/22 dc tips for different laptop
Product Description
Automatic Universal Netbook Adapter 40W | |
Model No. | YUA903 |
AC Input | |
Nominal Input Voltage | AC 100V~240V |
Input Voltage Range | AC 95V~265V |
Input Frequency | 50/60Hz |
DC Output | |
Output Voltage | DC 15V, 16V, 18. 5V, 19V, 19. 5V, 20V, max 90W |
Output Power | 90W |
DC Connector Size | 3 pin |
8 Standard DC Tips | 15V/M1 6.3*3.0 mm / 16V/M2 5.5*2.5 mm / 16V/M3 6.5*4.4 mm /18.5V/M4 4.8*1.7 mm / 19V/M5 5.5*2.5 mm/19V/ M6 5.0*3.0 mm / 19V/ M7 5.5*2.1 mm/19.5V/M8 6.5*4.4 mm |
Line Regulation | 1% |
Load Regulation | 1% |
Ripple Noise | 180 Mvp-p |
Efficiency | >85% |
Output Cable Standard | 0.75mm2 Pure Copper |
Output Cable Length | 1.2m normally or customized requirement |
Advantages | |
1. The output voltage would be changed automatically when different tips on it | |
2. It is better and easier for end clients to use it | |
Environment | |
Operating Temperature | 0°C ~40°C |
Operating Humidity | 5%~95%RH |
Storage Temperature | -20°C ~85°C |
Storage Humidity | 5%~95%RH |
Protection | |
Over Load Protection | Short Circuit Protection |
Over Current Protection | Over Temperature Protection |
Certificates | |
CE, ROHS, REACH, FCC, etc | |
Package | |
Inner Box | Normally neutral color box or customized requirement |
Outer Carton | Normally neutral standard carton or customized requirement |
Warranty | |
Warranty | 2 years |
Terms and Conditions | |
MOQ | 100PCS for mixed order |
Payment Terms | T/T, PayPal, western union,alibaba etc |
Delivery Time | 3-5 days |
Manufacturing Process | |
1. Set-Up→2. Hand Insertion→3. Wave Soldering→4. Touch-Up→5. V/I→6. ICT→7. INT→8. Apply Glue→9. Q/A→10. Entering Stock→11. Assembly→12. Power On Test→13. Hi-Pot Test→14. Burn-In→15. Hi-Pot Test→16. All Fun Test→17. Packing→18. OQC→19. Shipping | |
Test Procedures | |
1.No-load output voltage test→2.input power load test→3.No-load output ripple test→4.Full load open test→5.Full load output voltage test→6.Full load output ripple test→7.Full load input power test→8.Half load output voltage test→9.Half load output ripple test→10.Over load test→11.Over current protection test →12.Short circuit protection test (above test is under both 110V and 230V.)→13.High voltage test→14. burn-in test→15.Turn on delay time test→16.Rise time test→17.Hold time test→18.Overshoot test | |
Company Information
Company introduction
Our factory
Packaging & Shipping
Exhibition Show
Are you looking for golden supplier? Here we are!
Certificates
FAQ
Q1: Are you factory?
Yes, we are a leading AC DC power adapter manufacturer for 14 years.
Q2: What is your warranty for adapters?
We usually offer 1 year warranty.
Q3: What is your MOQ and sample term?
Our MOQ is 100pcs, we can offer you free samples, but you pls pay shipping costs.
Q4: Can can accept OEM&ODM?
Yes,we can. We can customized the products,labels,package as your demands.
Q5: What is your payment terms?
We accept T/T,paypal, western union, L/C,cash...
