1700 Вт мощность Электрический резьбонарезной станок трубы портативный с CE & сертификат безопасности материала (лаборатории тестирования электроприборов США (ETL)
- Категория: Power Pipe Threaders >>>
- Поставщик: Hangzhou,Hongli,Pipe,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 362.66 $* | 369.86 $* |
| Jul-16-2025 | 294.15 $* | 300.17 $* |
| Jun-16-2025 | 356.59 $* | 363.73 $* |
| May-16-2025 | 353.14 $* | 360.50 $* |
| Apr-16-2025 | 282.23 $* | 288.27 $* |
| Mar-16-2025 | 348.59 $* | 355.83 $* |
| Feb-16-2025 | 345.97 $* | 352.86 $* |
| Jan-16-2025 | 342.64 $* | 349.88 $* |
Характеристики
Product Description
Moter | 1700W induction,50/60 Hz | Gear Housing | Die cast Aluminum |
Switch | Heavy-duty paddle-type switch with safety lock off device(antomatically locks off when released).Separate mechianical transmission FOR/REV Switch,Reverse 3-times faster than threading. | Gear head | Spur gear reduction/ring gear drive.All shafts,ball and needle bearing mounted.Permanently lubricated gear housing. |
Spindle Speed | 31Rpm for threading,51Rpm(No load) | Body&Handle | Durable heavy-duty fiberglass reinforced plastic |
Screw Threads | NPT/BSPT | Dies Material | Alloy standard,(HSS optional) |
Specifications

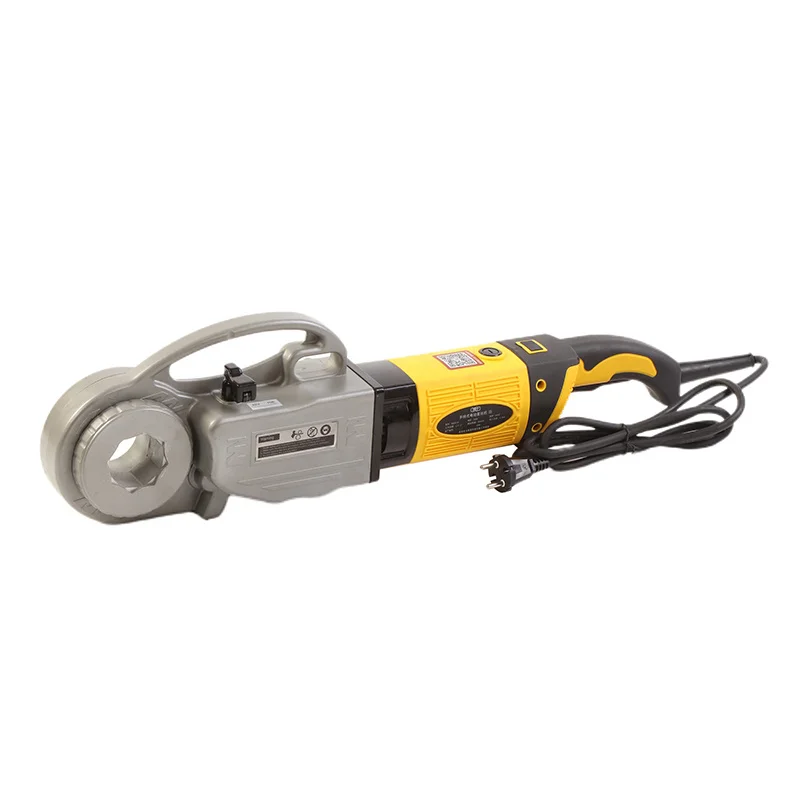

The SQ30-2C Pipe threader is a double insulated drive which provides power for threading pipe and conduit. Forward and Reverse rotation can be selected with a REV/FOR switch while ON/OFF is controlled by a paddle switch that cuts off power when released.

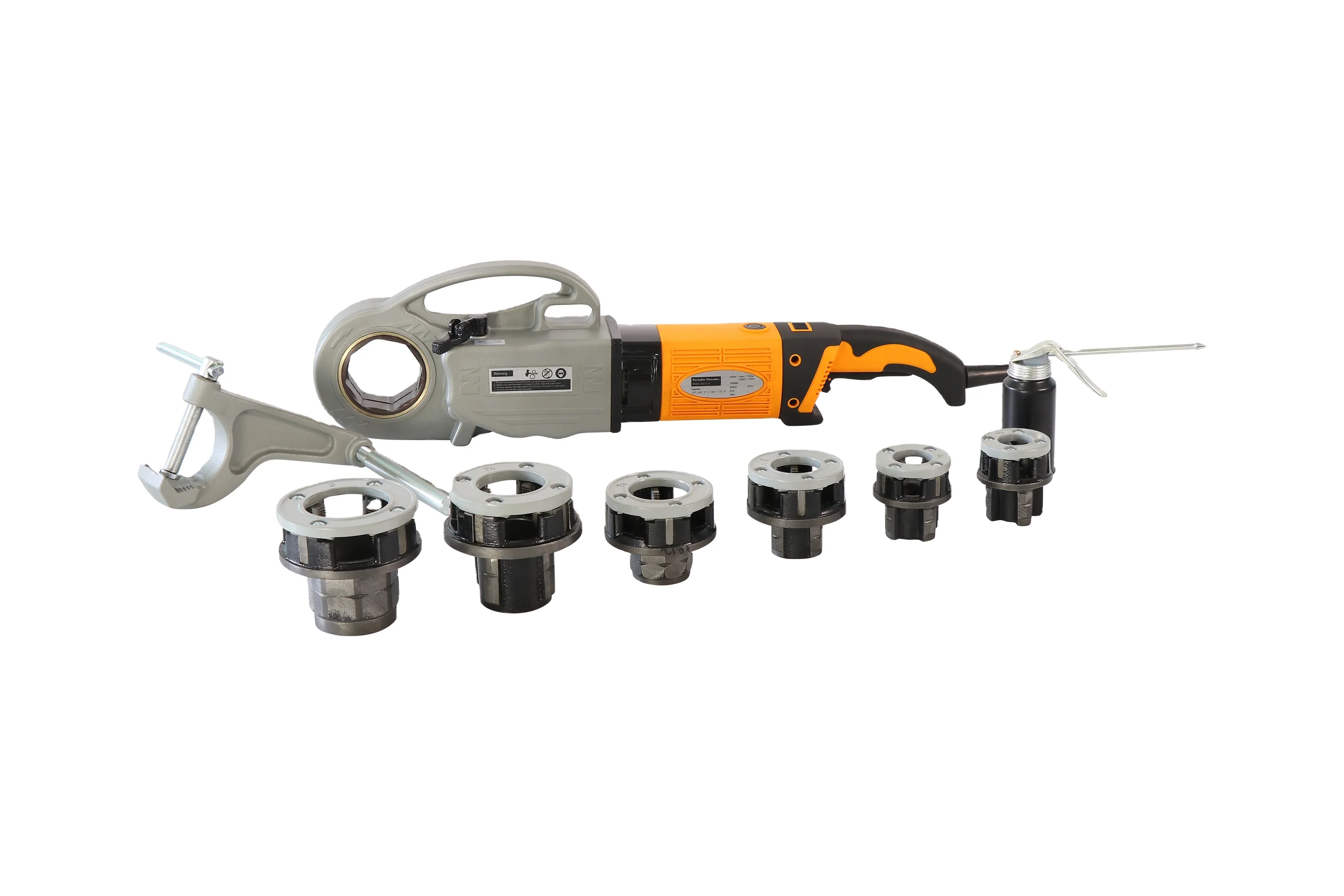

The Threader is designed to use Ridgid 11R type Die Heads (1/2″ – 2″ pipe).
An adapter is required for the 1/2″ – 1 1/4″ size.
Support Arm should be used to secure the threader and resist high handle forces developed when threading 3/4″ or larger pipe.
Featuring
1. Hand-held, powerful, portable power drive, equipping reversible 110V or 220V universal motor.
2. Bigger power and reinforced gear box compared the old model SQ30-2C.
3. Designed to work with 11R die heads.
4. Dies could be interchangeable with RIDGID.
5. Heavy-duty paddle-type switch with safety lock off switch.
6. Durable heavy-duty fiberglass reinforced plastic Body & Handle.
7. Mechanical transmission reversing design, to prevent motor from damage.
8. Ideal for on-site applications such as gas line pipe installation.
9. Certificates: CE & ETL Approved.
