GS-MI/D средней интенсивности двойной цвет авиация непроходимость свет
US $450.00-$480.00
Светодиодный L-864 IR военный инфра красный непроходимость свет ночной сигнализации Средней Интенсивности Тип B ICAO отвечающих требованиям дымоход для заградительных
- Категория: LED Aviation Obstruction Lights >>>
- Поставщик: Hunan,Chendong,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 321.42 $* | 337.56 $* |
| Aug-16-2025 | 319.92 $* | 335.78 $* |
| Jul-16-2025 | 267.8 $* | 280.20 $* |
| Jun-16-2025 | 313.86 $* | 329.67 $* |
| May-16-2025 | 273.80 $* | 287.38 $* |
| Apr-16-2025 | 308.99 $* | 323.92 $* |
| Mar-16-2025 | 305.10 $* | 320.56 $* |
| Feb-16-2025 | 302.94 $* | 317.92 $* |
| Jan-16-2025 | 300.84 $* | 315.24 $* |
Характеристики
Contact Us
T:+86-0731-85563165 85563265
Fax: +86-0731-85563365
Phone/WhatsApp: +86-13929493960
Fax: +86-0731-85563365
Phone/WhatsApp: +86-13929493960
Skype:sophia.guo88
A:No.101,#4 Building, XinCheng Science and Technology Park, West of Yuelu Ave., Hi-Tech Development Zone,Changsha city, Hunan province, China.
W:http://www.cdt-en.com/
E: sophia@chendongtech.com
A:No.101,#4 Building, XinCheng Science and Technology Park, West of Yuelu Ave., Hi-Tech Development Zone,Changsha city, Hunan province, China.
W:http://www.cdt-en.com/
E: sophia@chendongtech.com
Product Description

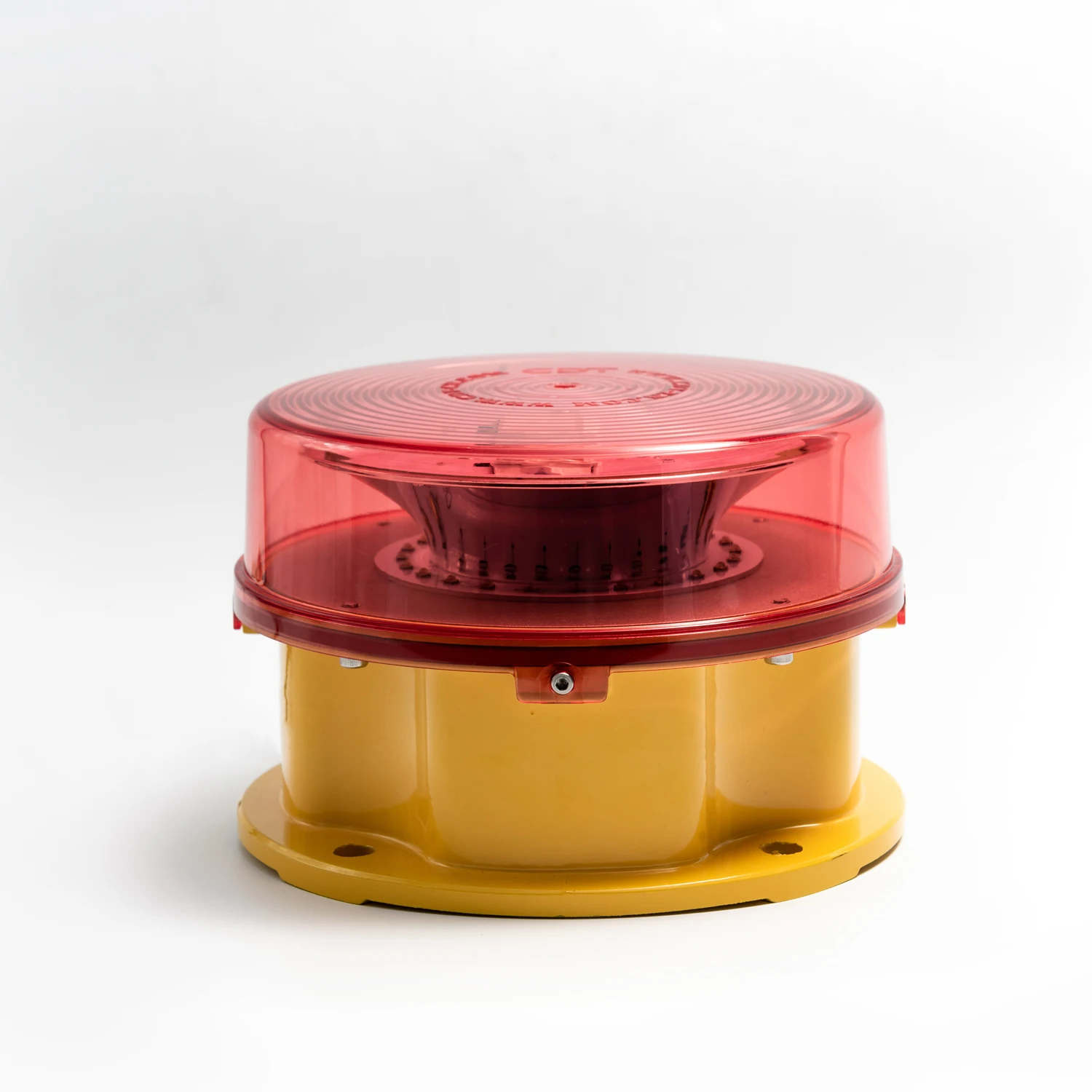

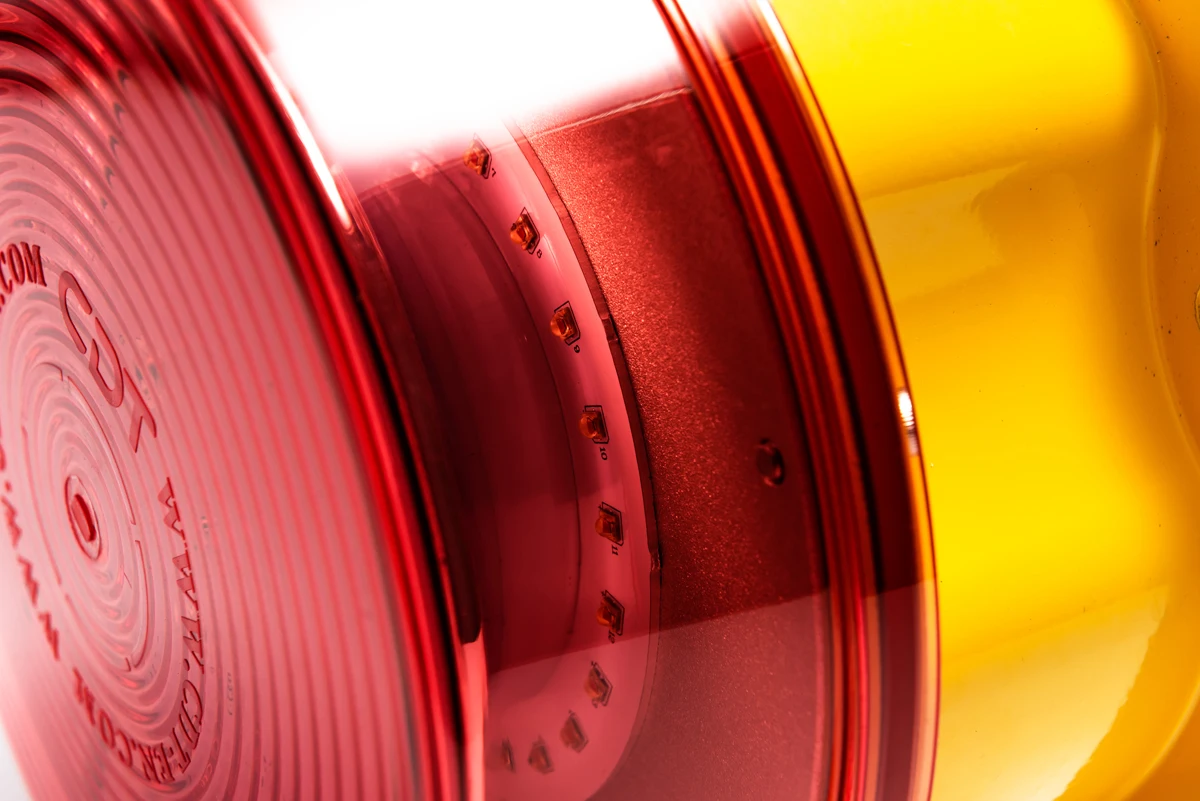

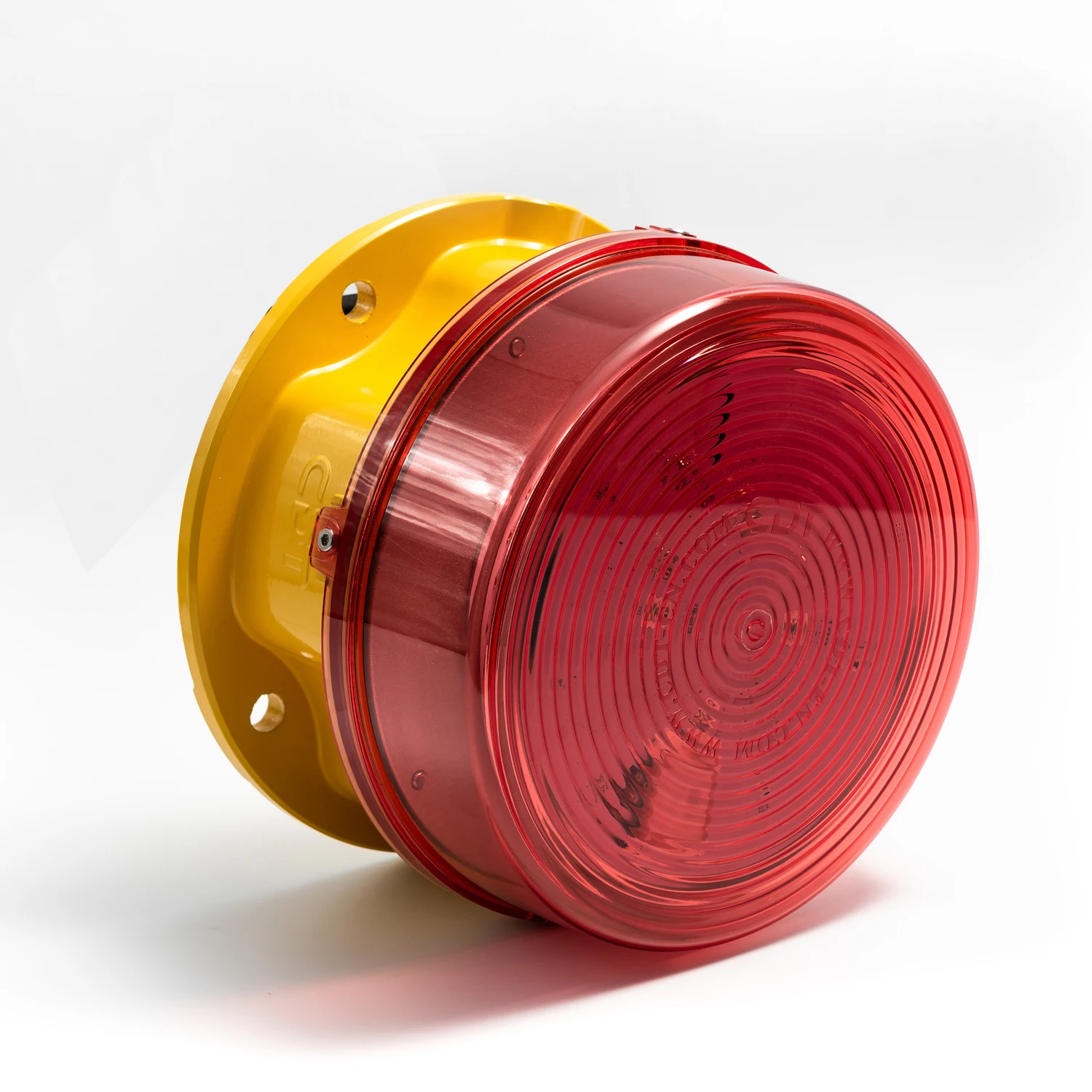

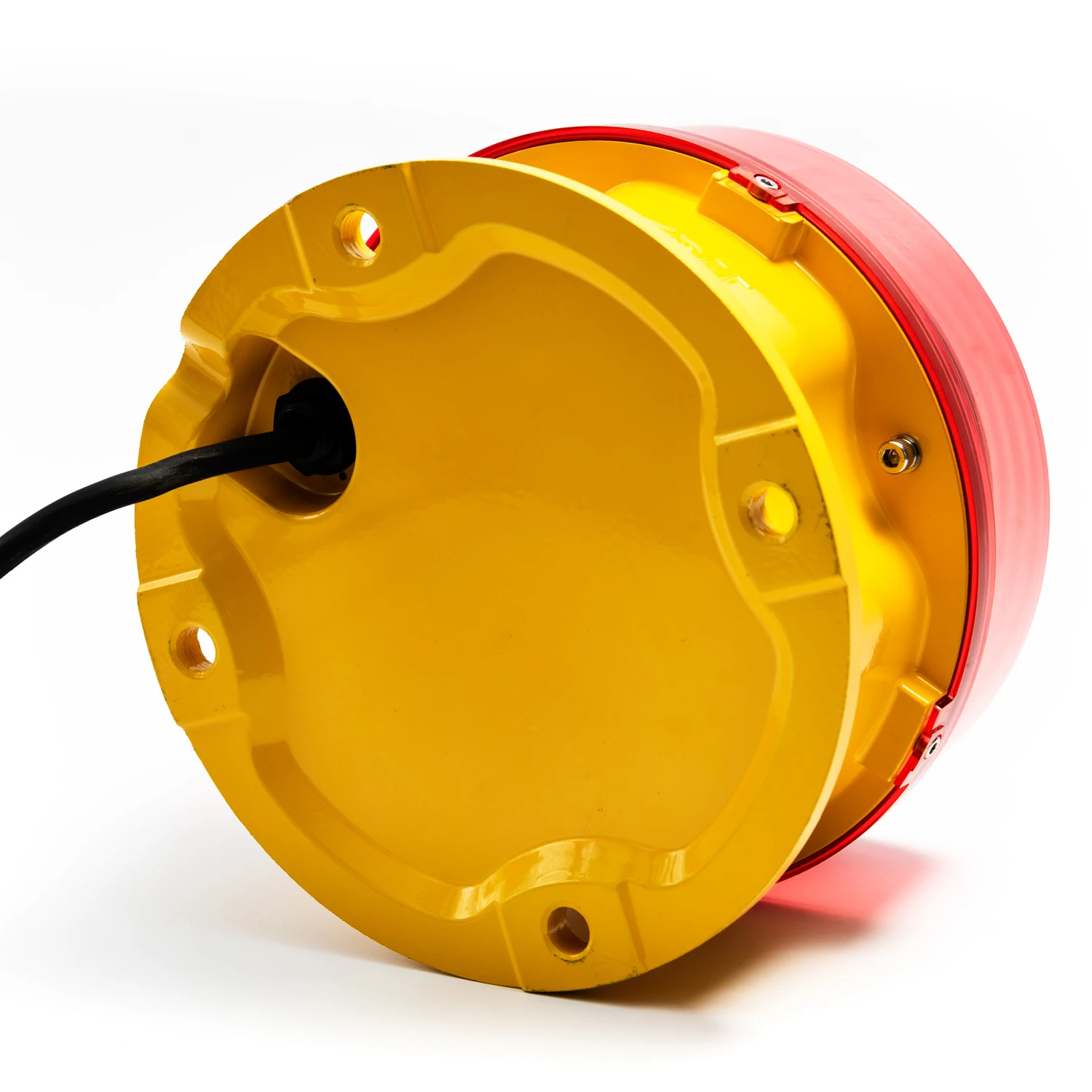

LED L-864 IR Military Infra Red Obstruction Light Night Marking Medium Intensity Type B ICAO Compliant Chimney Obstruction Light
Medium Intensity Obstacle Lights Type B should be used either alone or in combination with Low Intensity Obstacle Lights Type B for night mode, whereas Medium Intensity Obstacle Lights Type C should be used either alone or in combination with Medium Intensity Obstacle Lights Type AC for daily and night mode where the obstacle is particularly large and the height of the surrounding soil is more than 45m.
.
Compliance
●FAA L-864
●International Civil Aviation Organization (ICAO), Aerodrome Design and Operations, Annex 14, Volume 1, Sixth Edition, dated July 2013
●International Civil Aviation Organization (ICAO), Aerodrome Design and Operations, Annex 14, Volume 1, Sixth Edition, dated July 2013
Option Feature
●Optional GSM Monitoring ●Optional GPS Synchronization
●Optional IR Remote Control
●Optional IR Remote Control
Application

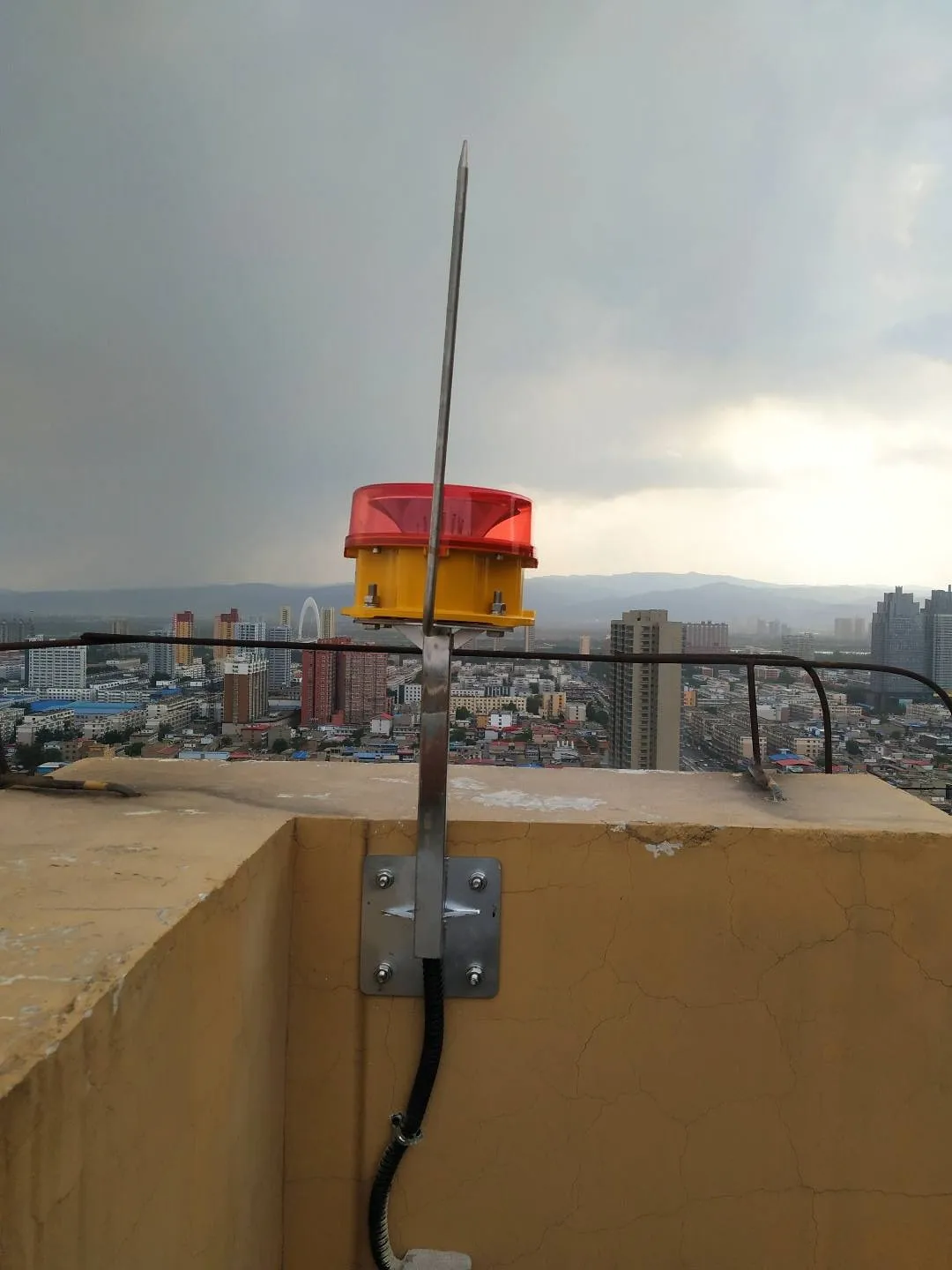

●Masts & Tower obstacles
(Telecommunication, GSM, Radio & TV)
●Tall Building
●Power Line
●Chimney
Item Name | Chimney Obstruction Light |
Model | CM-13 |
Operating Voltage | AC90-260V |
Power consumption | ≤10W |
Flashing frequency | 20～60times/min |
Light intensity | 2000cd(±25%) |
Life span | ＞100,000 hours |
Emitting color | RED |
Beam angle | 360° horizontal,> 3° vertical |
Method of synchronization | Same power supply voltage signal mode |
Overall size | ∅210mm×140mm |
Installation size | 126mm×126mm×4-M10 |
Ingress protection | IP65 |
Lightning protection level | 10KA |
Optical Sensitivity | 100Lux |
Operating temperature | -40℃～55℃ |
Net weight | 2.5KG |
Wind load | 80m/sec. |
Specification
1. Lamp shade of the light adopts PC with anti-UV which is high efficiency light transmissionup to 95%,quite high impact resistance and fits the bad environment very well.
2. House of the light is made of aluminum alloy, painted by spraying plastics, the structure is
high strength, resistance to corrosion;
3. Using parabolic reflector optical design, range further;
4. Light source adopts LED with long lifespan, lower power consumption and high efficiency.
5. Based on the single chip computer control, automatic identification sync signal, do not
distinguish the main light and auxiliary light, and also could be controlled by the controller;
6. Same power supply voltage with synchronous signal, integrate in power supply cable,
eliminate the damage by error installation caused;
7. Used the photosensitive probe fit for the natural light spectrum curve, automatic control
light intensity level;
8. The circuit of the light has surge protection whose lightning proof ability is In 7.5KA/5times,
Imax 15KA so that the light is suitable for a harsh environment;
9. Integral structure, protection level of Ip65;
10. Ignitability rate UL-94V0, fit for all kinds of industrial situation;
11. GPS synchronizing function is available.
