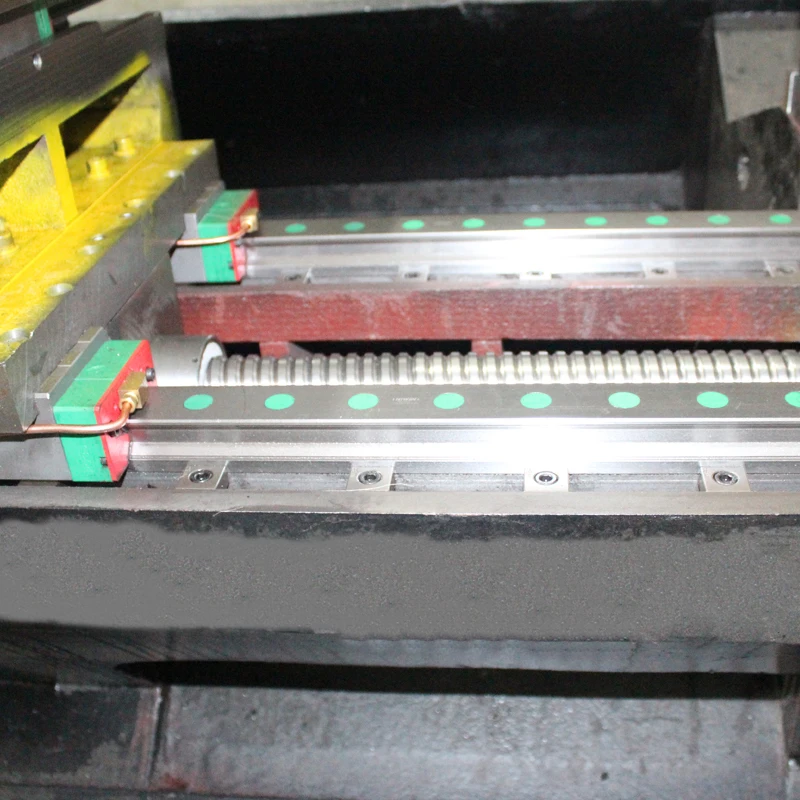

Токарный станок с линейной направляющей
- Категория: >>>
- Поставщик: Taizhou,Terui,CNC,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 10353.37 $* | 10871.72 $* |
| Aug-17-2025 | 10266.10 $* | 10779.90 $* |
| Jul-17-2025 | 8613.39 $* | 9044.0 $* |
| Jun-17-2025 | 10092.50 $* | 10597.62 $* |
| May-17-2025 | 8787.94 $* | 9226.60 $* |
| Apr-17-2025 | 9918.58 $* | 10414.34 $* |
| Mar-17-2025 | 9831.66 $* | 10323.27 $* |
| Feb-17-2025 | 9744.94 $* | 10231.56 $* |
| Jan-17-2025 | 9657.89 $* | 10140.40 $* |
Характеристики
CNC CK6132 linear guide lathe

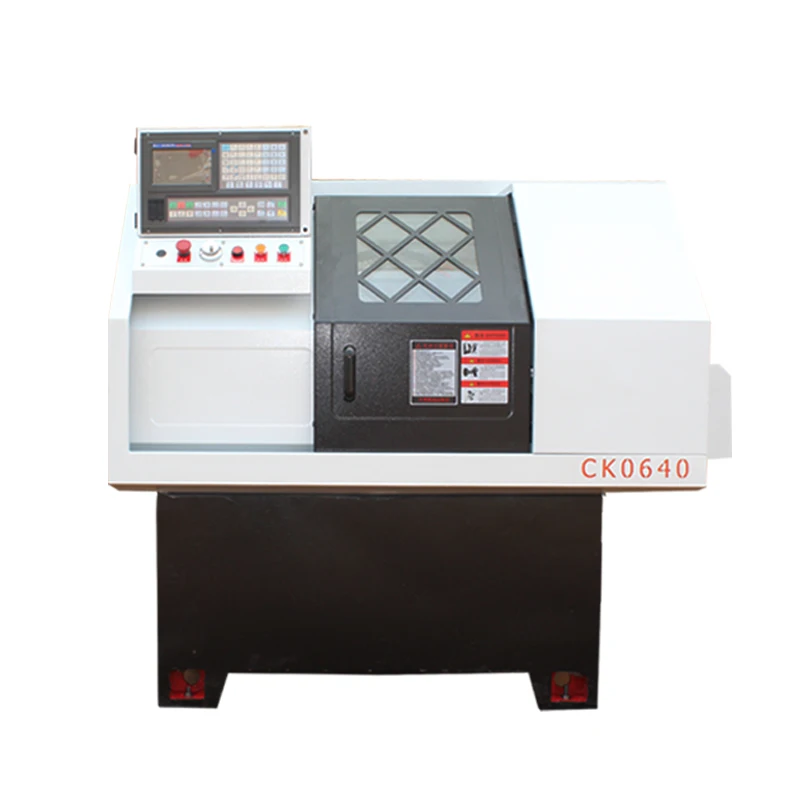

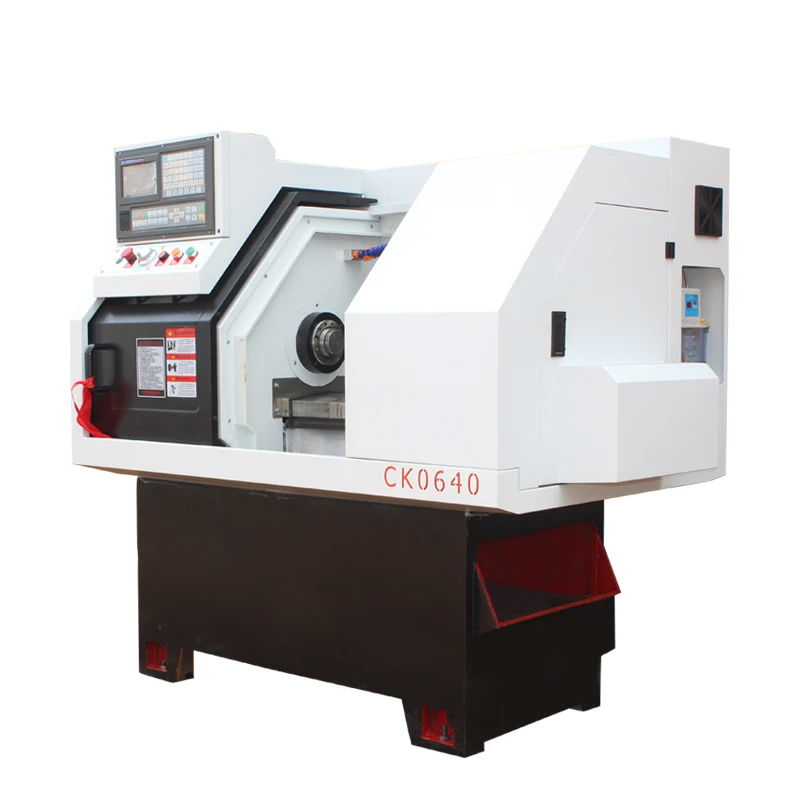

CNC lathe CK0640
| Model | CK0640 |
| Max. swing diameter over bed(mm) | 320 |
| Max. swing diameter over cross slide(mm) | 110 |
| Max. turned length(mm) | 350 |
| Spindle bore(mm) | 49 |
| Spindle rod bore(mm) | 41.5 |
| Spindle speed(r.p.m) | 0-3000 |
| Spindle rod thread | M48*1.5 |
| Spindle motor power(KW) | 4 |
| Spindle head type | A2-5 |
| Taper of spindle bore | 21° |
| X/Z travel(mm) | 560/350 |
| X/Z rapid travel speed(mm/min) | 12000/12000 |
| X-axis servo motor torque(N·m) | 110/4 |
| Z-axis servo motor torque(N·m) | 110/6 |
| X/Z repeated positioning accuracy(mm) | 0.005 |
| Overall dimensions(mm) | 1750*1100*1600 |
| Weight(kg) | 1000 |
FAQ:
Q:Are you manufacturer or distributor?
A:We are manufacturer,welcome to visit our factory.
Q:Our country’s voltage is three-phase 220V(or single phase 220V,or other voltage), machine's voltage is three-phase 380V, can you change the voltage?
A:Yes, please tell me the voltage you need,we will change it.
Q:How to choose the machine I want?
A:Please tell us your detailed requirements of the machine, or you can also send us the products drawing, our engineer can help to choose the best model for you.
Q:How can I get technical support if I buy your machine?
A:We have detailed instructional videos, even if novices can operate by watching the videos.Please search for Taizhou Terui CNC Machine Co.,Ltd. on YouTube for more videos!
Q:How about after-sales service?
A:Free replacement of damaged parts during the warranty period,replacement at cost price after the warranty period;
If any problems,we will provide you with solutions quikckly by shooting videos or other ways.
