24D медная миниатюрная машина для волочения тонкой проволоки вход 1
- Категория: Wire Drawing Machines >>>
- Поставщик: Shanghai,Swan,International,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 12495.51 $* | 13120.38 $* |
| Aug-16-2025 | 12390.24 $* | 13010.36 $* |
| Jul-16-2025 | 10395.55 $* | 10915.14 $* |
| Jun-16-2025 | 12180.82 $* | 12789.15 $* |
| May-16-2025 | 10605.68 $* | 11135.56 $* |
| Apr-16-2025 | 11970.97 $* | 12569.91 $* |
| Mar-16-2025 | 11865.22 $* | 12458.60 $* |
| Feb-16-2025 | 11760.19 $* | 12348.38 $* |
| Jan-16-2025 | 11655.87 $* | 12238.57 $* |
Характеристики
Product Description

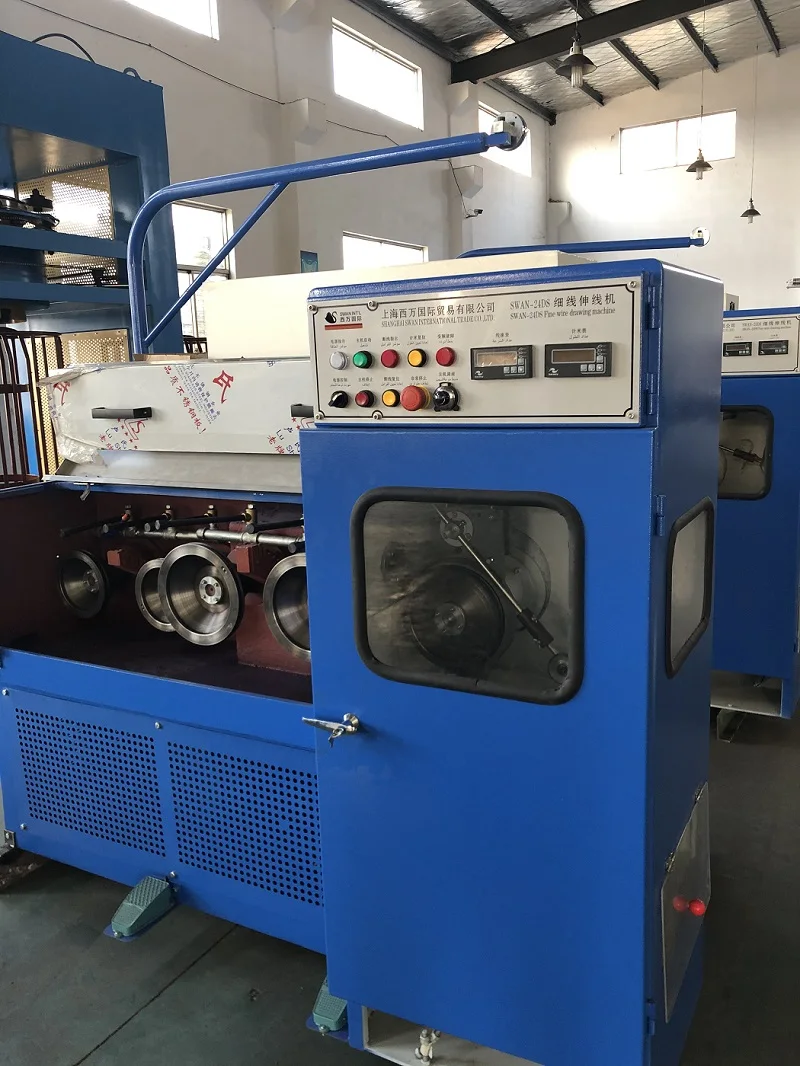

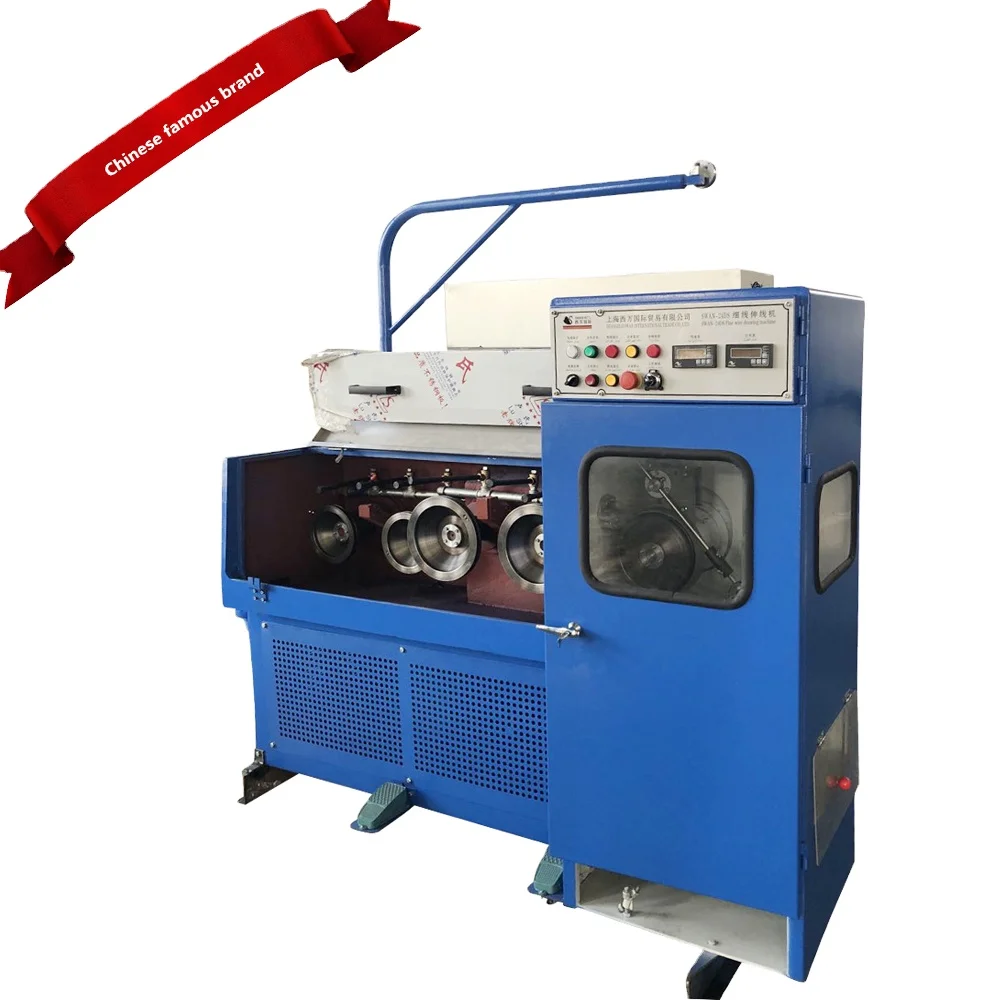

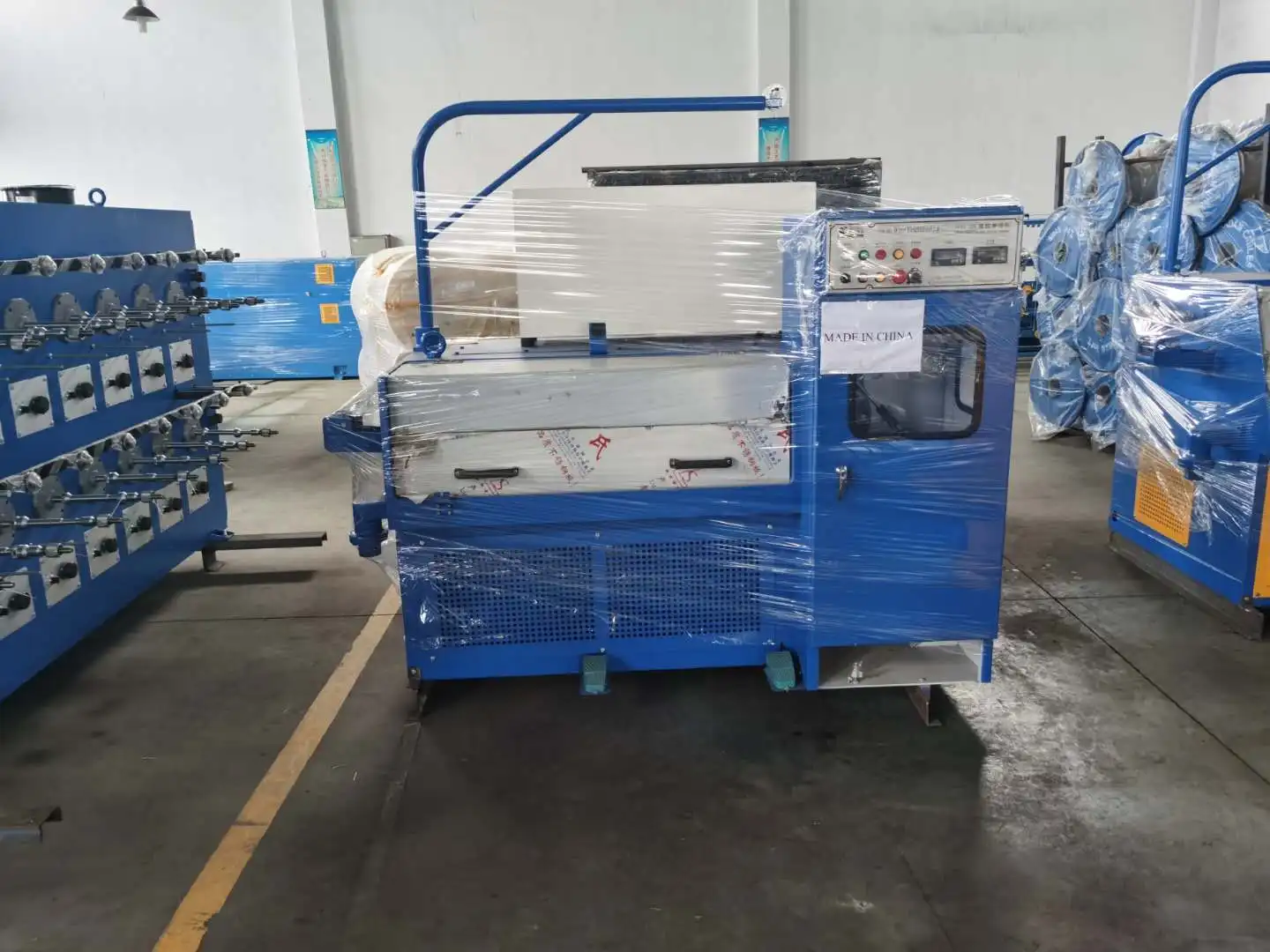

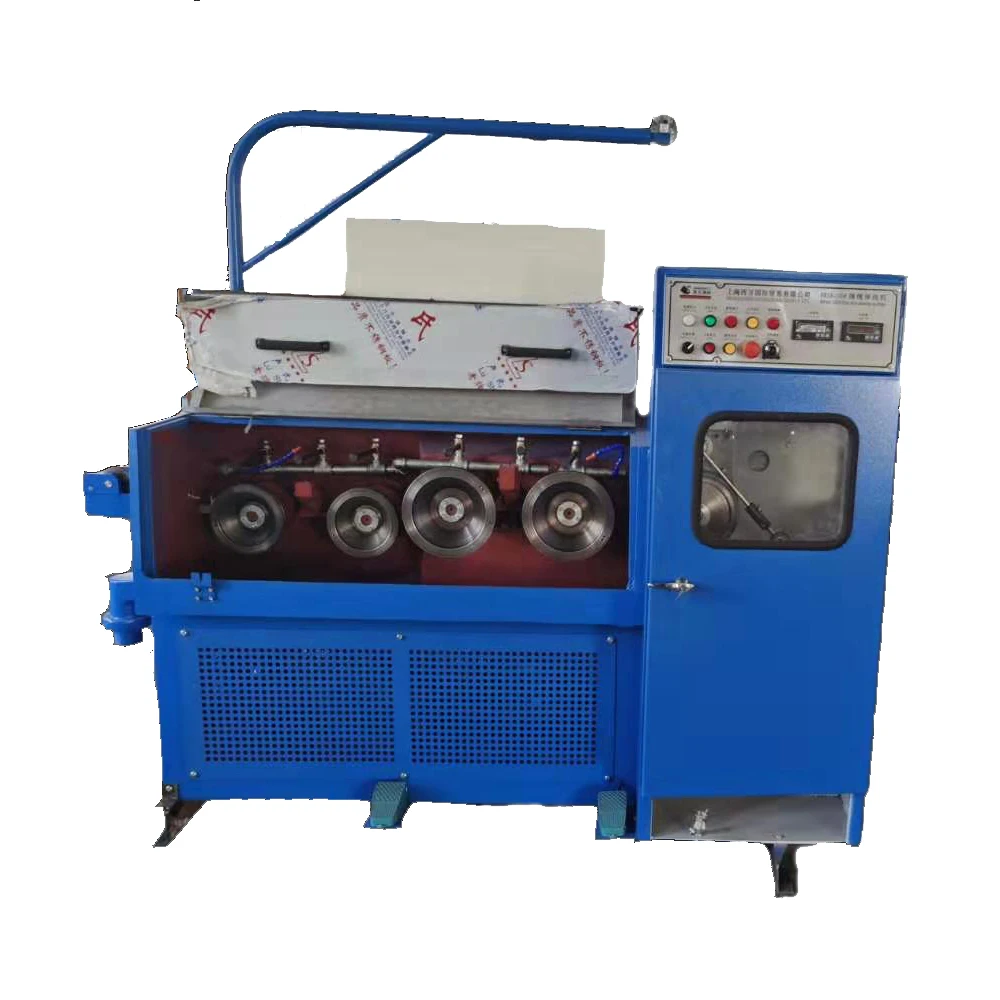

SWAN-24DT Fine Wire Drawing Machine
Machine Model | 24D |
Power Control | Dual Inverter Control |
Inlet Dia. (mm) | Φ0.5-Φ1.2mm |
Outlet Dia. (mm) | Φ0.10-Φ0.52mm |
Max Die No. | 24 |
Max Line Speed (m/min) | 2000m/min |
Frame Structure | Ironed Cast |
Drawing Capstan | Ceramic Capstan |
Area Reduction Ratio of Machine | 13% |
Area Reduction Ratio of Final Capstan | 8% |
Main Motor Power | 15kw |
Take up Motor Power | 4kw |
Max capstan diameter | Φ194mm |
Fix speed capstan diameter | Φ159mm |
Transmission Type | By Flat Belt |
Take Up Bobbin Size | D300 Bobbin |
Traversing Type | Synchronous Motor + Belt |
Take Up Type | Shaft Type |
Tension Control | Weight Balance Type |
Lubrication Type | Spray Type |
Brake | Magnetic Brake |
Dimension | 2200 x 1600 x 1900mm (L x W x H) |
Inside of the capstan is made of ceramic because the inside is easy to wear.
The outer are sprayed with tungsten carbide and then vacuum heat treated to make the coating fit tightly, not easy to fall off and durable, and the spray thickness is about 1mm.
Inventor adopts INOVANCE and TECO
Take up bobbin size：OD MAX 300mm
OD | ID | OW | IW | Hole dia. |
300 | 215 | 290 | 270 | 127 |
Why Choose Us
Gears will not be replaced due to wear
for at least ten years
Need to change gear in two years
