Водонепроницаемый сетевой кабель для видеонаблюдения со встроенным питанием POE сетевые кабели RJ45 IP-камер
- Категория: CCTV Lens >>>
- Поставщик: Shenzhen,Hanvision,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 12.68 $* | 13.44 $* |
| Aug-18-2025 | 12.18 $* | 13.24 $* |
| Jul-18-2025 | 10.32 $* | 11.87 $* |
| Jun-18-2025 | 12.9 $* | 13.99 $* |
| May-18-2025 | 10.15 $* | 11.5 $* |
| Apr-18-2025 | 11.78 $* | 12.53 $* |
| Mar-18-2025 | 11.51 $* | 12.69 $* |
| Feb-18-2025 | 11.86 $* | 12.58 $* |
| Jan-18-2025 | 11.98 $* | 12.44 $* |
Характеристики
Just send us an inquiry then you can get free sample ^_^
Advantages
1.Offer OEM&ODM service like add logo and customized package.
2.We have R&D department and provide good after-sales.
3.Select more than 600 excellent accessory suppliers to support customization of various functions and appearances.
4.Six years’ experience in assembling with high quality control.
Recommended by seller
Put Your Good Idea into Reality and Click “Contact Us”
Packing List

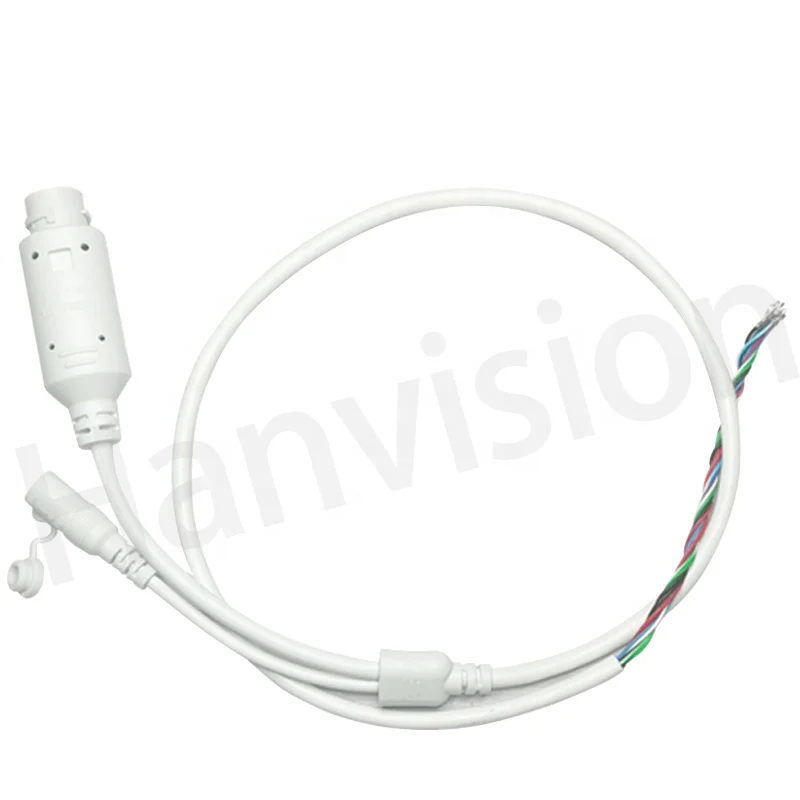

1 or 5 Set Built-in 48V POE Module Cable with DC (with Waterproof Connector 、Terminals)
Terminals are sent by 2 and 8 pin by default.If you need terminals different, please leave a message to us.
Terminals are sent by 2 and 8 pin by default.If you need terminals different, please leave a message to us.
Product description:
Introduction

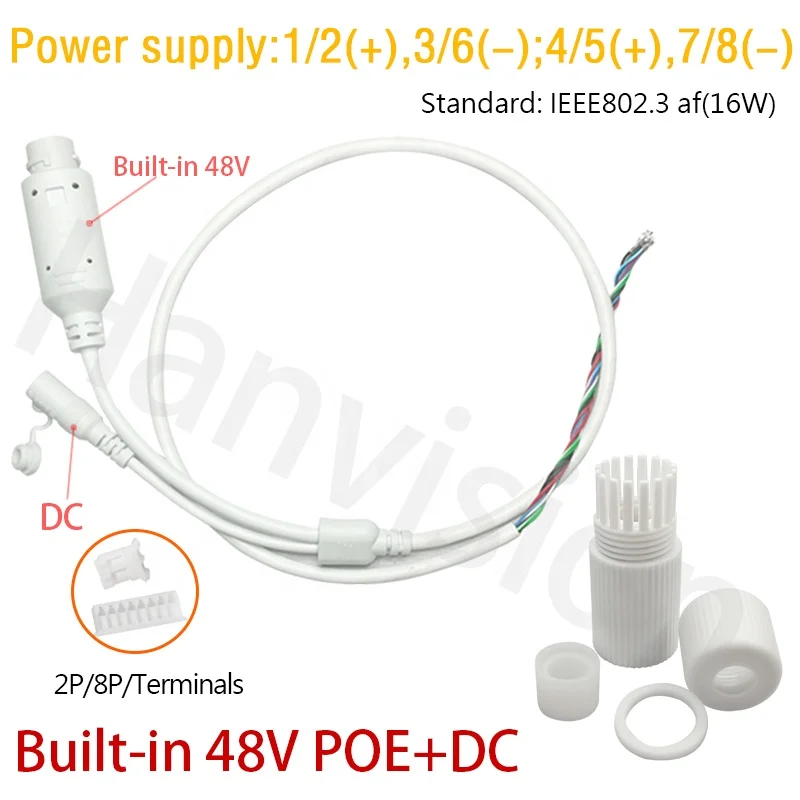

Built-in 48V POE Module ，POE Lan Cable Data & Power Pin:1&2(+), 3&6(-)

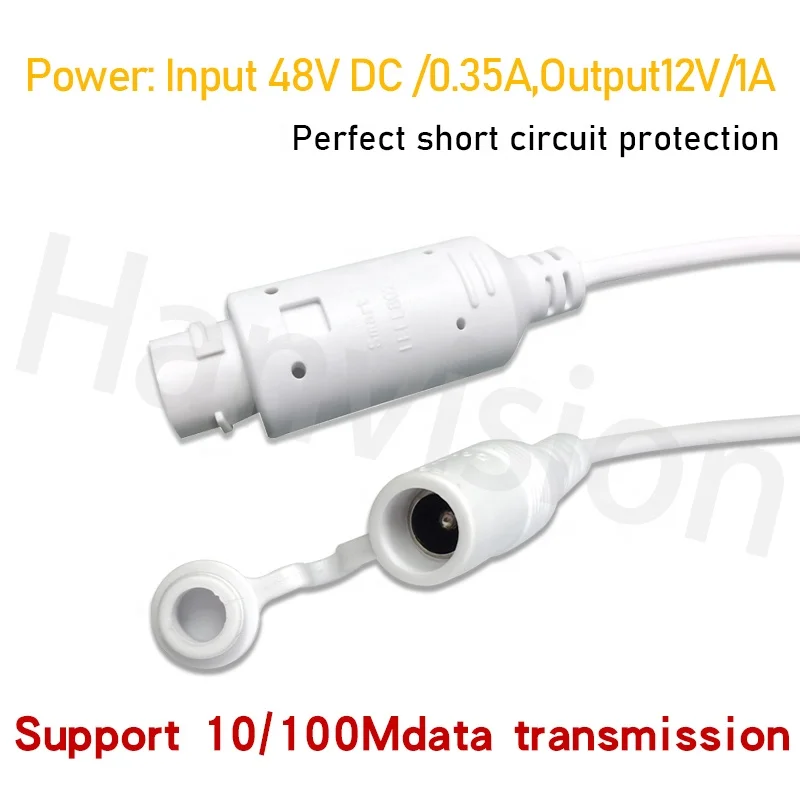

Power: Input 48V DC /0.35A, Output 12V/1A ，Standard: IEEE802.3 af(15.4W)，Security:Has a perfect short circuit protection
Compatibility: integrated network adapter supports End-span (1,2 + / 3,6 -) and Mid-span (4,5 + / 7,8 -) two power modes
PoE cable ,it is an economical and practical PoE remote power equipment base on IEEE802.3af standard.
It can separate the power and data via cable transmission.Proper matching use with poe switch or PSE injector which meet standard
IEEE802.3af,Provides power and data at the same time for the terminal device does not support PoE.
PoE cable, output voltage of 12V use with the power supply equipment, It helps to expand wireless city,
Security monitoring and other poe practical place, and is not restricted by layout of power line.
Power: Input 48V DC /0.35A, Output 12V/1A ，Standard: IEEE802.3 af(15.4W)，Security:Has a perfect short circuit protection
Compatibility: integrated network adapter supports End-span (1,2 + / 3,6 -) and Mid-span (4,5 + / 7,8 -) two power modes
PoE cable ,it is an economical and practical PoE remote power equipment base on IEEE802.3af standard.
It can separate the power and data via cable transmission.Proper matching use with poe switch or PSE injector which meet standard
IEEE802.3af,Provides power and data at the same time for the terminal device does not support PoE.
PoE cable, output voltage of 12V use with the power supply equipment, It helps to expand wireless city,
Security monitoring and other poe practical place, and is not restricted by layout of power line.
Features：
Support international standard IEEE802.3 af(15.4W);
Support 10/100Mdata transmission
PD support 37V-57V voltage transmission,Automatically detects power supply from PSE power supply module
12V power output,easy to access Poe network for non-poe terminal
Support the isolation circuit protection,can effectively protect electrical equipment.
Support the short circuit,overvoltage protection
Support 10/100Mdata transmission
PD support 37V-57V voltage transmission,Automatically detects power supply from PSE power supply module
12V power output,easy to access Poe network for non-poe terminal
Support the isolation circuit protection,can effectively protect electrical equipment.
Support the short circuit,overvoltage protection

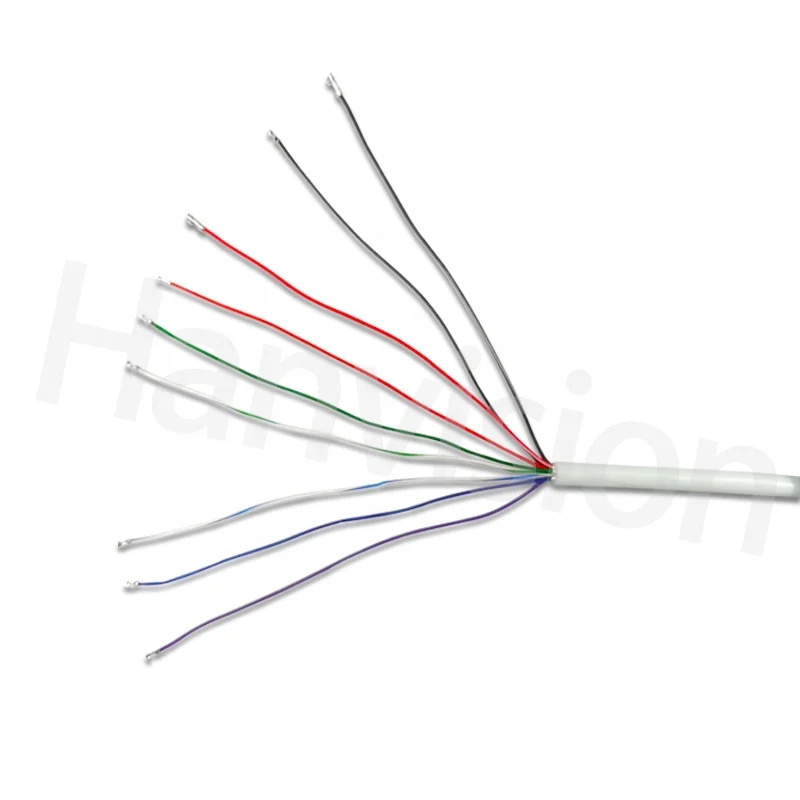

Cable colour | definition | ||
green white(1.25) | Tx+ | IPC signal | |
green(1.25) | Tx- | IPC signal | |
blue white(1.25) | RX+ | IPC signal | |
blue(1.25) | RX- | IPC signal | |
purple(1.25) | LED+ | IPC indicator light | |
red(1.25) | 12V+ | IPC power | |
black(1.25) | GND | IPC power | |
red(2.0) | 12V+ | Lamp board power | |
black(2.0) | GND | Lamp board power | |
black(1.25) | reset | IPC reset | |
Product Description
Packing & Delivery
To better ensure the safety of your goods, we will provided professional, environmentally friendly, convenient and efficient packaging services .
Company Profile
Shenzhen Hanvision Technology Co., Ltd. is a private enterprise specializing in the development, production and sales of CCTV. For many years, with good strength, we had gathered a group of vigorous team. The aggressive marketing team is working hard to cultivate the world in the special product series of closed-circuit monitoring system. With excellent quality and sincere service,we are growing steadily in the fiercely competitive security market.
FAQ
Q1: What's the MOQ and leading time?
A:No MOQ for the first order, sample orders are welcome. 1-2 days for the sample order; for the bulk orders, the leading time will be depend on the order quantities and
requirements;We will do our best to send the products to you as soon as quickly.
Q2:How can we guarantee quality?
A:Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q3:What can you buy from us?
A:Camera,USB Camera,Solar Camera,WIFI Camera,Various camera accessories
Q4:Why should you buy from us not from other suppliers?
A:We a professional supplier in the production and sales of CCTV ,we can provide better products,better service.
Q5. How about the shipping?
requirements;We will do our best to send the products to you as soon as quickly.
Q2:How can we guarantee quality?
A:Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q3:What can you buy from us?
A:Camera,USB Camera,Solar Camera,WIFI Camera,Various camera accessories
Q4:Why should you buy from us not from other suppliers?
A:We a professional supplier in the production and sales of CCTV ,we can provide better products,better service.
Q5. How about the shipping?
A: We do provide international Express door-to-door, Airline and Ocean shipment; you can choose the shipping way you prefer, and different shipping will take different shipping cost.
