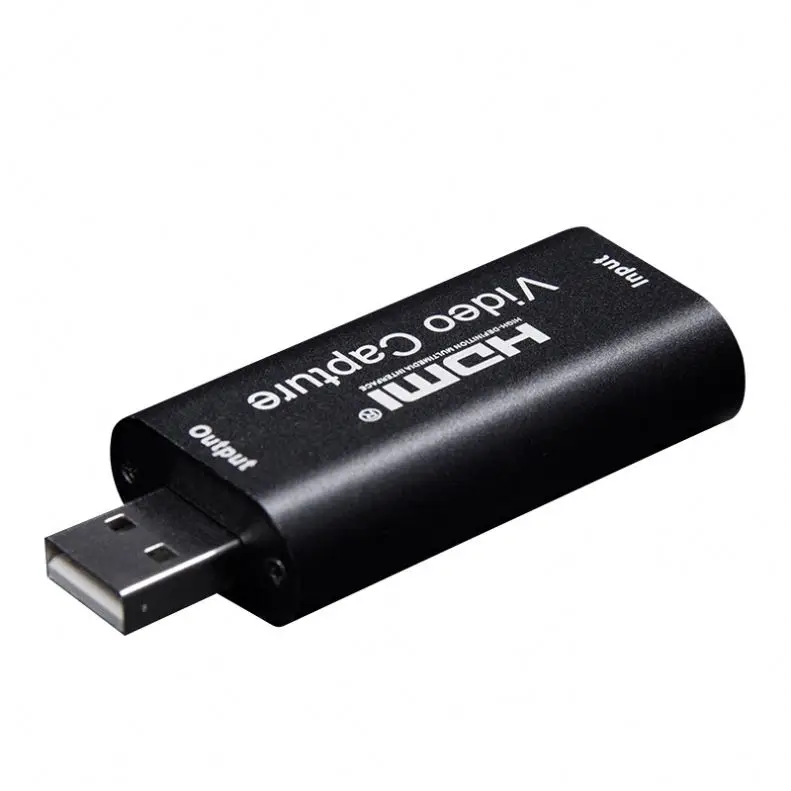

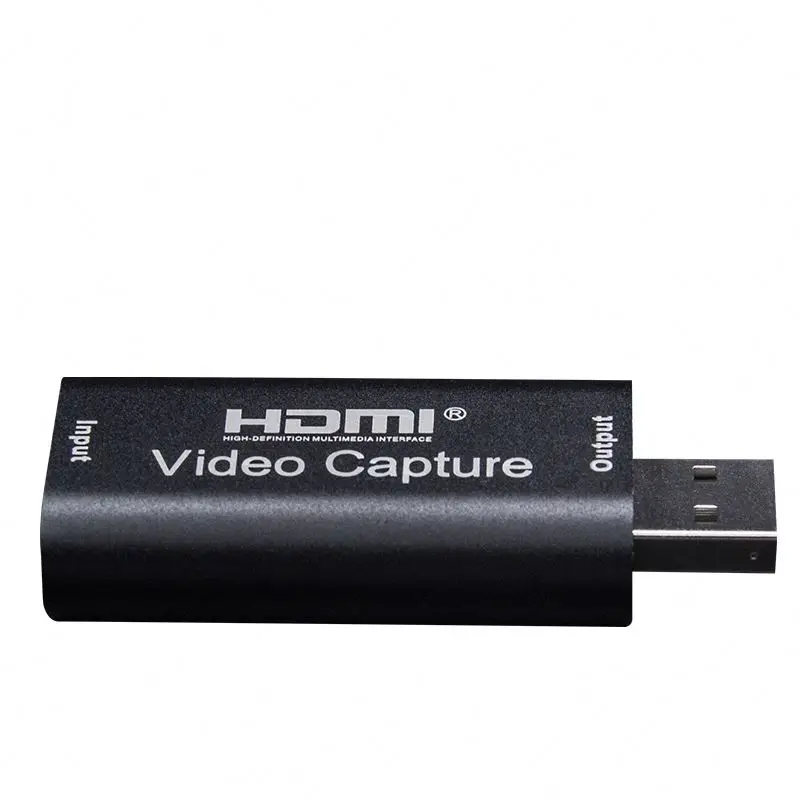

Видеозахват HD 3840x2160 @ 30 Гц для онлайн-игр потоковой передачи USB2.0 совместимое с Windows Android MacOS VLC OBS
- Категория: DVR Card >>>
- Поставщик: Dongguan,Menuosi,Electronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 5.67 $* | 5.97 $* |
| Aug-15-2025 | 5.20 $* | 5.80 $* |
| Jul-15-2025 | 4.91 $* | 4.2 $* |
| Jun-15-2025 | 5.31 $* | 5.27 $* |
| May-15-2025 | 4.21 $* | 4.64 $* |
| Apr-15-2025 | 5.42 $* | 5.26 $* |
| Mar-15-2025 | 5.2 $* | 5.39 $* |
| Feb-15-2025 | 4.73 $* | 4.62 $* |
| Jan-15-2025 | 4.63 $* | 4.20 $* |
Характеристики

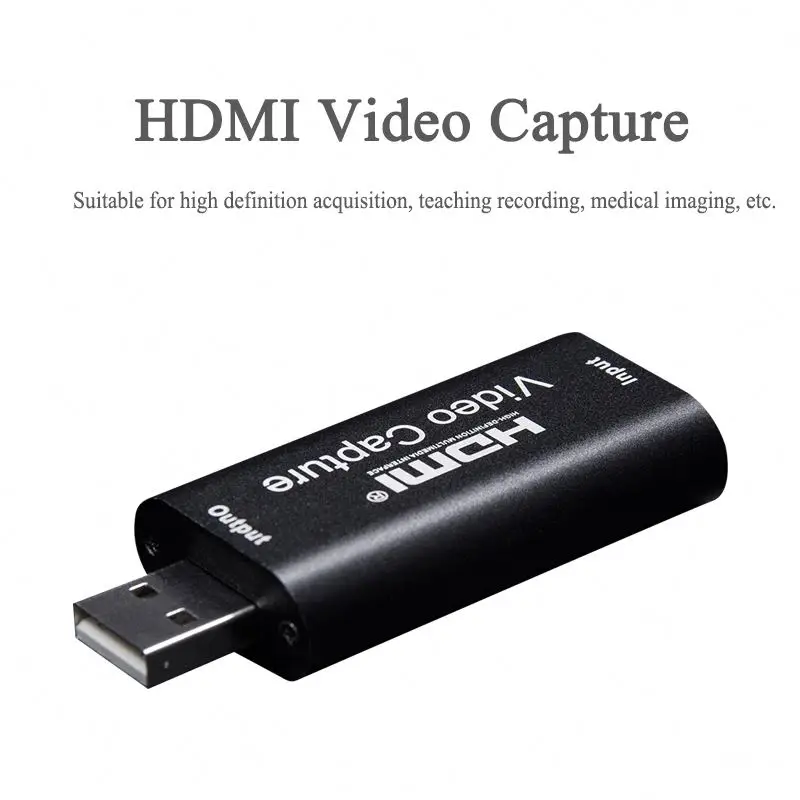

HDTV Video Capture
The video capture can capture both HDTV video and HDTV audio, sending audio and video signals to computers and smart phones for preview and storage. Suitable for high definition acquisition, teaching recording, medical imaging, etc.
The video capture can capture both HDTV video and HDTV audio, sending audio and video signals to computers and smart phones for preview and storage. Suitable for high definition acquisition, teaching recording, medical imaging, etc.
Features:
* Support input max resolution 3840×2160@30Hz;
* Support output max resolution 1920×1080@30Hz;
* Support 8/10/12bit deep color;
* Support AWG26 HDTV standard cable: input up to 15 meters,
(1080P and below resolution);
* Support most acquisition software, such as VLC,OBS ,Amcap, etc;

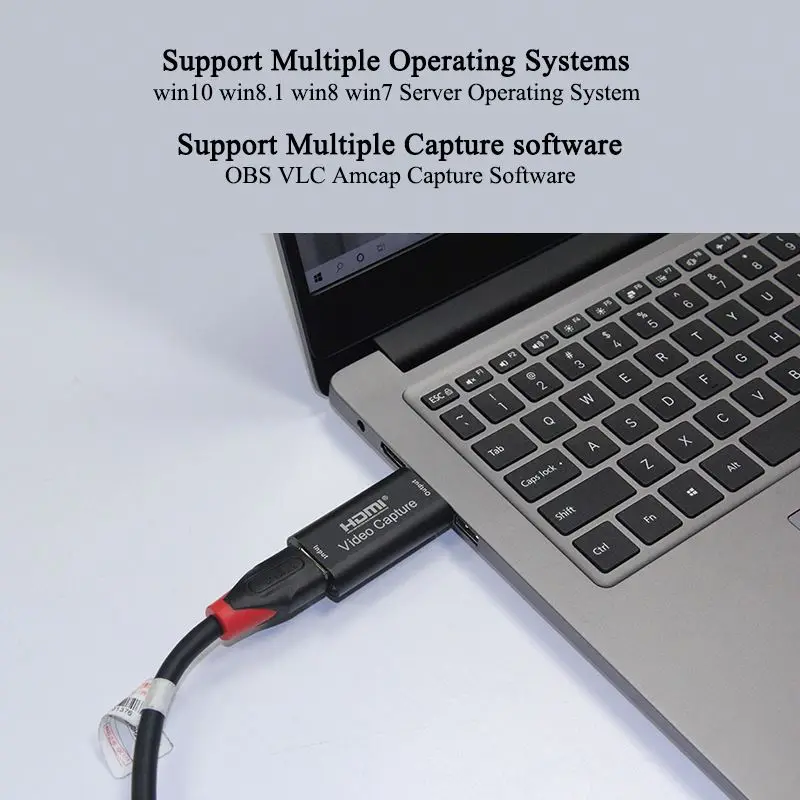

* Support Windows,Android and MacOS;
* Conform to USB Video and UVC standard;
* Conform to USB Audio UAC standard;
* Without external power supply, compact and portable.
Specifications:
HDTV resolution: Max input can be 3840×2160@30Hz
Support video format: 8/10/12bit Deep color
Video output format : YUV,JPEG
Video output resolution: Max output can be 1920×1080@30Hz
Support audio format: L-PCM
Input cable distance: ≤15m,AWG26 HDMI standard cable
Max working current: 0.4A/5VDC
Operating Temperature range: (-10 to +55℃)

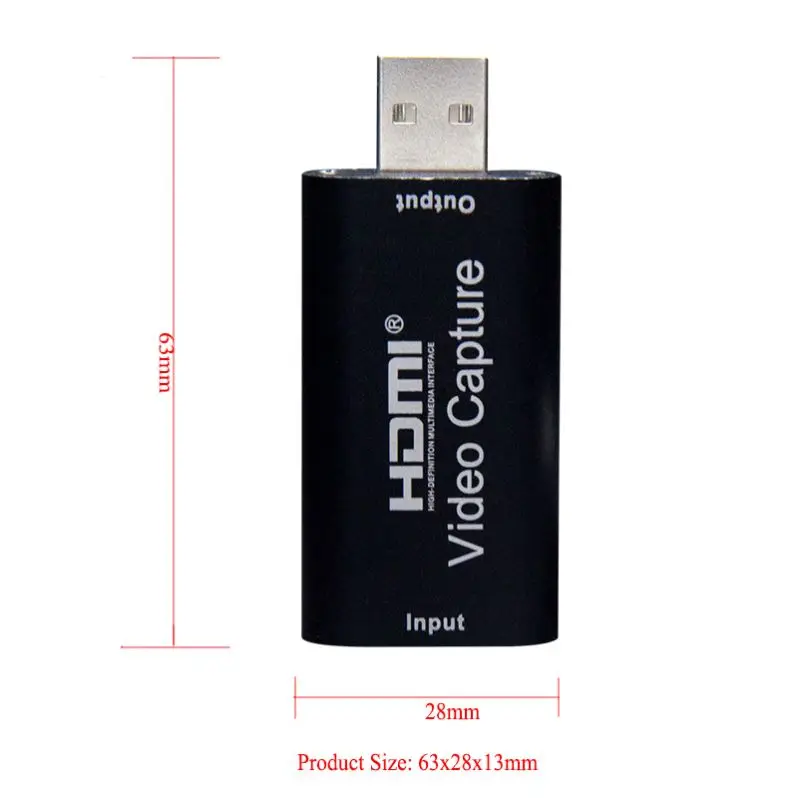

Dimension (L x W x H): 63x28x13 (mm)
Weight: 21.4g
* Support input max resolution 3840×2160@30Hz;
* Support output max resolution 1920×1080@30Hz;
* Support 8/10/12bit deep color;
* Support AWG26 HDTV standard cable: input up to 15 meters,
(1080P and below resolution);
* Support most acquisition software, such as VLC,OBS ,Amcap, etc;
* Support Windows,Android and MacOS;
* Conform to USB Video and UVC standard;
* Conform to USB Audio UAC standard;
* Without external power supply, compact and portable.
Specifications:
HDTV resolution: Max input can be 3840×2160@30Hz
Support video format: 8/10/12bit Deep color
Video output format : YUV,JPEG
Video output resolution: Max output can be 1920×1080@30Hz
Support audio format: L-PCM
Input cable distance: ≤15m,AWG26 HDMI standard cable
Max working current: 0.4A/5VDC
Operating Temperature range: (-10 to +55℃)
Dimension (L x W x H): 63x28x13 (mm)
Weight: 21.4g
Connection and Operation
1: Connect the UHD signal source to the HDMI input of the video capture with one HDMI cable.
2: Connect the computer to the usb port of the video capture with usb cable.
3: Operation steps for USB video capture(OBS): Open the software→Choose sources of
“Video capture Device”→Set the size of image→Choose “Studio Mode”(double window)
→Choose “Start Recording”.
Operation Example as below
1. Add new sources, choose “ Video Capture Device ”
1: Connect the UHD signal source to the HDMI input of the video capture with one HDMI cable.
2: Connect the computer to the usb port of the video capture with usb cable.
3: Operation steps for USB video capture(OBS): Open the software→Choose sources of
“Video capture Device”→Set the size of image→Choose “Studio Mode”(double window)
→Choose “Start Recording”.
Operation Example as below
1. Add new sources, choose “ Video Capture Device ”
2. Set the size of the image.
3. Choose “Studio Mode”(double window).
4. Click “ Start Recording”
Note:
Computer hardware configuration requirements
CPU: PC i5-3400 or above ;NB i7-3537U 2.0GHZ or above
Graphics card: PC NVIDIA GT630 or above;NC NVIDIA GT735M or above
Run memory: 4G RAM
Package include:
Computer hardware configuration requirements
CPU: PC i5-3400 or above ;NB i7-3537U 2.0GHZ or above
Graphics card: PC NVIDIA GT630 or above;NC NVIDIA GT735M or above
Run memory: 4G RAM
Package include:
1. Video capture 1PCS
2. user manual 1PCS
2. user manual 1PCS
Our Advantages
1.Start a business for over 8 years.
2.Keep the increasing rate of 30% for 5 consecutive years.
3.Estimated annual turnover of 30 million USD.
4.The turnover rate of staff less than 4%, a proportional relationship between professionalism and working status.
5.Product optimization and upgrading to reach a leading position in the Consumer Electronics industry.
6.Professional QC process system to ensure product quality.
7. More than 300 customers' success cases, the satisfaction rate is over 97%.
2.Keep the increasing rate of 30% for 5 consecutive years.
3.Estimated annual turnover of 30 million USD.
4.The turnover rate of staff less than 4%, a proportional relationship between professionalism and working status.
5.Product optimization and upgrading to reach a leading position in the Consumer Electronics industry.
6.Professional QC process system to ensure product quality.
7. More than 300 customers' success cases, the satisfaction rate is over 97%.
8.Most of our products are in stock and can be shipped within 24 hours.
Packaging and transportation
Company Profile
Certifications
Our Services
1.Delivery Time:Usually send out within 5-7days; The time for mass production relys on the stock, usually 7-20days...
2.Payment: We accept payment by T/T,Alibaba Credit , PayPal, VISA, Matercard, E-checking, Western Union L/C, etc.
3.Warranty: 1 year for motor,controller, Shipment errors will be replaced free of charge. We have strict QC test system for each
pcs before shipment , offer one year repair warranty.
4.After-sales:
A.Technology instruction when you get problems.
B.The warranty is based on broken not made by human being.
2.Payment: We accept payment by T/T,Alibaba Credit , PayPal, VISA, Matercard, E-checking, Western Union L/C, etc.
3.Warranty: 1 year for motor,controller, Shipment errors will be replaced free of charge. We have strict QC test system for each
pcs before shipment , offer one year repair warranty.
4.After-sales:
A.Technology instruction when you get problems.
B.The warranty is based on broken not made by human being.
FAQ
1. About the sample: How to get the sample?
The minimum order quantity of our products is 1-3pcs, so sample can be purchased directly.
2. About the price: Can I get your price list?
Yes, please tell us the product (and its model) you are interested in, quantity, and then we will provide the price by email.
3. About OEM: Can we place orders in OEM style to produce our own branded products in your factory?
Of course can. Welcome to OEM. All you need to do is send us a trademark name or logo.
4. About delivery time: How long can we receive the goods?
Most of the products are in stock. Small and medium-sized orders can be delivered within 3 days, while large quantities and
customized orders take about 2 weeks.The shipping time depends on the mode of transportation and destination chosen by the
customer.
5. About the minimum order quantity (MOQ): What is the minimum order quantity?
We have no MOQ requirement, just different price for different quantity.
6. About transportation insurance: How to arrange transportation insurance?
We will arrange transportation insurance for small and medium orders, and we need to negotiate for large orders.
The minimum order quantity of our products is 1-3pcs, so sample can be purchased directly.
2. About the price: Can I get your price list?
Yes, please tell us the product (and its model) you are interested in, quantity, and then we will provide the price by email.
3. About OEM: Can we place orders in OEM style to produce our own branded products in your factory?
Of course can. Welcome to OEM. All you need to do is send us a trademark name or logo.
4. About delivery time: How long can we receive the goods?
Most of the products are in stock. Small and medium-sized orders can be delivered within 3 days, while large quantities and
customized orders take about 2 weeks.The shipping time depends on the mode of transportation and destination chosen by the
customer.
5. About the minimum order quantity (MOQ): What is the minimum order quantity?
We have no MOQ requirement, just different price for different quantity.
6. About transportation insurance: How to arrange transportation insurance?
We will arrange transportation insurance for small and medium orders, and we need to negotiate for large orders.
