Промышленный складской вентилятор 10 футов 12 16 24
- Категория: Other Ventilation Fans >>>
- Поставщик: Fujian,Huada,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 828.24 $* | 869.67 $* |
| Aug-16-2025 | 821.67 $* | 862.47 $* |
| Jul-16-2025 | 689.73 $* | 723.67 $* |
| Jun-16-2025 | 807.19 $* | 847.14 $* |
| May-16-2025 | 703.43 $* | 738.58 $* |
| Apr-16-2025 | 793.86 $* | 833.33 $* |
| Mar-16-2025 | 786.32 $* | 825.2 $* |
| Feb-16-2025 | 780.65 $* | 819.18 $* |
| Jan-16-2025 | 773.38 $* | 812.86 $* |
Характеристики
Product Description
Specification
item | HDS-3 |
Type | hvls fans with pmsm motor |
Applicable Industries | Manufacturing Plant, Machinery Repair Shops, Farms, Restaurant, Construction works ,farm,logistics and church |
Customized support | OEM, ODM, OBM |
Blade Material | Aluminum Alloy |
Mounting | Ceiling Fan |
Place of Origin | China |
Rotating speed | 120 rpm |
Horsepower(HP) | 0.5 |
Power | 0.37KW |
Voltage | 220V/380v |
Certification | ce, CCC, Other |
Warranty | 3 Year |
After-sales Service Provided | Video technical support |

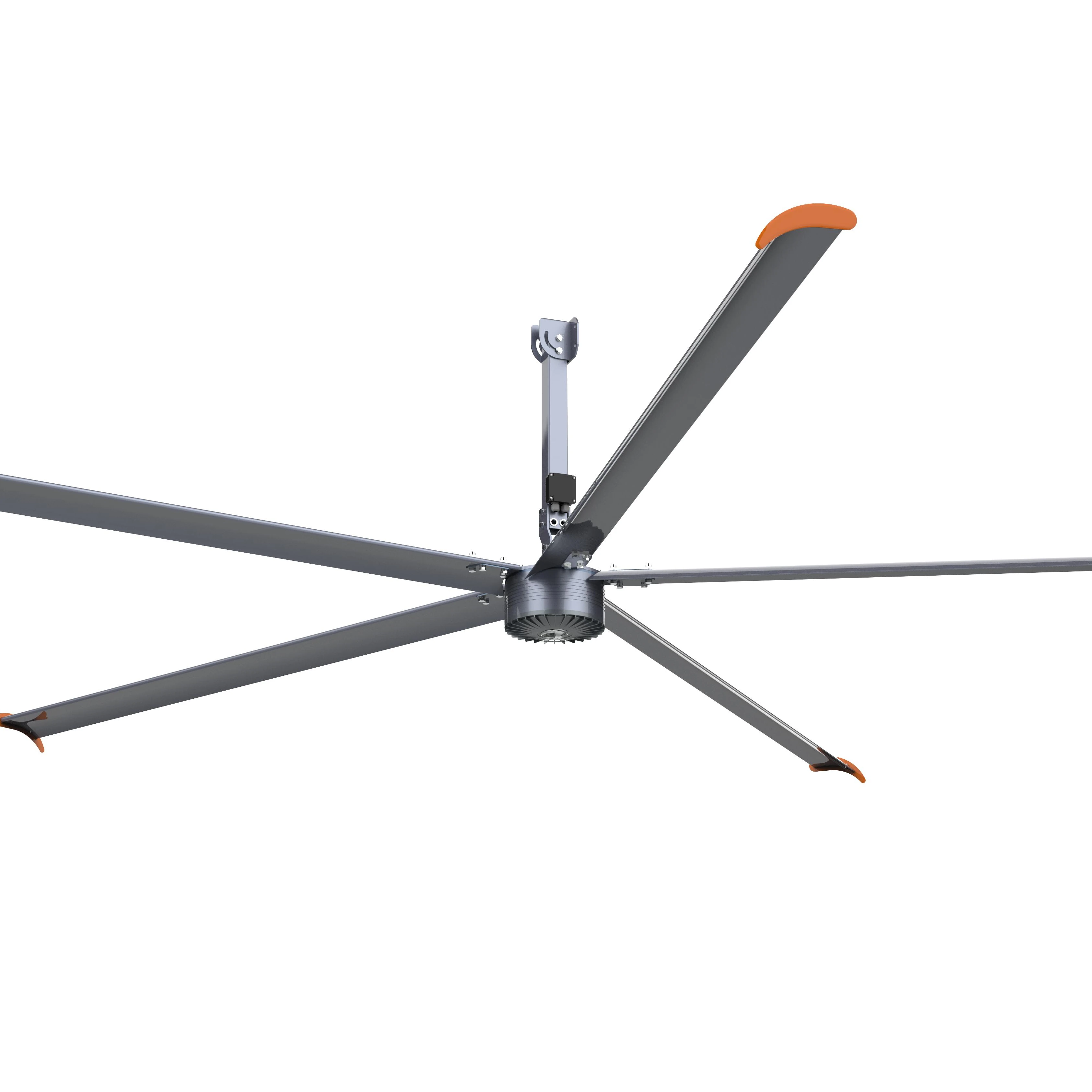

Product name | Industrial ceiling fan |
Fan Diameter | 10 ft/3m |
Air volume | 4000 m³/min |

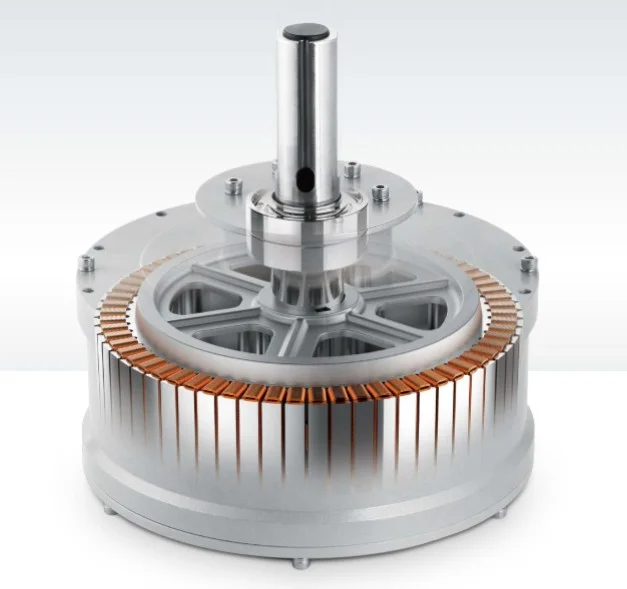

Motor | permanent magnet synchronous motor |
Noise | <38 dB |
Blade | 5 pcs |
Speed | 120rpm |
Coverage Area | 250 m² |
Effective area | 150 m² |
Weight | 87KG |
Packing & Delivery
Packing :One set of ceiling fan is packed by two plywood case,one is for blades, the other is for motor,controller and installation spare parts
Installation Instruction
1.Construction Structure: H-type steel,I-type steel,steel mixed square beam, ball column type,etc.
2.Total building height requirement greater than 4m
3.The blade is at least 0.2m from the barrier.
2.Total building height requirement greater than 4m
3.The blade is at least 0.2m from the barrier.
Company Profile
Fujian Huada Electric Co. Ltd.,Founded in 1998, locates in Fu'an, Fujian-the city of small and medium electrical machines. Covering 20,000 square meters and population is over 200workers. Having R&D,production, sales and after-sales departments.we are a modern enterprise. Well-equipped with production lines and testing machines of motor and fans,we're advanced in manufacturing and management in our area. Besides,our R&D team is very strong. We cooperate with academic institutions and have many intellectual properties. Mostly, we can customize all kinds of special fans for customers.
Fujian Huada Electric Co. Ltd.,is a famous manufacturer for fans and high temperature motors in China.Have passed the ISO9001:2008 certification,CE cert.,CCC cert. and so on.We have Three Invention patents, eleven utility-model patents and TWO design patents.Was name"Technology Enterprise of Fujian province" in 2003.All of our products sell all over the world with good reputation and reliablity.On 2009,"GKF" series was selected a standard products by China administration of tobacco.
Fujian Huada Electric Co. Ltd.,is a famous manufacturer for fans and high temperature motors in China.Have passed the ISO9001:2008 certification,CE cert.,CCC cert. and so on.We have Three Invention patents, eleven utility-model patents and TWO design patents.Was name"Technology Enterprise of Fujian province" in 2003.All of our products sell all over the world with good reputation and reliablity.On 2009,"GKF" series was selected a standard products by China administration of tobacco.
FAQ
1. who are we?
We are based in Fujian, China, start from 2007,sell to Mid East(50.00%),Eastern Asia(14.00%),Southeast Asia(13.00%),North America(10.00%),South America(8.00%),Eastern Europe(5.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
High temperature electrical machinery,High temperature motor,axial fan,drying equipment,high temperature fan
4. why should you buy from us not from other suppliers?
Fujian Huada Electric Co., Ltd focus on high temperature fan for more than 10years. Have passed the ISO9001;CE;CCC cert., Got 3 Invention patents,11 utility-model patents and 2 design patents."GKF" was selected a standard products by China tobacco.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union;
Language Spoken:English,Chinese
We are based in Fujian, China, start from 2007,sell to Mid East(50.00%),Eastern Asia(14.00%),Southeast Asia(13.00%),North America(10.00%),South America(8.00%),Eastern Europe(5.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
High temperature electrical machinery,High temperature motor,axial fan,drying equipment,high temperature fan
4. why should you buy from us not from other suppliers?
Fujian Huada Electric Co., Ltd focus on high temperature fan for more than 10years. Have passed the ISO9001;CE;CCC cert., Got 3 Invention patents,11 utility-model patents and 2 design patents."GKF" was selected a standard products by China tobacco.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union;
Language Spoken:English,Chinese
