JULAI OEM 7 3 m/24ft HVLS промышленный потолочный вентилятор для
- Категория: Other Ventilation Fans >>>
- Поставщик: Julai,(Chongqing),Ventilation,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 1428.66 $* | 1499.91 $* |
| Aug-16-2025 | 1416.34 $* | 1487.6 $* |
| Jul-16-2025 | 1188.24 $* | 1247.48 $* |
| Jun-16-2025 | 1392.46 $* | 1462.74 $* |
| May-16-2025 | 1212.25 $* | 1273.62 $* |
| Apr-16-2025 | 1368.2 $* | 1436.35 $* |
| Mar-16-2025 | 1356.1 $* | 1424.17 $* |
| Feb-16-2025 | 1344.73 $* | 1411.76 $* |
| Jan-16-2025 | 1332.28 $* | 1399.53 $* |
Характеристики
Product navigation
Product Paramenters
According to customer needs, Jule researches the market, develops and designs independently, seizes the manufacture of dynamic and fluid mechanical fan blades, provides soft air in large area, forms air circulation, drives indoor air circulation, effectively enhances body feeling and comfort, the minimum safety margin is up to 10 times, and runs smoothly and reliably. A wider range of application, lower price, multi-angle to meet the needs of customers

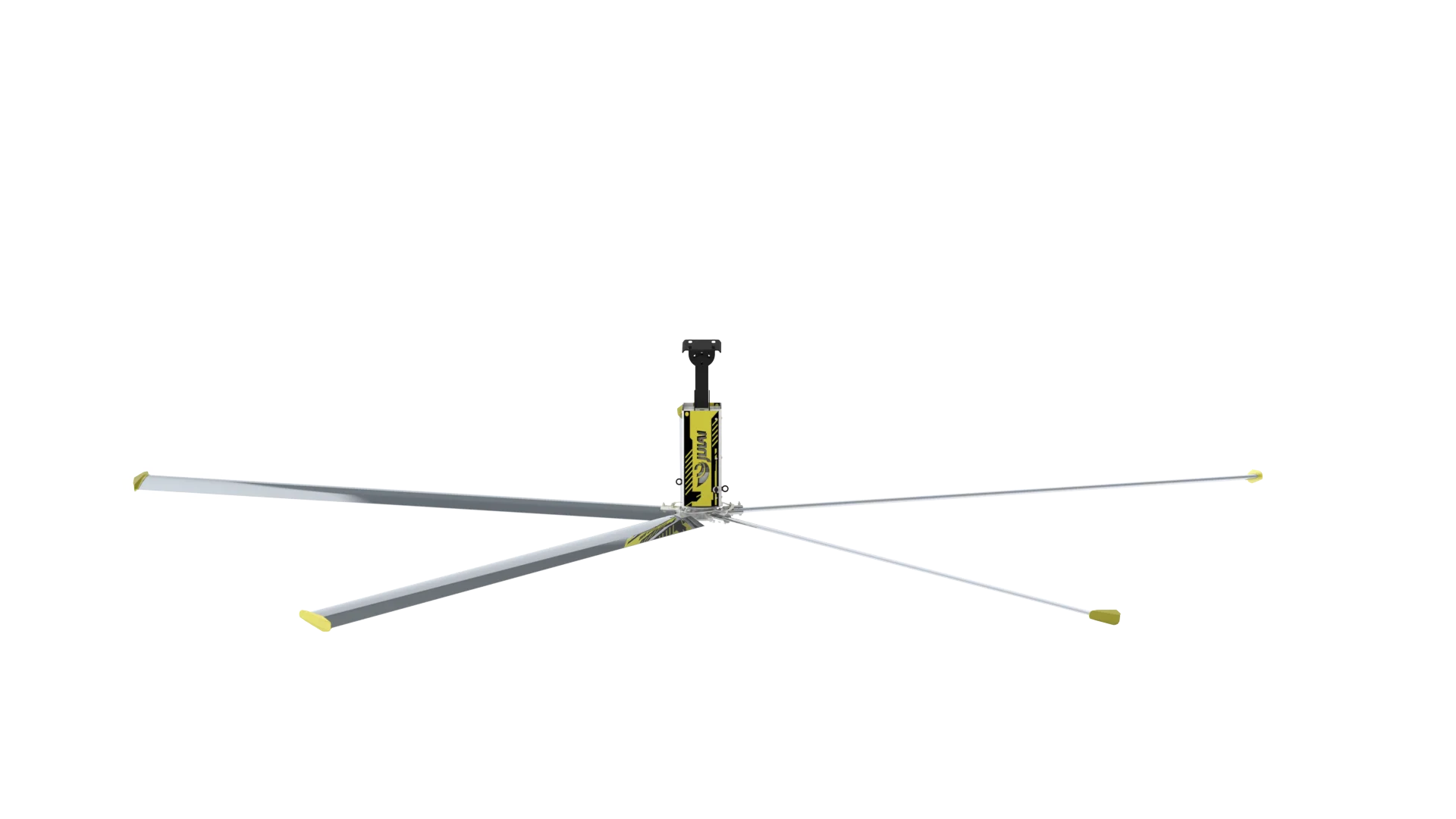

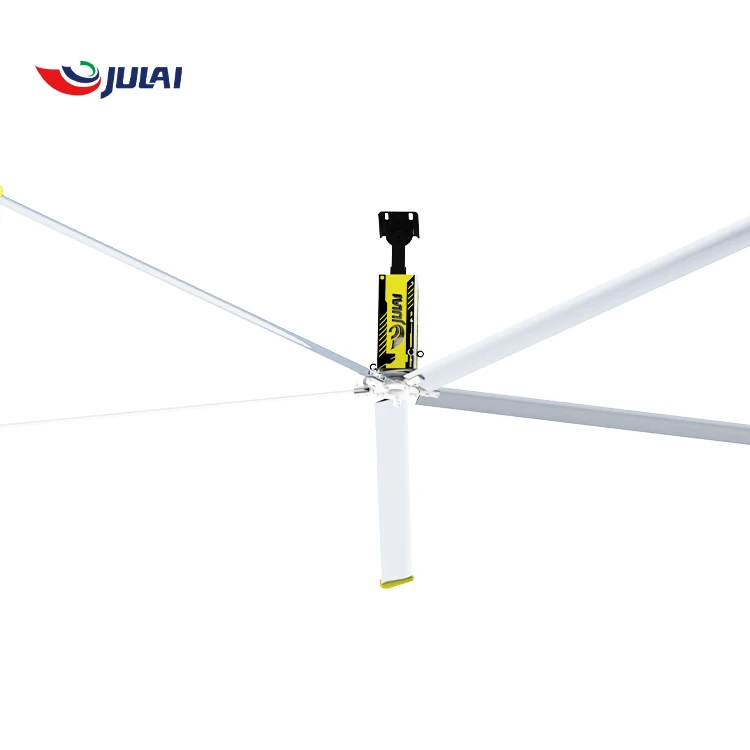

Blade diameter | 24ft(7.3m) | 20ft(6.1m) | 18ft(5.5m) |
model | JL-HVLS-D1A5A73 | JL-HVLS-D1A5A61 | JL-HVLS-D1A5A55 |
power(KW/hp） | 1.5/2.0 | 1.5/2.0 | 1.5/2.0 |
speed（rpm） | 0-57 | 0-65 | 0-75 |
Air volume（m³/min） | 14800 | 13500 | 12000 |
cover（m2） | 1850 | 1480 | 1200 |
self-respect（kg） | 127 | 115 | 110 |
noise（dBA） | 43 | 43 | 43 |
Details Images
Wing technology |
The air will streamline the end of the fan blade in motion, creating a vortex. The installation of winglets eliminates this energy loss, stabilizes fan operation, and brings benefits. |
Blade technology |
High-strength aluminum magnesium alloy for aviation uses powder spraying process and salt spray performance test to ensure the corrosion resistance of product components, aerodynamic blade profile and up to three sets of reinforcement reinforcement support systems inside the blade to avoid the tip sag of the blade and the fatigue loss of the blade to the connected components. |
The plug-in technology |
The outer clamped plug is made of aviation hard aluminum 7075 for aging heat treatment to ensure strength and toughness. Certified by quality inspection department, it has been subjected to more than one million fatigue tests to avoid safety problems caused by long-term metal fatigue. |

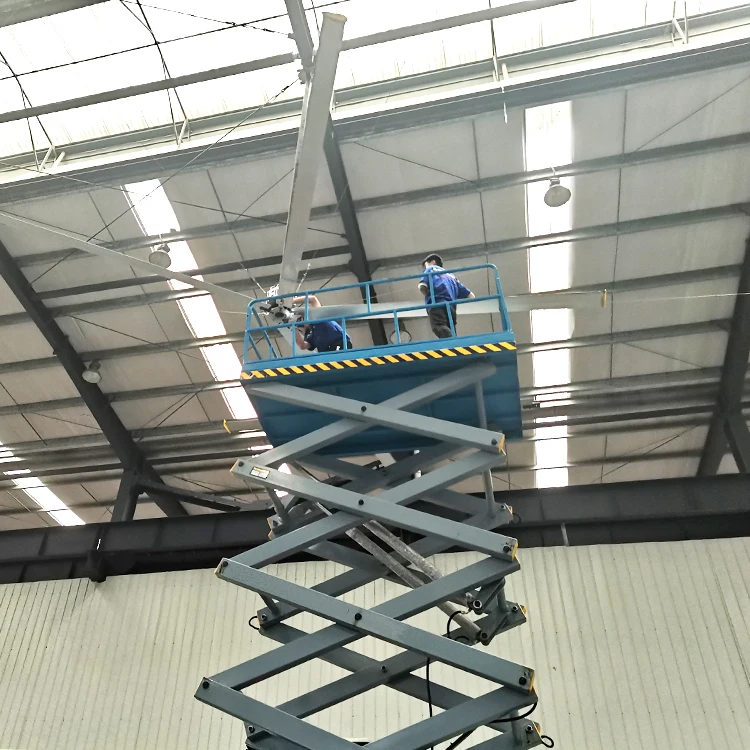

Installation Instructions
Company Profile
FAQ
Q: Are you a factory or a trading company
A: We are a factory specializing in industrial ceiling fans. Headquartered in Chongqing, China, we are your direct fan supplier.
Q: Where is your fan used?

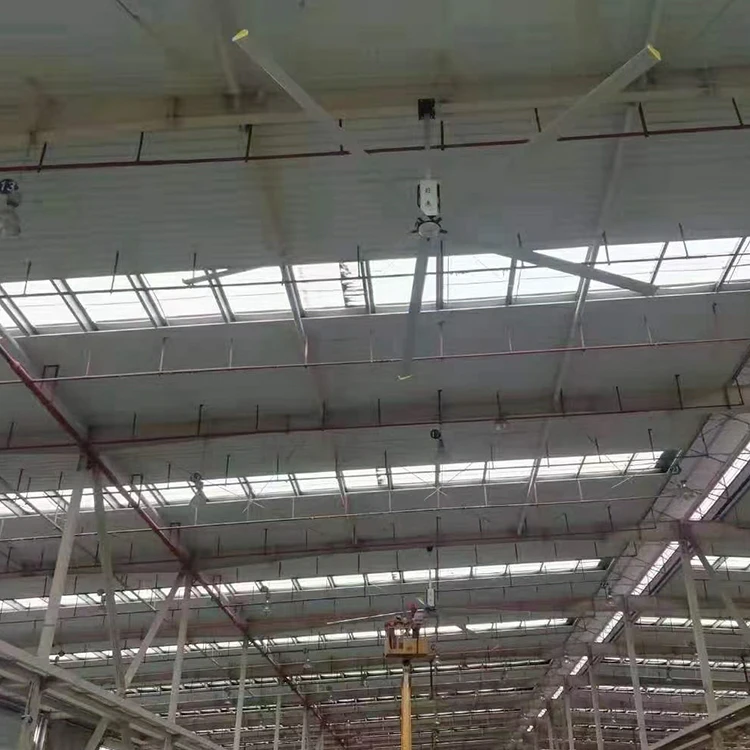

A: HVLS fans are widely used in factories, supermarkets, farm warehouses, restaurants, etc
Q: Is it for electrification?
A: Yes, it's powered by electricity, but only 1.5 kilowatts or less, which is very energy efficient.
Q: How long is the lead time?
A: We have fans in stock, order less than 30 sets, 5-7 working days
Q: How long is the warranty?
A: We offer a one-year warranty to guarantee quality. Most importantly, it has a service life of 12-15 years.
Q:What's the price?
A: It depends on your quantity and requirement, but the price must be reasonable.
Q: what are the main benefits of this HVLS fan?
A. Three-dimensional natural wind with a wind speed of 1-3m /s can significantly improve the comfort of employees;
B. Energy saving, the most economical start-up and operating costs;
C. The coverage of Open Series fans with a diameter of 7.3m(24 ft) is equivalent to 50 small 0.75m(2.5 ft) fans.
Contact Information:
Mob/what: +86 134 529 89880Or +86 139 8380 7953
E-mail :sales@julaiv.com
