60 тонн всемирно известный вездеходный кран

Описание и отзывы

Трекер стоимости

Характеристики



---



Benefits & features

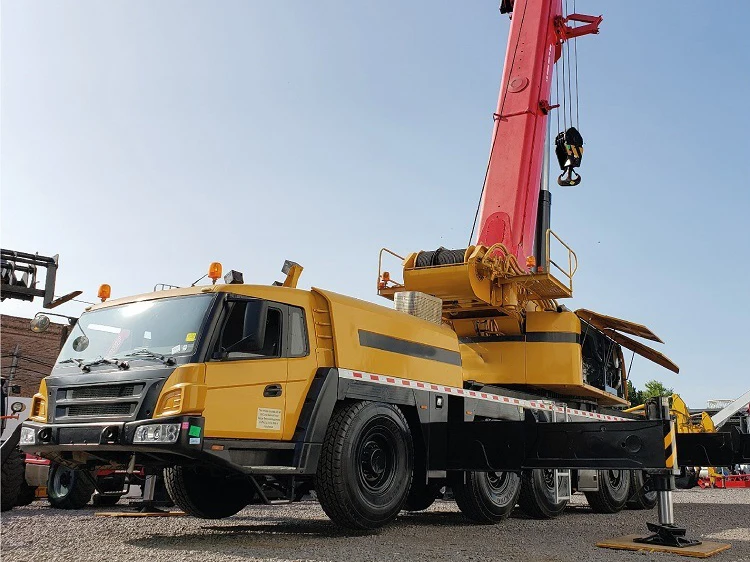

SAC600C  60 Ton All Terrain Truck Mounted Crane Excellent and stable chassis performance /chassis system



Double-axle drive is used, providing good traffic ability and comfortableness under complex road condition with reliable traveling performance.



Engine has the multimode power output function, which reduces power consumption.



The use of tipping over early-warning technology provides high stability and safety of the overall operation.



SAC600C  60 Ton All Terrain Truck Mounted Crane Highly efficient, stable, energy-saving and adjustable hydraulic system



Electrical proportion Hydraulic system load feedback, piston pump, electrical controlled valve and constant power control are applied to provide strong lifting capacity and good micro-mobility.

Unique steering buffer design is adopted to ensure stable braking operation.



SAC600C  60 Ton All Terrain Truck Mounted Crane Ultra long, super strong and highly sensitive load lifting capacity



Five-section boom of high strength steel structure and optimized U-shaped cross reduces weight significantly with higher safety rates.



Jib mounting angles are 0°, 15°and 30° which ensures fast and convenient change-over between different operating conditions so as to improving working efficiency of the machine.



SAC600C  60 Ton All Terrain Truck Mounted Crane Safe, stable, advanced and intelligent electric control system



Self-developed controller SYMC specially for engineering machinery is configured.



The adoption of CAN-bus full-digital network control technology ensures stable control signal, simple harness and high reliability.



Timely feedback of data information can achieve the monitoring of the overall working status in real-time.



The load moment limiter equipped with the comprehensive intelligent protection system is used with accuracy within 3% to provide a comprehensive logic and interlock control, thus ensuring more safe and reliable operation.





ALL TERRAIN CHASSIS



• Compact chassis features all wheel steering and better suspension, adaptable for various jobsites.



TRAVELING WITH COUNTERWEIGHT



• The cranes are capable of traveling with counterweight at jobsites, requiring less transport trailers.



Max Lifting Capacity	60T
Max Lifting Height	66.5m
Max Lifting Moment	1881kN/m
Max Boom Length	50m
Max Jib Length	16m
Full Counterweight	13T
Max Traveling Speed	80km/h
Wheel Formula	6 x 4 x 6
Max Gradeability	67%
Available Districts	All
