Лазерная резка и por фибра de 500w 1000W 1500W 2000W 3000W 4000W 6000W y grabadora лазерный cortadora металлическая

cortadora laser por fibra de 500w 1000W 1500W 2000W 3000W 4000W 6000W y grabadora laser cortadora de metal laser

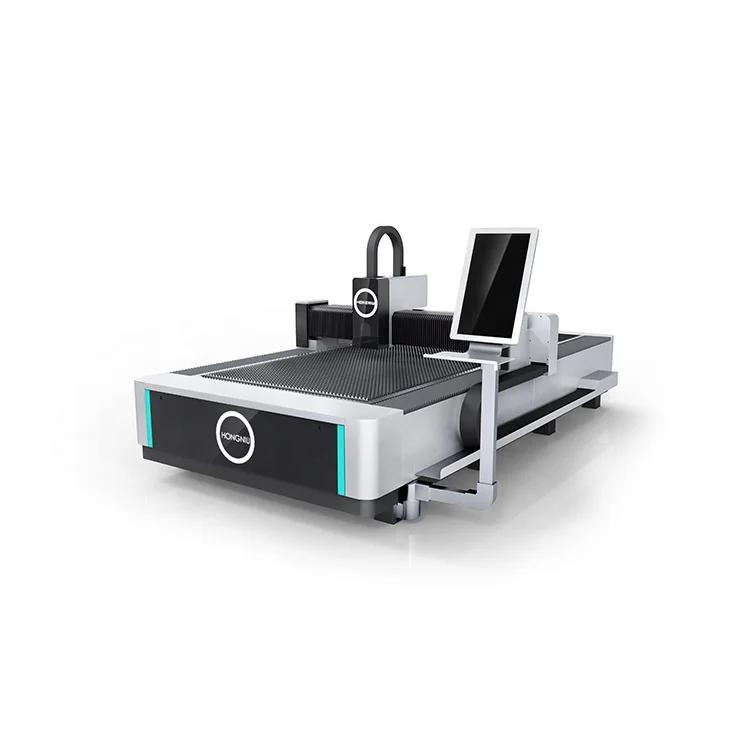

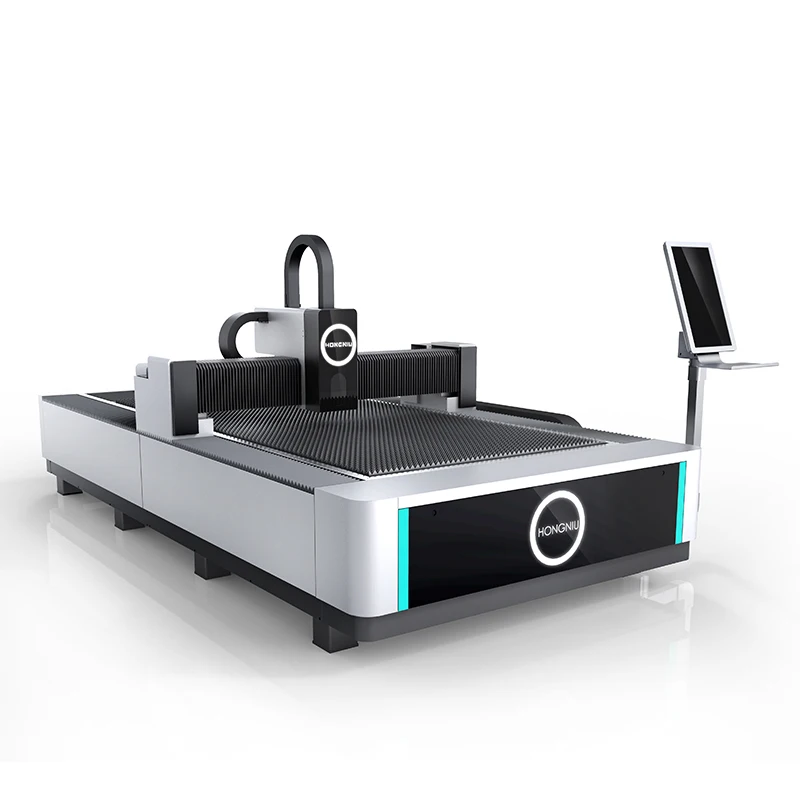

3015F is fast speed mild steel cnc fiber laser cutting machine with 3000*1500mm working area, which consist of machine tool,motion parts, electrical equipment control parts, and other assist parts.

1.Stability and reliability of light path system and control system.
2.Imported original germany fiber lasers,high and stable function,lifespan is over 100000 hours.
3.Higher cutting quality and efficiency,cutting speed is up to 60m/min with appearance and beautiful cutting edge.
4.France high performance reducer,Taiwan gear and rack;Japanese fuji or yaskawa servo motor and driver.

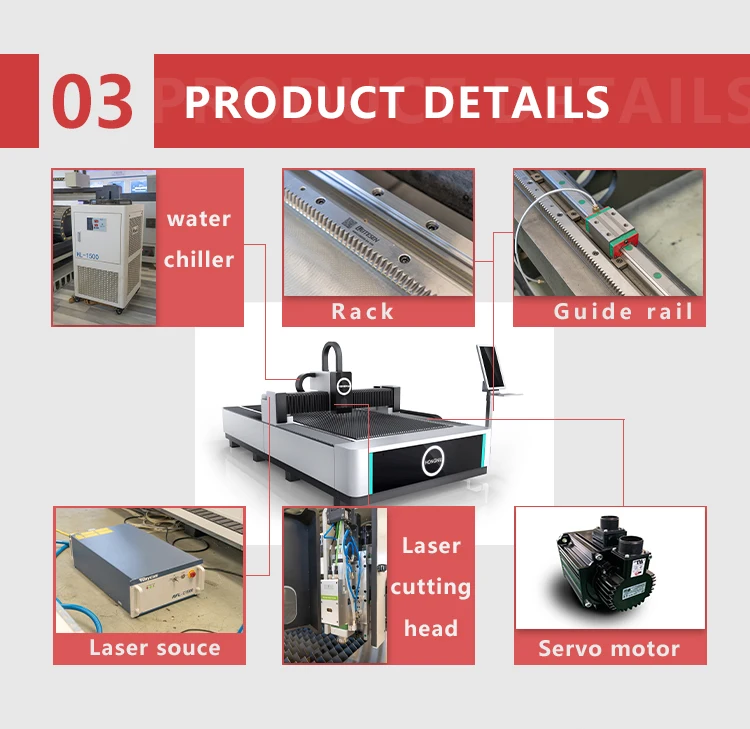

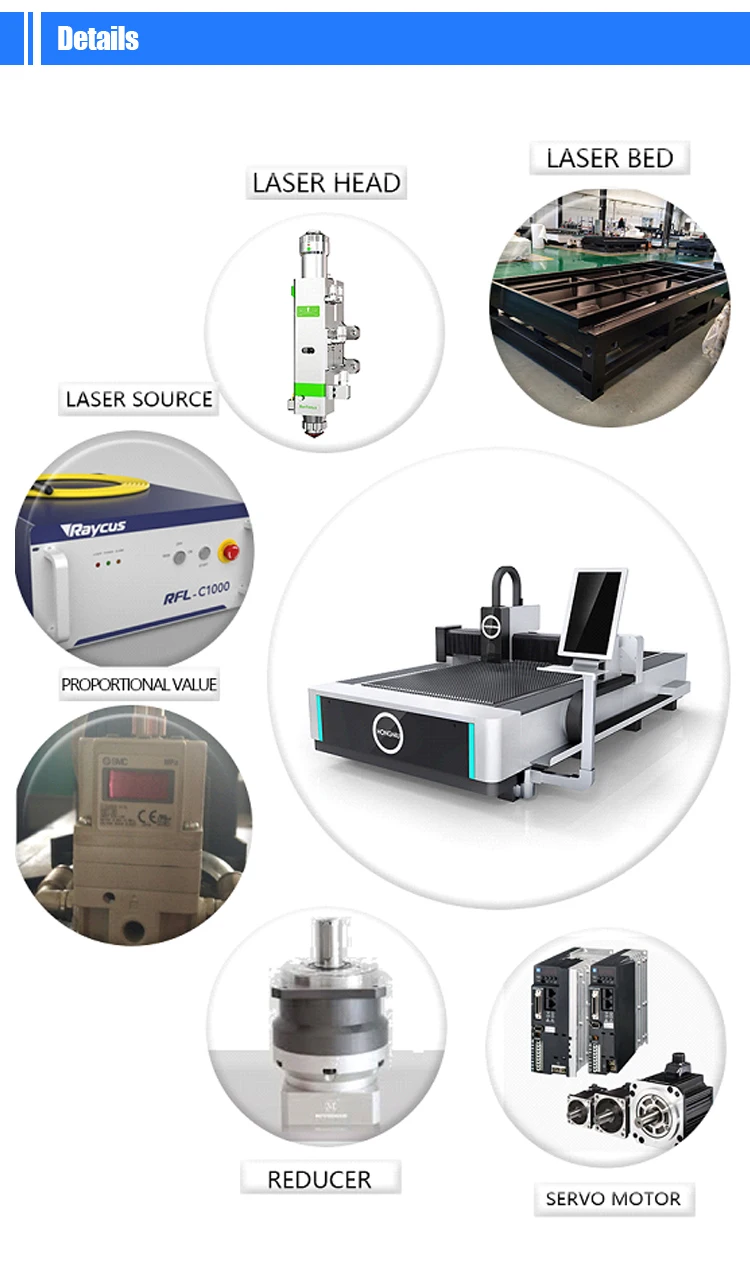

machine configuration

	Professionl fiber laser cutting head Raytool laser head, fiber cutting head with Swiss technology and a professional QBH fiber optic output interface for a highly sealed and precise focus calibration. Owing to the excellent performance of high-speed capacitive sensor, the cutting gap can be as short as 0.1mm, which not only improves the cutting performance, but also reduces the gas consumption
Taiwan HIWIN rail and TIWIN rack High carbon content, high compressive strength and high hardness.Low thermal sensitivity reduce the loss of equipment in using.
	Raycus Laser Source Raycus/Max/IPG, multiple choice Different brands, different laser power are available. The higher power, the thicker cutting thickness.
One-piece cast aluminum beam, seamless connection with the bed, more stable
	Servo motor Fuji/YASKAWA servo motor servo motor with fast dynamic response provides speed and performance stability. The maximum idle speed of the machine can reach up to 100 m/min
New advanced automatic tuning function On the basis of the command filter function and feedback gain adjustment function, the feedforward gain automatic adjustment function is added to make appropriate adjustment.
	Japan shimpo reducer   Space-saving high rigidity high torque  high load
S&A/HANLI  Water Chiller With excellent quality and leading research retrength, S&A has become a leading enterprise in the China industrial refrigeration industry.

Cutting a wide variety of metal plates, tubes, mainly applicable to stainless steel, carbon steel, manganese steel, galvanized sheet, a variety of alloy plates......

Industry of kitchen ware, lamps and lanterns, panel bearing, metal cabinets, auto parts, refrigerators, air condition, elevators, hotel metal supplies processing, etc.

metal materials such as steel, copper, aluminum and stainless steel , iron plate, aluminum plate, galvanized sheet, White Steel plate, Titanium plates,  the sheet metal.

Hongniu Laser is a professional CNC laser cutting machinery manufacturer integrating R&D, manufacturing and sales. The manufacturing site is located near Jinan Yaoqiang Airport with convenient transportation; it covers an area of more than 6.7 hectares (66,666 square meters). The single workshop area reaches about 20,000 square meters.

Hongniu laser every year to participate in more than 20 domestic and foreign large and small exhibitions,

has a very loyal customer group, to bring new and old customers more intuitive product experience,

exported to more than 80 countries and regions overseas
