DC инвертор для кондиционирования воздуха печатная плата контроллера инвертора тепловой насос
- Категория: Power Supplies >>>
- Поставщик: Guangdong,Chico,Electronic,Inc.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 121.36 $* | 123.57 $* |
| Jul-15-2025 | 98.10 $* | 100.9 $* |
| Jun-15-2025 | 119.72 $* | 121.66 $* |
| May-15-2025 | 118.88 $* | 120.86 $* |
| Apr-15-2025 | 94.11 $* | 96.61 $* |
| Mar-15-2025 | 116.63 $* | 118.35 $* |
| Feb-15-2025 | 115.72 $* | 117.63 $* |
| Jan-15-2025 | 114.21 $* | 116.68 $* |
Характеристики

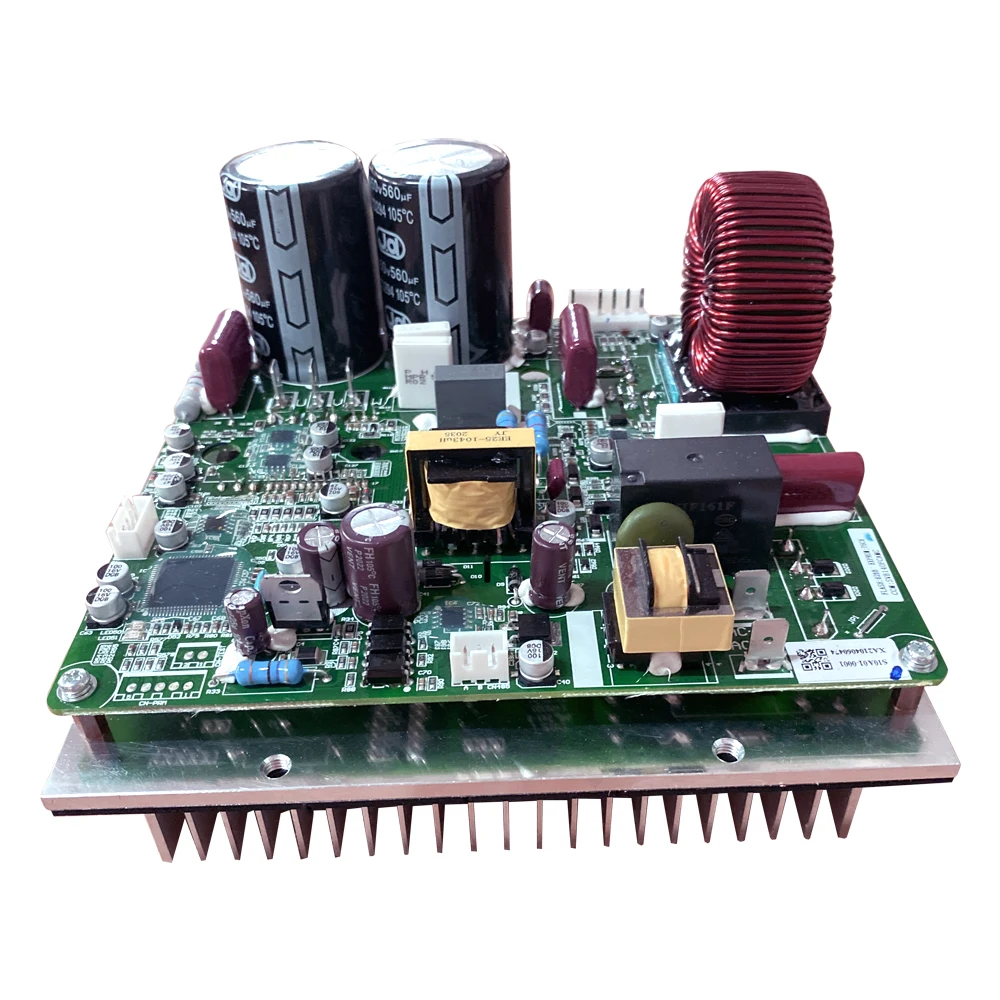

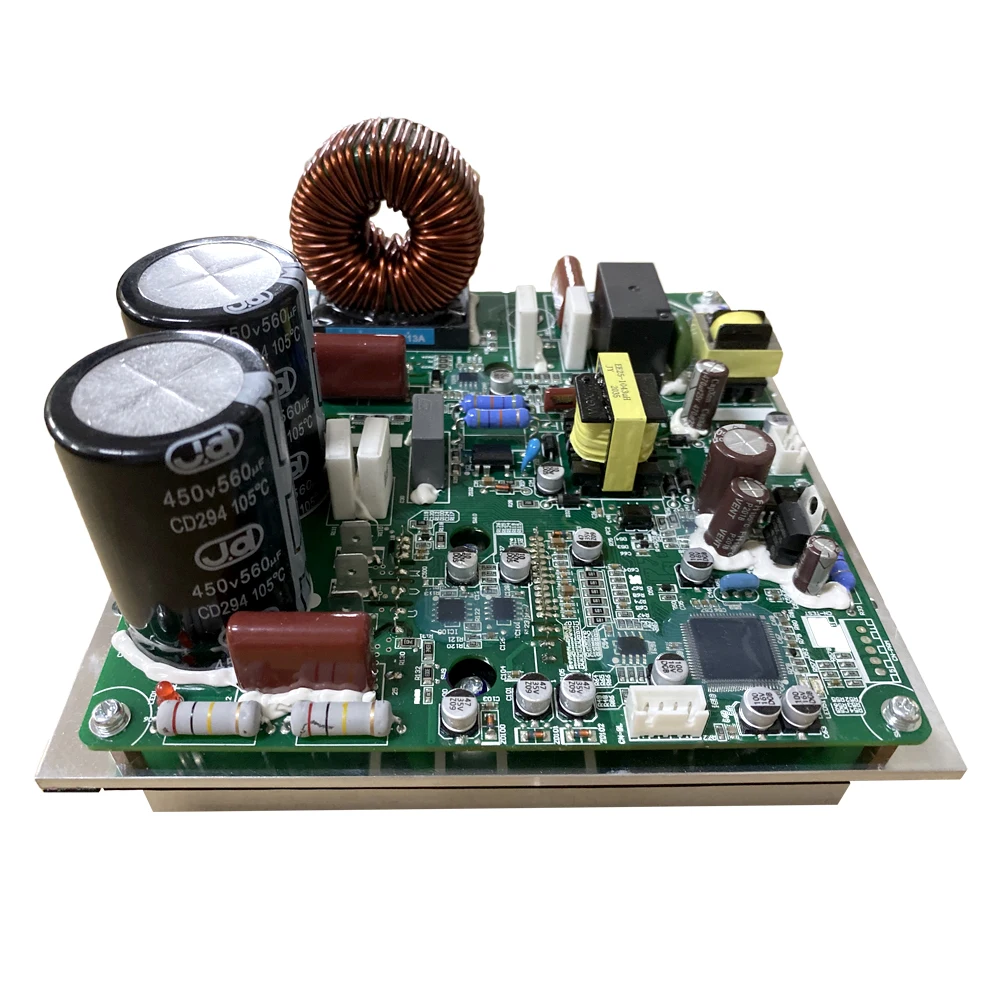

S10A01 Single Phase Inverter Compressor Driver PCBA
S10A01 is designed for driving DC frequency inverter compressor. This module can be used for DC365V and VSP signal control DC fan. ELECHICO compressor driver module integrates switching power supply, IPM module, communication circuit with the advantages of low harmonic and high efficiency.
The biggest advantage of ELECHICO is our ability to customize products for our customers to meet their diverse requirements. We are mainly exporting OEM/ODM services.
Technical Data
Type | 180 °sinusoidal DC inverter driver |
Rated input voltage | Single phase standard voltage 220 V 50 / 60 Hz, operable voltage 170-265 V |
Input maximum power | 2.2KW 220V AC |
Input maximum current | 10A |
PFC | PF value (0.90-0.99) |
Carrier frequency | 5.0k Hz (adjustable according to compressor noise) |
Output mechanical frequency | 15-120Hz (ultimately according to the specification of the compressor) |
Control type | 180-degree sinusoidal vector driving |
Communication interface | RS485 |
Communication protocol | Standard Modbus RTU Baud rate 1200 bps |
Operating temperature range | -20 To 60℃ |
Operating humidity range | <95% and noncondensing |
Failure Alarm
Over current protection of compressor | IPM over current protection |
Communication failures | IPM over temperature protection |
Compressor drive protection | Abnormal AC phase or CT |
DC bus overvoltage or undervoltage protection | AC over current protection |
Over power protection of compressor | EPPROM fault |
