Product Description
The Wash Plant is a washing equipment for artificial sand (including natural sand), and is an indispensable sand making product in the sand production line and the gravel production line.

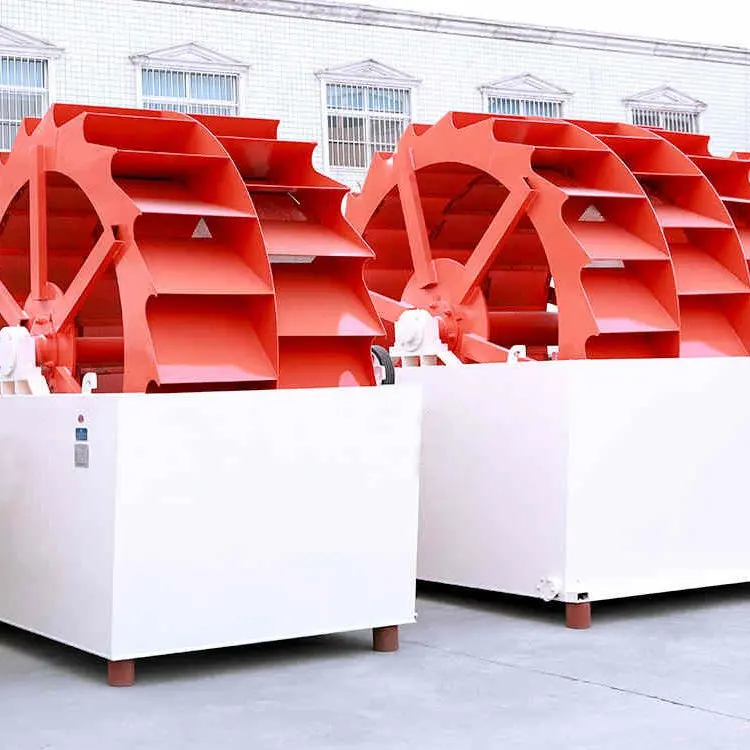

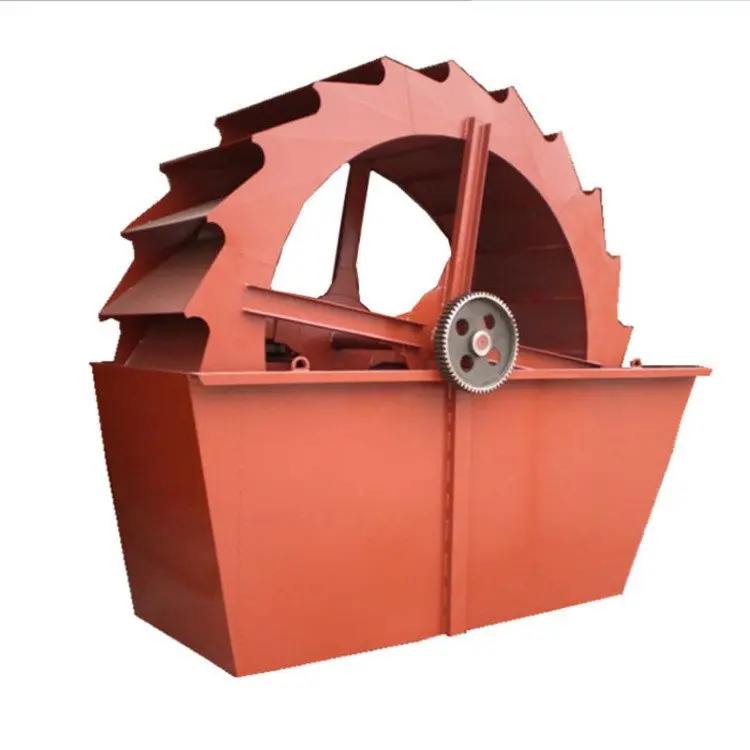

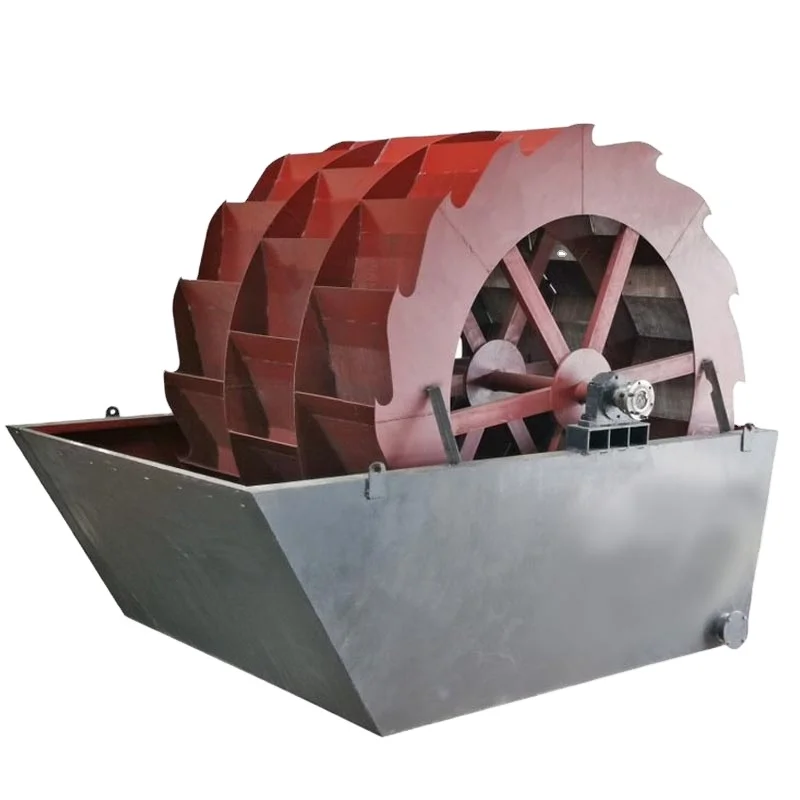

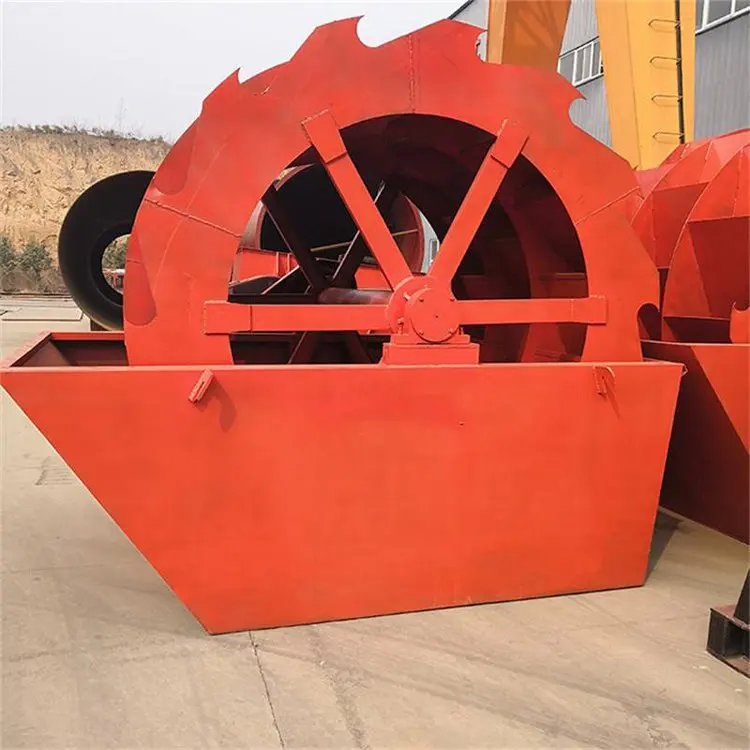

The sand washing machine can wash away the trace amount of stone powder and impurities in the mixed sand from the sand making mechanism, thereby improving the quality of the sand. XSD series wheel sand washing machine is a kind of wheel washing equipment, mainly used for washing, grading and dewatering of pressure sand for construction site, sand and gravel plant, concrete dam site of hydropower station, quartz sand of glass factory and backfilling of oil well. . XSD series sand washing machine adopts advanced technology and combines with the actual situation of domestic sand and gravel industry to develop. It has washing height,
reasonable structure, large processing capacity, low power consumption, less sand loss during sand washing, especially sand washing machine transmission. Some of them are isolated from water and sand, so the failure rate is much lower than the current common sand washing machine, which is the best choice for upgrading the domestic sand washing industry.
reasonable structure, large processing capacity, low power consumption, less sand loss during sand washing, especially sand washing machine transmission. Some of them are isolated from water and sand, so the failure rate is much lower than the current common sand washing machine, which is the best choice for upgrading the domestic sand washing industry.
Application
Sand washing machine is widely used in the washing of materials in sand and gravel, mining, building materials, transportation, chemical, water conservancy and hydropower, concrete mixing stations and other industries.
Product name | Sand Washing Machine |
The Machines classification | Mining Washing Machinery |
Name | Wheel Sand Washing Machine Equipment |
Certification | ISO9001:2008 |
Capacity(t/h) | 20-180T/H |
Warranty | 2 years |
price | negotiability |
After Sale Service | After-sale Service Oversea |
Structure
1. The sand washing machine has a simple structure, and the impeller drive bearing device is isolated from water and water-receiving materials, thereby greatly avoiding the occurrence of damage caused by water immersion, sand and pollutants;
2. When the machine is used for sand washing in sand and gravel yards, it has obvious advantages compared with the traditional spiral sand washing machine as follows:
(1) The loss of medium fine sand and stone powder is very small, and the sand grading and fineness modulus of the washed building reaches the national "building sand" and "building pebbles and gravel" standards;
(2) The machine has almost no wearing parts except the screen;
(3) long service life, long-term maintenance. The sand washing machine (sand washing machine) adopts advanced technology and combines the high efficiency sand washing equipment developed by the domestic sandstone industry. The sand washing machine has a washing height, a reasonable structure, a large output, and less sand loss during the sand washing process. In particular, the transmission part is isolated from water and sand, so the failure rate of the sand washing machine is much lower than that of the current common sand washing machine, and it is the best choice for upgrading the domestic sand washing industry.
2. When the machine is used for sand washing in sand and gravel yards, it has obvious advantages compared with the traditional spiral sand washing machine as follows:
(1) The loss of medium fine sand and stone powder is very small, and the sand grading and fineness modulus of the washed building reaches the national "building sand" and "building pebbles and gravel" standards;
(2) The machine has almost no wearing parts except the screen;
(3) long service life, long-term maintenance. The sand washing machine (sand washing machine) adopts advanced technology and combines the high efficiency sand washing equipment developed by the domestic sandstone industry. The sand washing machine has a washing height, a reasonable structure, a large output, and less sand loss during the sand washing process. In particular, the transmission part is isolated from water and sand, so the failure rate of the sand washing machine is much lower than that of the current common sand washing machine, and it is the best choice for upgrading the domestic sand washing industry.
Performance characteristics:
1. Simple structure;
2. convenient maintenance;3. Save water resources;
4. durable.
Principle
During operation, the motor rotates slowly through the V-belt, reducer and gear to drive the impeller to rotate slowly. The feed trough enters the washing tank, is tumbling under the impeller, and grinds each other to remove impurities covering the surface of the gravel, and at the same time destroys the water vapor layer of the coated sand to facilitate dehydration; at the same time, adding water to form a strong water flow and timely impurity The foreign matter with a small specific gravity is taken away and discharged from the overflow port to complete the cleaning. The clean sandstone is taken away by the blades, and finally the sandstone is poured from the rotating impeller into the discharge chute to complete the cleaning of the gravel.
During operation, the motor rotates slowly through the V-belt, reducer and gear to drive the impeller to rotate slowly. The feed trough enters the washing tank, is tumbling under the impeller, and grinds each other to remove impurities covering the surface of the gravel, and at the same time destroys the water vapor layer of the coated sand to facilitate dehydration; at the same time, adding water to form a strong water flow and timely impurity The foreign matter with a small specific gravity is taken away and discharged from the overflow port to complete the cleaning. The clean sandstone is taken away by the blades, and finally the sandstone is poured from the rotating impeller into the discharge chute to complete the cleaning of the gravel.
Product case
Rotary Kiln Accessories
Quality Control
1. Strict inspection before leaving the factory to ensure that the tooth surface hardness HB meets the requirements of the drawings.
2. The main techniques of flaw detection are: ultrasonic flaw detection (UT), magnetic particle flaw detection (MT), and color flaw detection (PT). Overall, it can reach level 3 flaw detection, and key parts can reach level 2 flaw detection;
2. The main techniques of flaw detection are: ultrasonic flaw detection (UT), magnetic particle flaw detection (MT), and color flaw detection (PT). Overall, it can reach level 3 flaw detection, and key parts can reach level 2 flaw detection;
Product quality inspection
1. According to the requirements of the drawings, control the casting size to ensure the machining allowance and accuracy requirements.
2. Advanced flaw detection equipment is used to precisely control the internal quality of castings.
3. Tempering treatment is performed to ensure the strength and toughness of the equipment and improve the mechanical performance.
4. Timely blasting and painting to improve surface quality
2. Advanced flaw detection equipment is used to precisely control the internal quality of castings.
3. Tempering treatment is performed to ensure the strength and toughness of the equipment and improve the mechanical performance.
4. Timely blasting and painting to improve surface quality
Company Introduction
Our Business
Customer Visiting
After-sales service
Delivery provides a full set of test reports, material certificates, certifications, etc., and provides technical guidance installation services.
FAQ
