1T миниатюрный Электрический грузовой

Описание и отзывы

Трекер стоимости

Характеристики

MN-L302H

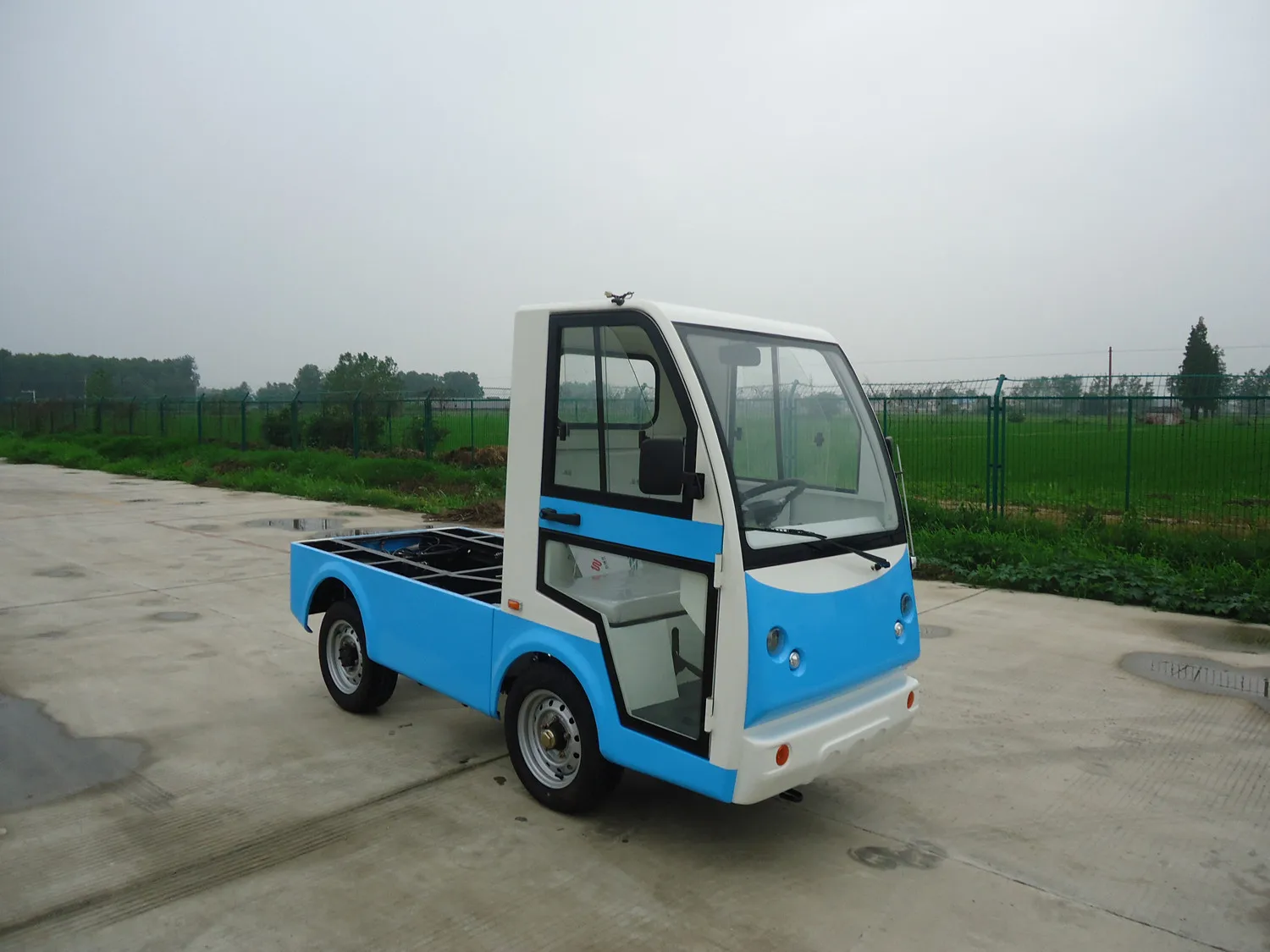

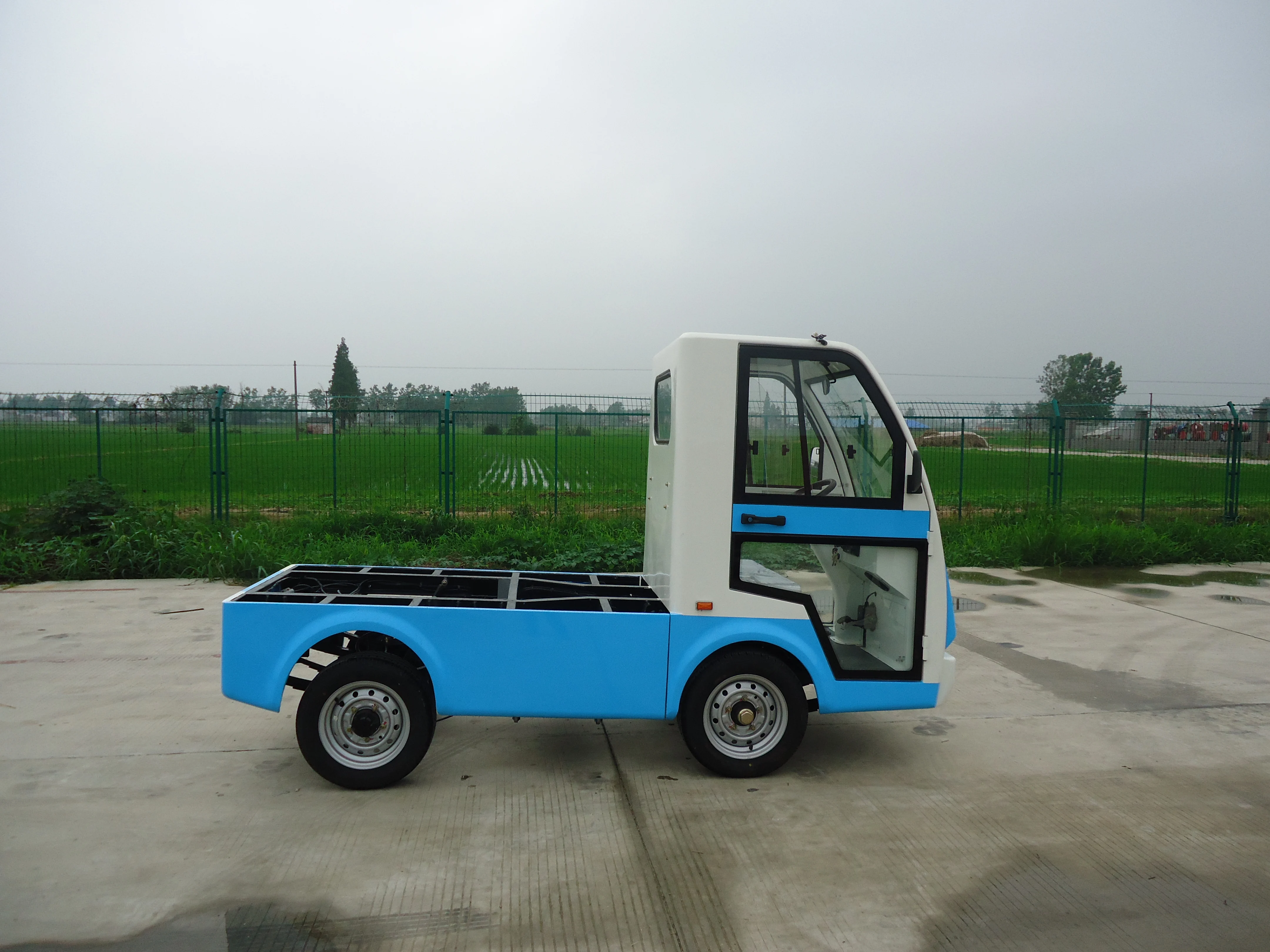

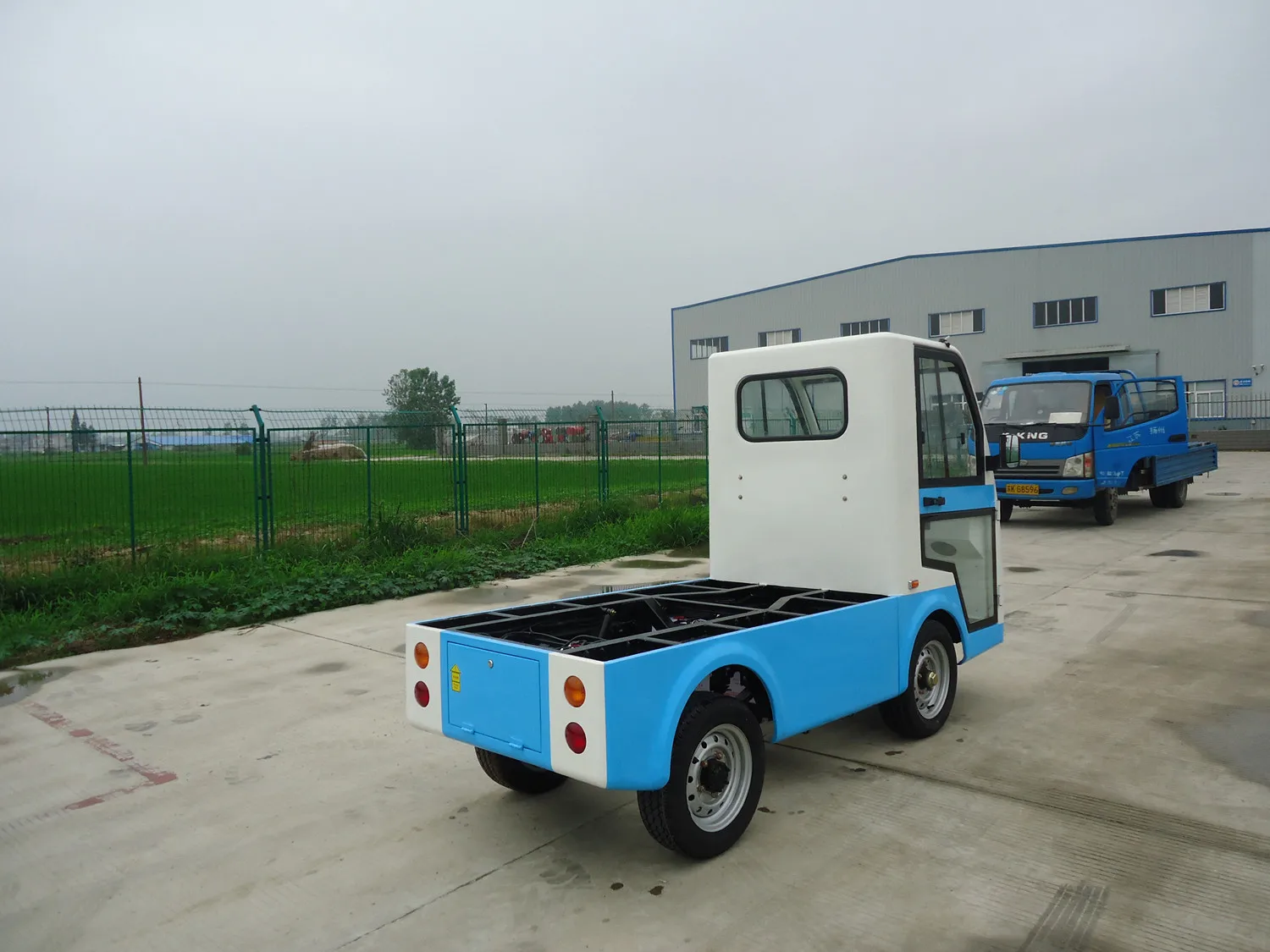

MN-L302H is a pure electric 2-seater freight car. The whole vehicle is designed as an automobile. The instrument panel is equipped with MP3 / USB socket, which can play music and make work more pleasant.



Main technical parameters

Passengers :	2
Dimension :L×W×H	3140×1160×1920mm
Total machine weight:	1500kg
Rated load weight:	1000kg
Wheel base:	1600mm
Front tread:	900mm
Rear tread:	910mm
Min ground clearance :	135mm
Max speed(full load):	18km/h
Brake distance:	≤7m
Min turning radius:	≤4m
Max climbing capacity (full load):	15%
Brake capacity(empty load):	15%
Rated power:	4.2KW
Battery :	200AH
Lighting voltage and power:	12V/110W
Charging time:	8-10hours
Driving range:	80km
Tire :	165/70 R13 LT
Controller :	Enpower





Basic configuration table



l Machine body:steel framed structure and high strength glass fiber reinforced plastics machine body.

l Chassis :strengthen micro car chassis,Rust electrophoresis paint processing, after phosphating bath with pickling.

l Front windshield:Tempered glass assisted with windscreen wiper.

l Ceiling:glass fibre

l Seat :high  springback entire imitation fether seat.

l Floor :advanced car plastic flooring

l Instrument panel:combination instrument, MP3/USB radio and tape player, forward and reverse signal platform,battery capacity table and electricity signal table in car,polyurethane  foaming  handle, cupseat.

l Light/ horn:front headlamp, front lamplet, steering lamp, reversing light,driving lamp,brake light,electric horn.

l Motor :high performance DC motor, super tractive performance powerful over loading ability,long life,power 3KW.

l Battery :high quality large capacity,deep cycle maintenance free battery,battery pack voltage:48V,190AH.

l Electric control system:high-performance electric control system,with over-temperature, over-load protecting function, smooth and steady to start, reliable and durable.

l Charging facility:Fully automatic pulse decay computer smart charger,auto stop when full charge,can expand battery using life.

l Hanging system:Front suspension macpherson independent suspension,after the suspension for leaf spring,Cylinder hydraulic damper.

l Brake system:hydraulic double pipeline braking system, drum type wheel braking, parking brake is mechanical. Direction system:Gear rack type steering system,Automatically adjust the clearance make the function of moving direction of car light.

l  Tire type:sturdy and durable advanced car tire.
