Дизельный двигатель WeiFang Ricardo 30 кВт 40 л.с. дизельный используемый в генераторных
- Категория: >>>
- Поставщик: Weifang,Leiteng,Power,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.27 $* | 0.9 $* |
| Aug-18-2025 | 0.88 $* | 0.81 $* |
| Jul-18-2025 | 0.19 $* | 0.60 $* |
| Jun-18-2025 | 0.78 $* | 0.48 $* |
| May-18-2025 | 0.39 $* | 0.92 $* |
| Apr-18-2025 | 0.86 $* | 0.54 $* |
| Mar-18-2025 | 0.88 $* | 0.44 $* |
| Feb-18-2025 | 0.5 $* | 0.79 $* |
| Jan-18-2025 | 0.25 $* | 0.49 $* |
Характеристики
Product Overview

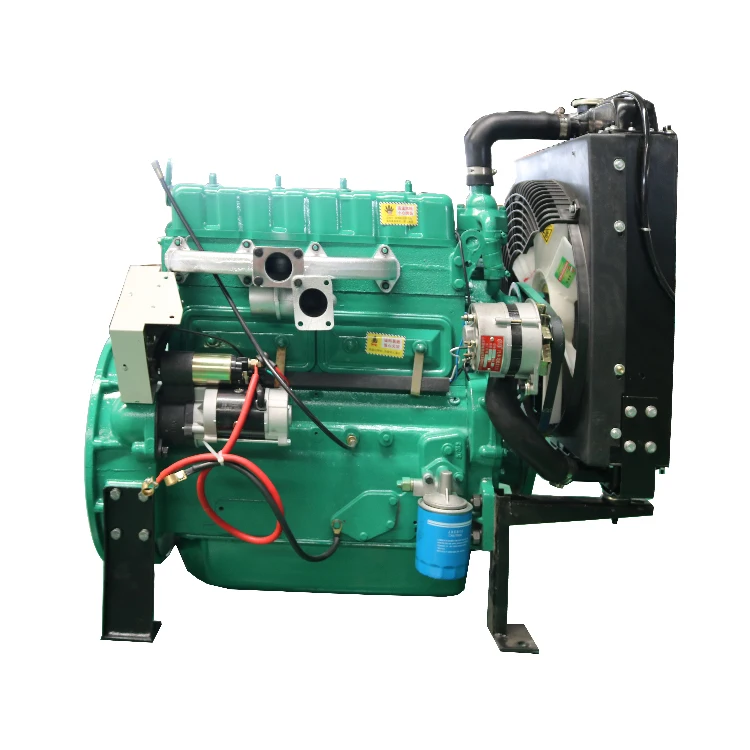

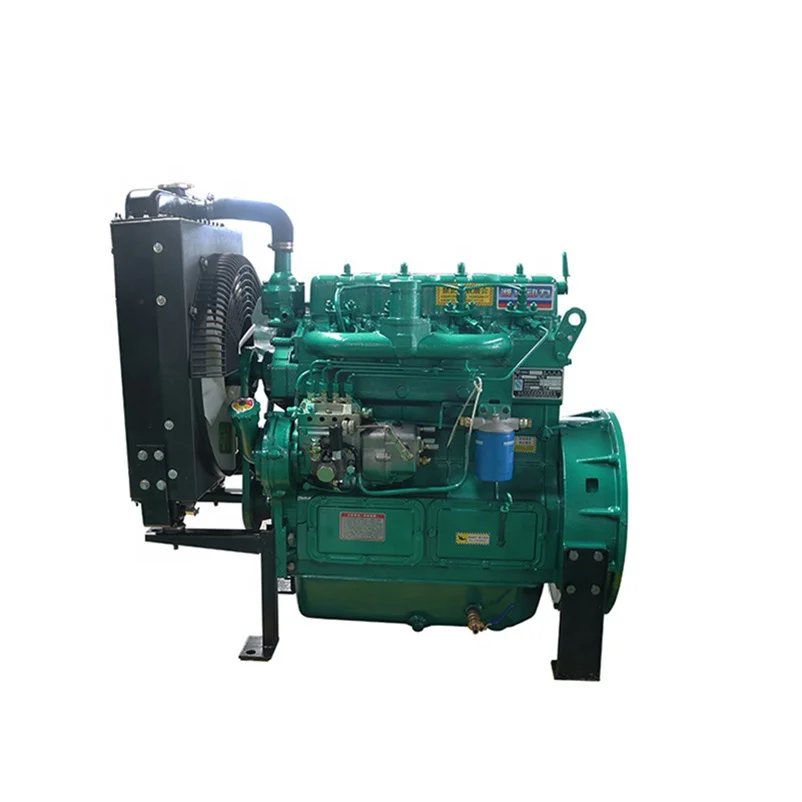

WeiFang Ricardo Diesel Engine 30KW 40HP diesel engine used in generator sets
1) General Instruction of our diesel engine
a, Assembled with radiator, clutch and belt pulley, start, charging alternator.
b It can be connected your machine by belt. It can supply and transmission the power to your machine,drive your machine to work
2) Advantages and main features of our diesel engines
a, Enough storage power, can be on 100%,110% loading in normal and standby urgent condition.
b, Low fuel consumption.
c, Easy start after matched with large power starter and alternator.
d, Strong Power fuel pump, can guarantee whole machine in steady status working condition.
e, Easy to repair, and low cost of maintenance
f, 2 years warranty, technical consultation free of charge life time.
3) why we can supply 1years warranty period
a, Big power starter, can make the engine start to easy.
b,Strong power fuel pump,supply enough power,
c,Reliable quality cylinder block
d,Radiator has good radiating and cooling effect, even in 40 centi degree area.
a, Assembled with radiator, clutch and belt pulley, start, charging alternator.
b It can be connected your machine by belt. It can supply and transmission the power to your machine,drive your machine to work
2) Advantages and main features of our diesel engines
a, Enough storage power, can be on 100%,110% loading in normal and standby urgent condition.
b, Low fuel consumption.
c, Easy start after matched with large power starter and alternator.
d, Strong Power fuel pump, can guarantee whole machine in steady status working condition.
e, Easy to repair, and low cost of maintenance
f, 2 years warranty, technical consultation free of charge life time.
3) why we can supply 1years warranty period
a, Big power starter, can make the engine start to easy.
b,Strong power fuel pump,supply enough power,
c,Reliable quality cylinder block
d,Radiator has good radiating and cooling effect, even in 40 centi degree area.
Specification

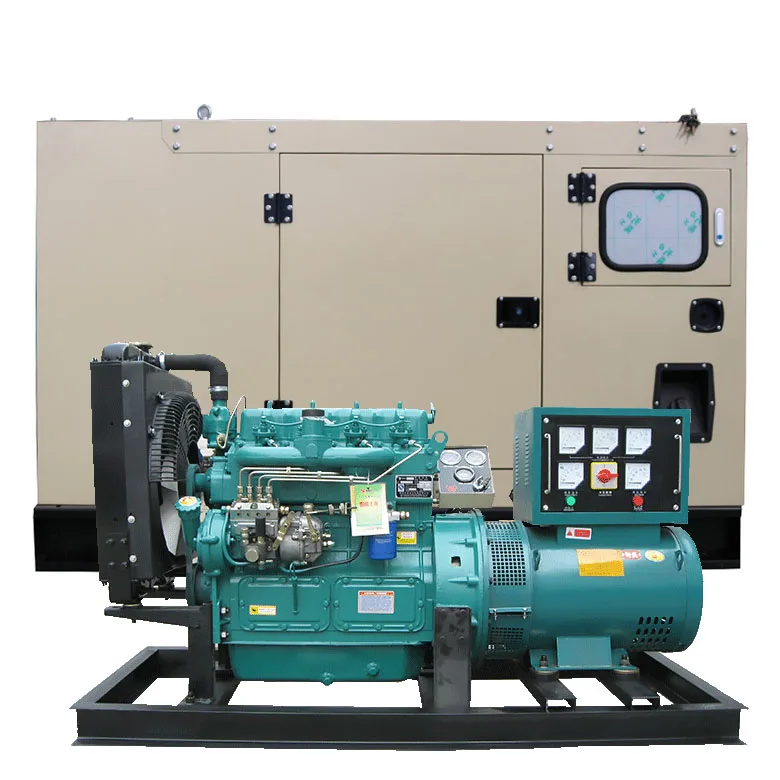

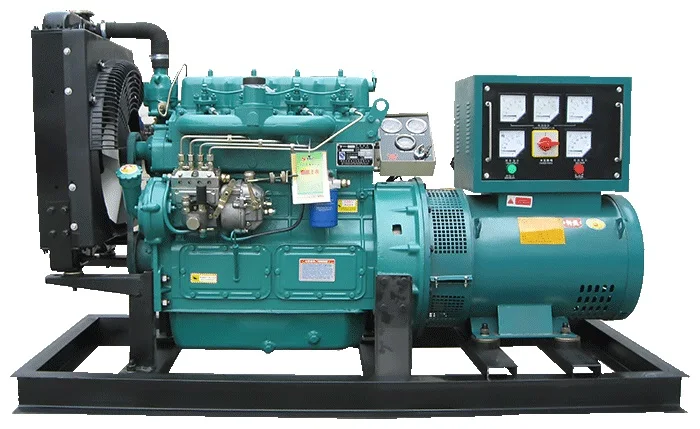

Technical specification parameters of 80KW series diesel generator set | ||||||
Unit model | LT-80GF | Rated power | 80KW | |||
Rated output voltage | 230V/400V | Rated power factor | 0.8 | |||
Rated current | 144A | Insulation grade | H | |||
Rated speed | 1500/1800rpm | Protection grade | IP22 | |||
Rated frequency | 50/60HZ | Overall dimension (mm) | 2350*750*1200 | |||
Voltage Control Methods | AVR | Overall weight | 950KG | |||
Technical specification parameters of diesel engine | ||||||
Brand | Leiteng | Model | R6105ZD | |||
Cylinders | 6 | Speed | 1500/1800rpm | |||
Bore * stroke（mm) | 105*125 | Power | 85KW | |||
Displacement | 6.49 | Fuel consumption rate | 209g/kwh | |||
Type | Straight line, four stroke | Lubrication mode | Pressure and splash type | |||
Intake mode | Turbo charged | Start-up mode | 24V DC electric start | |||
speed regulation | Mechanical speed regulation | Cooling mode | Closed water cooling | |||
Product Introduction
Details Images
1.Connection port
Three phase four wire, convenient for wiring installation.
2.Oil pump
BQ integrated plunger high efficiency oil pump with sufficient power to provide continuous oil supply.
3. Radiator
The heat dissipation area is large enough to make the generator set dissipate heat in time and ensure normal operation.
4.Motor
High power starter, suitable for all kinds of environment, can make the machine start smoothly.
Recommend Products
Company Profile
Packing & Delivery
FAQ
Q1. Any advantages/details about your production?
A. 1. Ten years dedicated in diesel generator with rich experience.
2. 7-15days quick delivery, annual output 20,000sets.
3. Competitive price, huge material/parts sourcing, large scale production.
4. Lower noise 70-73db at 7m, super silent as 60-65db at 7m.
5. Spare parts and consumable service available.
6. One-year or 1000 hours running warranty.
7. Customized & OEM available.
8. One-stop and 7x24 service.
9. Excellent technical support and service.
Q2. How about the warranty period?
A. Quality Warranty is according to our standard conditions: 12 months from BL date or 1,000 running hours, whichever comes first.
Q3. How about your production capacity?
A. The company owns more than 230 production equipment, covers an area of more than 60 acres, workshop30,000 square meters and
office building covers an area of 2000 square meters. In addition, the annual production capacity of 20000 diesel engines and 6000
generator sets.
Q4. How about your delivery?
A. Company can guarantee the 7-15 days delivery time. At the same time, the company equips with a professional container packing
team, which can provide professional, fast and safe packing services.
A. 1. Ten years dedicated in diesel generator with rich experience.
2. 7-15days quick delivery, annual output 20,000sets.
3. Competitive price, huge material/parts sourcing, large scale production.
4. Lower noise 70-73db at 7m, super silent as 60-65db at 7m.
5. Spare parts and consumable service available.
6. One-year or 1000 hours running warranty.
7. Customized & OEM available.
8. One-stop and 7x24 service.
9. Excellent technical support and service.
Q2. How about the warranty period?
A. Quality Warranty is according to our standard conditions: 12 months from BL date or 1,000 running hours, whichever comes first.
Q3. How about your production capacity?
A. The company owns more than 230 production equipment, covers an area of more than 60 acres, workshop30,000 square meters and
office building covers an area of 2000 square meters. In addition, the annual production capacity of 20000 diesel engines and 6000
generator sets.
Q4. How about your delivery?
A. Company can guarantee the 7-15 days delivery time. At the same time, the company equips with a professional container packing
team, which can provide professional, fast and safe packing services.
