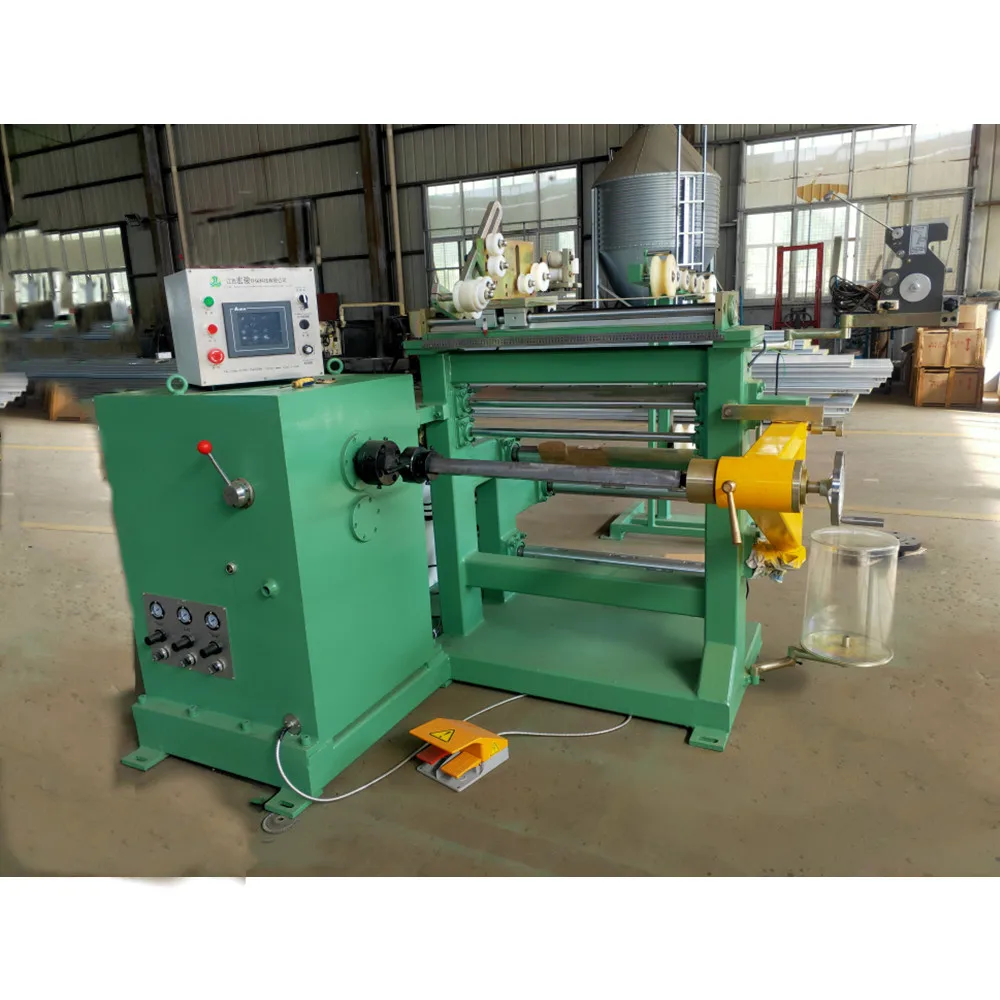

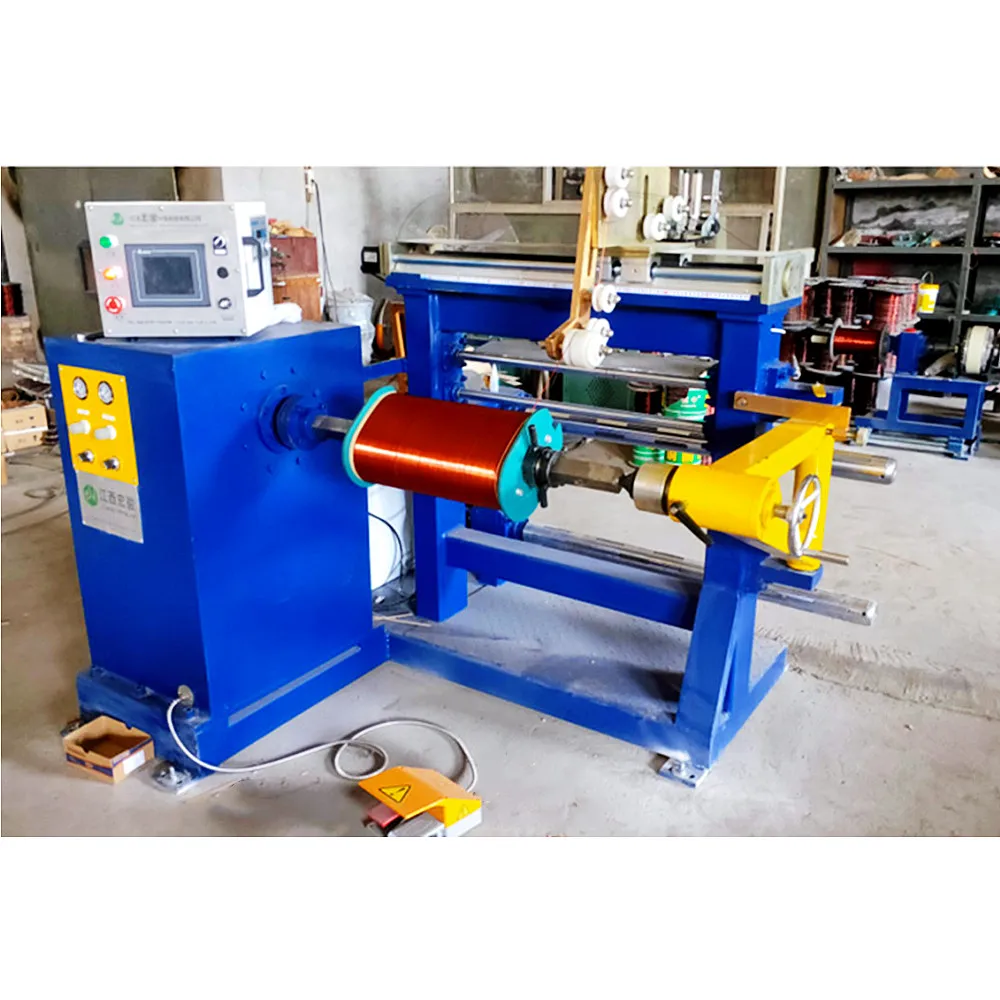

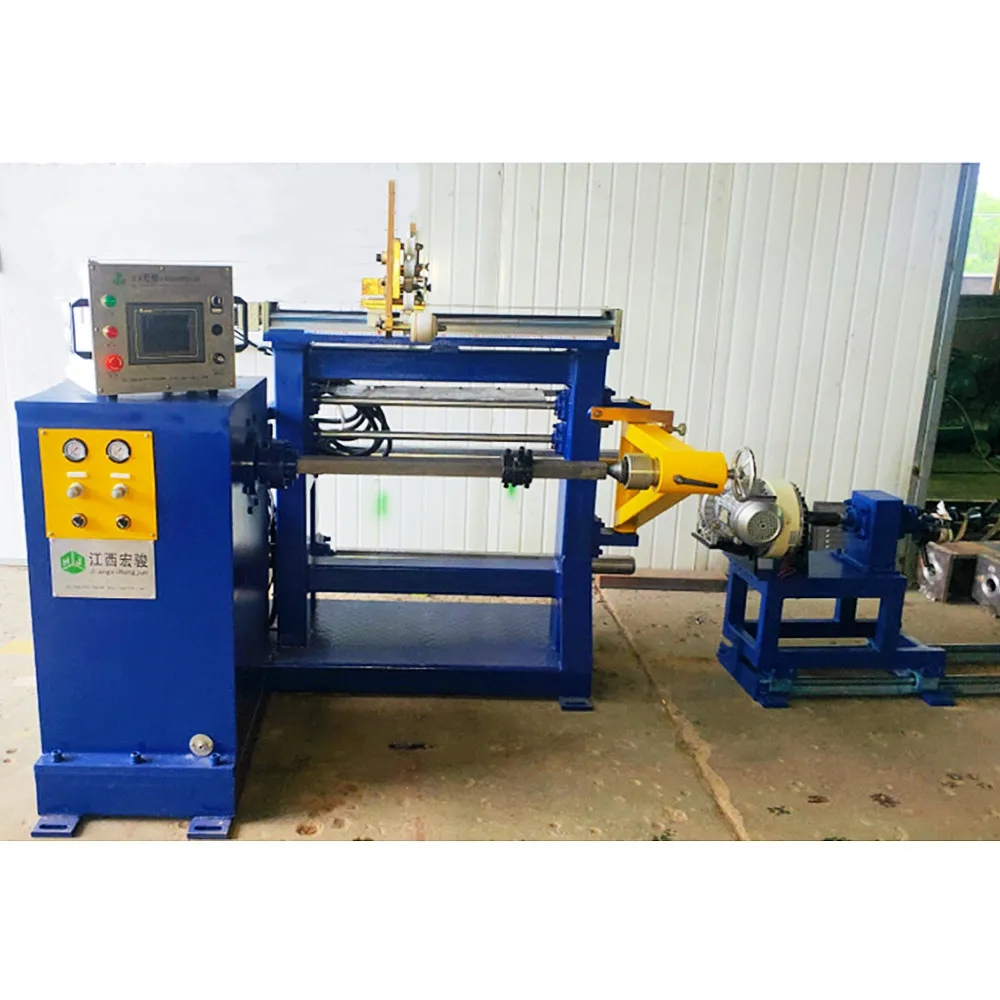

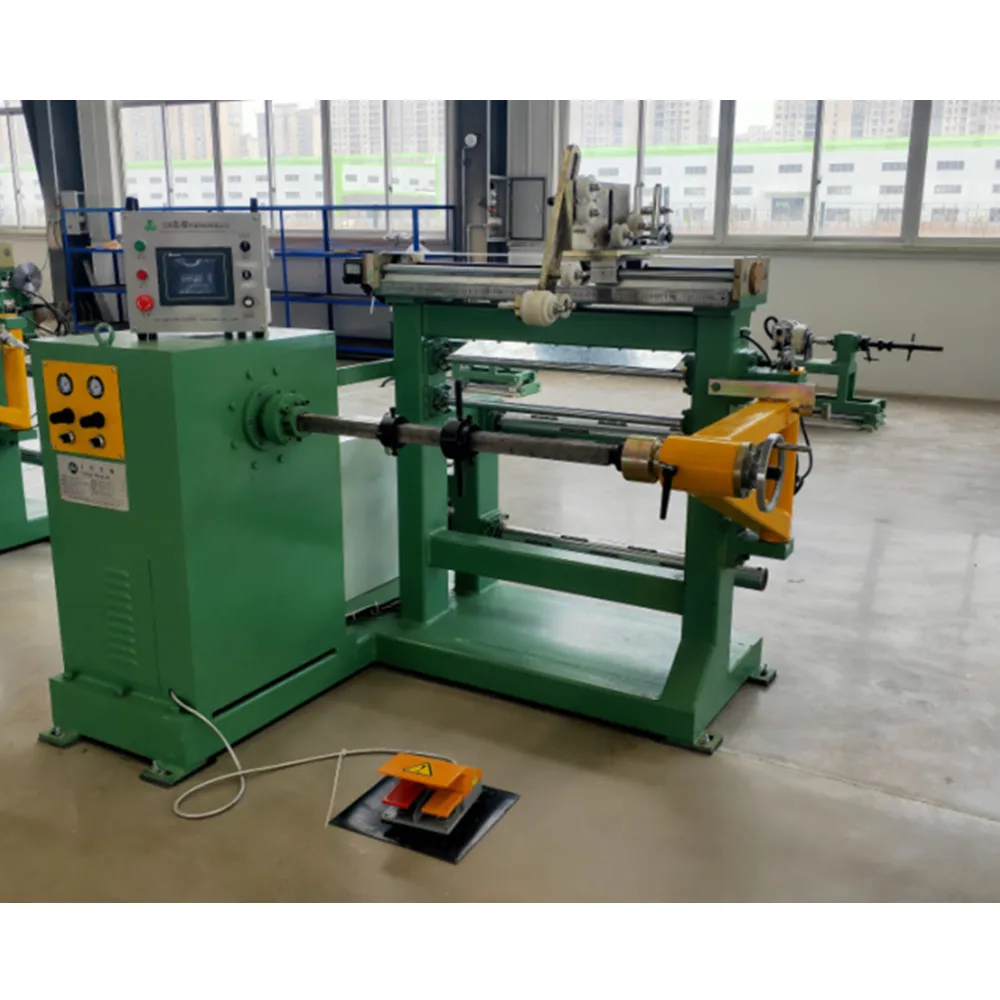

ZBR-1200 автоматический трансформатор промышленности оборудование для высокого напряжения катушки
- Категория: Coil Winding Machine >>>
- Поставщик: Jiangxi,Hongjun,Environmental,Protection,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 23800.87 $* | 24990.67 $* |
| Aug-17-2025 | 23600.86 $* | 24780.48 $* |
| Jul-17-2025 | 19800.58 $* | 20790.17 $* |
| Jun-17-2025 | 23200.54 $* | 24360.69 $* |
| May-17-2025 | 20200.63 $* | 21210.83 $* |
| Apr-17-2025 | 22800.76 $* | 23940.66 $* |
| Mar-17-2025 | 22600.0 $* | 23730.12 $* |
| Feb-17-2025 | 22400.93 $* | 23520.23 $* |
| Jan-17-2025 | 22200.72 $* | 23310.48 $* |
Характеристики
Product Description
Typical standard specifications are shown below, these can be easily modified as requested. | ||||
ZBR-1200 Main technical parameters | ||||
1 | Center for high | 1250 mm | ||
2 | Coil width | 1200 mm | ||
3 | Maximum working Tension | max 1200 N/M | ||
4 | Dimensions of wound spool | 40×40×1250 | ||
5 | Working speed | 0—240 RPM | ||
8 | Workpiece weight (coil)： | Max：≤300kg | ||
9 | Number of layer insulation | 2Set of | ||
10 | Round Wire spec | 0.2-3 mm | ||
Flat wire spec | 5X12 mm | |||
11 | Main motor power | 5.5kw | ||
12 | Count range | 99999 | ||
26 | The weight | about 2500kg | ||
Main Description
1. Overview:
ZBR-600 Automatically coil winding machine is suitable for small and medium-sized high voltage immersed distribution transformer power from 10KV to 500KV,especially for oval and amorphous alloy rectangular core enamel-covered Aluminum and Copper coil winding (wire diameter range:Φ0.8-Φ3.5).The winding speed can achieve to 400 turn/min,The mainframe with servo motor winding power is 5.5 KW ,Coil Max OD is 350 mm,with 600 mm line distance.
ZBR-600 Automatically coil winding machine is suitable for small and medium-sized high voltage immersed distribution transformer power from 10KV to 500KV,especially for oval and amorphous alloy rectangular core enamel-covered Aluminum and Copper coil winding (wire diameter range:Φ0.8-Φ3.5).The winding speed can achieve to 400 turn/min,The mainframe with servo motor winding power is 5.5 KW ,Coil Max OD is 350 mm,with 600 mm line distance.
2. Main Features:
1.It adopt servo motor drive the spindle ,with high efficiency.
1.It adopt servo motor drive the spindle ,with high efficiency.
2.It can realize the recording of 10 first process parameters. It is possible to remember 50 product parameters. When the product is changed to production, there is no need to input data every time. You only need to call out the existing data, and click download to immediately call out all the processing data of the product.
3.The speed is set under the control of servo motor ,the process is stable .
4.The wiring adopts a servo motor and PLC control system, a high-definition touch-type operation screen implements display, and an imported ball screw drive and a linear guide rail are used to meet the accuracy of the wiring.
5. The pay-off device is equipped with a tension function, and the tension can be adjusted to meet the requirements of
different wire gauges. For the square structure of the amorphous coil, the equipment is equipped with a set of pneumatic devices near the wiring position, which can solve the problem of straining the enameled wire when the coil crosses the corner.Ensure the original insulation effect of the enameled wire
different wire gauges. For the square structure of the amorphous coil, the equipment is equipped with a set of pneumatic devices near the wiring position, which can solve the problem of straining the enameled wire when the coil crosses the corner.Ensure the original insulation effect of the enameled wire
6. According to different wire gauges, it is convenient to set the automatic wire pitch. In winding, the possible errors can be manually fine-tuned to ensure that the coil is tight.
7. The total number of turns can be preset, and the total number of turns can be set up to 99999 turns. The equipment has the power-off protection function and reversible counting.
8. The tension unwinding rack adopts a floor-standing type, the linear guide rails automatically track the wire on the left and right, and the tension is adjustable and constant; the tension unwinding rack base is equipped with a movable guide rail and an electric control system, which can realize the synchronization of the main winding axis and the stepping .

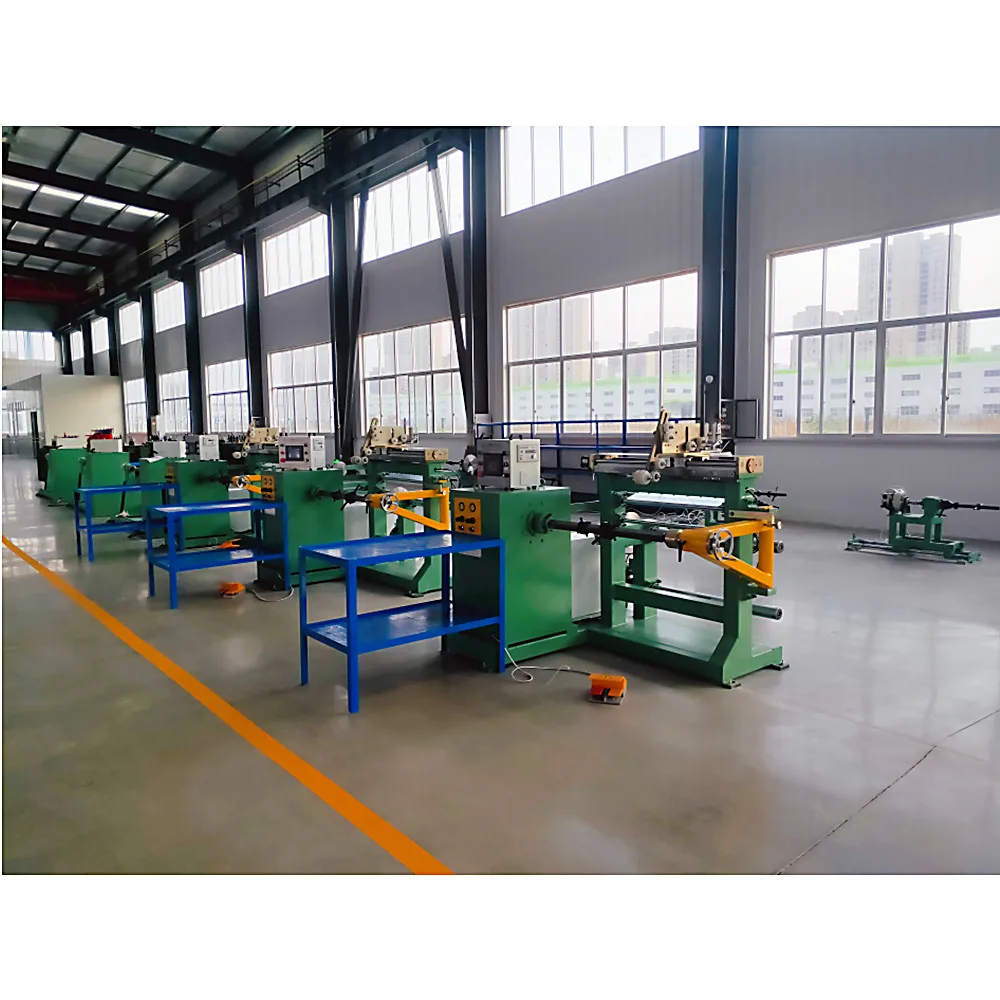

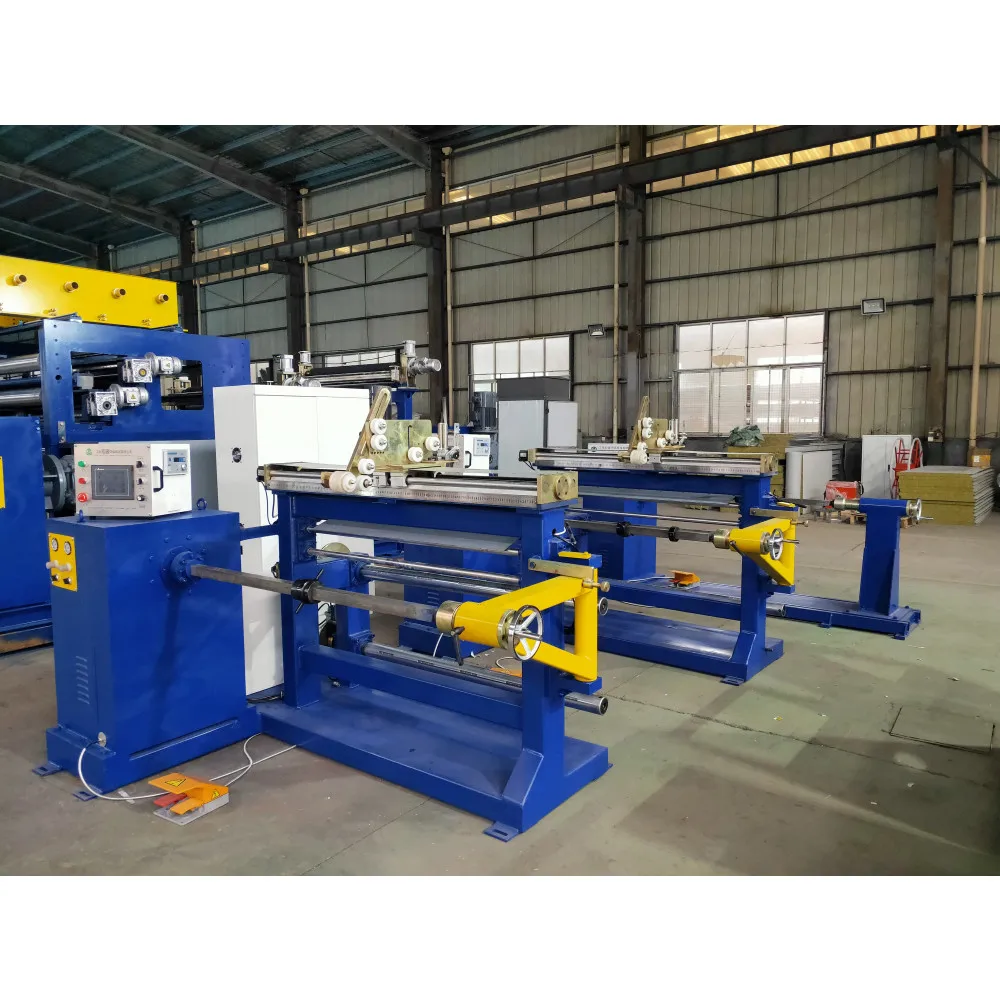

Production Process
Company Information
Certifications
Products Categories
Product Details
Packaging Shipping
FAQ
1)Q: Are you manufacturer or trading company?
A:We are both manufacturer and trading company,we can customized as per your requirements ,and so we can provide best quality at competitive price .
2)Q:.how can we guarantee quality?
A:we have superior engineer,who have rich experience in producing and developing ,ensure the quality can meet your ideal demands.Besides we strictly control each production chain, all machines have to be tested before loading.
3)Q:what can you buy from us?
A:Transformer coil Winding Machine,Foil Winding Machine,Vacuum Equipment,Facility&Tooling,Silicon steel sheet shears;
4)Q:What about the payment term ?
A:Payment terms are 50% T/T in advance, 50% T/T payment before delivery.
5)Q:And the delivery time?
A:Usually the delivery will be arranged in 60 working days after received your down payment,
6)Q: what services can we provide?
A:Accepted Delivery Terms: FOB,EXW；
A:Accepted Payment Currency:USD,EUR,CNY;
A:Accepted Payment Type: T/T,Western Union,Cash;
A:Language Spoken:English,Chinese,
A:We are both manufacturer and trading company,we can customized as per your requirements ,and so we can provide best quality at competitive price .
2)Q:.how can we guarantee quality?
A:we have superior engineer,who have rich experience in producing and developing ,ensure the quality can meet your ideal demands.Besides we strictly control each production chain, all machines have to be tested before loading.
3)Q:what can you buy from us?
A:Transformer coil Winding Machine,Foil Winding Machine,Vacuum Equipment,Facility&Tooling,Silicon steel sheet shears;
4)Q:What about the payment term ?
A:Payment terms are 50% T/T in advance, 50% T/T payment before delivery.
5)Q:And the delivery time?
A:Usually the delivery will be arranged in 60 working days after received your down payment,
6)Q: what services can we provide?
A:Accepted Delivery Terms: FOB,EXW；
A:Accepted Payment Currency:USD,EUR,CNY;
A:Accepted Payment Type: T/T,Western Union,Cash;
A:Language Spoken:English,Chinese,
