Привлекательная цена строительный подъемник нового типа
- Категория: Construction Lifter >>>
- Поставщик: Shandong,Gaoan,Construction,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 38099.59 $* | 38861.81 $* |
| Jul-16-2025 | 30899.38 $* | 31517.60 $* |
| Jun-16-2025 | 37499.63 $* | 38249.25 $* |
| May-16-2025 | 37199.64 $* | 37943.67 $* |
| Apr-16-2025 | 29699.88 $* | 30293.41 $* |
| Mar-16-2025 | 36599.35 $* | 37331.74 $* |
| Feb-16-2025 | 36299.65 $* | 37025.75 $* |
| Jan-16-2025 | 35999.85 $* | 36719.1 $* |
Характеристики
Products Description
Product introduction
Construction lift (also known as external lift, referred to as lift) is widely used in the vertical lift and transport of
personnel and materials. In industrial or civil buildings, large Bridges, shafts, are indispensable good transportation equipment,as permanent or semi-permanent can also be used in warehouses, towers and other different occasions. Compared with other lifting mechanism, the product is stable, safe and reliable, no need to set up another machine room well and convenient disassembly,handling flexibility and other advantages, especially in reducing the labor intensity of construction personnel, accelerate the progress of the project, improve work efficiency, play an obvious role.
personnel and materials. In industrial or civil buildings, large Bridges, shafts, are indispensable good transportation equipment,as permanent or semi-permanent can also be used in warehouses, towers and other different occasions. Compared with other lifting mechanism, the product is stable, safe and reliable, no need to set up another machine room well and convenient disassembly,handling flexibility and other advantages, especially in reducing the labor intensity of construction personnel, accelerate the progress of the project, improve work efficiency, play an obvious role.

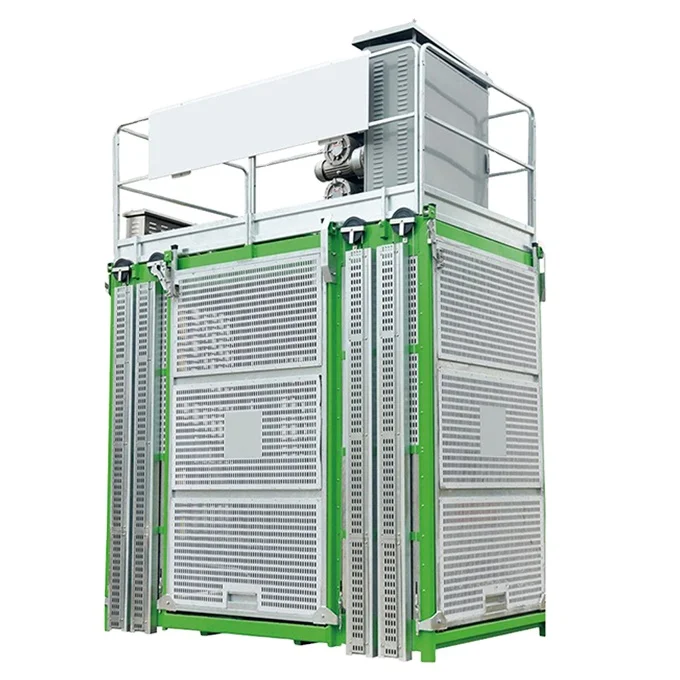

SC series construction elevator is a new generation of construction elevator products designed and launched by Shandong Gao 'an Construction Machinery Co., LTD. It has advanced technical performance, safe and reliable use, convenient maintenance and other remarkable characteristics. It is the most ideal vertical transportation equipment for modern building construction.
SC200/200
Specification
No. | Item | Unit | Parameter | Note |
1 | Rated Load | kg | 2 x 2000 | Double cage |
2 | Install/disassemble Reted load | kg | 2 x 1000 | Double cage |
3 | Lifting Speed | m/min | 0-63 | Reducer Ratio 1:16 |
4 | Max. Height | m | 200 | |
5 | Cage Dimension(LXW) | m x m | 3x1.5/3.2x1.5 | |
6 | Distance Between Foundation And Cage Bottom | m | 0.46 | |
7 | Distance between Anchor | m | ≤9 | |
8 | Free End Height | m | ≤7.5 | |
9 | Power Supply | V | 380V±5% | |
10 | Motor Power | kw | 2x3x15 | JC=25% |
11 | Rated Current | A | 2x3x32.2 | |
12 | Inverter Power | kw | 55 | |
13 | Safety Device Model | SAJ50-1.4 |
Product advantage：
1. Safety protection device is complete and reliable. With national patent technology of anti-fall safety device, make thereliability of this machine in the first of similar products.
2. Combined design, through different collocation, can be combined out of different speed, different weight of the elevator
specifications. The standard, practicability and universality of the products are greatly improved.
3. Smooth operation and comfortable ride. Because the machine will drive unit above the top of the cage, so that the cage headroom increases; At the same time, it also makes the transmission more stable, the mechanical vibration is smaller, and brings acomfortable and spacious environment to the construction operators.
4. Overweight protection, more effective to ensure the use of equipment safety.
Company Profile
Shandong GaoAn
Shandong GaoAn Construction Machinery Co., Ltd was established in 2009, with a registered capital of 15 million yuan. The factory covers an area of more than 6000 square meters, and has more than 80 employees. GaoAn is mainly engaged in various types of tower cranes and construction hoists, with stable product uality, reliable performance, low repair rate and easy installation and disassembly.
Shandong GaoAn
The company's main products of tower cranes are: QTZ63 series, QTZ80 series, QTZ100 series, QTZ125 series,QTZ160 series, QTZ200 series, QTZ250 series, QTZ315 series, QTZ400 series and QTZ900 series of TC model and PT model tower cranes, the relevant accessories are Schneider and other well-known suppliers, our products use Jinan Iron and Steel Group Q355B manganese steel and other special high-grade steel, standard mast section size specification is complete, can customize all kinds of fixed type and chip type mast sections of various sizes ccording to customer requirements.
The company produces and manufactures the fourth generation wide beam SC100 / 100 and SC200 / 200 series construction hoists,which are equipped with frequency control double-motor drive unit and frequency control three-motor drive unit, and can also choose DOL drive unit. The drive unit is the most advanced gear drive, which is free of oil and maintenance within 5 years. Its lifting height can be customized according to customers, and the relevant accessories are from Schneider and other well-known suppliers.
♦ Each lift has undergone rigorous technical inspection and whole machine test before leaving the factory to ensure the quality.
♦ Frequency speed regulating hoist Smooth running,Energy saving and environmental protection and with long service time.

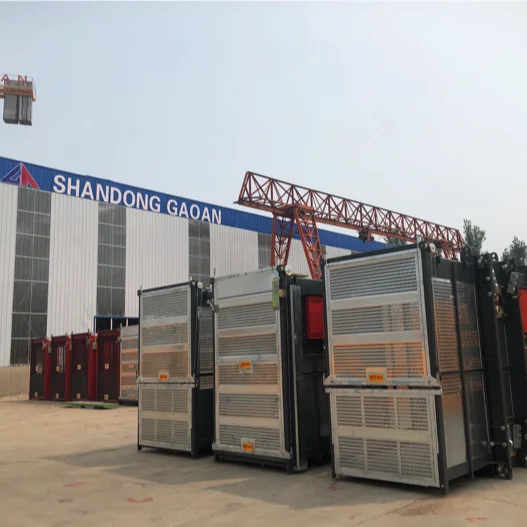

Producing Environment
Structural parts forming:
Apply laser detection, multi-point deflection compensation and other technologies to achieve high-precision molding such as standard joints and booms.
Parts painting
Using automatic spraying, quaternary hot air circulation baking paint, electrostatic spraying and other technologies, the paint adhesion and corrosion resistance have reached the highest level in the industry.

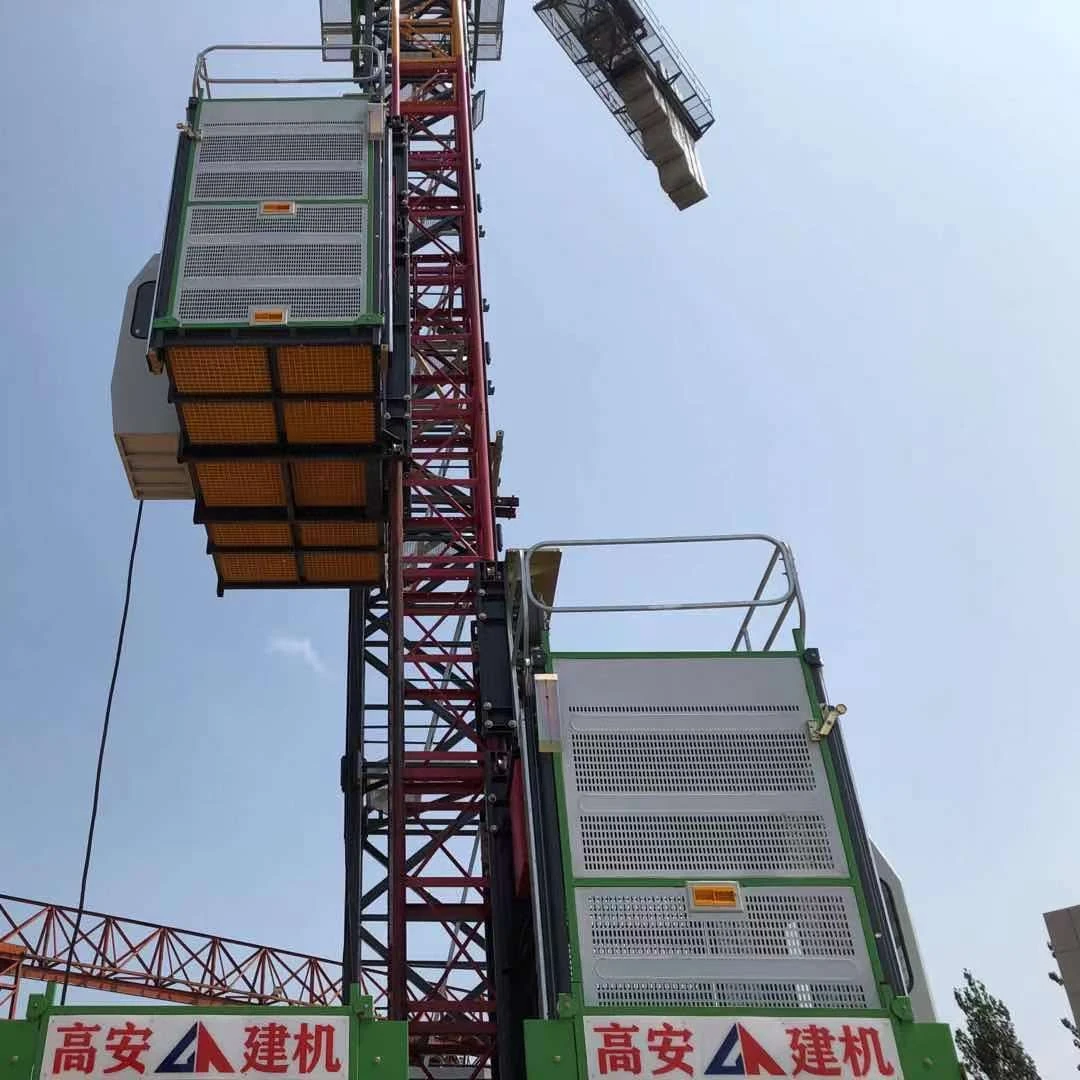

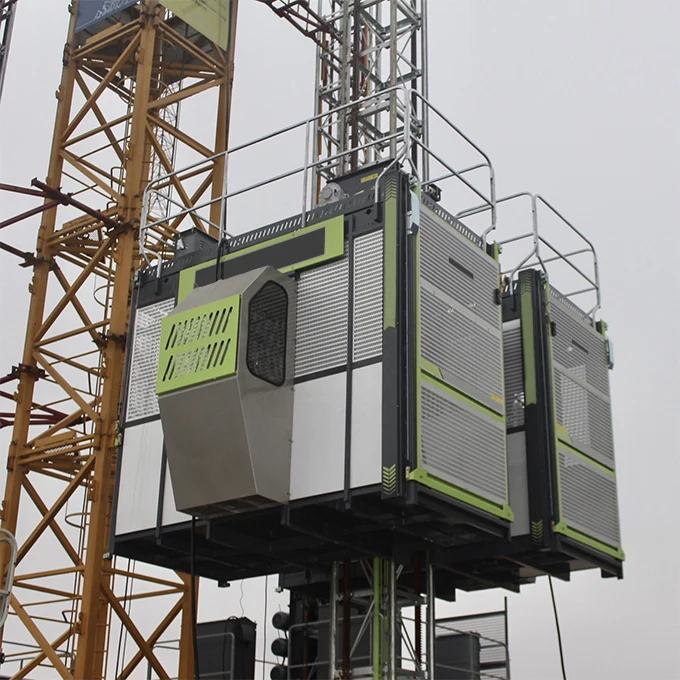

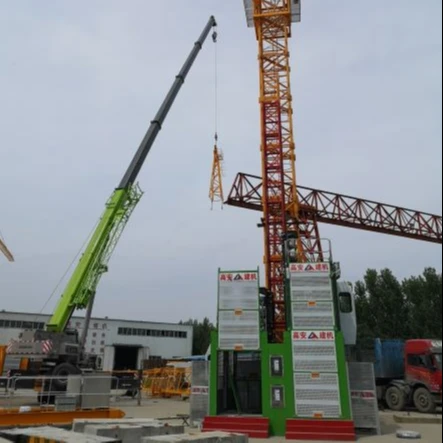

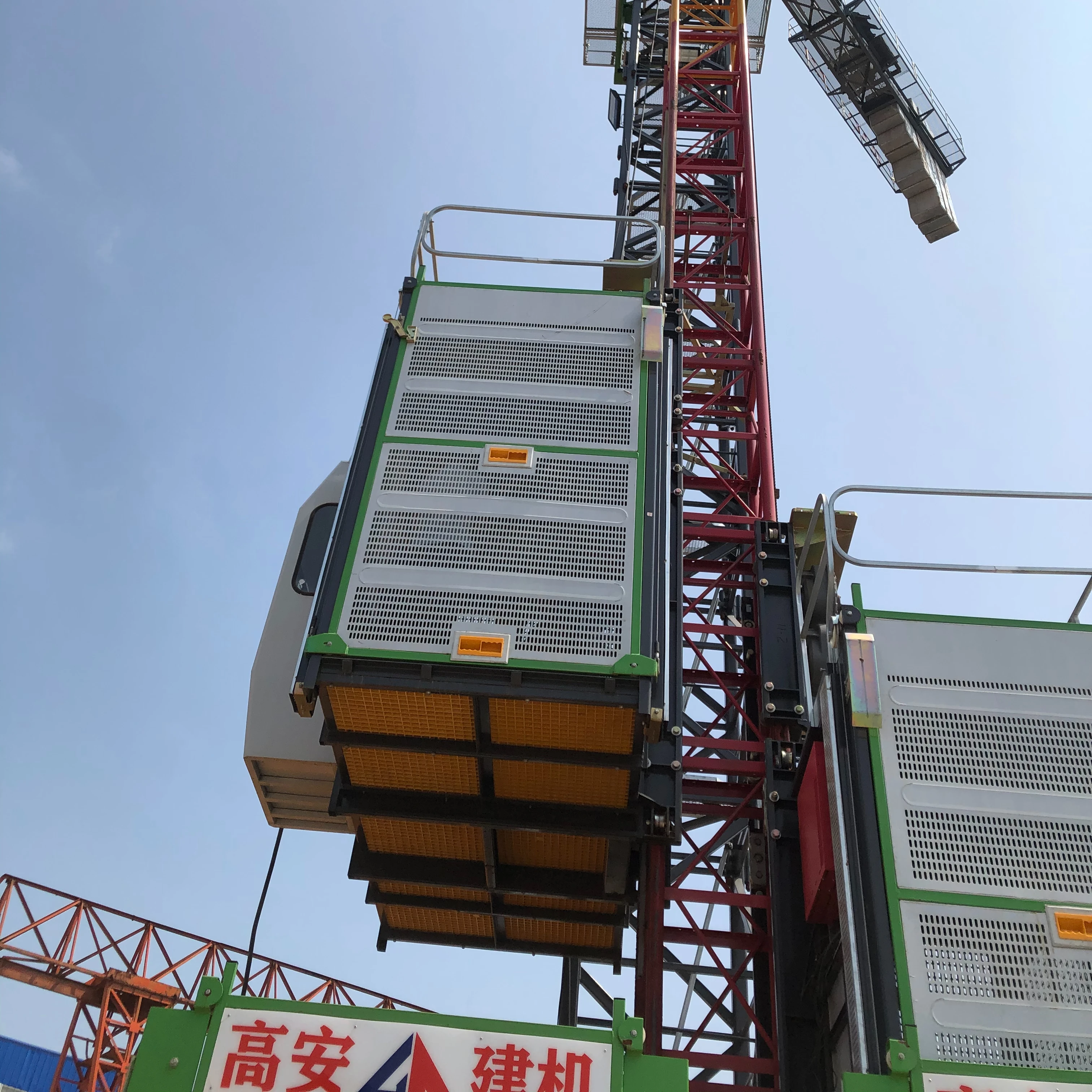

Run the scene
Packing&Delivery
Why Choose Us
FAQ
1. Who are we?
We are based in Shandong, China, start from 2011,sell to Domestic Market(65.00%),Southeast Asia(10.00%),Mid East(10.00%),South America(5.00%),Africa(5.00%),Northern Europe(5.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Engineering & Construction Machinery
4. Why should you buy from us not from other suppliers?
Our company is mainly engaged in various types of tower cranes and construction hoists, with stable product quality, reliable performance, low repair rate and easy installation and disassembly.
We are based in Shandong, China, start from 2011,sell to Domestic Market(65.00%),Southeast Asia(10.00%),Mid East(10.00%),South America(5.00%),Africa(5.00%),Northern Europe(5.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Engineering & Construction Machinery
4. Why should you buy from us not from other suppliers?
Our company is mainly engaged in various types of tower cranes and construction hoists, with stable product quality, reliable performance, low repair rate and easy installation and disassembly.
