GDY-1.0T Good quality High And Low Voltage Winding Machine for 1T transformer HV and LV coil
- Категория: Coil Winding Machine >>>
- Поставщик: Jiangxi,Hongjun,Environmental,Protection,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 83300.3 $* | 87465.12 $* |
| Aug-17-2025 | 82600.76 $* | 86730.90 $* |
| Jul-17-2025 | 69300.85 $* | 72765.42 $* |
| Jun-17-2025 | 81200.2 $* | 85260.31 $* |
| May-17-2025 | 70700.96 $* | 74235.15 $* |
| Apr-17-2025 | 79800.22 $* | 83790.56 $* |
| Mar-17-2025 | 79100.54 $* | 83055.30 $* |
| Feb-17-2025 | 78400.43 $* | 82320.37 $* |
| Jan-17-2025 | 77700.43 $* | 81585.8 $* |
Характеристики
Product Description

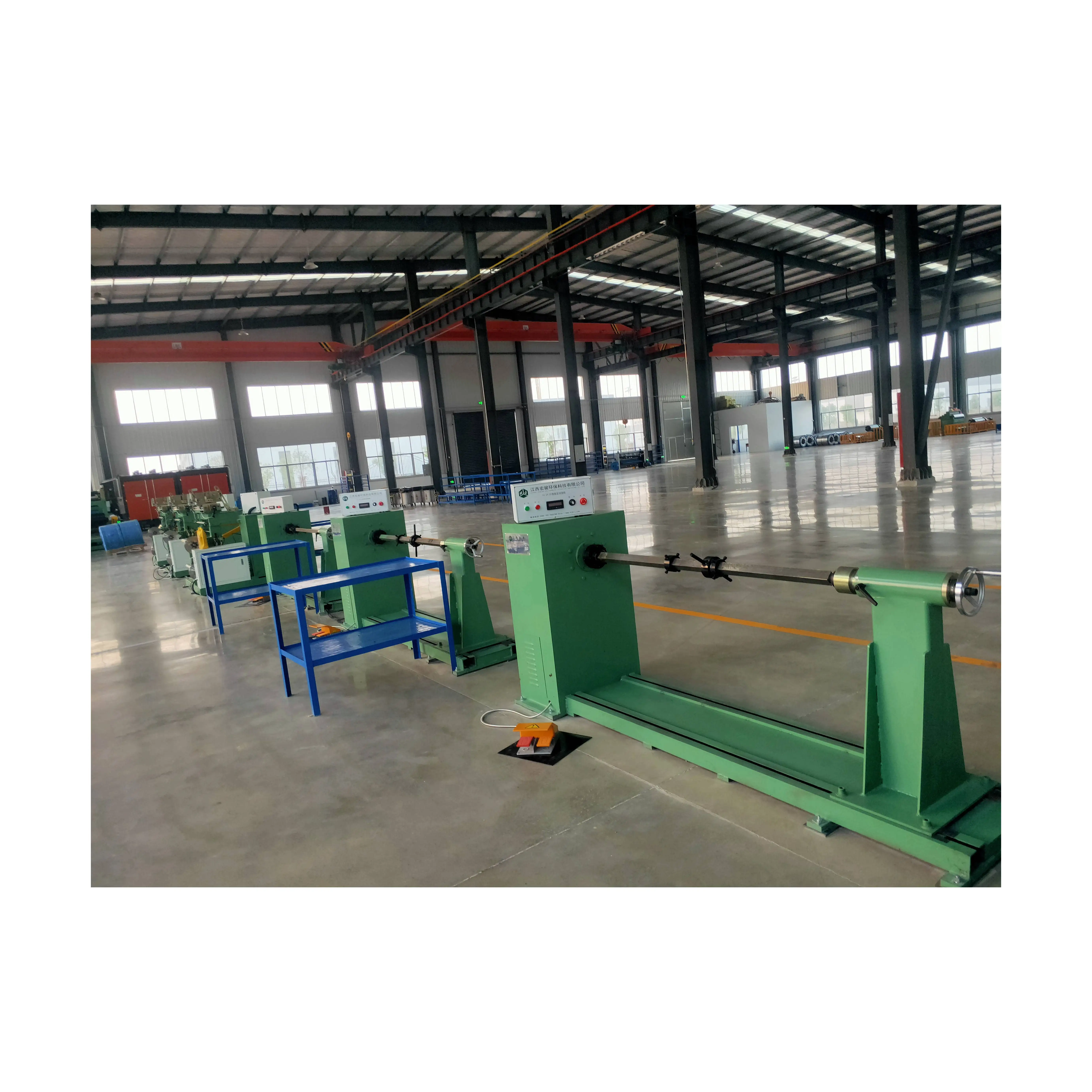

General introduction of the machine:
Usage：GDY-1T high and low voltage coil winding machine is used for winding high-voltage and low-voltage coil of transformer.
Characteristic：
This machine uses a motor and reducer to drive gears. Parking is stable and reliable. Two gears (fast, slow), automatic winding count, power off memory function. Encoder counting, dual foot switch in and out control.
This machine uses a motor and reducer to drive gears. Parking is stable and reliable. Two gears (fast, slow), automatic winding count, power off memory function. Encoder counting, dual foot switch in and out control.
Typical standard specifications are shown below, these can be easily modified as requested. | ||||||||||||||
No. | Items | Datas | ||||||||||||
1 | Model | GDY-0.5T | GDY-1T | GDY-1.5T | GDY-2T | GDY-3T | GDY-5T | |||||||
2 | Winding width | 150-800mm | 150-800mm | 1000 mm | 150-1000mm | 150-1200mm | 150-2500mm | |||||||
3 | coil form | Rectangular/Oval/Round | Rectangular/Oval/Round | Rectangular/Oval/Round | Rectangular/Oval/Round | Rectangular/Oval/Round | Rectangular/Oval/Round | |||||||
4 | Coil material | Cu/Al | Cu/Al | Cu/Al | Cu/Al | Cu/Al | Cu/Al | |||||||
5 | Winding speed | 0-240 RPM | 0-150 RPM | 0-100 RPM | 0-70 RPM | 0-70 RPM | 0-30 RPM | |||||||
6 | Max. torque | 600N | 1000N | 1000N | 2000N | 3000N | 6000N | |||||||
7 | Central height | 850 | 850 | 850 | 850 | 1000 | 1200 | |||||||
8 | Motor power | 3kw | 4kw | 4kw | 5.5kw | 7.5kw | 11kw | |||||||
9 | Turns counting | Rotary encoder | Rotary encoder | Rotary encoder | Rotary encoder | Rotary encoder | Rotary encoder | |||||||
10 | Counting precision | 0.1 Turn | 0.1 Turn | 0.1 Turn | 0.1 Turn | 0.1 Turn | 0.1 Turn | |||||||
11 | Round wire | 0.6-4.5mm | 0.6-4.5mm | 0.6-4.5mm | 0.6-4.5mm | 0.6-4.5mm | 0.6-4.5mm | |||||||
12 | Flat wire | Multiple wires are wound together | Multiple wires are wound together | Multiple wires are wound together | Multiple wires are wound together | Multiple wires are wound together | Multiple wires are wound together | |||||||
13 | Counting range | 0-9999.9 | 0-9999.9 | 0-9999.9 | 0-9999.9 | 0-9999.9 | 0-9999.9 | |||||||
14 | Rated voltage | 380v | 380v | 380v | 380v | 380v | 380v | |||||||
Production Process
Company Information
Certifications
Products Categories
Packaging Shipping
FAQ
1)Q: Are you manufacturer or trading company?
A:We are both manufacturer and trading company,we can customized as per your requirements ,and so we can provide best quality at competitive price .
2)Q:.how can we guarantee quality?
A:we have superior engineer,who have rich experience in producing and developing ,ensure the quality can meet your ideal demands.Besides we strictly control each production chain, all machines have to be tested before loading.
3)Q:what can you buy from us?
A:Transformer coil Winding Machine,Foil Winding Machine,Vacuum Equipment,Facility&Tooling,Silicon steel sheet shears;
4)Q:What about the payment term ?
A:Payment terms are 50% T/T in advance, 50% T/T payment before delivery.
5)Q:And the delivery time?
A:Usually the delivery will be arranged in 60 working days after received your down payment,
6)Q: what services can we provide?
A:Accepted Delivery Terms: FOB,EXW；
A:Accepted Payment Currency:USD,EUR,CNY;
A:Accepted Payment Type: T/T,Western Union,Cash;
A:Language Spoken:English,Chinese,
A:We are both manufacturer and trading company,we can customized as per your requirements ,and so we can provide best quality at competitive price .
2)Q:.how can we guarantee quality?
A:we have superior engineer,who have rich experience in producing and developing ,ensure the quality can meet your ideal demands.Besides we strictly control each production chain, all machines have to be tested before loading.
3)Q:what can you buy from us?
A:Transformer coil Winding Machine,Foil Winding Machine,Vacuum Equipment,Facility&Tooling,Silicon steel sheet shears;
4)Q:What about the payment term ?
A:Payment terms are 50% T/T in advance, 50% T/T payment before delivery.
5)Q:And the delivery time?
A:Usually the delivery will be arranged in 60 working days after received your down payment,
6)Q: what services can we provide?
A:Accepted Delivery Terms: FOB,EXW；
A:Accepted Payment Currency:USD,EUR,CNY;
A:Accepted Payment Type: T/T,Western Union,Cash;
A:Language Spoken:English,Chinese,
