Китайский профессиональный производитель трансформатор реактора UPS медная обмоточная
- Категория: Coil Winding Machine >>>
- Поставщик: Jiangxi,Hongjun,Environmental,Protection,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 10115.17 $* | 10621.86 $* |
| Aug-17-2025 | 10030.67 $* | 10532.97 $* |
| Jul-17-2025 | 8415.64 $* | 8836.8 $* |
| Jun-17-2025 | 9860.15 $* | 10353.34 $* |
| May-17-2025 | 8585.45 $* | 9014.9 $* |
| Apr-17-2025 | 9690.40 $* | 10175.45 $* |
| Mar-17-2025 | 9605.13 $* | 10085.36 $* |
| Feb-17-2025 | 9520.1 $* | 9996.80 $* |
| Jan-17-2025 | 9435.45 $* | 9907.28 $* |
Характеристики
Product Description

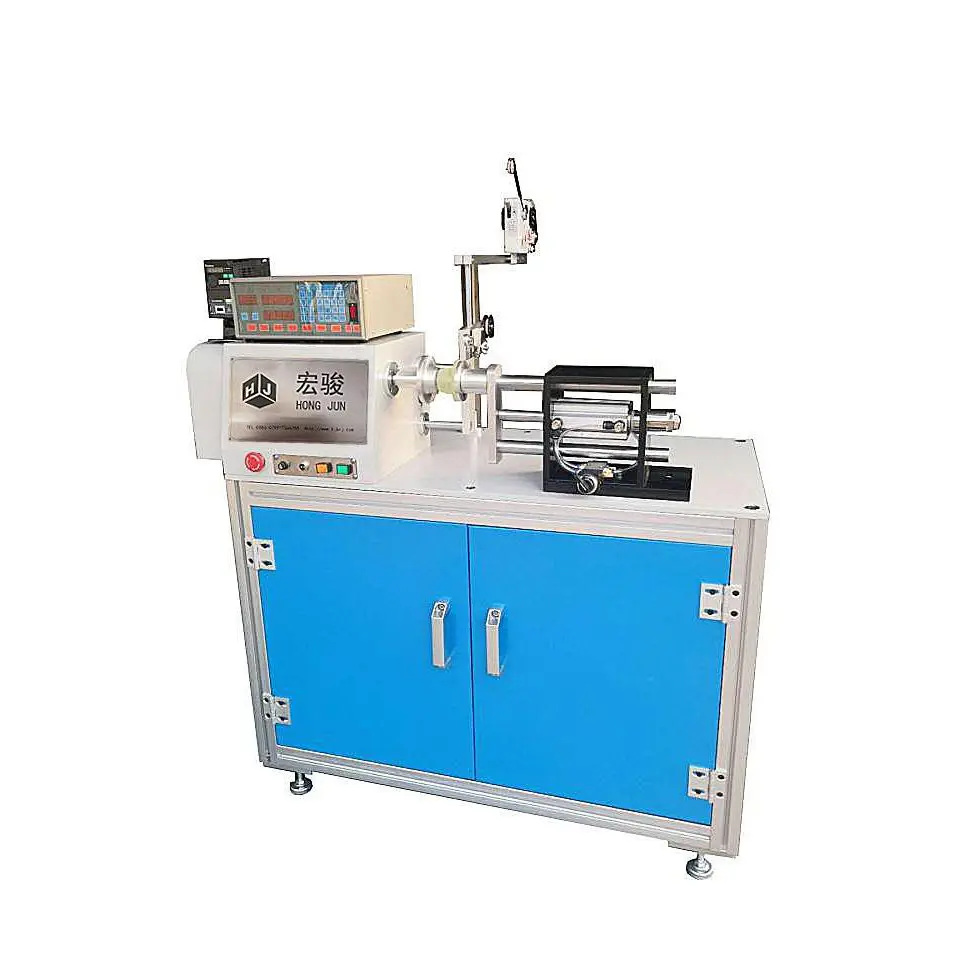

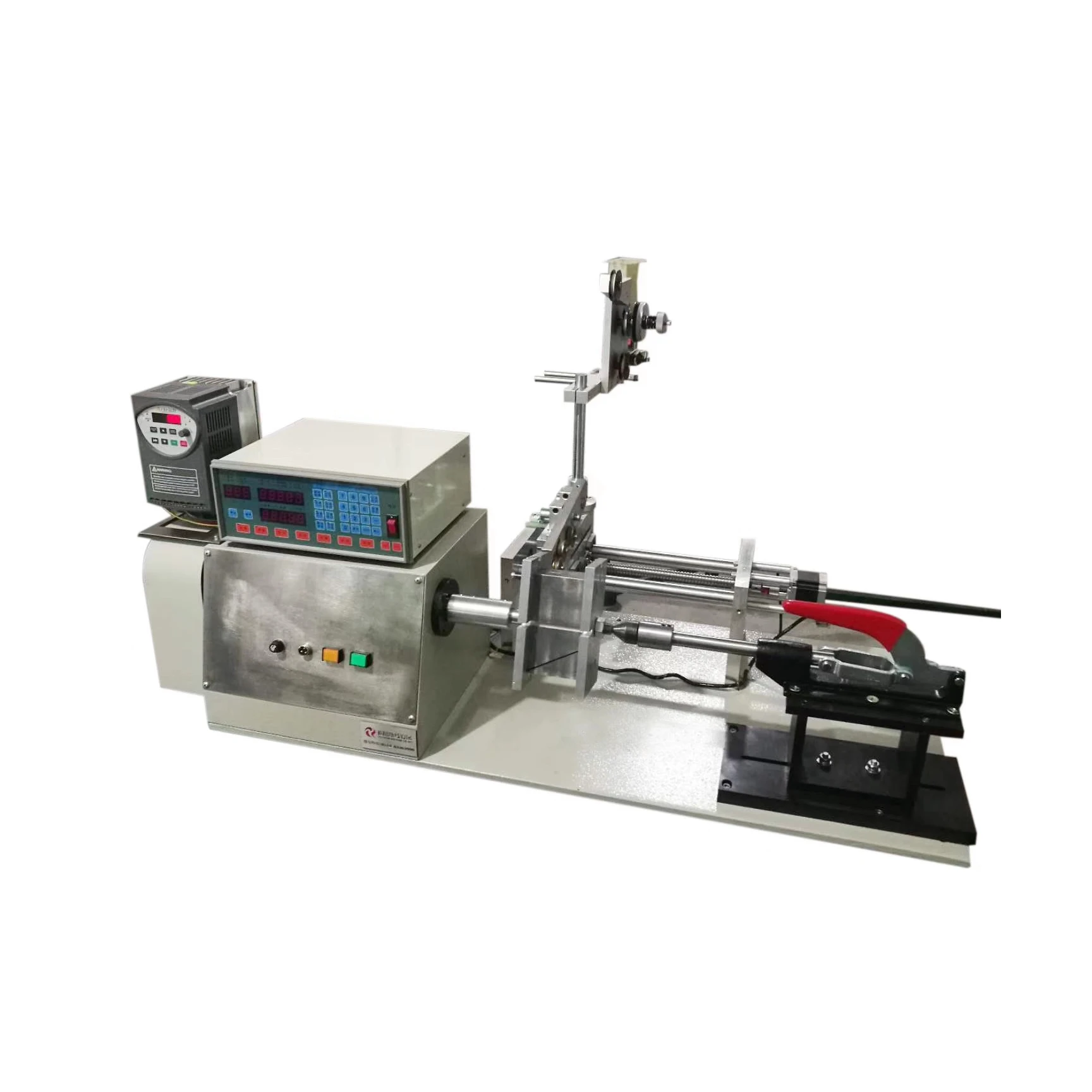

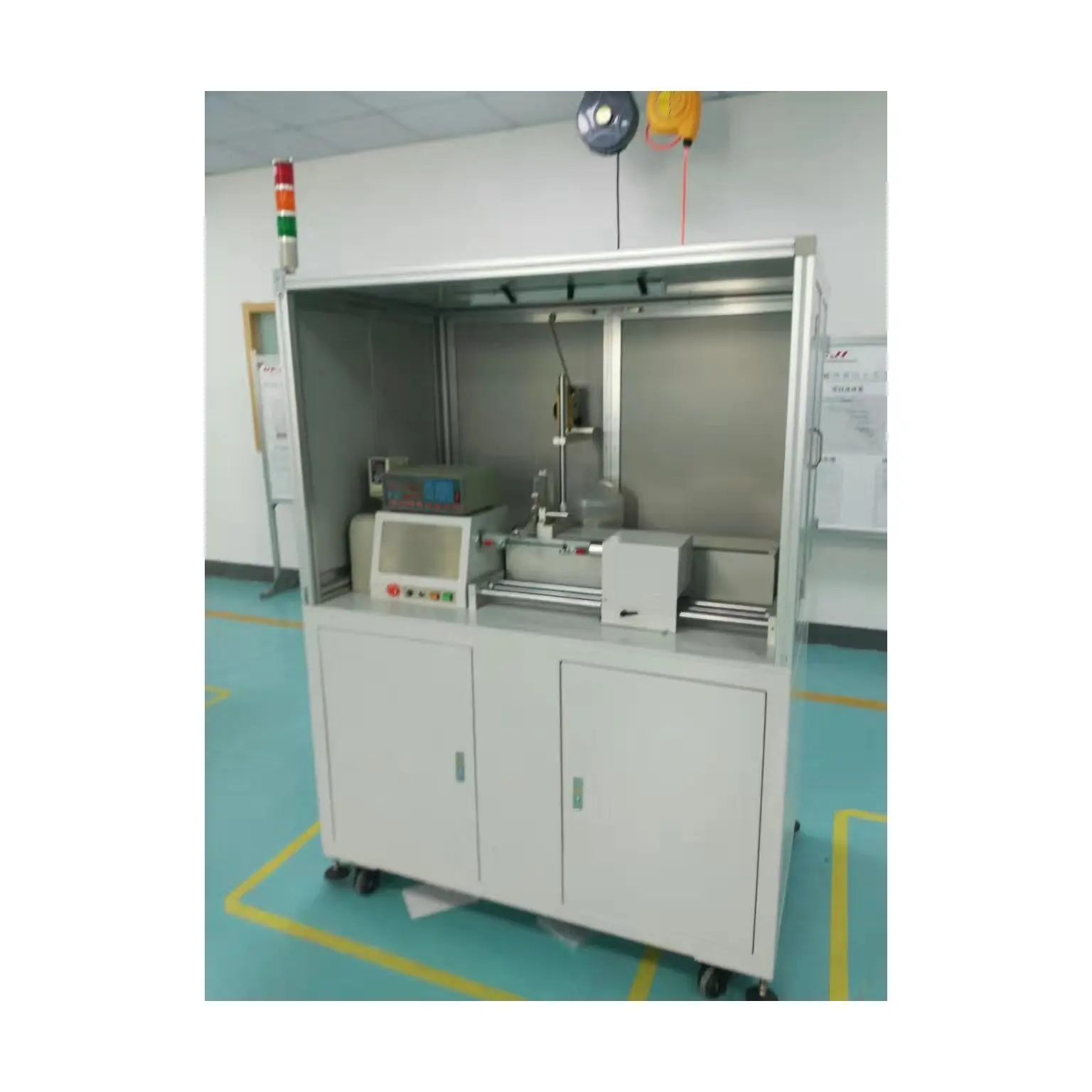

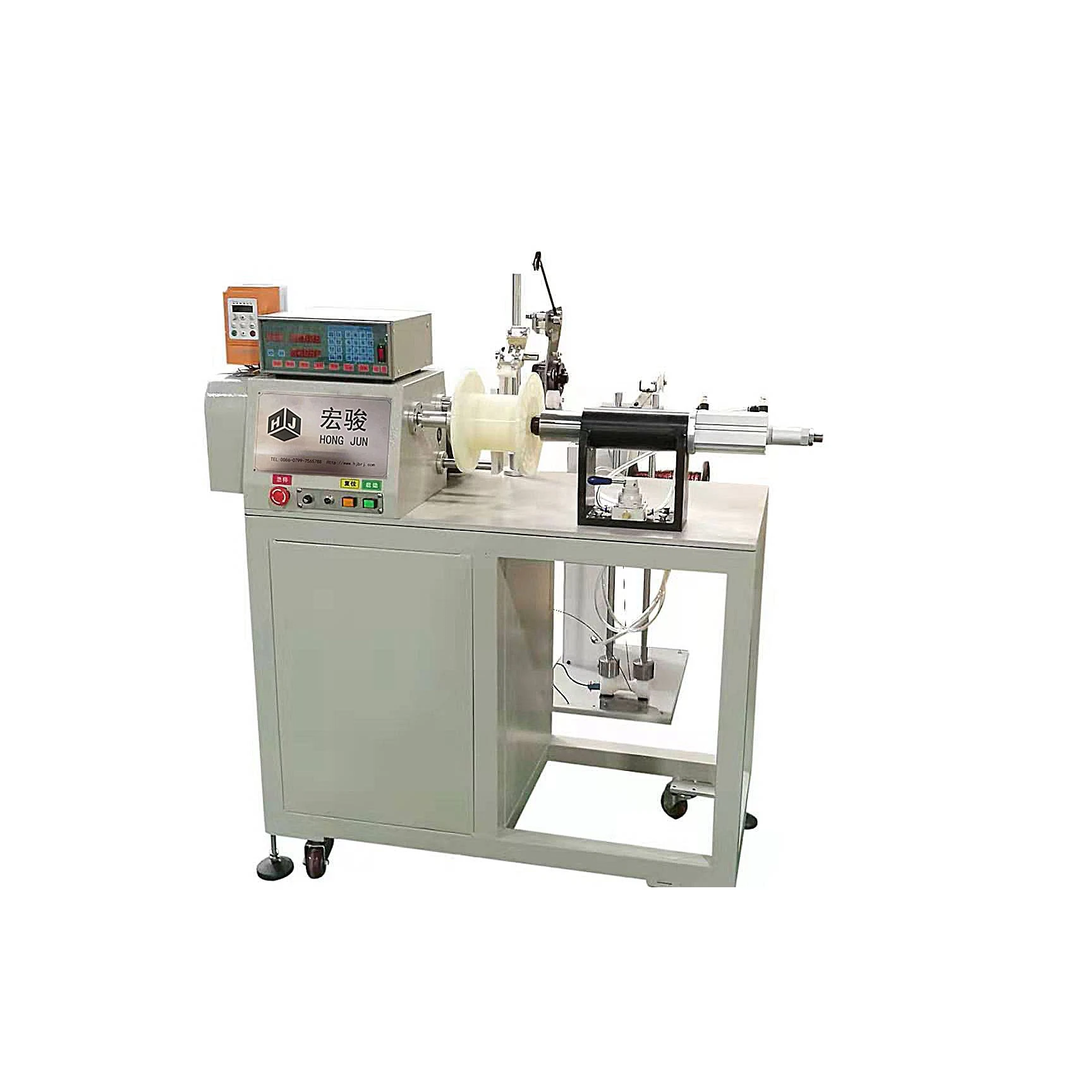

Middle-sized CNC control wire winding machine | ||||||||||
No | Item | Data | Item | Data | ||||||
1 | Wire diameter | 1.0-2.0mm | 6 | Winding width(MAX） | 300mm | |||||
2 | Winding Power | AC/2.2KW | 7 | Compound line accuracy | ≥0.01mm | |||||
3 | Winding speed | 10-600/RPM | 8 | Winding torque diameter(Max) | 320mm | |||||
4 | Counting range | 0-99999 | 9 | Counting unit(Min) | 0.1 | |||||
5 | Supply voltage | 220V 50HZ | 10 | Outer spec | 1100*500mm | |||||
Main description
The main component :
* The position of the wire adopt guide mode function ,can help with start point and width position.
* The direction of the main shaft and the wire laying can be adjusted freely.
* Main shaft with stepless speed control.the rotate speed can be adjusted by any percent.
* It can memory about 20 kinds of wire winding information,you can switch or select any kind to use freely.
* The output can be concluded and set by the machine,and the converter speed \\equipment states \\failure recognition can be visual on the screen.
* Using external hall counting \\positioning device,winding process can be paused as manually correct the wire winding position.
The main component :
Adopt CNC touch screen control system , AC variable frequency spindle , grinding screw row wire built in servo motor,Electric precision tensioner ,Pneumatic protection device;
Main Features as following:
* It is easy to operate with CNC touch screen control system,and it has paused of editing and delete memory functions;
* The position of the wire adopt guide mode function ,can help with start point and width position.
* The direction of the main shaft and the wire laying can be adjusted freely.
* Main shaft with stepless speed control.the rotate speed can be adjusted by any percent.
* It can memory about 20 kinds of wire winding information,you can switch or select any kind to use freely.
* The output can be concluded and set by the machine,and the converter speed \\equipment states \\failure recognition can be visual on the screen.
* Using external hall counting \\positioning device,winding process can be paused as manually correct the wire winding position.
Production Process
Company Information
Products Categories
Certifications
Packaging Shipping
FAQ
1)Q: Are you manufacturer or trading company?
A:We are both manufacturer and trading company,we can customized as per your requirements ,and so we can provide best quality at competitive price .
2)Q:.how can we guarantee quality?
A:we have superior engineer,who have rich experience in producing and developing ,ensure the quality can meet your ideal demands.Besides we strictly control each production chain, all machines have to be tested before loading.
3)Q:what can you buy from us?
A:Transformer coil Winding Machine,Foil Winding Machine,Vacuum Equipment,Facility&Tooling,Silicon steel sheet shears;
4)Q:What about the payment term ?
A:Payment terms are 50% T/T in advance, 50% T/T payment before delivery.
5)Q:And the delivery time?
A:Usually the delivery will be arranged in 60 working days after received your down payment,
6)Q: what services can we provide?
A:Accepted Delivery Terms: FOB,EXW；
A:Accepted Payment Currency:USD,EUR,CNY;
A:Accepted Payment Type: T/T,Western Union,Cash;
A:Language Spoken:English,Chinese,
A:We are both manufacturer and trading company,we can customized as per your requirements ,and so we can provide best quality at competitive price .
2)Q:.how can we guarantee quality?
A:we have superior engineer,who have rich experience in producing and developing ,ensure the quality can meet your ideal demands.Besides we strictly control each production chain, all machines have to be tested before loading.
3)Q:what can you buy from us?
A:Transformer coil Winding Machine,Foil Winding Machine,Vacuum Equipment,Facility&Tooling,Silicon steel sheet shears;
4)Q:What about the payment term ?
A:Payment terms are 50% T/T in advance, 50% T/T payment before delivery.
5)Q:And the delivery time?
A:Usually the delivery will be arranged in 60 working days after received your down payment,
6)Q: what services can we provide?
A:Accepted Delivery Terms: FOB,EXW；
A:Accepted Payment Currency:USD,EUR,CNY;
A:Accepted Payment Type: T/T,Western Union,Cash;
A:Language Spoken:English,Chinese,
