Оптовая продажа очиститель обратного осмоса фильтр промышленная ирригационная система для
- Категория: Water Filter >>>
- Поставщик: Ningbo,Glaclean,Fluid,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.23 $* | 0.85 $* |
| Aug-15-2025 | 0.1 $* | 0.75 $* |
| Jul-15-2025 | 0.67 $* | 0.43 $* |
| Jun-15-2025 | 0.31 $* | 0.51 $* |
| May-15-2025 | 0.43 $* | 0.91 $* |
| Apr-15-2025 | 0.57 $* | 0.93 $* |
| Mar-15-2025 | 0.69 $* | 0.91 $* |
| Feb-15-2025 | 0.23 $* | 0.84 $* |
| Jan-15-2025 | 0.31 $* | 0.82 $* |
Характеристики
Products Description

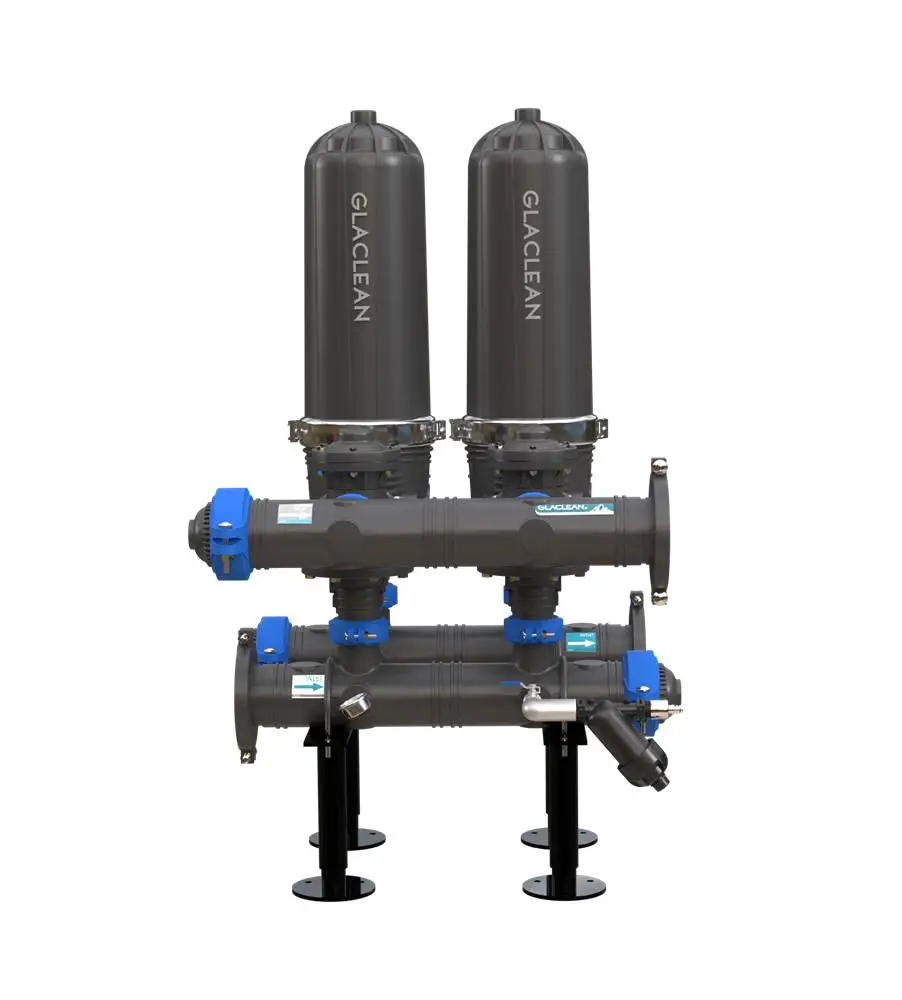

Product Name | auto backwash disc filter |
Color | Black |
Feature | High efficient filtration |
Workmanship | Injection moulding |
Shape | Cylinder housing |
Material | reinforced PA6 with glass fiber added |
Connection Size | 2"x2 units with 3" pipe |
Max Flow | 40 m³/h |
Filtration Surface | 3,040 cm2 |
Max Working Pressure | 10 BAR |
Connections | FLANGE |
Filtration Grade | 50-200 micron |
Water Temperature Range | 0 ~ 65 °C |
Min. Operating Working Pressure During Backwash | 3 BAR |
Head Loss | 0.3-0.6 BAR |
PRODUCTS ADVANTAGES
Centrifugal Filtration:
Helix creates centrifugal action optimizes the filtration performance and reduce backwash frequency and maintenance.
Disc Filtration with Maximum Safety:
All components are made of high quality virgin materials,unique design guarantee an extended life with high resistance.
Modular Construction:
Versatility and compatibility of filter permits system a wide range of flow and configurations, easy to install and maintenance.
Low maintenance:
No tools needed for filter system maintenance, easy handing and assembling.
Exclusive piston system:
A piston system to compact the filter elements allows for easy decompression of the disc stack during backwash.
Water and energy saving:
High efficiency filtration system and backflush system save the water and energy.
Helix creates centrifugal action optimizes the filtration performance and reduce backwash frequency and maintenance.
Disc Filtration with Maximum Safety:
All components are made of high quality virgin materials,unique design guarantee an extended life with high resistance.
Modular Construction:
Versatility and compatibility of filter permits system a wide range of flow and configurations, easy to install and maintenance.
Low maintenance:
No tools needed for filter system maintenance, easy handing and assembling.
Exclusive piston system:
A piston system to compact the filter elements allows for easy decompression of the disc stack during backwash.
Water and energy saving:
High efficiency filtration system and backflush system save the water and energy.
TYPICAL APPLICATION
G2000 filter systems can be widely used at agriculture irrigation, industrial water treatment, garden and landscape irrigation, livestock farming water filtration etc.
Auto Backwash Filtration System Working Principle
Auto backwash filtration system can reach one station at a time. While one unit backflushing,another units continue filtering and provide clean water for the irrigation system.
FILTRATION STAGE: Water flow
through the inlet manifold and two-
position three-way valves into the
filtering units. The Helix plate
generates a centrifugal helical
effect moving the big particles away
from the discs. The water then
passes efficiently through the
grooved discs and the particulates
are prevented in the depth of the
discs stack.
through the inlet manifold and two-
position three-way valves into the
filtering units. The Helix plate
generates a centrifugal helical
effect moving the big particles away
from the discs. The water then
passes efficiently through the
grooved discs and the particulates
are prevented in the depth of the
discs stack.
BACKWASH STAGE: When pressure differential reaching the value pre-set on the controller,backwash process is triggered. Backwash control valve close the inlet connection and open the drainage connection.The clean water from the auxiliary filter is introduced from the reverse direction through the filtering element. This process decompresses the stack of discs, allowing the discs to seperate and backwash efficiently.
The solid dirt are expelled from the discs and evacuated through the drainage manifold. The filtration process then restarts with
the compression of the discs.
the compression of the discs.
More Products
Why Choose Us
Sample Room
Exhibition
Certifications
Packing & Transportation
FAQ
Q1. Are you manufacturer or trade company?
We are a manufacturer specialized in both Garden & Agriculture Watering Irrigation.
Q2.Where's your factory located?
Our factory is located in Ningbo city, ZhejiangProvince.
Q3. Can you offer the sample?
We can offer samples for testing, the sample cost and freight cost will be buyer's side.
Q4. How long can I expect to get the sample?
Usually it will takes 3-5 working days.
Q5. What is your MOQ?
MOQ usually is 200-1000pcs for manual filters and 2-3 sets for filtration system. If you have the special request, let's discuss it.
Q6. What's your delivery time?
The delivery time is about 25 days.
We are a manufacturer specialized in both Garden & Agriculture Watering Irrigation.
Q2.Where's your factory located?
Our factory is located in Ningbo city, ZhejiangProvince.
Q3. Can you offer the sample?
We can offer samples for testing, the sample cost and freight cost will be buyer's side.
Q4. How long can I expect to get the sample?
Usually it will takes 3-5 working days.
Q5. What is your MOQ?
MOQ usually is 200-1000pcs for manual filters and 2-3 sets for filtration system. If you have the special request, let's discuss it.
Q6. What's your delivery time?
The delivery time is about 25 days.
