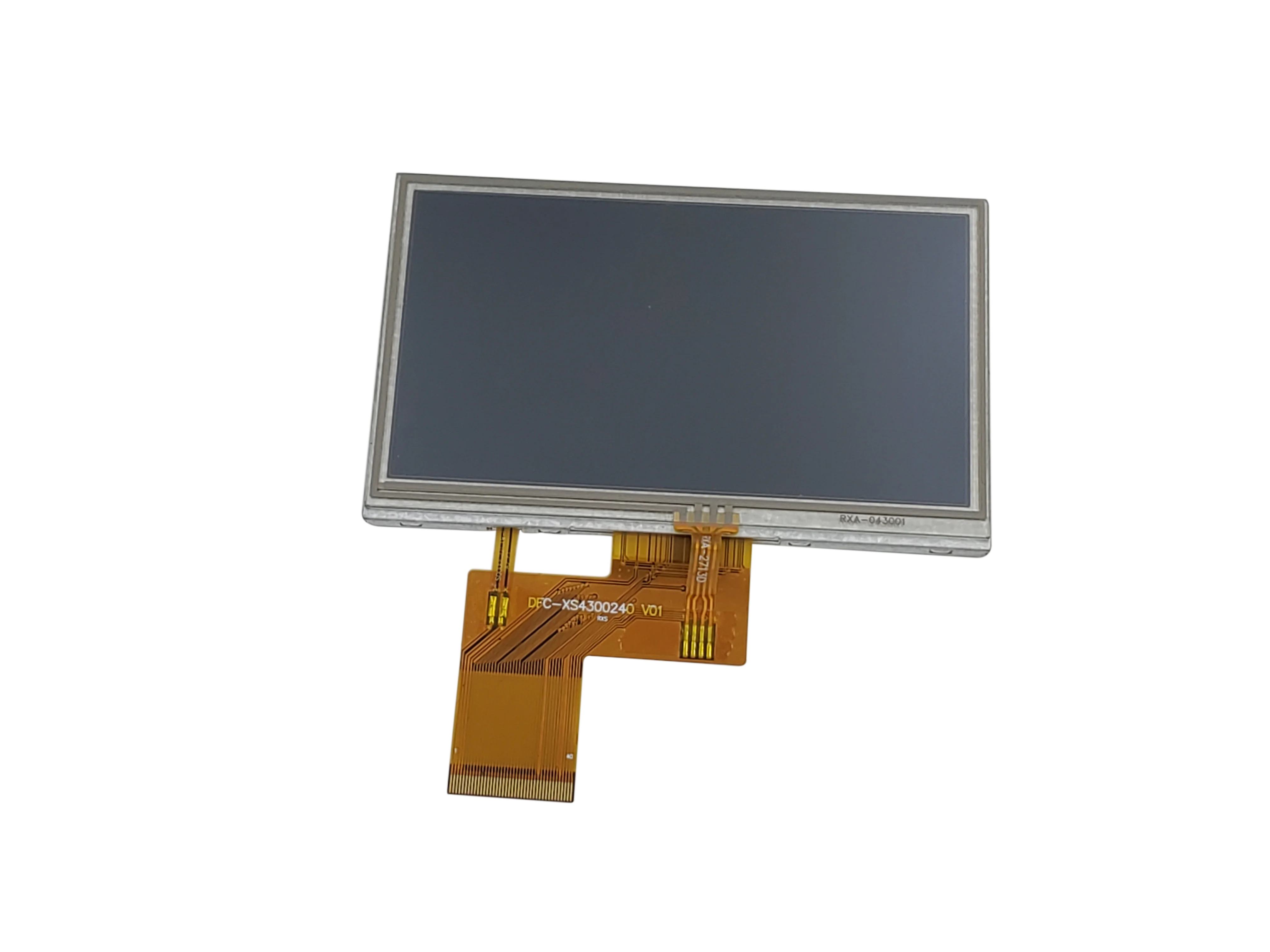

4 3 дюймовый Tft сенсорный экран 480x272 Lcd 'сенсорная панель с 40
- Категория: LCD Module >>>
- Поставщик: Shenzhen,Haoyu,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.47 $* | 0.83 $* |
| Aug-17-2025 | 0.16 $* | 0.65 $* |
| Jul-17-2025 | 0.26 $* | 0.29 $* |
| Jun-17-2025 | 0.29 $* | 0.96 $* |
| May-17-2025 | 0.17 $* | 0.46 $* |
| Apr-17-2025 | 0.21 $* | 0.80 $* |
| Mar-17-2025 | 0.28 $* | 0.0 $* |
| Feb-17-2025 | 0.86 $* | 0.7 $* |
| Jan-17-2025 | 0.40 $* | 0.88 $* |
Характеристики

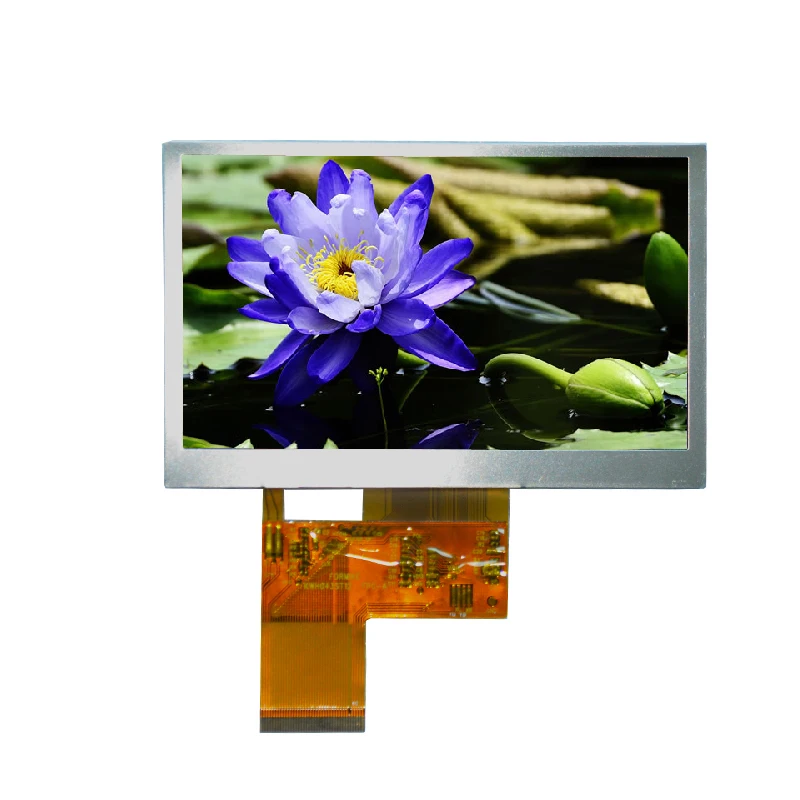

Product Description
No. | Item | Specification | Unit |
1 | Panel size | 4.3 | inch |
2 | Number of Pixels | 480(H)*3(RGB)*272(V) | Pixels |
3 | Active area | 95.04(W)x53.86(H) | mm |
4 | Pixels pitch | 0.198(W)x0.198(H) | mm |
5 | Module outline | 105.4x67.2x2.6 | mm/ |
6 | Pixels arrangement | RGB vertical stripe | / |
7 | Display mode | Normally White | / |
8 | Viewing direction | 12 O' Clock | |
9 | Display color | 16.7M | |
10 | Luminance(cd/m2) | 400 typ | Cd/m2 |
11 | Backlight Type | White LED | |
12 | Interface Type | 24bit RGB | |
13 | Input voltage | 3.3 | V |
14 | Operation Temperature | -20~70 | ℃ |
15 | Storage Temperature | -30~80 | ℃ |
Optional with Touch panel and customized your request for Interface and other parameter
Packaging & Shipping
Company Information
FAQ
Q:1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q: 2. What is the lead time for sample?
A: Current sample needs 1-3 days, customized sample needs 7-10 days.
Q: 3. Do you have any MOQ limit?
A: Our MOQ is 100.
Q: 4.How long is the warranty?
A:12 Months.
Q: 5. what express do you often use to send the samples?
A: We usually ship samples by DHL, UPS, FedEx or SF. It usually takes 3-5 days to
arrive.
Q: 6. What's your acceptable payment term?
A: Our usually payment term is T/T. Others can be negotiated.
Q: 7. How to proceed the order if I have logo to print?
A: Firstly, we will prepare artwork for visual confirmation, and next we will produce a real sample for your second confirmation.if sample is ok, finally we will go to mass production.
For more detailed information about our TFT LCD module, please feel free to contact us, we will offer you the specification.
