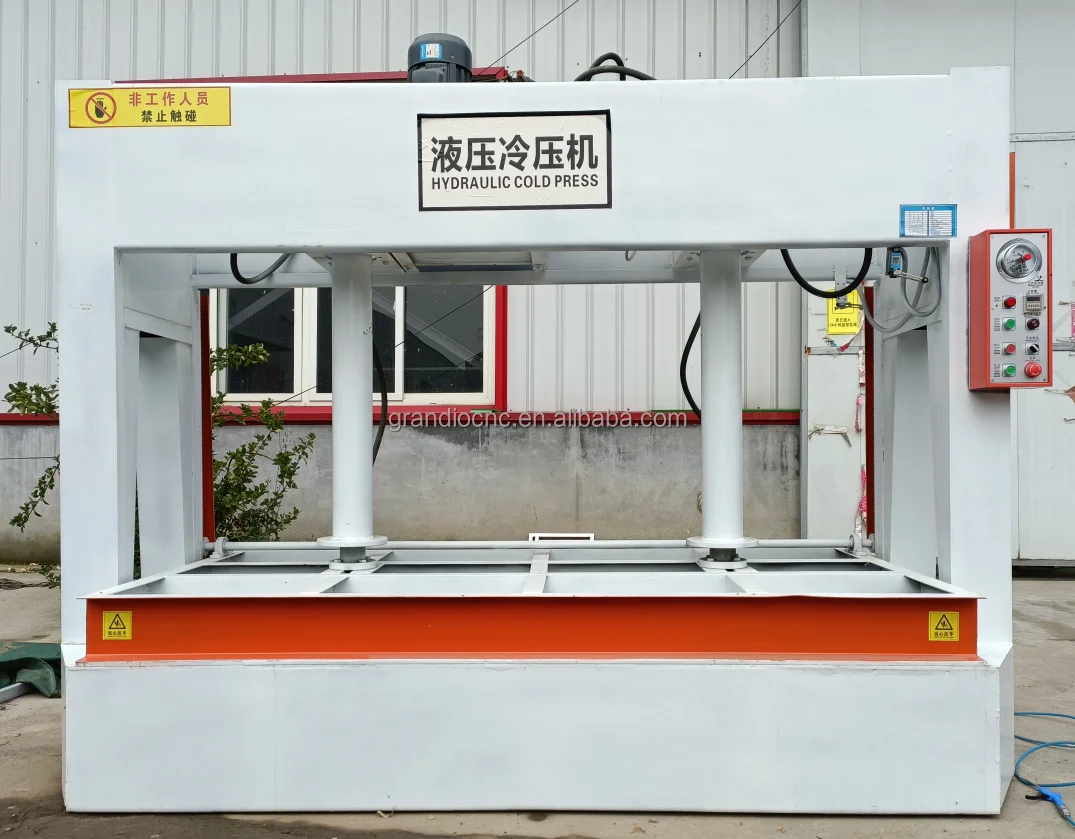

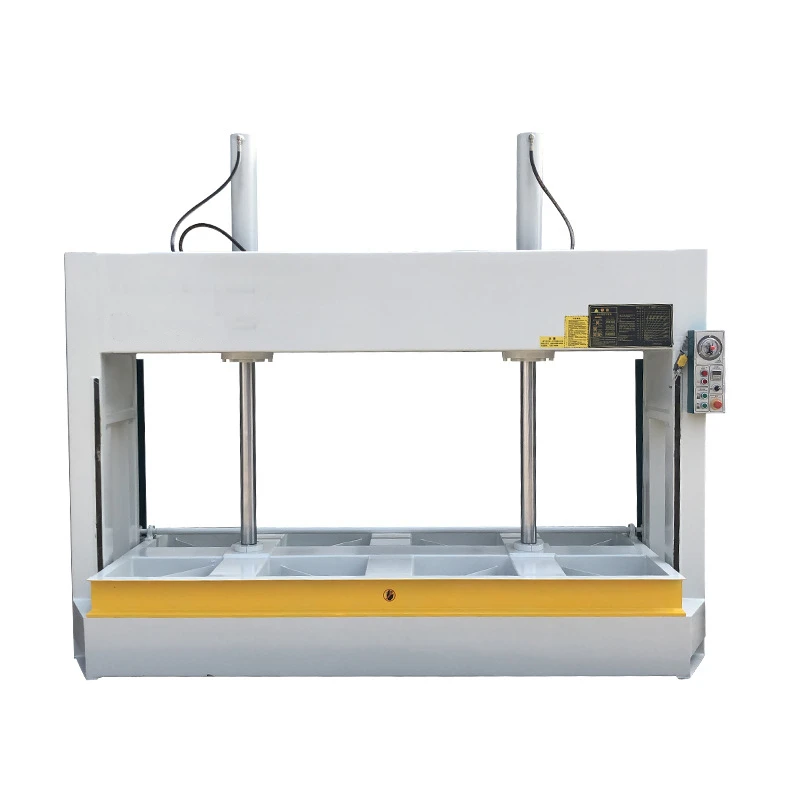

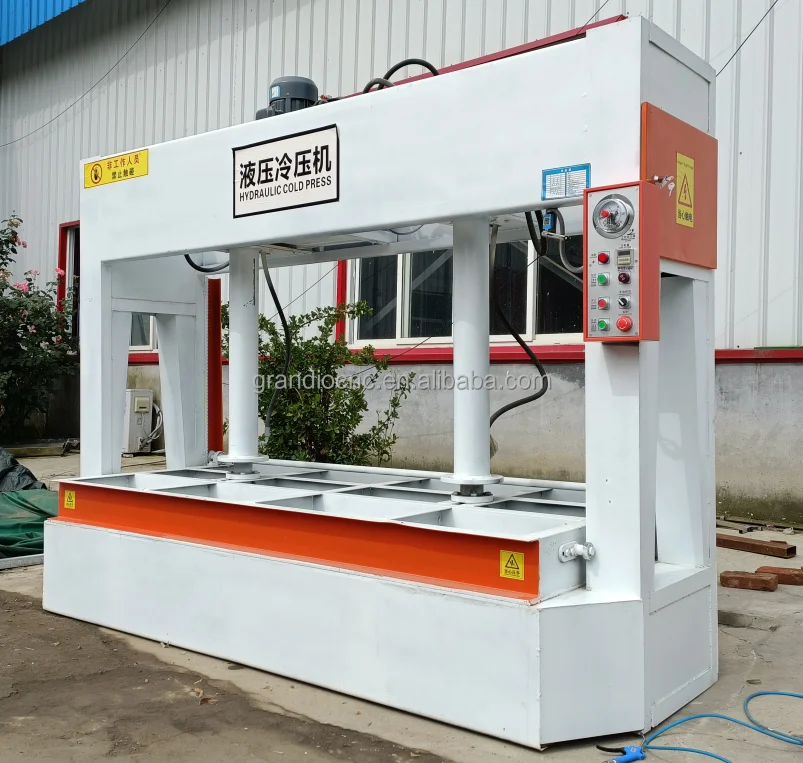

50T Гидравлический холодный пресс автоматический многослойный ДСП для фанеры деревообрабатывающие деревянные
- Категория: Press >>>
- Поставщик: Shandong,Guandiao,CNC,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 2380.20 $* | 2499.26 $* |
| Aug-16-2025 | 2360.44 $* | 2478.37 $* |
| Jul-16-2025 | 1980.46 $* | 2079.36 $* |
| Jun-16-2025 | 2320.29 $* | 2436.45 $* |
| May-16-2025 | 2020.71 $* | 2121.94 $* |
| Apr-16-2025 | 2280.44 $* | 2394.47 $* |
| Mar-16-2025 | 2260.78 $* | 2373.70 $* |
| Feb-16-2025 | 2240.5 $* | 2352.68 $* |
| Jan-16-2025 | 2220.1 $* | 2331.90 $* |
Характеристики
Product Description
APPLICABLE
It is suitable for household board, steel plate and door stone. Honeycomb panels, multi-layer panels, insulation panels and other materials. Used for plate shaping and flattening. But the plates are stronger. Strong pressure
Title goes here.
1.The hydraulic cold press work noise is small, fast lifting speed, strong pressure stability, low maintenance rate.
2.the whole structure is compact, beautiful atmosphere, stable performance, durable.
3.Because foreign voltage different our country's voltage, most domestic manufacturers only change the motor, do not care about other electrical components, when clients using cold presser machine in his factory , the electrical components easy to have fever phenomenon , at last to burn down. Our cold presser will not happen.
4.Working quality to be good, pressing fast and efficient.
5.Easy to operate, reasonable design, stable performance.
Specification
Model (cold press) | 1325 | 1330 | 1350 |
Max. pressure: (T) | 50 | 80 | 100 |
Platen size: mm | 2500*1300 | 3000*1300 | 5000*1300 |
Hydraulic cylinder diameter: mm | 110 | 140 | 140 |
Total power: Kw | 5.5kw | 5.5kw | 5.5kw |
Overall dimension: mm | 3000*1250*2500 | 3500*1300*2500 | 6000*1300*2500 |
Net weight: Kg | 2300 | 2700 | 3500 |
Max. working opening: mm | 1000/1300/1500 | 1000/1300/1500 | 1000/1300/1500 |

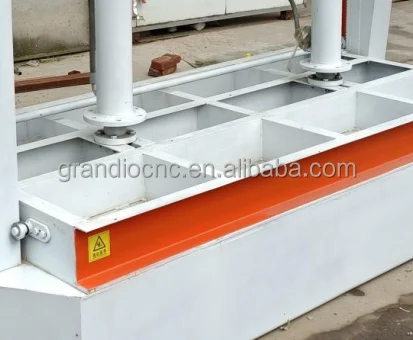

Countertop structure
Welding of the thickened steel plate field structure makes the pressure distribution even, and the quality of the extruded plate
is better. The pressing surface is processed by heavy-duty gantry milling to improve the precision of the pressing plate.
is better. The pressing surface is processed by heavy-duty gantry milling to improve the precision of the pressing plate.
Integrated Oil Cylinder
The integrated oil cylinder can guarantee the long time use without oil leakage, so as to achieve good pressure protection effect
control switch
Push-button operation control panel, equipped with emergency stop switch, display, etc., simple operation, emergency stop after
power failure, safe operation
power failure, safe operation
Company Profile
FAQ
1. This is the first time I buy the machine, is it easy to operate?
A: We provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team
viewer" online, with telephone or Skype explain.
2. Are you a factory or trading company?
A: We are a factory.
3. Can I visit your factory?
A: Yes! We greatly welcome you to visit our factory!
4. What is your MOQ?
A: Our MOQ is 1 set. We could send machine to your country port directly, please tell us your port name.The we can give you a freight for your reference.
A: We provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team
viewer" online, with telephone or Skype explain.
2. Are you a factory or trading company?
A: We are a factory.
3. Can I visit your factory?
A: Yes! We greatly welcome you to visit our factory!
4. What is your MOQ?
A: Our MOQ is 1 set. We could send machine to your country port directly, please tell us your port name.The we can give you a freight for your reference.
Our Service
1.1 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an cost price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery.
If you have any questions about our products, please contact me with no hesitate..
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an cost price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery.
If you have any questions about our products, please contact me with no hesitate..
