adhesive  flow meter oval flow meter manufacturer



SUMMARIZE

The G series gear flowmeter with positive gear.It suitable for high viscosity liquid,It usually used for viscosity >1000CPS and with more higher accuracy performance.

This micro flowmeter with higher resolution than M series,the min resolution is 0.015ml/p,it can satisfy some special applcations.The min flow is 2ml/min(for oil) and 5ml/min(for water)...It also could cooperate with DC8S to get a dosing system(with alarm and display).

FEATURES

• The min flow is 5ml/min(for water),2ml/min(for oil)


• The max resolution is 0.015ml/p


• Widely flow ratio ,max ratio is 1:500


• Two types bear,Ball and PEEK bears for different medium


• High accuracy,standard 0.5%


• Stable Pulse output(with DC8S ,4-20mA,RS485...)


• Low pressure drop and quicklu response time


• Customized for high pressure and high temperature

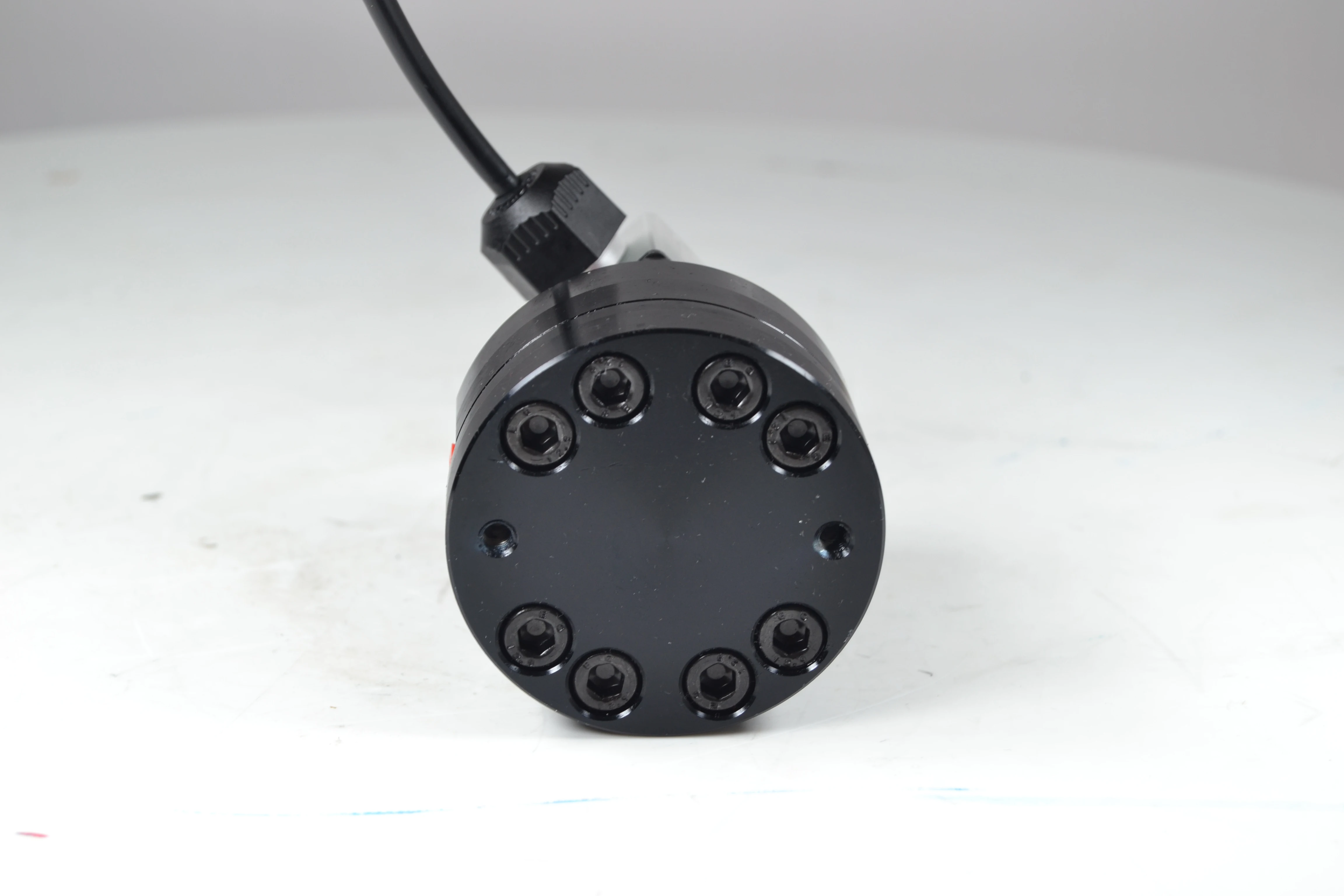

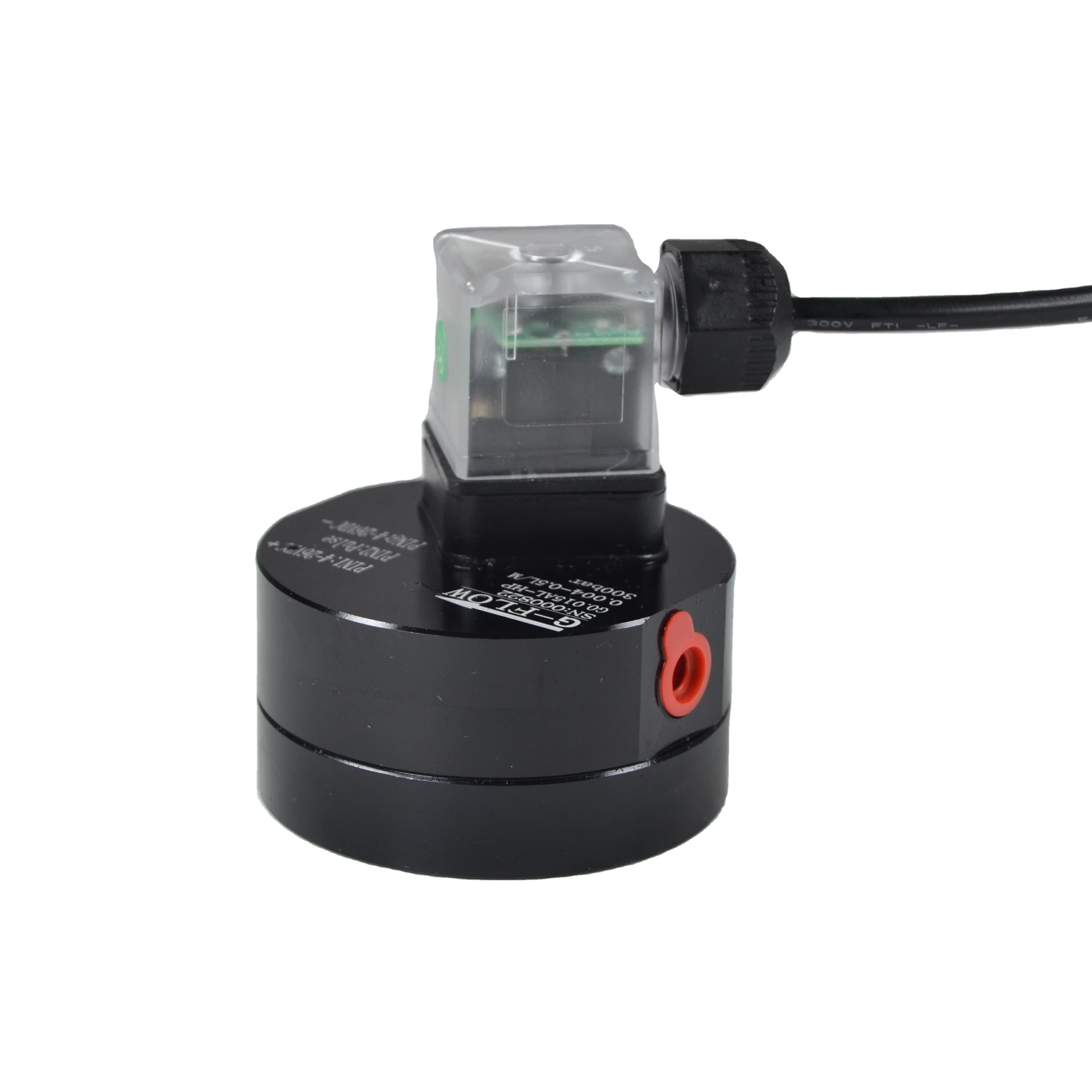

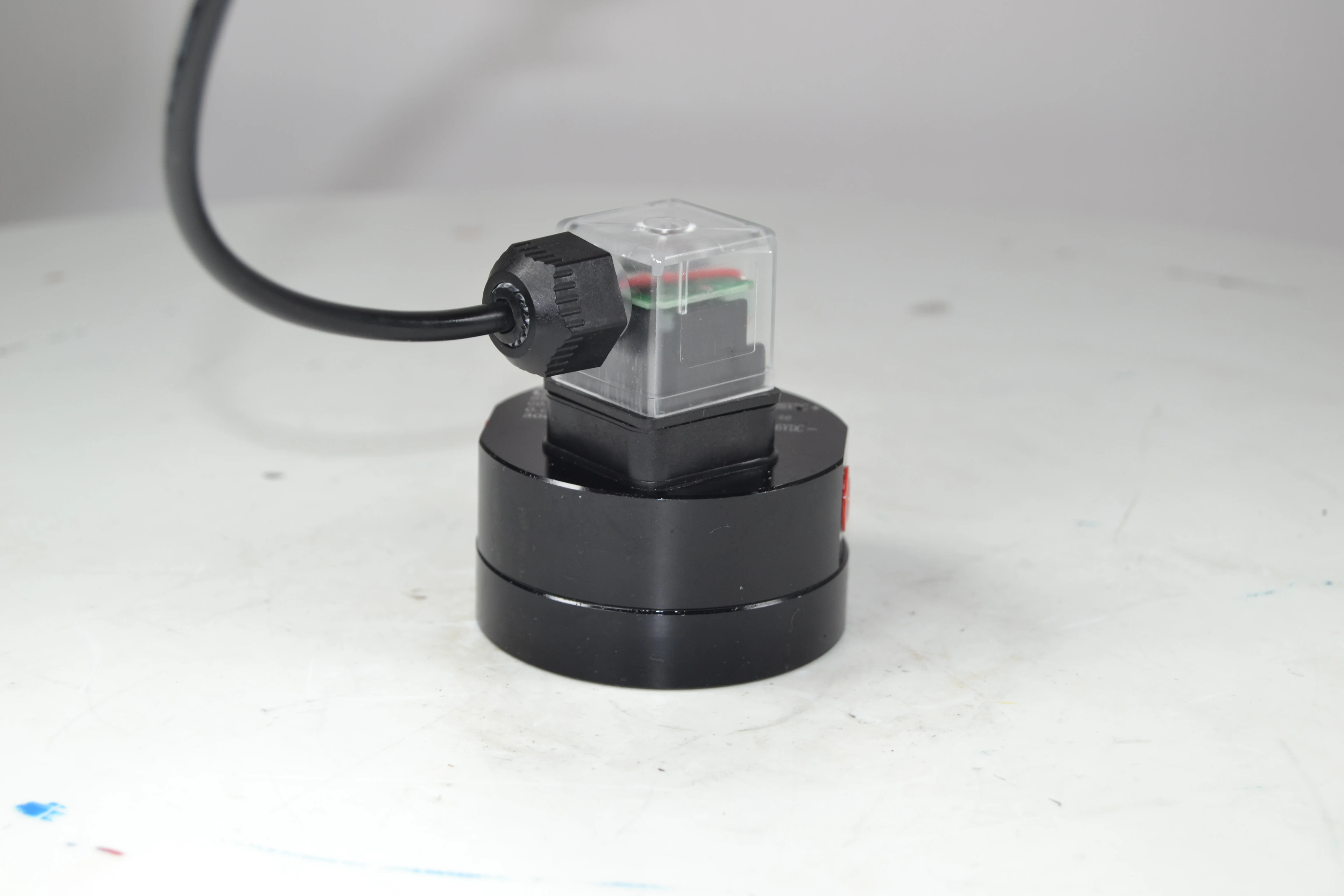

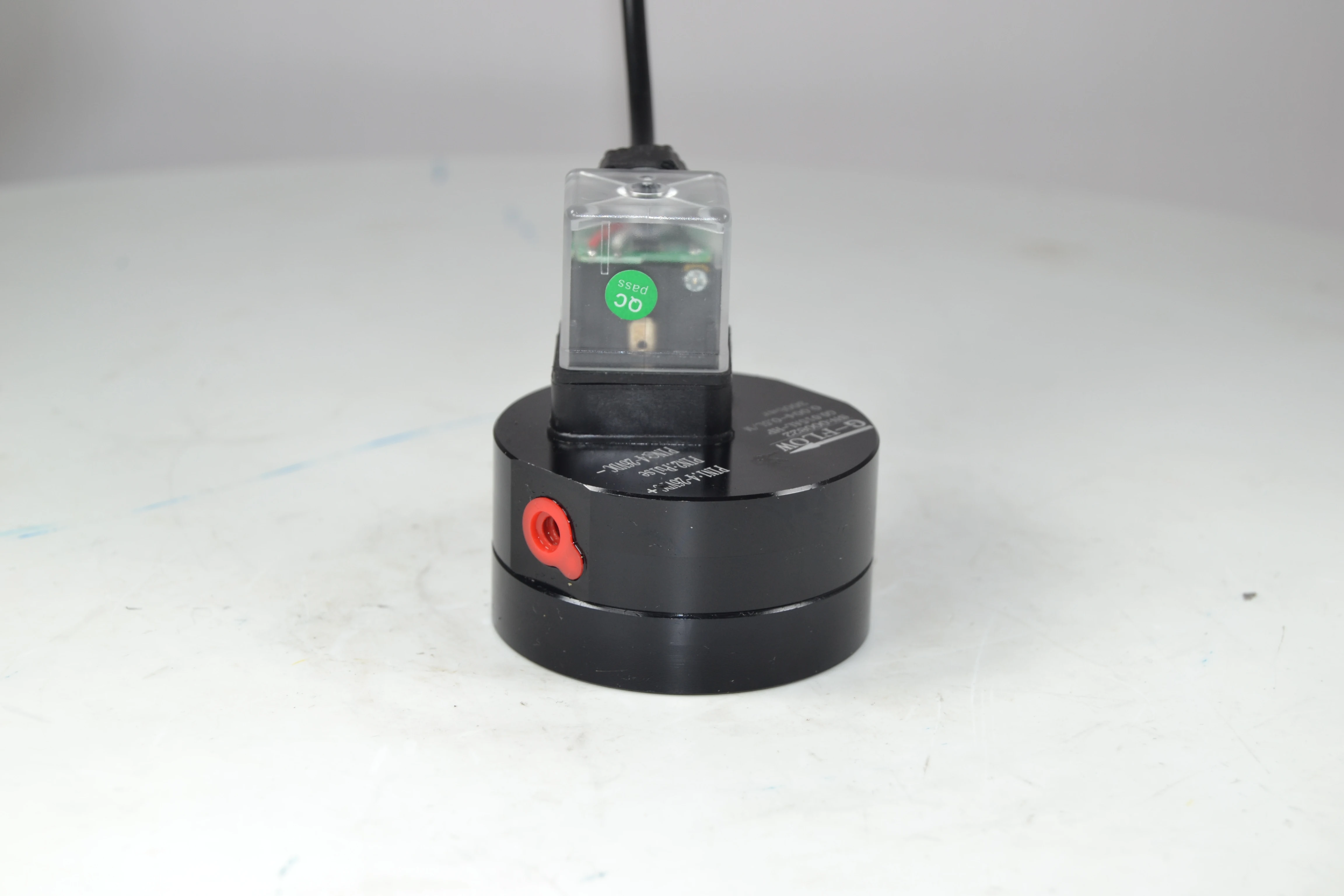

The positive gear micro flowmeter devided to stainless steel and Aluminium material,Based on the good performance,our micro flowmeter could replace the Foreign products.



TECHNICAL

Medium	Suitable for liquid(chemical and weak corrosive liquid)
Accuracy	Standard type is 0.5%
Pressure	Max 50Bar(standard type)
Temperature	-30~80 ℃
Output	Stable Pulse output(4-20mA,RS485 With DC8S)
Power	4-26VDC
Material	Stainless steel 316L and Aluminium
Bear type	Ball and PEEK bear
Connection	Female Thread Connection



01-BALL BEAR TYPES
Model	Pulse Factor	Start Flow	Flow Range	Connection
CX-G0.015	0.015ml/p	0.001 L/min	0.002-1 L/min	G1/8
CX-G0.025	0.025ml/p	0.001 L/min	0.004-2 L/min	G1/8
CX-G0.04	0.04ml/p	0.004 L/min	0.01-4 L/min	G1/4
CX-G0.1	0.01ml/p	0.008 L/min	0.02-8 L/min	G3/8
CX-G0.2	0.02ml/p	0.01 L/min	0.02-8 L/min	G3/8
CX-G0.4	0.4ml/p	0.01 L/min	0.1-40 L/min	G1/2
CX-G1	1ml/p	0.02 L/min	0.2-80 L/min	G1/2
CX-G2	2ml/p	0.04 L/min	0.5-120 L/min	G3/4



02-PEEK BEAR TYPES
Model	K factor	Start Flow	Flow Range	Connection
CX-G0.025	0.025ml/p	0.001 L/Min	0.008-1 L/min	G1/8
CX-G0.04	0.025ml/p	0.004 L/min	0.02-2 L/min	G1/4
CX-G0.1	0.025ml/p	0.008 L/min	0.04-4 L/min	G3/8
CX-G0.2	0.245ml/p	0.01 L/Min	0.16-8 L/min	G3/8
CX-G0.4	0.4ml/p	0.01 L/Min	0.2-20 L/min	G1/2
CX-G1	0.4ml/p	0.02 L/Min	0.4-40 L/min	G1/2
CX-G2	2ml/p	0.04 L/Min	0.4-40 L/min	G3/4



APPLICATION&CLIENTS

The gear micro flowmeter with widly applications,Beacuse of it can test the min flow for liquid(Min:5ml/min),It used for more test and control system.

It more used for Common rail inject test bench;Dispenser;glue;oil;hydraulic oil system for leak;Dosing system(with DC8S) and Customized for high pressure and high temperature...



In this years,Our positive gear micro flowmeter,Get more positive feedback from market and clients.We have more clients from all over the world,Usually,our clients come to our office in SHANGHAI.We thank for your trust and give us many positice suggestions to improve the performance of micro flow meter...We believe we could provide the better service for you...
