Датчик уровня жидкости FOXBORO 244LD высокого давления и


Поделиться:


Цена:2 149,00 $ - 2 219,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-15-2025 2729.98 $* 2784.68 $*
Jul-15-2025 2213.88 $* 2257.4 $*
Jun-15-2025 2686.93 $* 2740.59 $*
May-15-2025 2665.83 $* 2718.90 $*
Apr-15-2025 2128.95 $* 2171.67 $*
Mar-15-2025 2622.61 $* 2674.96 $*
Feb-15-2025 2600.54 $* 2652.80 $*
Jan-15-2025 2579.15 $* 2631.6 $*

Характеристики



Product Description

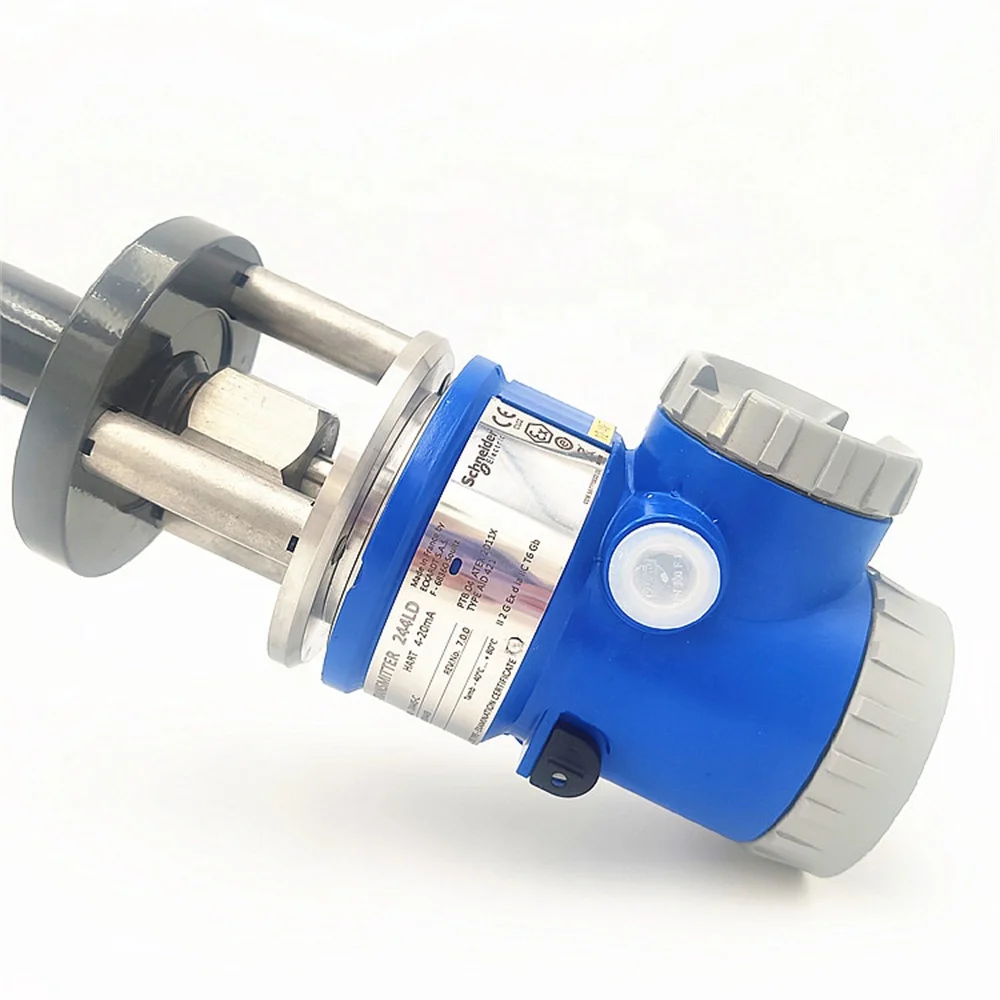

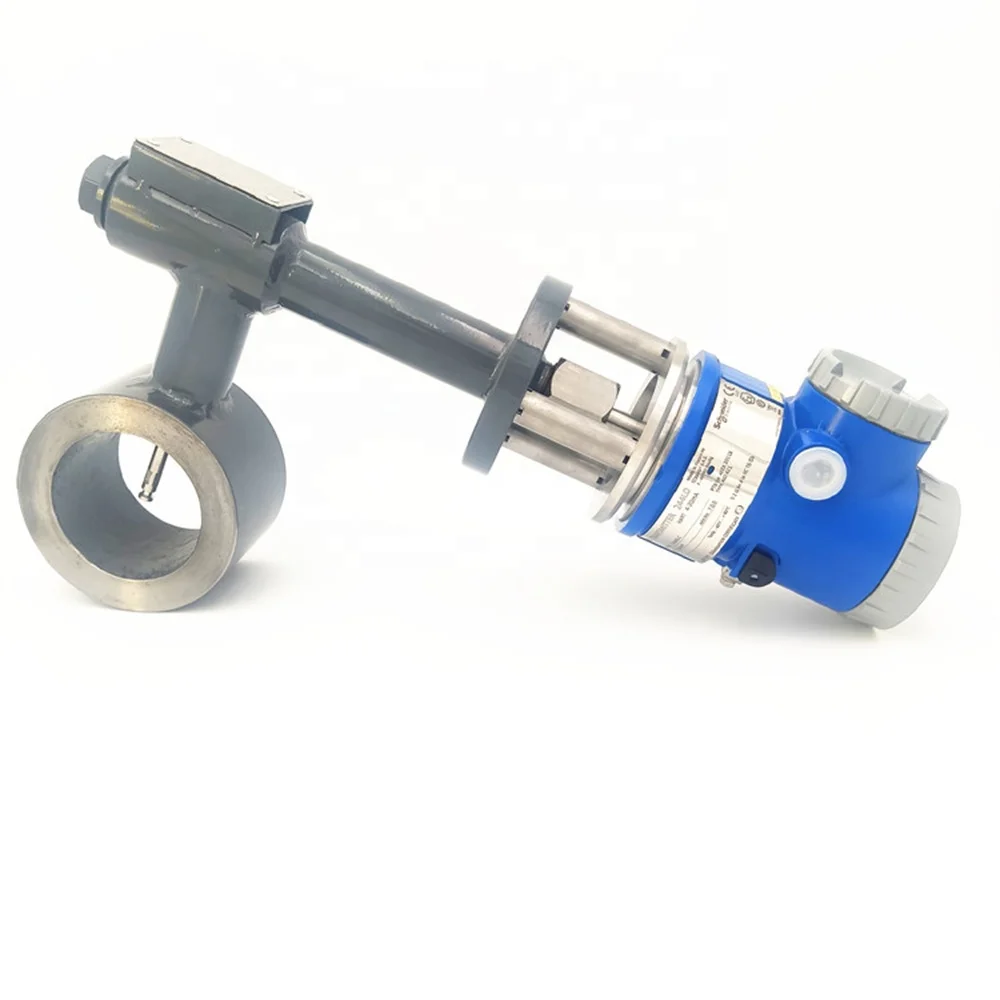

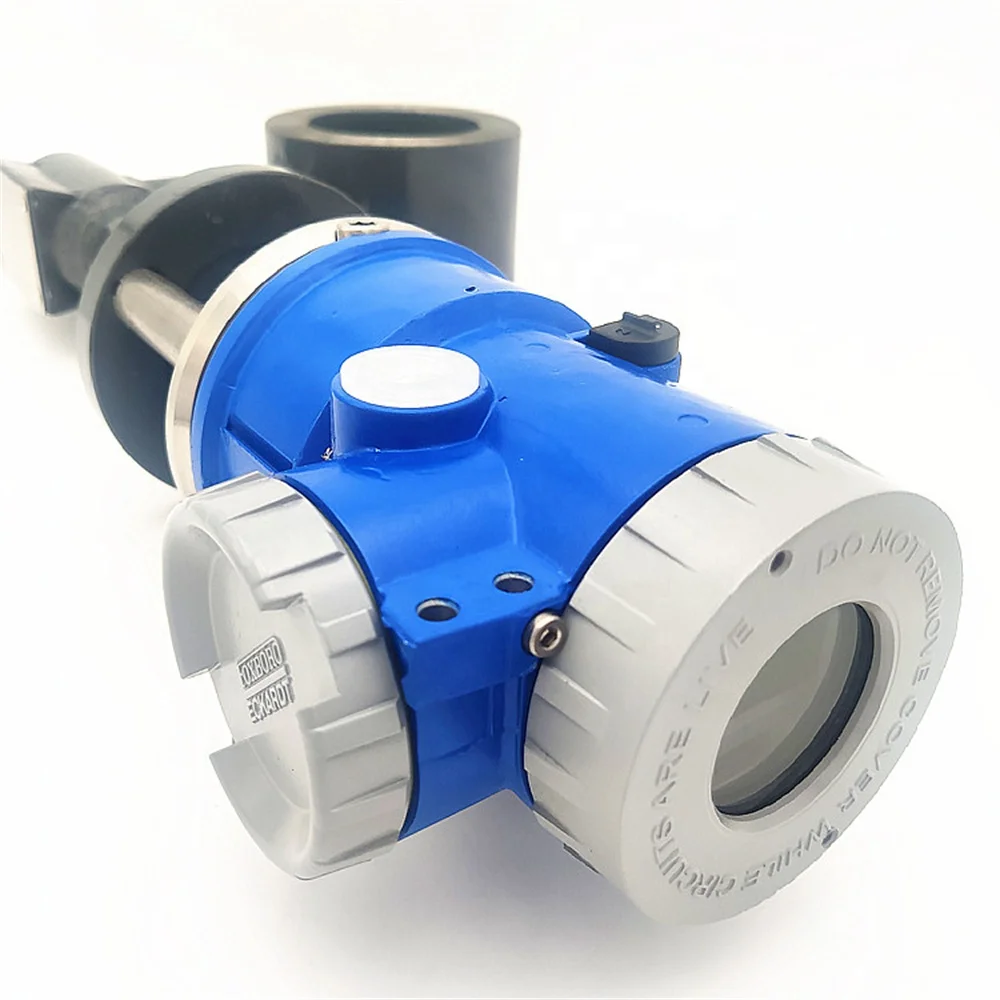

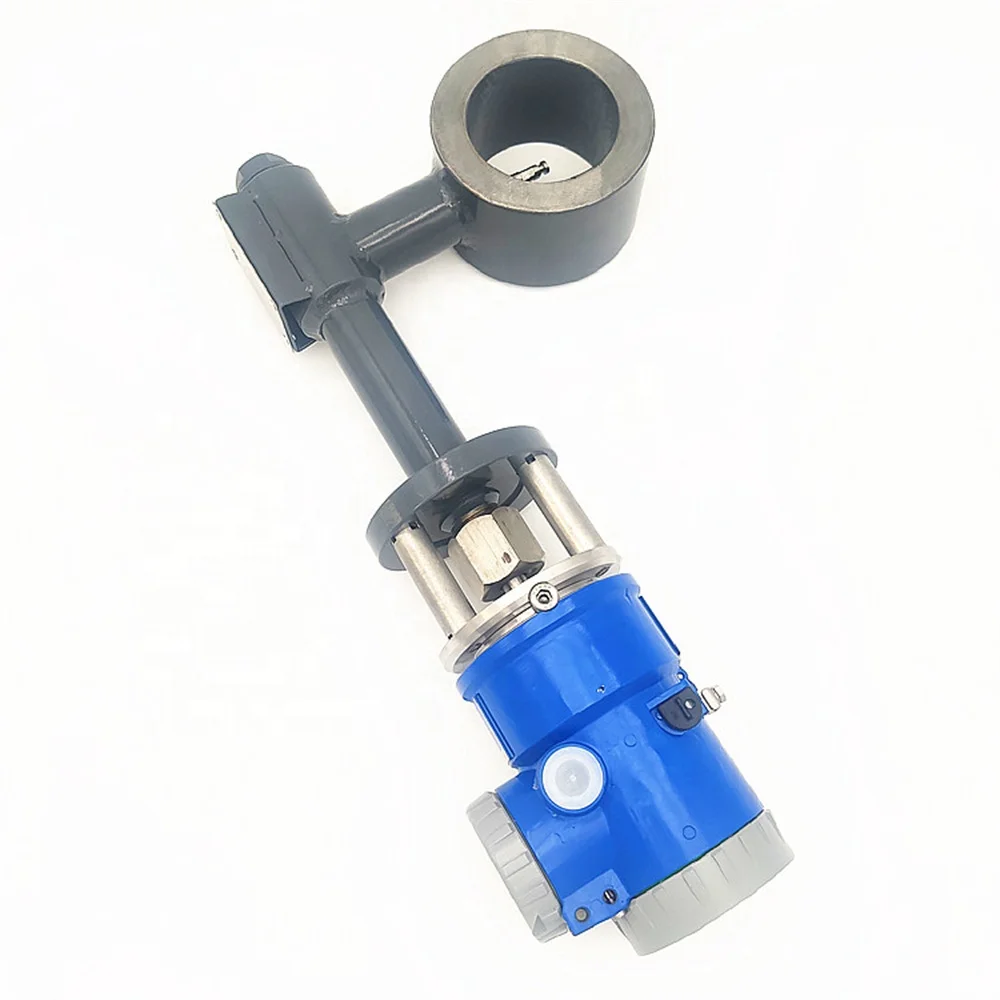

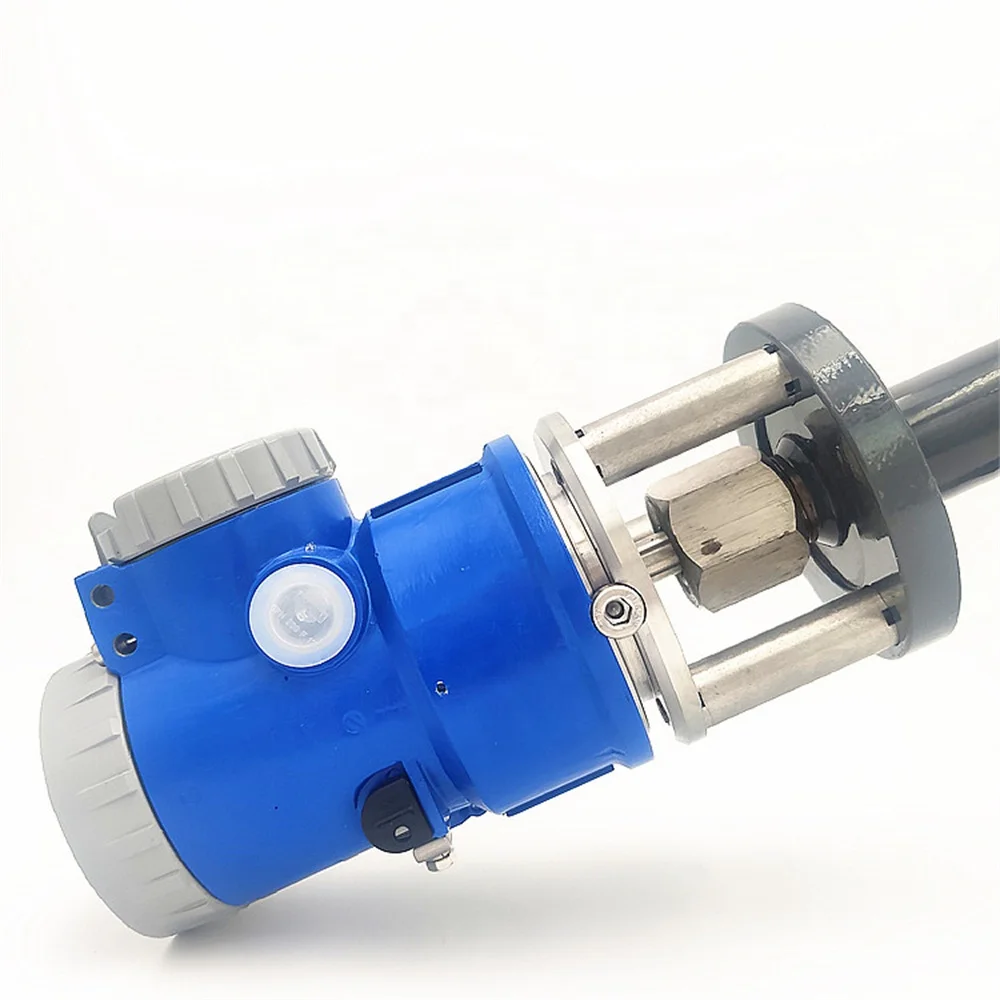

Displacer Liquid level (Interface) transmitter with 244LD Level Star

The transmitter is suitable to continuously measure liquid level, interface level, or liquid specific gravity (density). Based on scientifically proven Archimedes’ Principle of Buoyancy, the measurement is robust and durable. Measured values can be either analog or digital transmitted. The way of digital communication makes it easy to operate and set via a PC or control system. Even under environment of extreme temperature, high process pressure or corrosive liquids applications, 244LD Levelstar can still keep reliable and high accurate measurement. Installation and use in explosive atmospheres has been fully proved. 244LD Levestar is the perfect mix of rich experience and the most sophisticated digital technology of FOXBORO ECKARDT.

Features:
HART communication, 4-20mA output
Configuration via FDT-DTM
Conventional operation with local keys
Easy adaptation to the measuring point without calibration at the workshop
Backdocumentation of measuring point
Continuous self-diagnostics
Configurable safety value
Software lock for local keys and reconfiguration
Approved for SIL applications
Simulation of analog output for loop-check
Local full graphic display in %, mA or physical units
Signal noise suppression by Smart Smoothing
Linear or customized characteristic
Process temperature from -196℃ to +400℃
Materials for use with aggressive media
Micro sintermetal sensor technology
Seperate mounting of sensor and amplifier with remote amplifier mounting kit







Product Paramenters


Measuring range: 300mm to 6000mm (Upper and lower range value can be adjustable on request)
Accuracy: +/-0.2%, 0.5%, 1.0%
Power supply: 12 to 42V
Output signal: Analogue, 4-20 mADC
LCD display: 5 digits LCD display configurable as analogue mA, % or physical unit
Load resistance: 700Ω (24V DC power supply)
Min. differential density: 0.05g/cm3
Operating pressure (MPa): 2.5 to 42.0MPa
Operating temperature: -196 to +400℃
Ambient temperature: -40 to +80℃
Protection: IP65

Safety requirements
Intrinsically safe: Ex d ia IIB/ IIC T4/ T6 Ga/ Gb
Explosion isolation: Ex d IIB/ IIC T4/ T6 Gb
Electrical connections: 1/2’’NPT FM * 2

Process connection
Top-mounted type: Using flange standard of HG/ T20592- 20635-2009 or ANSI with flange nominal size at least DN80 or 3’’ (Smaller flange size has to be consulted before ordering)
Side-side mounted type: Using flange standard of HG/ T20592- 20635-2009 with flange nominal size at least DN20 (Other standards of flange such as GB, JB/ T, HGJ, ANSI, DIN, etc. has to be noted before ordering)
Heating jacket: DN15/ PN1.0/ RF (Other size can be made on request)


Overall Dimensions








Related Products

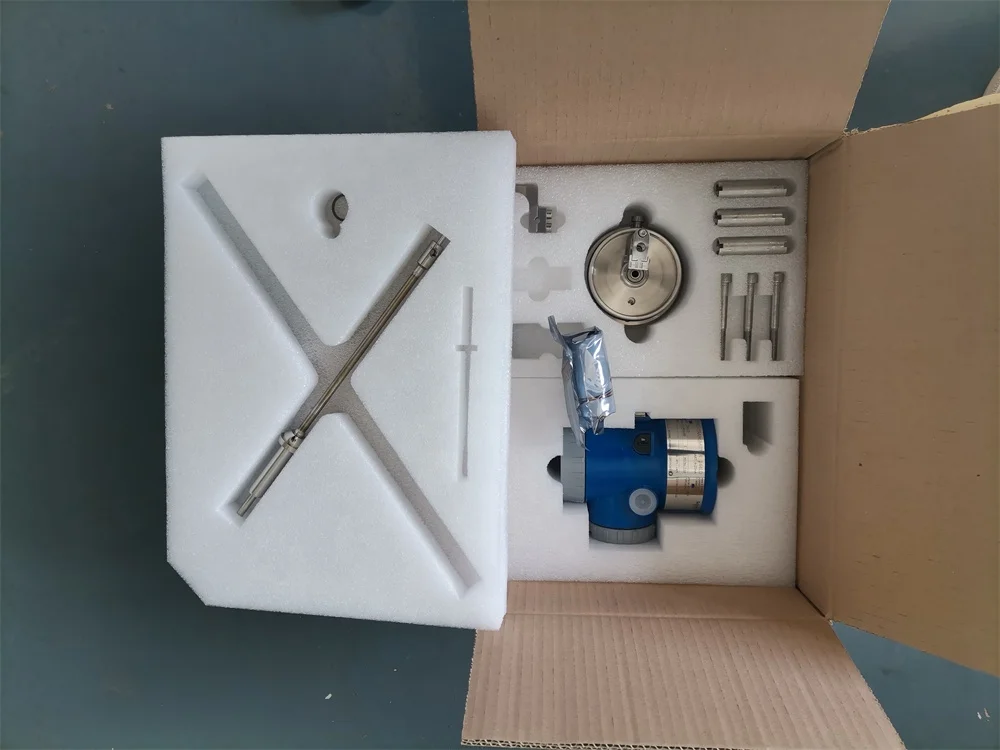

Packing&Shipping


Carton boxes or on request




Company Introduction


Dandong Virtue River Technology Co., Ltd. is a professional supplier for providing customers all around world a variety of instruments, such as level transmitters including radar level transmitters, ultrasonic level transmitters, displacer level transmitters, magnetostrictive level transmitters, magnetic level indicators, and other level gauges, RF admittance solid level switches, etc. also different kinds of flowmeters, pressure sensors, smart power meters, motor protectors, and agricultural machines.

We are now also engaged in IOT control platform for many different industries such as animal feeding, water level monitoring and control etc.

We always have one basic objective: to provide innovative, market leading and reliable products to customers all around the world.

“Share win-win with virtue” is our core philosophy. We have been building up a leading import & export platform of mechanical & electrical products for companies both in China and foreign countries. We are working hard with virtue!

Here we provide some photos of our company to show our services & strength.




Order Guide & FAQ


Order Guide



Medium name
Medium state
◊ Liquid
◊ Solid
Solid type
◊ Lump
◊ Particles
◊ Powder
◊ Fly ash
Measuring range
                   mm
Process temperature ℃
Process pressure kg/cm2
Process connection flange size
Mounting nozzle dia & height
Communication protocol
◊ HART
◊ RS485
◊ N/ A
Exproof type
 ◊ Ex ia (Intrinsically safe)
◊ Ex d (Explosion isolation)
◊ N/ A
Cable entry type
◊ M20*1.5
◊ 1/2’’ NPT


FAQ

1.About Price:
The price is based on the functions on request, and also it is negotiable.
It can be changed according to the quantity in one PO. When you are making an inquiry, please let us know the quantity in demand.

2.About sample:
Sample is available with special discount.

3.About MOQ:
The MOQ for all different types of our level transmitters is 1 unit.

4.About OEM:
Welcome, you can select one color from our existing housing color collections, which is free of charge. You can also design your own housing color, which may be chargeable depending on the quantity. The nameplate information can be put on your requirement with your LOGO.

5.About warranty:
We are very confident in our products, and we pack them very well, so usually you will receive your order in good condition. The warranty period is 18 months from date of delivery or 12 months upon arrival.

6.About technical service:
We provide positively technical support for necessary documents or drawings in need, and also prompt response for any problem at the working site. We also offer technical
assistance in efficient ways.

7.About payment or other questions:Please contact with us in details.
