Блок кондиционирования воздуха 20 кВт для гибридных систем охлаждения ветра и солнечной
- Категория: Refrigeration & Heat Exchange Equipment >>>
- Поставщик: Wuxi,Landking,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 4855.63 $* | 5098.36 $* |
| Aug-16-2025 | 4814.19 $* | 5055.33 $* |
| Jul-16-2025 | 4039.11 $* | 4241.97 $* |
| Jun-16-2025 | 4733.2 $* | 4970.39 $* |
| May-16-2025 | 4121.66 $* | 4327.11 $* |
| Apr-16-2025 | 4651.18 $* | 4884.40 $* |
| Mar-16-2025 | 4610.26 $* | 4841.41 $* |
| Feb-16-2025 | 4570.97 $* | 4799.10 $* |
| Jan-16-2025 | 4529.40 $* | 4755.9 $* |
Характеристики
Product Overview
Indoor Floor-Standing Mounting Model
* Remote measuring, remote communication, remote control, which can realize multiple automatic protection and comprehensive self-testing function;
* Strict process control and famous brand components to ensure high quality and reliability of this product;
* Fit for harsh condition (T1), R410A refrigerant ;
* Multiple self-protection design , RS485 communication port (MODBUS-RTU protocol);
* Liquid crystal display, all the settings can be changed at the field;
* Dry contact alarm output, NO/NC optional;
* Strict process control and famous brand components to ensure high quality and reliability of this product;
* Fit for harsh condition (T1), R410A refrigerant ;
* Multiple self-protection design , RS485 communication port (MODBUS-RTU protocol);
* Liquid crystal display, all the settings can be changed at the field;
* Dry contact alarm output, NO/NC optional;
Technical Parameters
Cooling Capacity L27/L35 | 20 KW |
Product Mode | LCA200DS |
Dimension | 800*650*2100 mm |
Mounting Method | Floor Standing/Sided |
Working Temperature | -25~+45℃ |
Rated Voltage | 380V±10% 50Hz |
Power Consumption L27/L35 | 8.5 KW |
Heating | 9 KW |
Airflow | 6000m³/h |
IP Grade | IP 55 |
Refrigerant | R410A |
Noise | 75dB(A) |
Weight | 320 kg |
Customized Specification
Cooling Capacity L27/L35 | 5 KW | 7.5 KW | 7.5 KW |
Product Mode | LCA050DA | LCA075DA | LCA075DS |
Certificate | CE | CE | CE |
Dimension (without flange) | 1850*650*650 MM | 1850*650*650 MM | 1850*650*650 MM |
Mounting Method | Floor Standing/Embeded | Floor Standing/Embeded | Floor Standing/Embeded |
Working Temperature | -25~+45℃ | -25~+45℃ | -25~+45℃ |
Input Voltage | AC 220V±15% 50Hz | AC 220V±15% 50Hz | AC 380V±10% 50Hz |
Heating | 2 KW | 2 KW | 2 KW |
Power Consumption L27/L35 | 2050W | 3200W | 3200W |
Air Flow | 3000 M3/h | 3000 M3/h | 3000 M3/h |
IP Grade | IP 55 | IP 55 | IP 55 |
Noise | 70 dB(A) | 70 dB(A) | 70 dB(A) |
Weight | 210 kg | 210 kg | 220 kg |
Cooling Capacity L27/L35 | 1.25 KW | 1.5 KW | 20 KW |
Product Mode | LCA125DS | LCA150DS | LCA200DS |
Certificate | CE | CE | CE |
Dimension (without flange) | 1850*800*650 MM | 1950*800*650 MM | 2100*800*650 MM |
Mounting Method | Floor Standing/Embeded | Floor Standing/Embeded/Sided | Floor Standing/Sided |
Working Temperature | -25~+45℃ | -25~+45℃ | -25~+45℃ |
Input Voltage | AC 380V±10% 50Hz | AC 380V±10% 50Hz | AC 380V±10% 50Hz |
Heating | 3 KW | 6 KW | 9 KW |
Power Consumption L27/L35 | 5500W | 6500W | 8500W |
Air Flow | 4000 M3/h | 5500 M3/h | 6000 M3/h |
IP Grade | IP 55 | IP 55 | IP 55 |
Noise | 70 dB(A) | 75 dB(A) | 75 dB(A) |
Weight | 260 kg | 290 kg | 320 kg |
Cooling Capacity L27/L35 | 25 KW | 30 KW |
Product Mode | LCA250DS | LCA300DS |
Certificate | CE | CE |
Dimension (without flange) | 1000*900*2200 MM | 1000*900*2200 MM |
Mounting Method | Floor Standing | Floor Standing |
Working Temperature | -25~+45℃ | -25~+45℃ |
Input Voltage | AC 380V±10% 50Hz | AC 380V±10% 50Hz |
Heating | 12 KW | 12 KW |
Power Consumption L27/L35 | 8500W | 8500W |
Air Flow | 8000 M3/h | 10000 M3/h |
IP Grade | IP 55 | IP 55 |
Noise | 80 dB(A) | 80 dB(A) |
Weight | 400 kg | 450 kg |

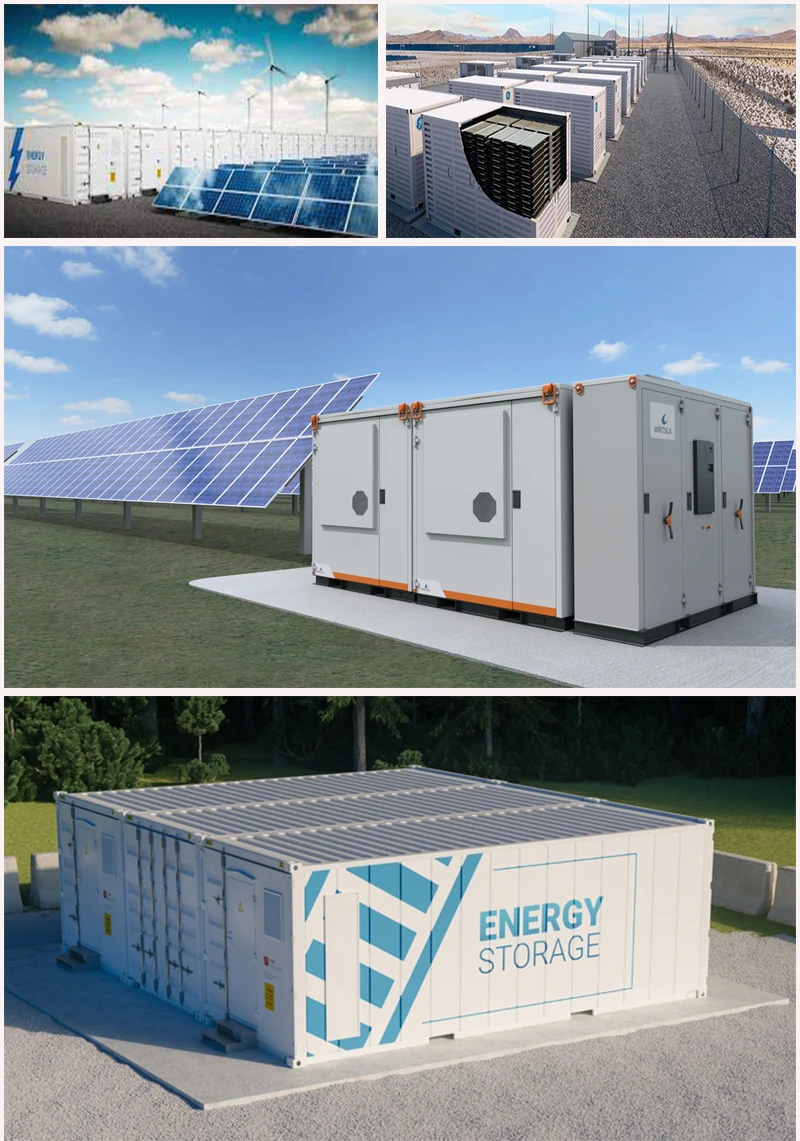

Application Scenario

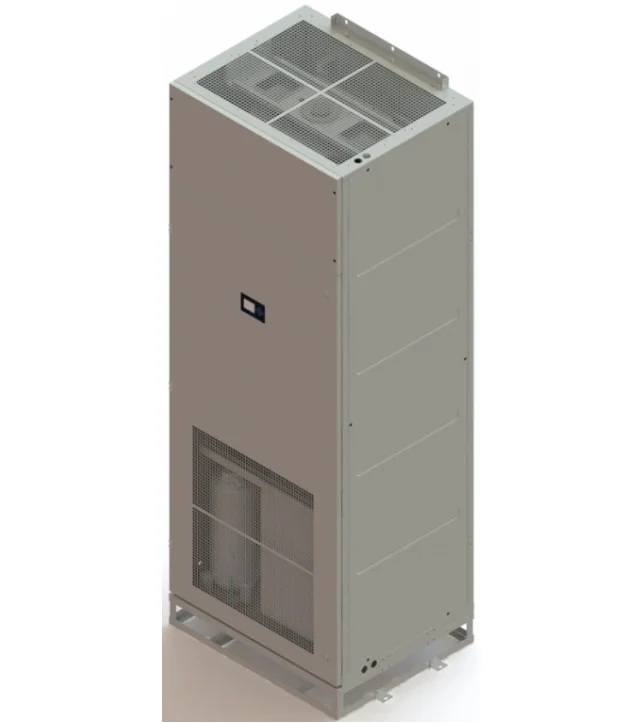

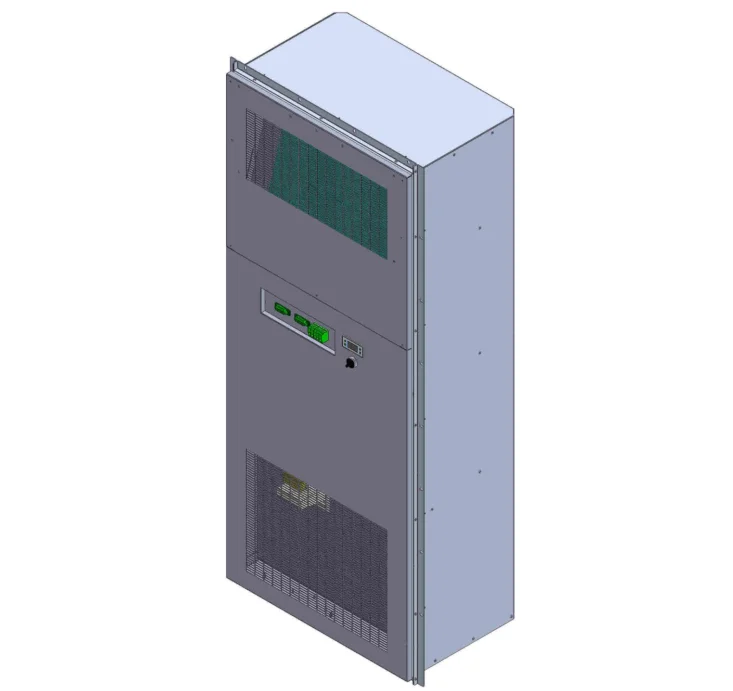

Details Images ( For reference only)
Packing Details
Company Profile
Certifications
