Австралия Германия Великобритания Япония Канада Лидер продаж ванадиевый Редокс 2 5 кВт/ч система хранения
- Категория: Uninterruptible Power Supply (UPS) >>>
- Поставщик: Jinan,Jiurong,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 14280.61 $* | 14994.56 $* |
| Aug-17-2025 | 14160.75 $* | 14868.41 $* |
| Jul-17-2025 | 11880.50 $* | 12474.9 $* |
| Jun-17-2025 | 13920.39 $* | 14616.48 $* |
| May-17-2025 | 12120.46 $* | 12726.98 $* |
| Apr-17-2025 | 13680.16 $* | 14364.74 $* |
| Mar-17-2025 | 13560.95 $* | 14238.19 $* |
| Feb-17-2025 | 13440.28 $* | 14112.98 $* |
| Jan-17-2025 | 13320.61 $* | 13986.49 $* |
Характеристики

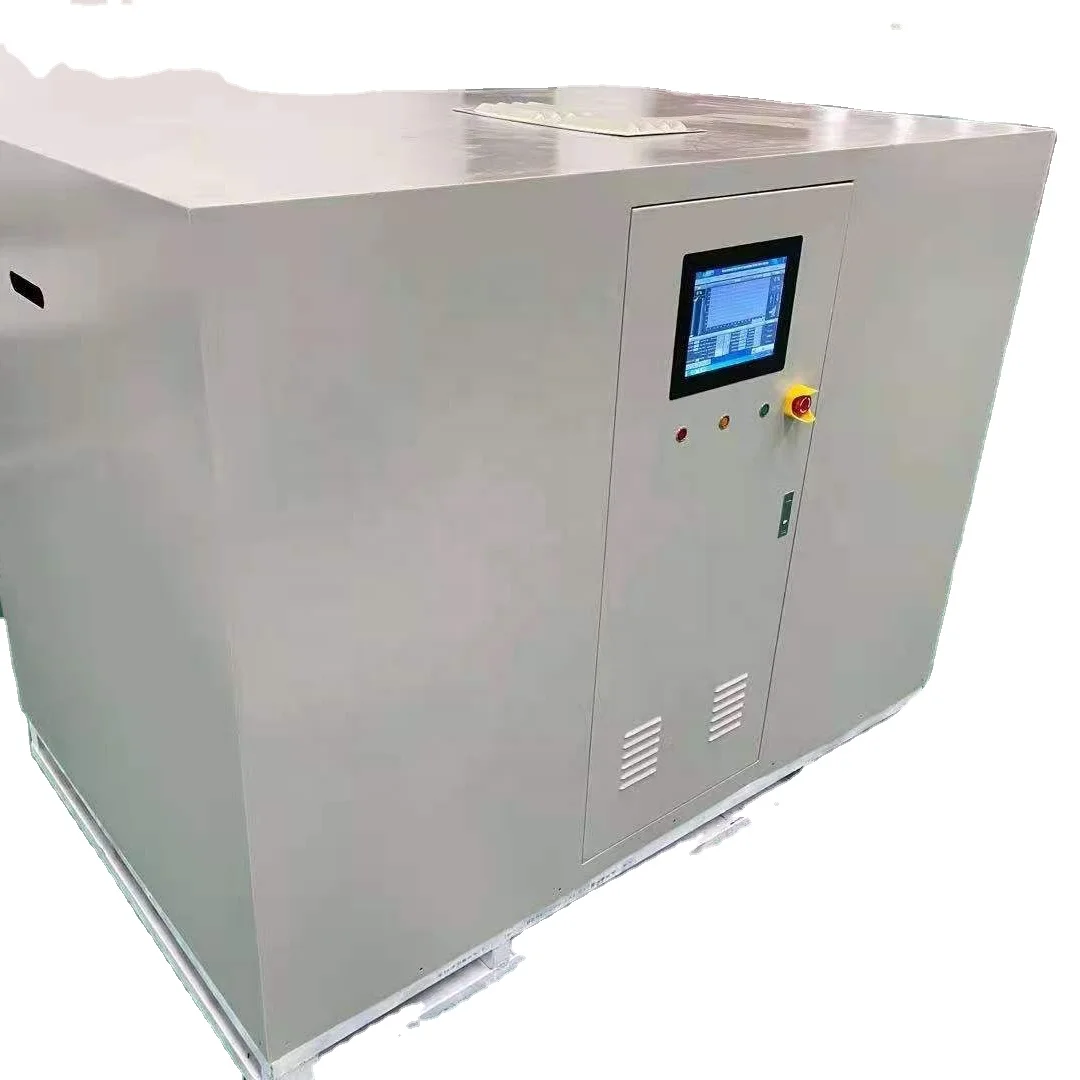

Specification of integrated VRB Energy Storage System
PV Compatible Parameter | |
Max Power (kW) | 6 |
Rated Power (kW) | 5 |
Input Voltage Range (Vdc) | 90-580 |
MPPT Voltage Range (Vdc) | 125-550 |
Max. Input Current (A) | 11 |
DC Overcurrent protection (A) | 15 |
Number of MPPT Inputs | 2 |
Battery Parameter | |
Type of battery | Vanadium Redox flow Battery |
Rated Voltage (Vdc) | 48 |
Voltage Range (Vdc) | 40-60 |
Rated Power (kW) | 2.5 |
Rated Energy (kWh) | 10 |
AC Output | |
Rated Power (kW) | 5 |
Output Voltage (Vac) | 230Vac (P-N) |
Output Frequency (Hz) | 50/60 |
Max. Output Current (A) | 22.8A (P-N) |
AC Input | |
Grid Voltage (Vac) | 170-280Vac (P-N) |
Grid Frequency (Hz) | 50/60 |
Grid Power Input (kW) | 6 |
System Parameter | |
Environment Temperature (℃) | 5 ~ 35 |
Protection Level | IP20 |
Communication | WiFi , GPRS , RS485 , CAN |
Dimensions (with*depth*height) (mm) | 1750*1150*1300 |
Weight (kg) | ~ 1000 |
