Характеристики
Products Description

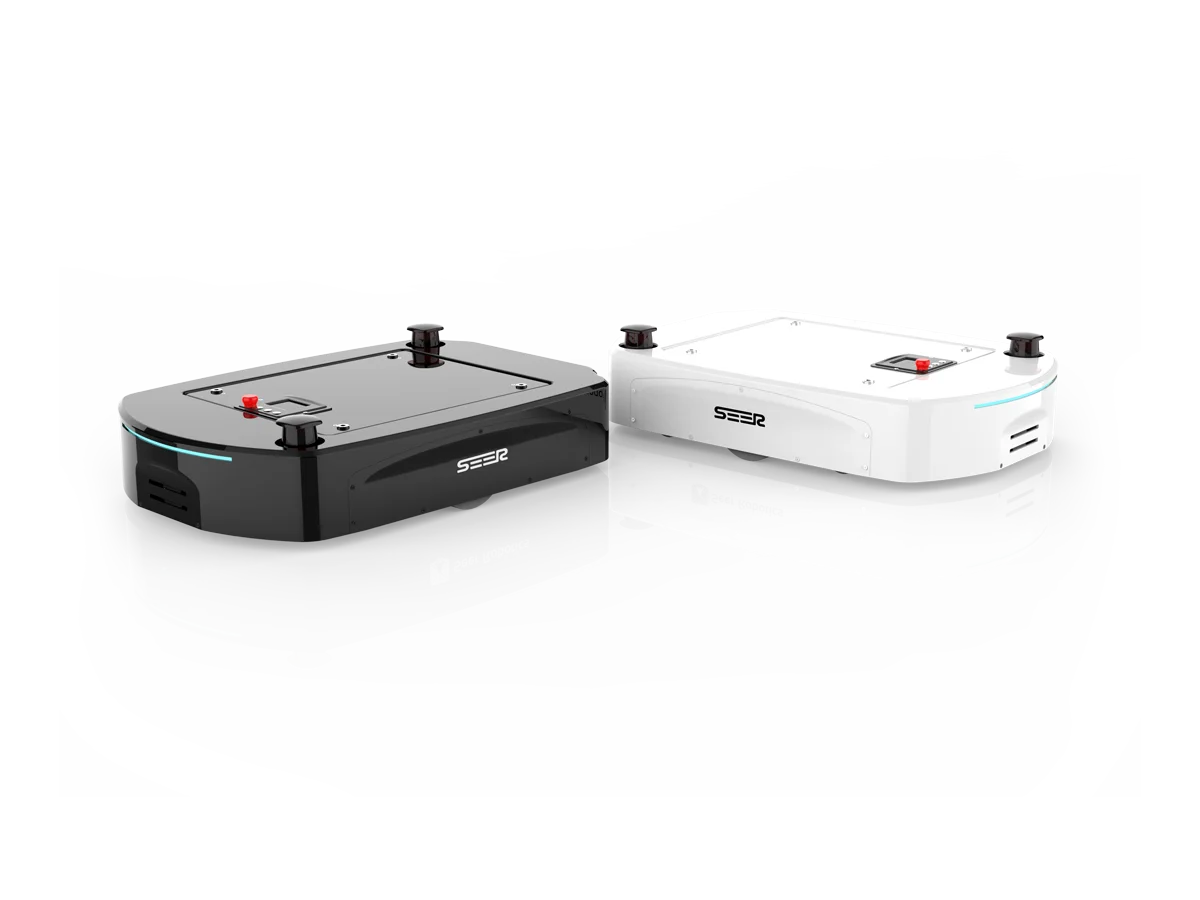

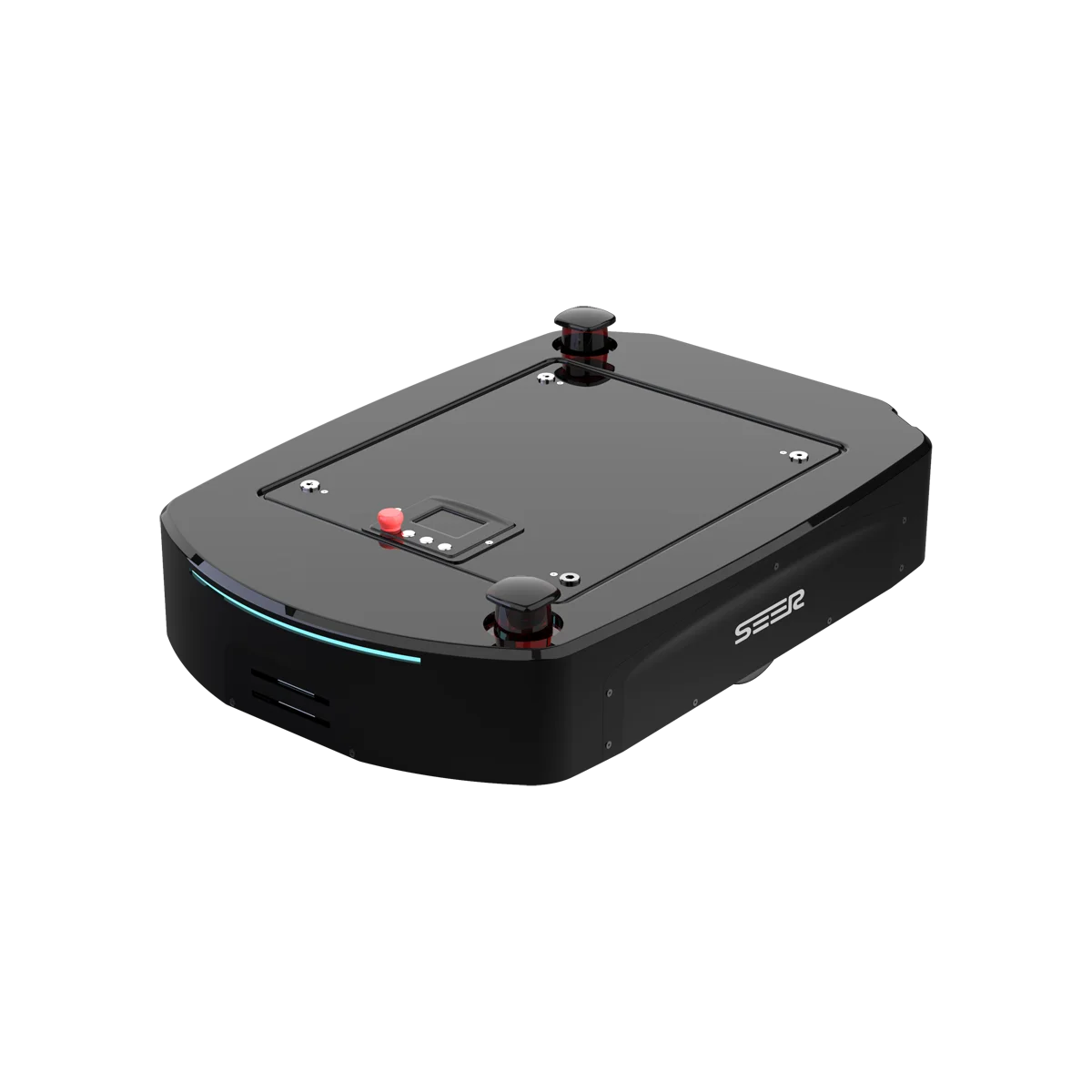

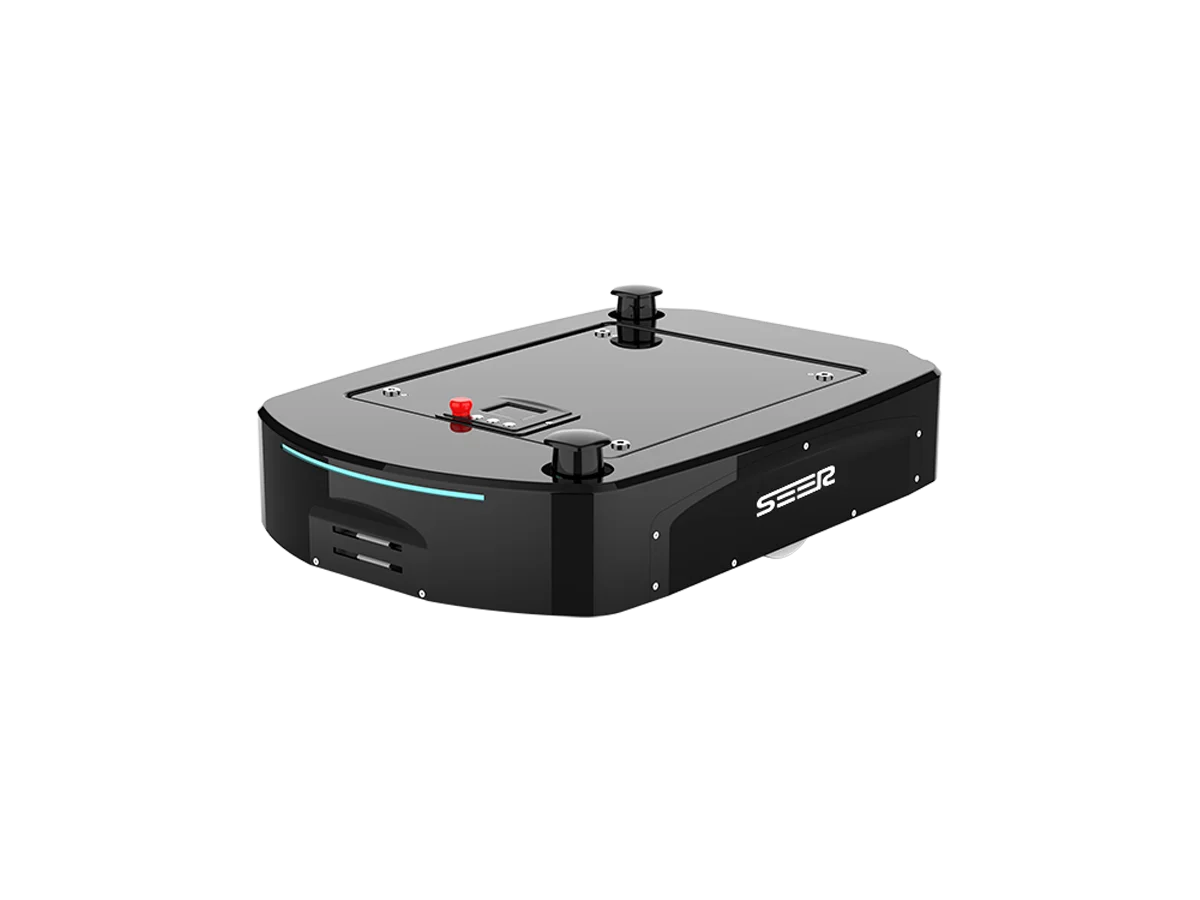

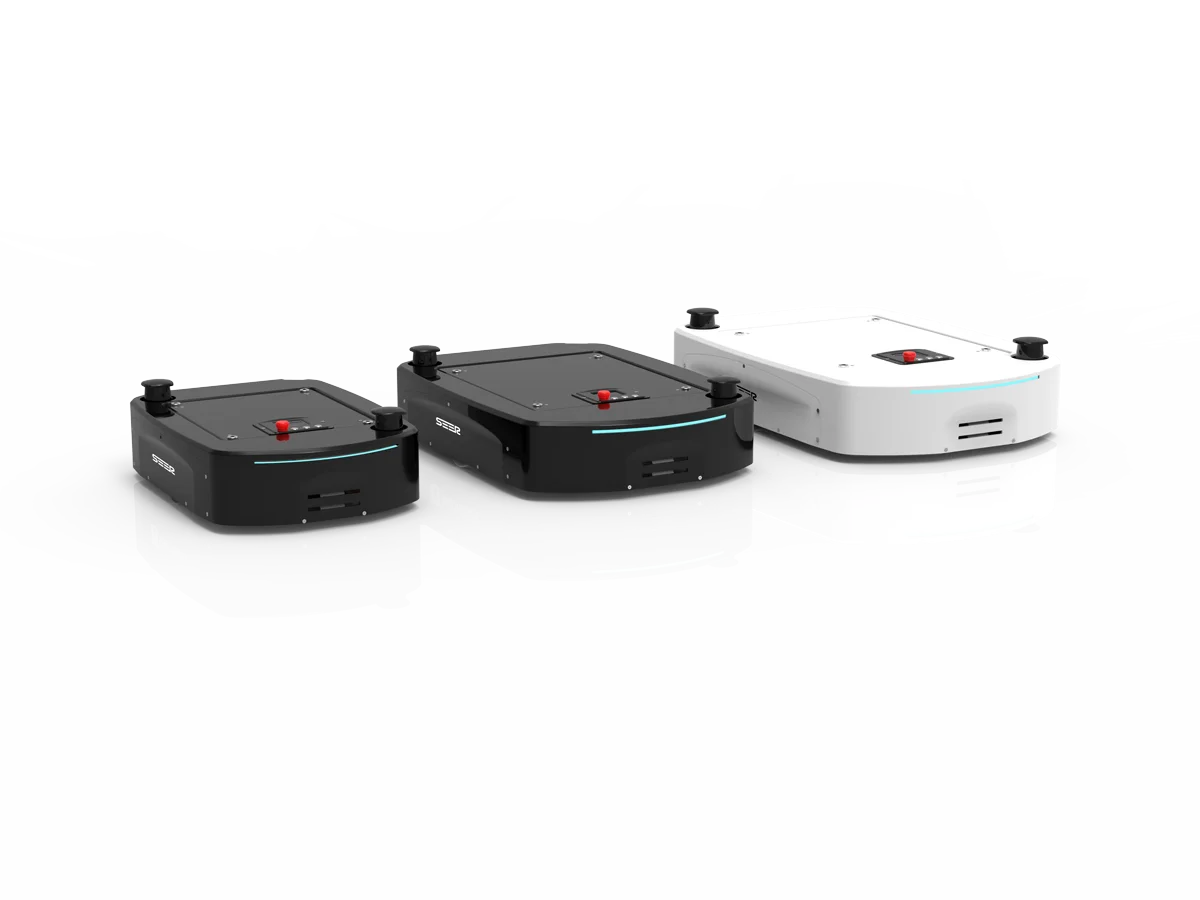

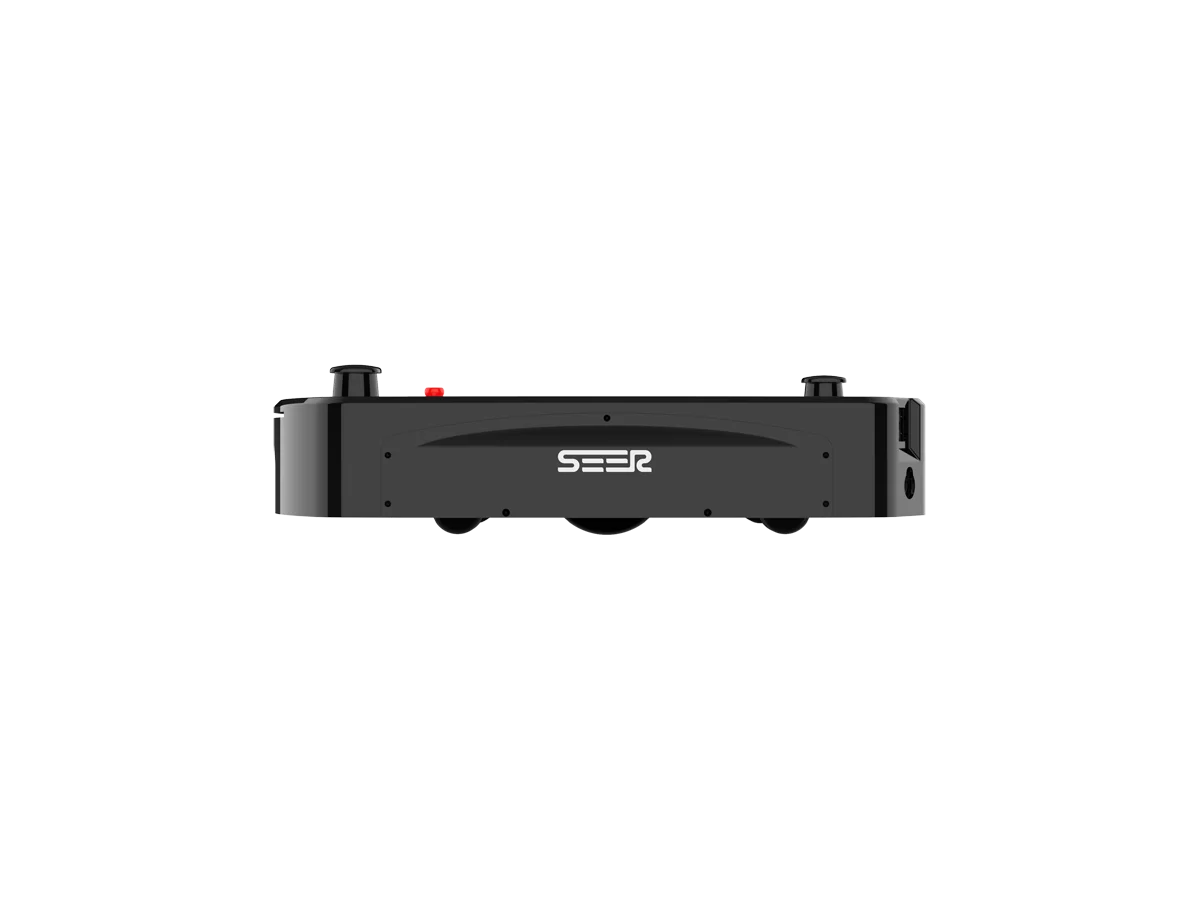

AMB Series Unmanned Chassis for AGV Autonomous Vehicle
AMB Series Unmanned Chassis AMB (Auto Mobile Base) for agv autonomous vehicle, a universal chassis designed for agv autonomous guided vehicles, provides some features such as map editing and localization navigation. This unmanned chassis for agv cart provides abundant extent interfaces such as I/O and CAN to mount various upper modules together with powerful client software and dispatching systems to help users quickly complete manufacture and application of agv autonomous vehicles. There are four mounting holes on the top of the AMB series unmanned chassis for agv autonomous guided vehicles, which supports arbitrary expansion with jacking, rollers, manipulators, latent traction, display, etc. to achieve multiple applications of one chassis. AMB together with SEER Enterprise Enhanced Digitalization can realize the unified dispatching and deployment of hundreds of AMB products at the same time, which greatly improves the intelligent level of internal logistics and transportation in the factory.
1. AMB series products are certified to EN ISO 12100, EN 60204-1, EN1526 and EN ISO 10218-2.
2. Built-in batteries of AMB series products are certified to PSE and granted UN38.3 conformity report for air, sea & land transportation as well as MSDS report.
3. AMB series products are tested to ESD by relevant authority.
4. AMB series products conform to EU's REACH Directive.
5. AMB series products are certified to RoHS for human health and environment protection.
6. The traction when using latent traction or hook. The friction coefficient is affected by the ground and the material of the universal wheel. Here, μ = 0.1 is taken as an example. If a weight is added to the car body, the traction can be increased to some extent (AMB300 is able to provide up to 500 N traction after a weight is added).
7. The road surface should be smooth, clean and free of obvious ups and downs. Slope 5% = arctan (0.05) ≈ 2.8°. The robot must not stop or turn at the ramps, steps, or gaps, but can pass quickly perpendicular to them.
8. The localization accuracy is affected by the environment, etc., subject to the interpretation of localization accuracy in the final technical agreement.
9. The basic features include but are not limited to map editing, model editing, positioning module, navigation module, basic motion model (differential), peripheral extension features (robot arm, roller, jacking, latent traction) and API interface.
10. It needs to be used with the automatic charging pile of SEER.
11. It needs to be used with a latent traction or jacking extension module.
12. A 3D camera needs to be installed in the peripheral extension for the feature.
13. AMB is designed for indoor transportation only and is not recommended for outdoor use.
2. Built-in batteries of AMB series products are certified to PSE and granted UN38.3 conformity report for air, sea & land transportation as well as MSDS report.
3. AMB series products are tested to ESD by relevant authority.
4. AMB series products conform to EU's REACH Directive.
5. AMB series products are certified to RoHS for human health and environment protection.
6. The traction when using latent traction or hook. The friction coefficient is affected by the ground and the material of the universal wheel. Here, μ = 0.1 is taken as an example. If a weight is added to the car body, the traction can be increased to some extent (AMB300 is able to provide up to 500 N traction after a weight is added).
7. The road surface should be smooth, clean and free of obvious ups and downs. Slope 5% = arctan (0.05) ≈ 2.8°. The robot must not stop or turn at the ramps, steps, or gaps, but can pass quickly perpendicular to them.
8. The localization accuracy is affected by the environment, etc., subject to the interpretation of localization accuracy in the final technical agreement.
9. The basic features include but are not limited to map editing, model editing, positioning module, navigation module, basic motion model (differential), peripheral extension features (robot arm, roller, jacking, latent traction) and API interface.
10. It needs to be used with the automatic charging pile of SEER.
11. It needs to be used with a latent traction or jacking extension module.
12. A 3D camera needs to be installed in the peripheral extension for the feature.
13. AMB is designed for indoor transportation only and is not recommended for outdoor use.
