Характеристики
FEATURES AT A GLANCE

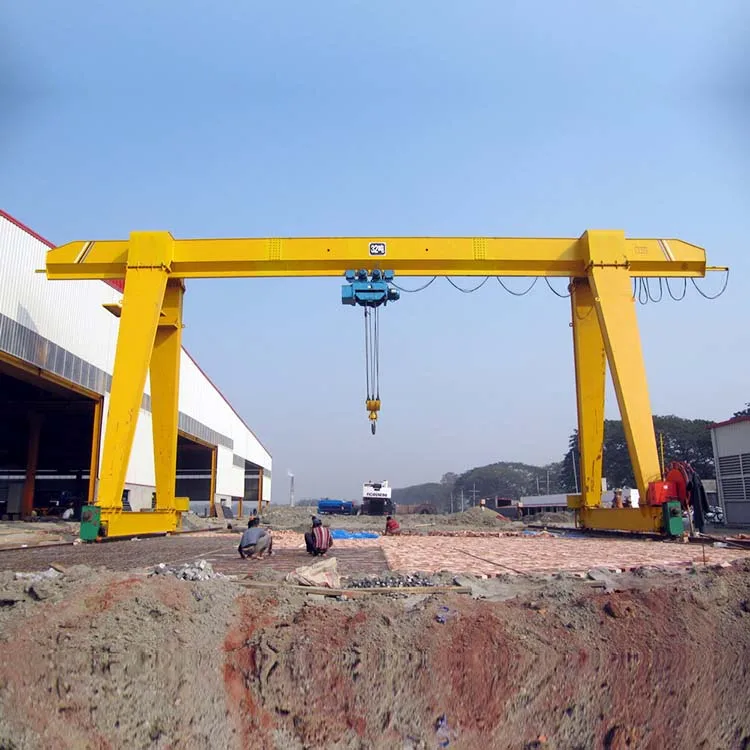

20t Lifting Remote Control Single Beam Gantry Crane With Electric Hoist For Outdoor Using

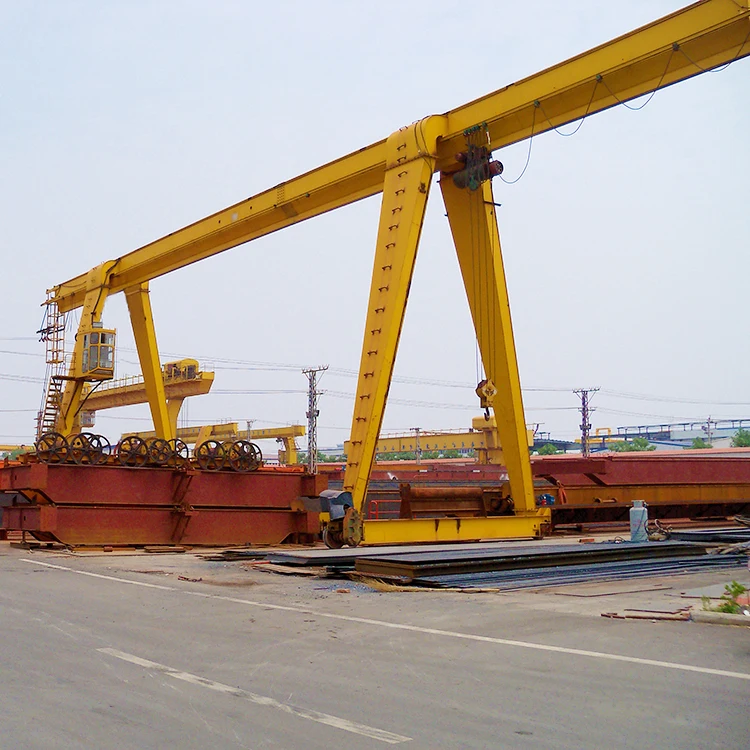

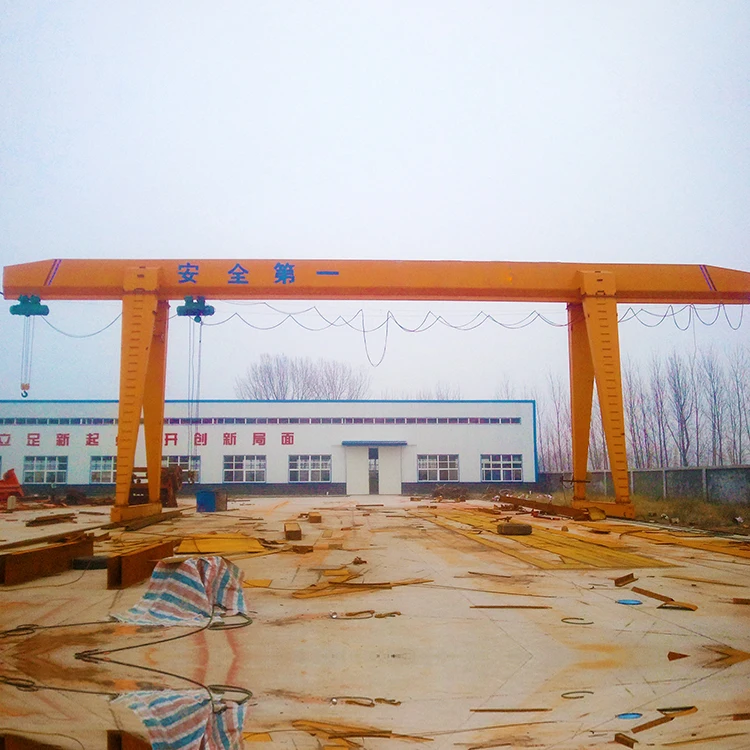

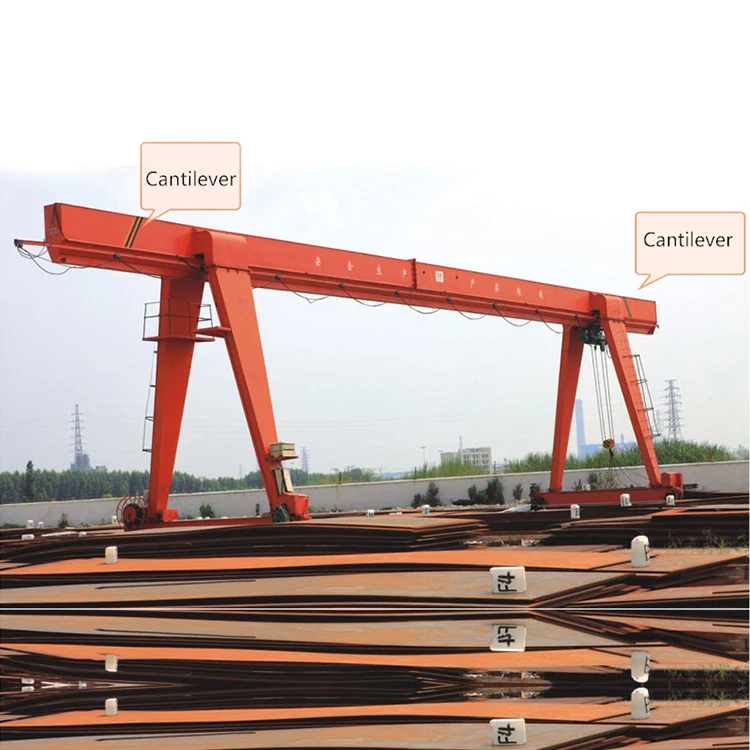

MH type single girder gantry crane has box type and truss type, the former have good techniques and easy fabrication, the latter is light in dead weight and strong in wind resistance. For different usage, MH gantry crane also has cantilever and non-cantilever gantry crane. If have cantilevers, the crane can load the goods to the crane edge through the supporting legs which is very convenient and high efficiency.
Main Features of MH model Gantry Crane:
1. Simple and compact structure, steady performance.
2. Easy to install and high efficiency.
3. Overload, low voltage protective device.
4. Pendent control and remote control.
5. Easy maintenance.
1. Simple and compact structure, steady performance.
2. Easy to install and high efficiency.
3. Overload, low voltage protective device.
4. Pendent control and remote control.
5. Easy maintenance.
6. Preventing hook clashing the top, set shields and barriers.
7. Circuit self-test protection device, running the travel limit to protect the current lacking of any phase.
8. Outdoor cranes are equipped with lifting mechanism, electrical control box and rainproof devices.
9. Anti-collision, sound and light alarm devices. Equipped with rail clamp.
7. Circuit self-test protection device, running the travel limit to protect the current lacking of any phase.
8. Outdoor cranes are equipped with lifting mechanism, electrical control box and rainproof devices.
9. Anti-collision, sound and light alarm devices. Equipped with rail clamp.
PRODUCT CONFIGURATION
Main girder
1. Steel plant material Q235B/Q345B with seamless once forming.
2. CNC Cutting for complete steel plant.
3. Epoxy zinc-rich painting.
Hoist1. Capacity: 1-50t
2. Protection class F class
3. Single/Double speed, with traveling trolley and reducer, drum and motor, include overload limiter switch
2. Protection class F class
3. Single/Double speed, with traveling trolley and reducer, drum and motor, include overload limiter switch
Outrigger
The legs are welded with high strength steel, and the rollers are installed below for easy movement.
Wheels
The wheels of crane crab, main beam and end carriage are produced in our special Vacuum Casting workshop.
Hook
1. Capacity: 1-450t
2. Type: Single hook, double hooks.
3. Drop Forged Hook, Plain ‘C’ type, Swiveling on Thrust Bearing, equipped with belt buckle and wire ropes sheath.

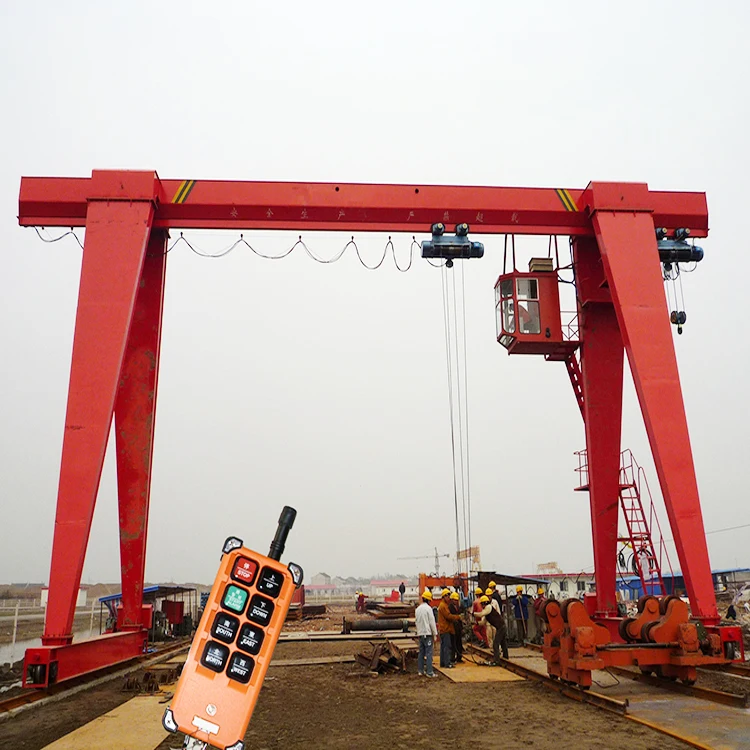

Wireless Remote Control
1. Model: F21 F23 F24 Speed: Single speed, double speed. VFD control2. Life of 500000 times;
PRODUCT SPECIFICATIONS
Rated load/ton | 5 | 10 | 16 | 20 | |||
Span/m | 10-40 | ||||||
Lifting height/m | Max 30 | ||||||
Working class | A3/1bm | ||||||
Lifting speed/m/min | 8 | 7 | 3.5 | 3.5 | |||
Trolley running speed/m/min | 20 | ||||||
Crane running speed/m/min | 20 | ||||||
Dead weight/t | 10.5-37.5 | 16.8-52 | 18.9-65 | 24.5-77 | |||
Attention:
Safety is the most important issue for cranes.
Safety is the most important issue for cranes.
1. Our safety device for QD type overhead crane: Overload limiter, Limit Switch (lifting and traveling), Interlock protection device, Buffer, Overhaul cage, Rail clear plate, Protective cover, Bus bar prevent plate, Anti-collision device, Main isolating switch, Emergency stop system, Motor overload protection, and others you required.
2. To ensure the safety, it is prohibited to use the equipment in the combustible, explosive or corrosives environment.
(Need explosion proof type for this, please refer to our related product).
RELATED PRODUCT
BMH Type semi gantry crane
Model: BMH type
Capacity: 3-16 ton
Hoisting height: 3-9m
Span: 5-20m
Control: Wireless remote control, cabin control
Model: BMH type
Capacity: 3-16 ton
Hoisting height: 3-9m
Span: 5-20m
Control: Wireless remote control, cabin control
MG Type double girder gantry crane
Model: MG
Capacity: 5-800ton
Hoisting height: 1-30m
Span: Max 35m
Control: Remote control, Cab control
Model: MG
Capacity: 5-800ton
Hoisting height: 1-30m
Span: Max 35m
Control: Remote control, Cab control
MH Truss type gantry crane
Model: MH truss type
Capacity: 5-20 ton
Hoisting height: 1-10m
Span: 12-30m
Control: Wireless remote control, cabin control
Model: MH truss type
Capacity: 5-20 ton
Hoisting height: 1-10m
Span: 12-30m
Control: Wireless remote control, cabin control
U Type container gantry crane
Model: QC
Capacity: 5-320ton
Hoisting height: 1-30m
Span: Max 31.5m
Control: Remote control, Cab control
Model: QC
Capacity: 5-320ton
Hoisting height: 1-30m
Span: Max 31.5m
Control: Remote control, Cab control
COMPANY PROFILE
Certifications:
We have passed CE, GOST, SGS, and OHSAS & ISO9001:2000 international quality control, ISO14001:1996 environment and ISO9001:2001 health and safety certifications. We have a perfect quality-control system, a strict management system, and strong production capability and advanced testing measures to ensure the high production and high quality.
Customers visit
Click it you can find our all customers cases.
PRODUCT PACKAGING
Main Girder
Girder will be packed with water-proof plastic woven cloths and shipped with containers.
Spare parts
Electric and other spare parts are packed by high quality plywood crate.
FAQ
Q1: What's the information should I provide when inquiry?
A1: More details or drawings, better.
A: Lift capacity B: span C: lift height D: power source or other specials you give us will be more appreciated.
Q2: What do Henan Mine Crane do?
A2: We design, manufacture, install overhead crane, gantry crane, port crane, hoists, winch and provide customer lifting solutions.
Q3: What makes you different from other manufactures?
A3: We have trained service technicians who will be able to get your material handling equipment up and running and have been providing our customers and effective service solution.
Q4: What area do you service? How can we install the crane?
A5: We mainly service in China and our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
A3: We have trained service technicians who will be able to get your material handling equipment up and running and have been providing our customers and effective service solution.
Q4: What area do you service? How can we install the crane?
A5: We mainly service in China and our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
Q6: Can this type work in hazardous environment?
A7: Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q8: Can you provide the various lifting tools?
Q8: Can you provide the various lifting tools?
A8: Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
